| Material: | Q235 Carbon Steel | Thickness: | 4 Mm |
|---|---|---|---|
| Fuel: | Diesel | Driving Type: | 4*2, Left/right Hand Driving |
| Pump: | China Famous Brand/International Brand | Suction Height: | 7 Meters |
| Water Canon Range: | 30 Meters | Sprinkling Width: | 14 Meters |
| Operating Video: | Yes | Use Manual: | Yes |
| Front Spray And Rear Spray: | Yes | Warranty: | One Year |
| LOGO: | As Per Customer's Request | ||
| High Light: | 10CBM Water Bowser Truck,FAW Water Bowser Truck,FAW Water Sprinkler Truck |
||
CHINA FAW Brand 10CBM water bowser truck water sprinkler tank truck with cheap price
Water bowser truck, is also called as the sprinkler, and multi-function green watering truck.
It is mainly used in city road, large factory area, army, landscape garden and other departments for leaning the pavement, sanitation, dust-proof, watering, and spraying farming chemicals for beautify the environment.
From another point, while being urgent, the sprinkler is also used as the fire fighting truck.
The sprinkler is equipped with front, rear and side sprinkler head, and then it covers large watering fields, making great efficiency.
This kind of the watering truck could be one most important kind in all environmental trucks.
Description
1. Optional chassis brand: Dongfeng, Sinotruk, Foton, Faw, Shacman, Isuzu;
2. Water Tank Material: High Tension Steel Q235/Q345,stainless steel 304B for option.
3. Reliable and high quality water pump
4. Optional for insulation layer which is suitable for warm water delivery.
Specification
| Items | Parameter | ||
| Water Tank Parameter | Tank Capacity | 10,000Liters | |
| Tank Material | Carbon Steel Q235 (Q345 for optional) | ||
| Overall dimension (mm) | Length | 7500 | |
| Width | 2500 | ||
| Height | 3020 | ||
| Sprinkler Width | ≥14m | ||
| Sprinkler Speed | 0-20km/h | ||
| Gun range | ≥28-30m | ||
| Flow | 40m³/h | ||
| Rotation | 360° | ||
| Gun position | Front; Rear; two sides | ||
| Chassis | Chassis Brand | FAW | |
| Drive Mode | 4x2 | ||
| Tire type | 9.00-20 tire | ||
| Tire No. | 6+1 units | ||
| Max speed | 90 km/h | ||
| Cab |
1. Flat roof, All-steel-welded construction 2. Spring suspensions with hydraulic shock absorbers 3. Air condition 4. 2 seats 1-DIN AM/FM CD/MP3 Player |
||
| Engine | Power | 118 kw / 160hp | |
| Fuel type | diesel | ||
| Emission Standard | Euro 3 & Euro 4 | ||
| Gearbox | Control type | Manual | |
| Gear | 8 forward & 1 reverse | ||

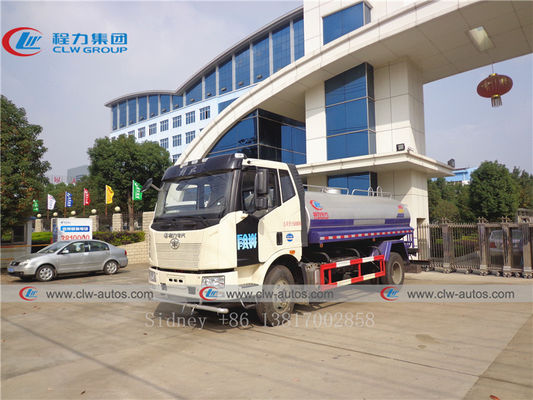

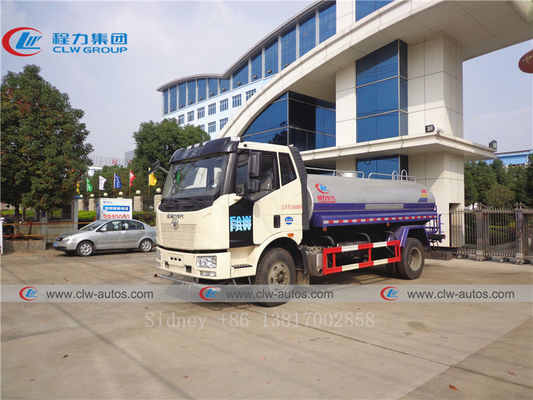

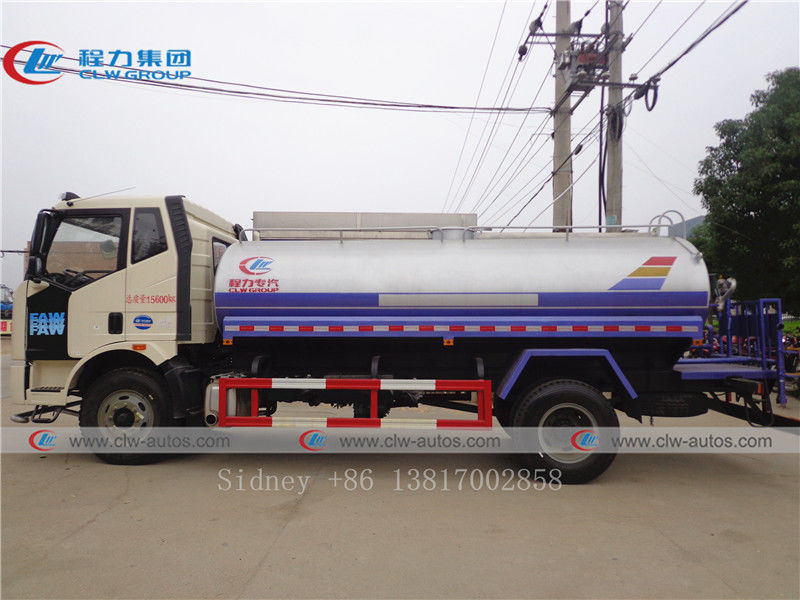

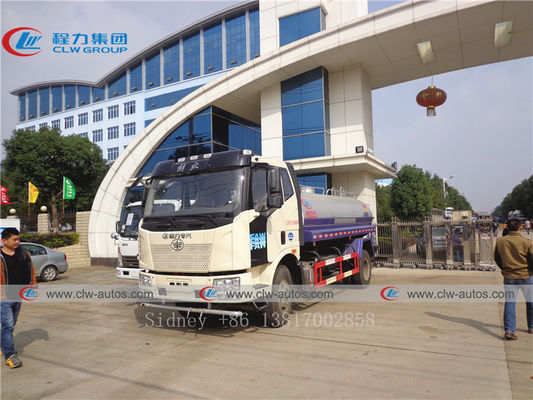

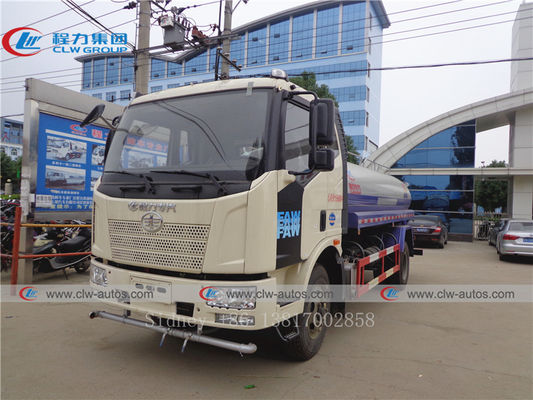

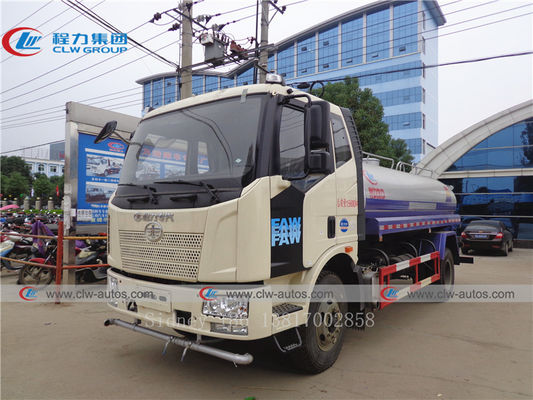

Reference photos for FAW water bowser truck
Water Truck Diagram
Working Show
Truck Details
Water bowser truck production line
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
