Product Details:
Payment & Shipping Terms:
|
| Material: | Q235 Carbon Steel | Thickness: | 4 Mm |
|---|---|---|---|
| Fuel: | Diesel | Driving Type: | 6x4, Left/right Hand Driving |
| Pump: | China Famous Brand/International Brand | Suction Height: | 7 Meters |
| Water Canon Range: | 30 Meters | Sprinkling Width: | 14 Meters |
| Operating Video: | Yes | Use Manual: | Yes |
| Front Spray And Rear Spray: | Yes | Warranty: | One Year |
| LOGO: | As Per Customer's Request | ||
| High Light: | 6x4 Water Sprinkler Truck,Dongfeng Kinland Water Sprinkler Truck,Dongfeng Kinland Water Bowser Truck |
||
20000L Dongfeng 6x4 Kinland Water Sprinkler Truck Water Bowser Truck
1. Optional chassis brand of portable water truck: Dongfeng, Isuzu, Sinotruk, FOTON/Forland, Faw, Shacaman, etc.
2. Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.
3. Sprinking Width of portable water truck: ≥14M
4. Rear working platform with water cannon range of portable water truck: ≥28M
5. Reliable and high quality water pump
Product specifications
| Items | Descriptions | Specifications and Types | |
| General | Truck Name | 20000L Dongfeng Kinland Water Bowser Truck | |
| Drive Type | 6*4 | ||
| Gross Weight(kg) | 25000 | ||
| Curb Weight (kg) | 10805 | ||
| Approx.Overall Dimensions (mm) | 9980×2500×3350 | ||
| Engine | Engine Model | ISDe245 40 | |
| Engine Brand | Cummins | ||
| Fuel Type | Diesel | ||
| Power | 180kw/245HP | ||
| Emission Standard | Euro V | ||
| Displacement(ml) | 6700 | ||
| Engine Type | 6 cylinders in line, inter cooler, supercharged diesel engine | ||
| Chassis | Chassis Brand | Dongfeng | |
| Chassis Model | DFL1250 | ||
| Cabin | One row with single sleeper, titled, flat roof,with ac | ||
| Tire No. | 10+1 | ||
| Tire Specification | 11.00R20 All Steel tire | ||
| Axle No. | 3 | ||
| Steering Wheel | Left hand drive with power-assisted | ||
| Gear Box | FAST 8 speed forward with 1 reverse, manual | ||
| Brake | Air brake | ||
| Tank | Tank Volume(L) | 20,000 | |
| Tank Shape | Rectangular | ||
| Tank Material | Carbon Steel, 5mm thick | ||
| Performance | Spraying Width(m) | 14 | |
| Canon Range(m) | 28 | ||
| Equipment |
1.Front flushing , side spraying, rear sprinkling nozzle and platform with water cannon and water gun. 2.The water cannon can be rotated 360 degree. The water flow can be adjusted to heavy, medium, light rain, drizzle and mist. 3.Water suction depth is about 7m. |
||

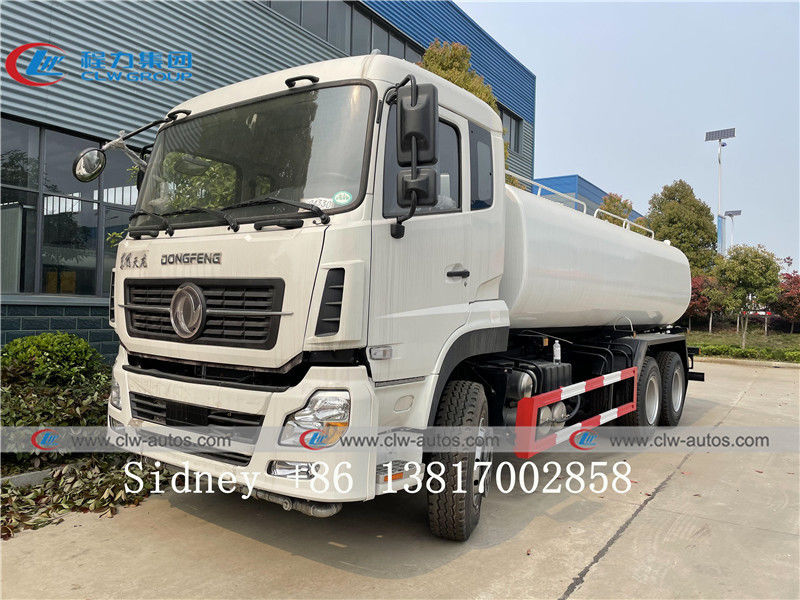

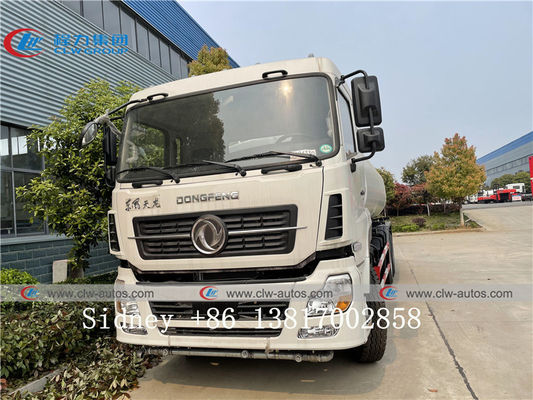

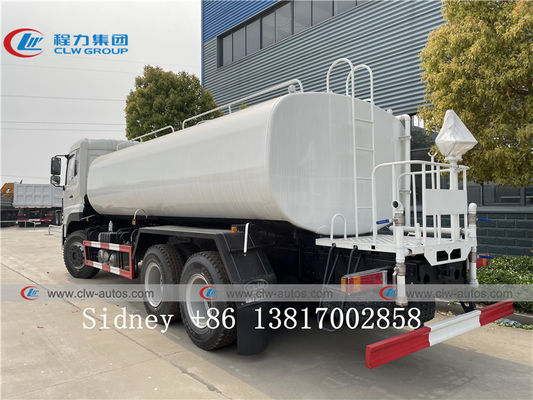

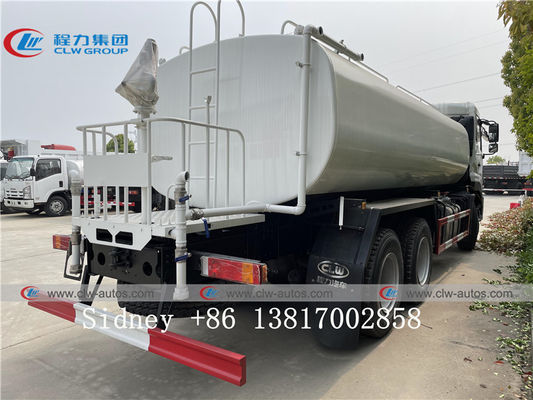

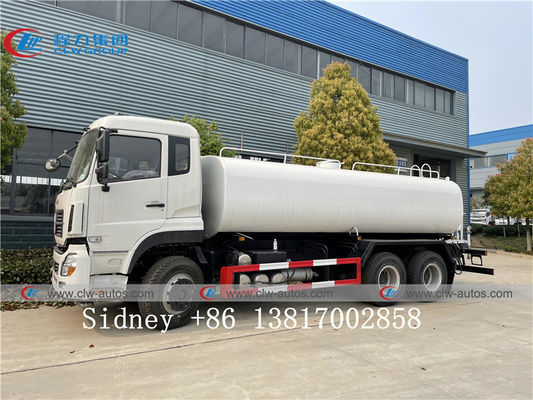

Reference photos for Dongfeng Kinland water bowser truck
Water Truck Diagram
Working Show

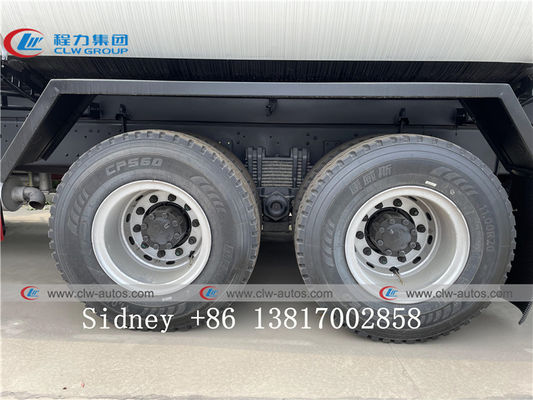

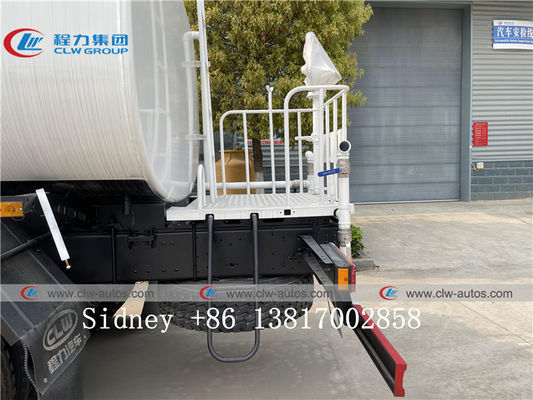

Truck Details
Water bowser truck production line
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
