Dongfeng 10000L Dust Suppression Water Tank Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Dongfeng 10000L Dust Suppression Water Tank Truck

Dongfeng 10000L Dust Suppression Water Tank Truck
Dongfeng 10000L Dust Suppression Water Tank Truck Dongfeng 10000L Dust Suppression Water Tank Truck Dongfeng 10000L Dust Suppression Water Tank Truck Dongfeng 10000L Dust Suppression Water Tank Truck Dongfeng 10000L Dust Suppression Water Tank Truck Dongfeng 10000L Dust Suppression Water Tank Truck

Large Image :  Dongfeng 10000L Dust Suppression Water Tank Truck

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW
Certification: CCC, ISO, GCC
Model Number: CLW5788

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: USD27925-36852
Packaging Details: Naked packing,Ro-ro,Bulk Ship
Delivery Time: 20-30 Days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500Unit Per Month
Detailed Product Description
Material: Q235 Carbon Steel Thickness: 4 Mm
Fuel: Diesel Driving Type: 4*2, Left/right Hand Driving
Pump: China Famous Brand/International Brand Suction Height: 7 Meters
Water Canon Range: 30 Meters Sprinkling Width: 14 Meters
Operating Video: Yes Use Manual: Yes
Front Spray And Rear Spray: Yes Warranty: One Year
LOGO: As Per Customer's Request
High Light:

10000L Water Tank Truck

,

Dongfeng Water Tank Truck

,

Dongfeng Dust Control Water Truck

Dongfeng 10000 Liters Dust Suppression Water Tank Truck Water Bowser Water Sprinkler Dust Control Truck


Description:

1) Dust suppression spray device:
The closed hydraulic system is driven by the chassis full power take-off device. Thanks to the hydraulic system that directly drives the spray fan, the energy efficiency is high and the spray range is very long. The fan adopts alloy blades, and the fan has three levels silencers that make the working noise is low.

2) Low pressure flushing device

Standard devices include front duckbill flushing, cone hedging, rear sprinkler nozzle, remote water cannon, greening irrigation, pressure outlet interface, etc.

Automatic washing device is optional installed, which can move up and down, rotate around and change the shape of water column.

Advantage:

1. Water, disinfectant, dust suppressant and other liquid materials can be added in the tank, and the spray arm can rotate 360 degrees;

2. Contact induction spray system, uniform spraying, suitable for different size cars and vehicles, no spillage, spray arm with vehicle number recognition and recording function.

3. Simple operation: In the cab, all the operation functions of the vehicle can be completed.

Specifications:

Production name Dongfeng 6x4 10000Liters water tank dust suppression truck
Type 6x4, Left hand drive
Weights
Payload weight (kg) 10000
Curb weight (kg) 14100
Dimensions
Wheelbase(mm) 4650+1350
Overall Dimension(mm) 11280×2480×3550
Box/tank capacity 10000Liters
Engine
Engine model B245 33
No of cyliner straight-8 cylinder
Displacement(ml) 8900
Rated power 180kw/245hp
Emission standard EURO 5/6
Drive Line
Transmission Fast, 9 forwards, 1 reverse gear, Manual operation
Steering Power steering
Brake Air brake
Cab
Cabin One row and half, 3 persons allowed
Configuration standard Air conditioner, electric window, ABS, central locking
Tire 11.00R20 standard tire, 10 tires+1 spare tire
Water specification
Water tanker material High quality carbon steel (Q235).
Introduction 1. Suction≥7m Sprinkler width≥14m Range≥28m
2. with front spout, back spill and side spout function
3. with the working platform at the back, wich can be installed green high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.)
4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function.
Manhole Man way access hole on top of tank;1 units DN500mm manhole
Horse reels Two hose reels at each side of the truck
Water pump Water pump model: CLW80QZF-60/90N (N/S)
Water pump flow rate(L/m): 60m3/h
Head of delivery(m): 90m
Self-priming function(min/4m):1.5
Efficiency(%):95%
Related rotate speed(r/min)1180
matched power(kw):22


Reference photos

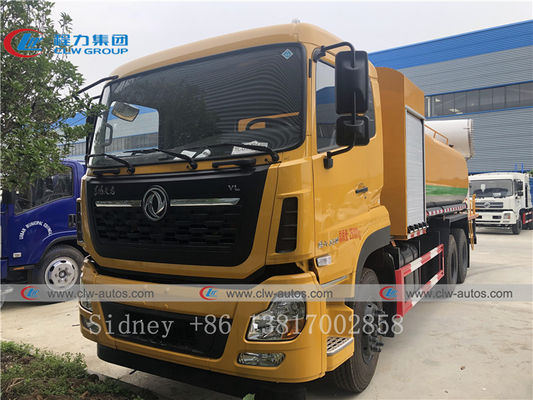

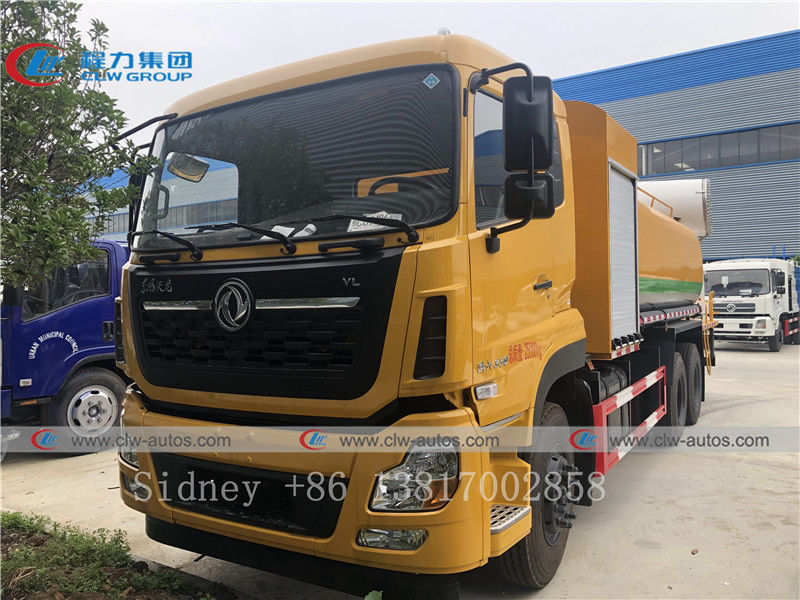

Dongfeng 10000L Dust Suppression Water Tank Truck 0

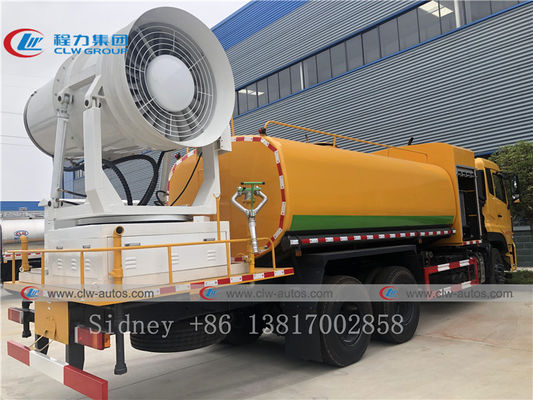

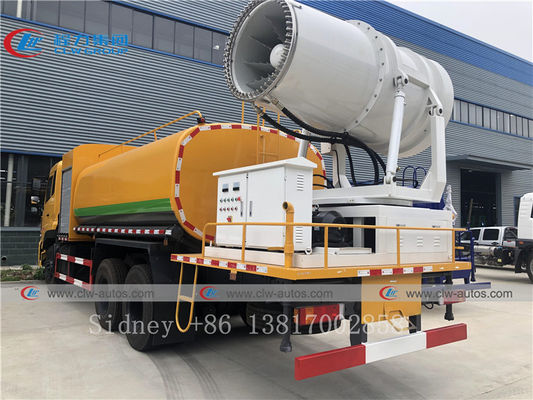

Dongfeng 10000L Dust Suppression Water Tank Truck 1Dongfeng 10000L Dust Suppression Water Tank Truck 2

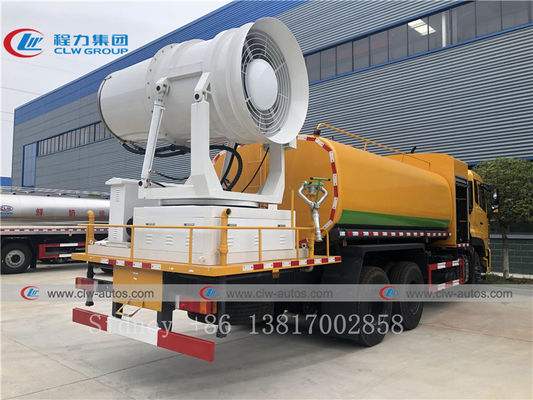

Dongfeng 10000L Dust Suppression Water Tank Truck 3

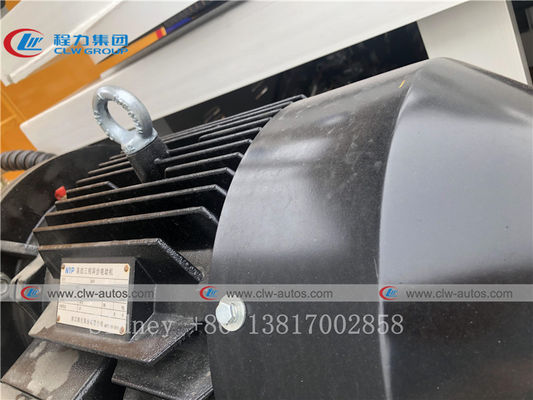

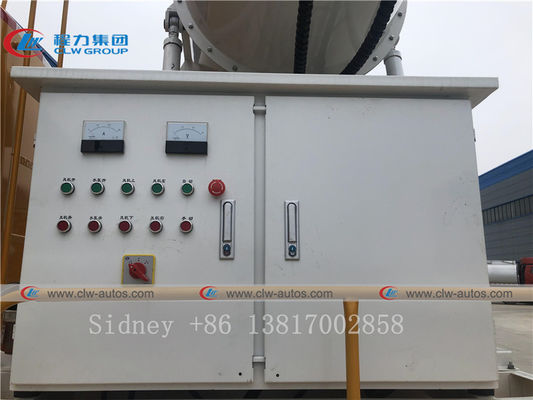

 Truck Details
Dongfeng 10000L Dust Suppression Water Tank Truck 4

Dongfeng 10000L Dust Suppression Water Tank Truck 5


Production line

Dongfeng 10000L Dust Suppression Water Tank Truck 6



Factory overview

Dongfeng 10000L Dust Suppression Water Tank Truck 7

Dongfeng 10000L Dust Suppression Water Tank Truck 8



The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.

Products Catalog:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor truck
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )



Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



Spare Parts



1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.



After Sales Service



Email & Phone call tracking for each truck on timely manners.



Shipment



Land transportation or Ship by bulk cargo ship, container, roro ship
