Dongfeng Tianjin DFAC 10 To 14CBM Garbage Compactor Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Dongfeng Tianjin DFAC 10 To 14CBM Garbage Compactor Truck

Dongfeng Tianjin DFAC 10 To 14CBM Garbage Compactor Truck
Dongfeng Tianjin DFAC 10 To 14CBM Garbage Compactor Truck Dongfeng Tianjin DFAC 10 To 14CBM Garbage Compactor Truck Dongfeng Tianjin DFAC 10 To 14CBM Garbage Compactor Truck Dongfeng Tianjin DFAC 10 To 14CBM Garbage Compactor Truck Dongfeng Tianjin DFAC 10 To 14CBM Garbage Compactor Truck Dongfeng Tianjin DFAC 10 To 14CBM Garbage Compactor Truck

Large Image :  Dongfeng Tianjin DFAC 10 To 14CBM Garbage Compactor Truck

Product Details:

Place of Origin: China
Brand Name: CLW / Chengli
Certification: CCC,ISO,
Model Number: CLW5537

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Naked Pack with Wax
Delivery Time: 20-30 Days
Supply Ability: 500Unit Per Month
Detailed Product Description
Box Material: Carbon Steel Q235B Truck Brand: Dongfeng Tianjin
Tank Volume: 10-14cbm Truck Engine: Cummins
Gearbox: Fast 8 Forward & 1 Reverse Tire: 10.00-20, 10.00R20, 11.00-20, 11.00R20
Axle: 5Ton Front Axle & 10Ton Rear Axle Garbage Truck Type: Compactor
High Light:

Dongfeng Tianjin Garbage Compactor Truck

,

DFAC Garbage Compactor Truck

,

14CBM Garbage Collection Truck

Dongfeng Tianjin DFAC 10-14CBM Garbage Compactor Truck Compressed Garbage Collecation Trucks


Description



1. Making garbage collection simple: change the dirty appearance of the city and eliminate the secondary pollution;

2. High compression ratio and large loading capacity which is 2 times larger than usual garbage truck;

3. Easy Full Automatic Operation: electrical control system for loading and unloading operations.

4. One Person Operation: Reducing sanitation work, greatly improves the working efficiency.

5. Double Operation System: electrical control system and manual operation greatly improves the vehicle usage rate.



Specification

Technical parameters
Name
Dongfeng Compression garbage truck
Outline size(mm)
8600×2495×3100
Chassis model
DFL1160
Gross weight(kg)
16000
Engine model
B190 33
Loading weight(kg)
5900
Power/Exhaust(Kw/ml)
140/5900
Curb weight(kg)
9905
Fuel type
Diesel
Wheelbase(mm)
4500/4700/5100
Axle load
6000/10000
Sping plate no.
7/9+6,8/10+8
Max speed(km/h)
90
Tire model / number
9.00-20,10.00-20
Approaching angle(°)
20
Front / rear track(mm)
1880/1800
Departure angle(°)
14
Front/rear hang(mm)
1430/2670
Upp structure configuration
Garbage capacity(m3):
10-14
Filled mouth along the ground clearance (mm):
860
Filling cycle time(s:)
30
Once unloading garbage working time (s):
40
Filled once loaded garbage time (s):
12
Max crushing compression force (T):
16
Max unloading force (T):
18
Filled Lifting time (S):
15

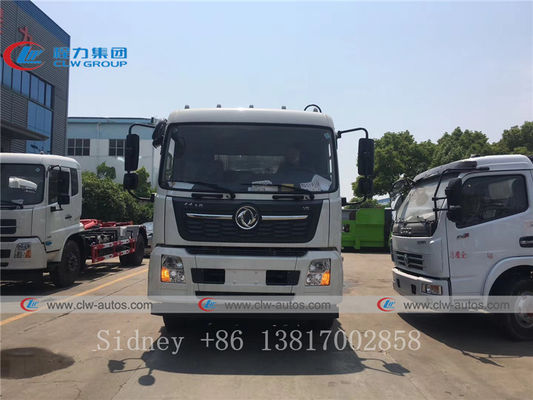

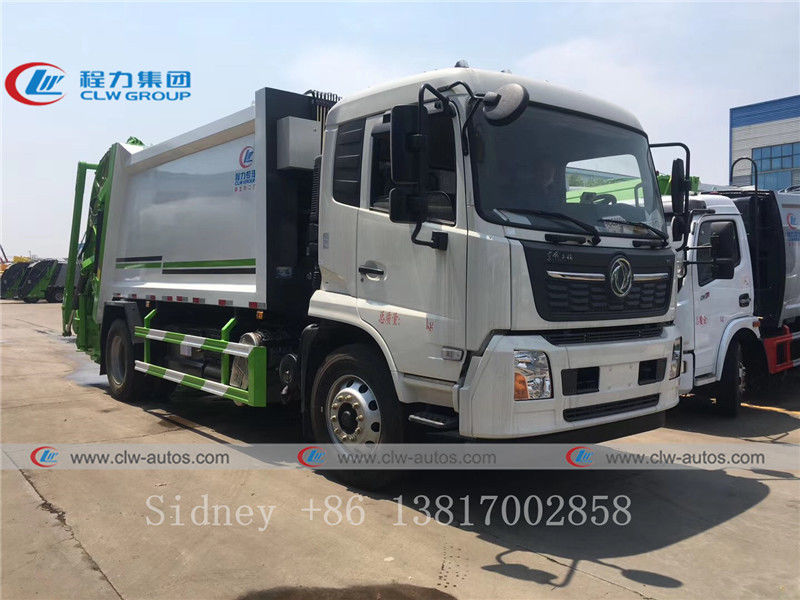

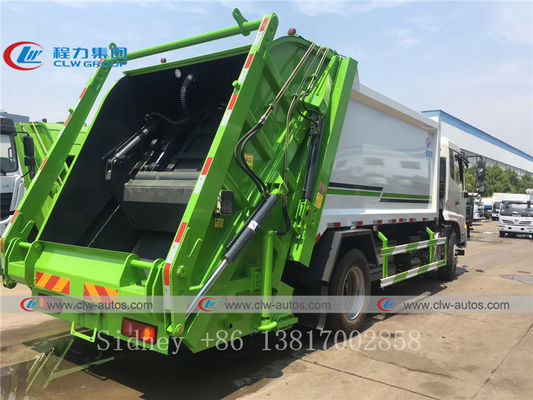

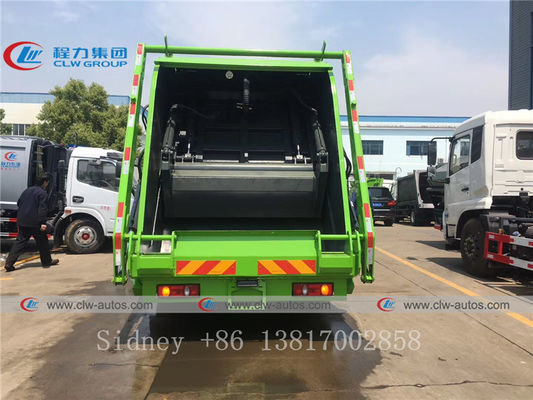

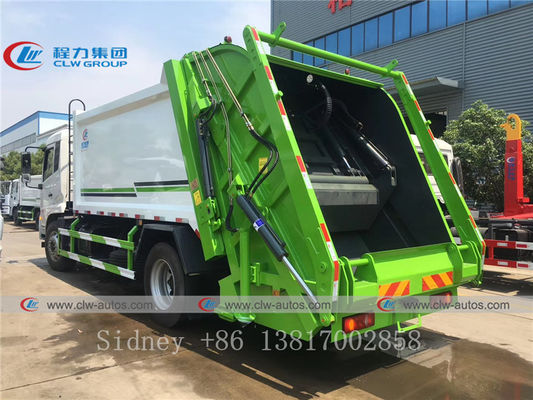

Reference photos

Dongfeng Tianjin DFAC 10 To 14CBM Garbage Compactor Truck 0Dongfeng Tianjin DFAC 10 To 14CBM Garbage Compactor Truck 1Dongfeng Tianjin DFAC 10 To 14CBM Garbage Compactor Truck 2

Dongfeng Tianjin DFAC 10 To 14CBM Garbage Compactor Truck 3



Truck diagram

Dongfeng Tianjin DFAC 10 To 14CBM Garbage Compactor Truck 4

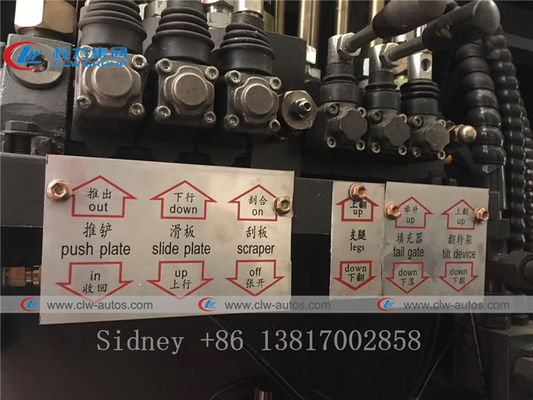

Main parts



Dongfeng Tianjin DFAC 10 To 14CBM Garbage Compactor Truck 5



Garbage Loading and Unloading Process

Dongfeng Tianjin DFAC 10 To 14CBM Garbage Compactor Truck 6



Factory overview

Dongfeng Tianjin DFAC 10 To 14CBM Garbage Compactor Truck 7

Dongfeng Tianjin DFAC 10 To 14CBM Garbage Compactor Truck 8

The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.

Products Catalog:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor truck
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Dongfeng Tianjin DFAC 10 To 14CBM Garbage Compactor Truck 9

Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment



FAQ



Q1: What kinds of garbage trucks I can order from your company?


A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.



Q2: Have you supplied garbage truck to any overseas companies?


A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.



Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
