Product Details:
Payment & Shipping Terms:
|
| Purpose: | Garbage Collection & Transport | Product Name: | Garbage Compactor Plant, Compressed Garbage Station |
|---|---|---|---|
| Drive Type: | 4X2 6WHEELS 6 WHEELER | Drive Model: | Left Hand Drive |
| Loading Capacity: | 4 Tons, 5 Tons, 6 Tons, 4T, 5T. 6T, 8T | Container: | Steel Material |
| Tuck Type: | Waste Collection Truck. | Other Equipment: | With Hyraulic Systerm |
| Capacity Options: | 8CBM, 10CBM, 12CBM, 14CBM | Discharging: | Self Discharging |
| Lifting Device: | Hydraulic Lifting | Control: | Electrical Key Control |
| High Light: | 20M3 Garage Trash Compactor,18M3 Garage Trash Compactor,16M3 Mobile Trash Compactor |
||

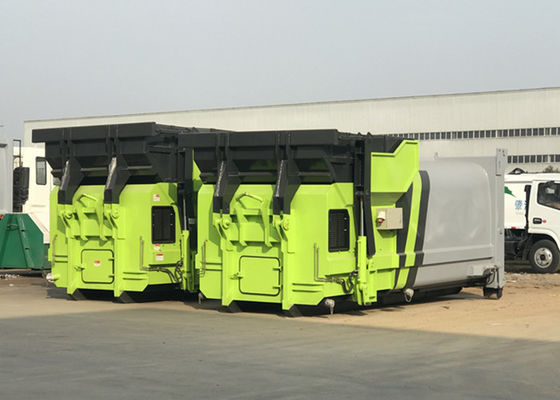

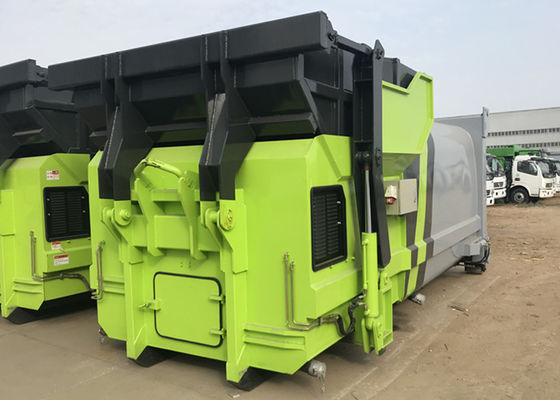

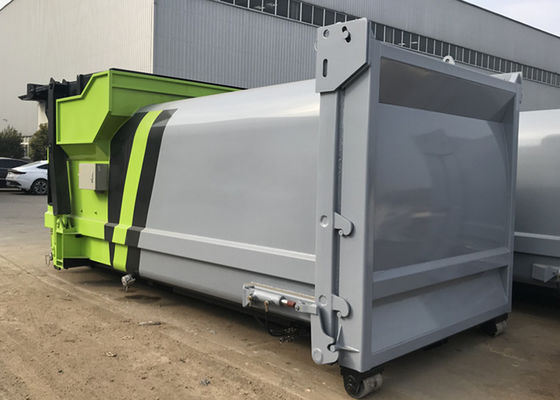

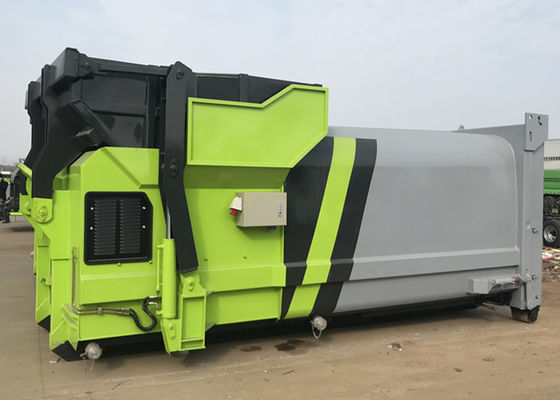

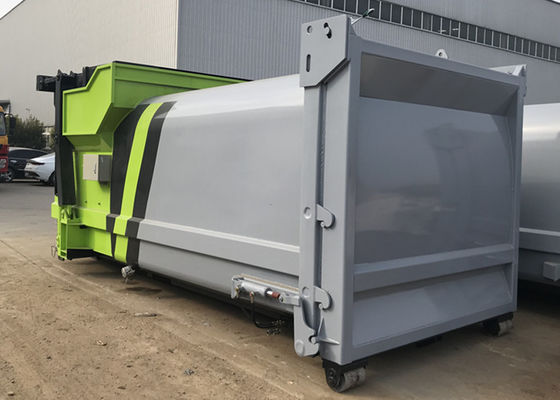

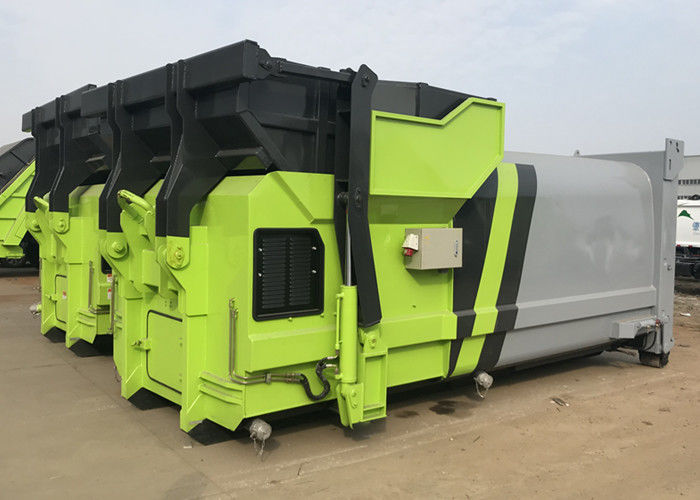

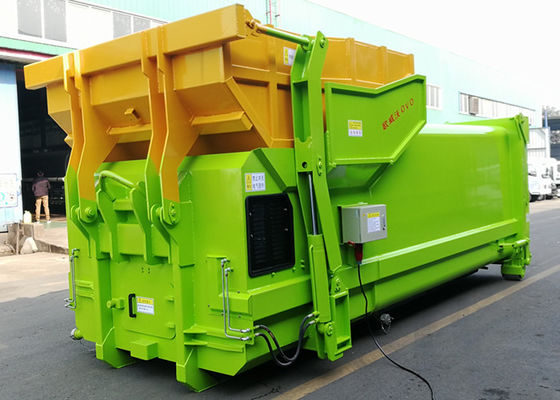

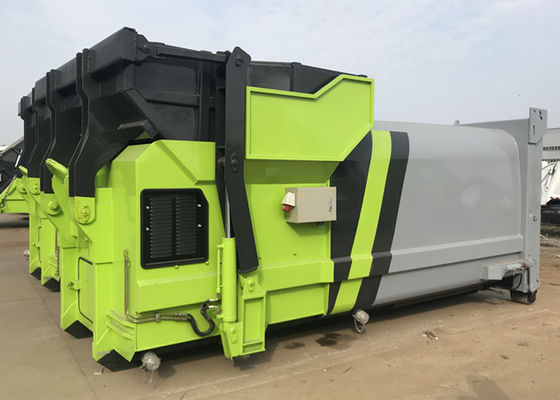

8M3~20M3 Garbage Compactor Plant, Mobile Compactor Garbage Compression Station
Product Description
8m3 to 20m3 mobile compactor garbage station Configuration
(1) Comprehensive equipment requirements:
The whole garbage compression equipment consists of compression chamber, compression head, hopper lifting device and hopper, compressed garbage storage part, rear door and sealing system, hydraulic system and control system.
(2) Compression cavity and compression head requirements:
1. The compression head has no guide rails, small gaps, and horizontal movement in the compression chamber; there should be a sewage outlet at the rear of the compression chamber, which is sealed by a fire protection joint.
2. Thickness of bottom plate of compression head: 16mm, thickness of bottom plate of compression chamber is 10mm. The thickness of the side wall of the storage box is 5mm.
(3) Rear door and sealing system:
1. The rear door is locked by a hydraulic locking device powered by a detachable garbage truck, which can be used to open, dump and lock the door in the cab.
2. The rear door is reliable in sealing, and adopts rubber seals with reliable quality, which has strong sealing performance and prevents the emission of odor and the leakage of sewage.
3. The rear door has dual hydraulic locking devices.
(4) Requirements of other organizations:
1. The towing device of the garbage container conforms to the supporting standard of the 1570mm arm truck.
2. The bottom beam of the garbage container conforms to the 1070 loading standard of the trolley truck.
(5) Equipment parameter requirements:
1. The compacted density of garbage ≥0.75t / m³
2. Pusher type: M-type pusher (the front of the pusher is M-shaped fold line)
4. The control system is controlled by PLC.
5. The control system must have functions such as oil temperature alarm system and liquid level alarm system
6. The hydraulic system is installed with effective filtering, heating and heat dissipation devices. The heat dissipation device can automatically start to ensure normal oil temperature and reliable operation of the hydraulic system.
7. The motor power is 7.5Kw, and the compression capacity is strong.
8. There is a reminder function when the box is full.
product Specification
| Mobile Garbage Compression Station | |
| Vehicle name | Mobile Garbage Compression Station |
| Hopper type | one-piece |
| Box volume(m³) | 20 |
| System normal pressure(Mpa) | 16 |
| Power of motor | 5.5(380V) |
| Maximum compression force of compressor(KN) | 360 |
| Compression head single stroke compression(m³) | 1.4 |
| A compression cycle time(s) | 23~33 |
| Compacted density (t/m³) | 0.75 |
| Effective volume of compression chamber(m³) | 3 |
| Over Dimension (mm) | 6385*2550*2584 |
| Effective width of hopper(mm) | 1870 |
| Hopper lifting mechanism lifting force(t) | 2.5 |
| Effective volume of hopper(m³) | 2.6 |
| Maximum operating noise(dB) | ≤65 |
| Oil temperature in the tank(℃) | <60 |
| Insulation resistivity of equipment (MΩ) | 350 |
| No-load running pressure of compressor(Mpa) | 3 |
| Back door working cycle time(s/1500r/min) | 5~8 |
| Hopper garbage delivery cycle time(s/1500r/min) | 5~8 |
| Push plate compresses a working cycle time(s/1500r/min) | 18~25 |
| Back door open angle(°) | 85 |
| Remote control distance(m) | 30 |
| Unhook center from the ground height(mm) | 1570 |
| The bottom 2 stringers with outer space(mm) | 1060 |
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
