Product Details:
Payment & Shipping Terms:
|
| Truck Chassis: | Dongfeng,Howo,ISUZU,Shacman,CAMC,Foton | Overall Size: | 8250*2480*3310mm |
|---|---|---|---|
| Tank Capacity: | 11tons/11CBM | Type: | Water Tank Fire Truck,foam,dry Powder Fire Truck,rescue Fire Truck |
| Cabin Seats: | 2+3 | Fire Pump: | Chinese Brand |
| Fire Monitor Range: | ≥50M | Flow Rate Of Monitor: | 48L/s |
| Flow Rate Of Pump: | 60L/s | Steering: | LHD Or RHD |
| High Light: | 11cbm Water Tank Fire Fighting Truck,Dongfeng 145 Fire Fighting Truck,Dongfeng 145 Fire Fighter Truck |
||

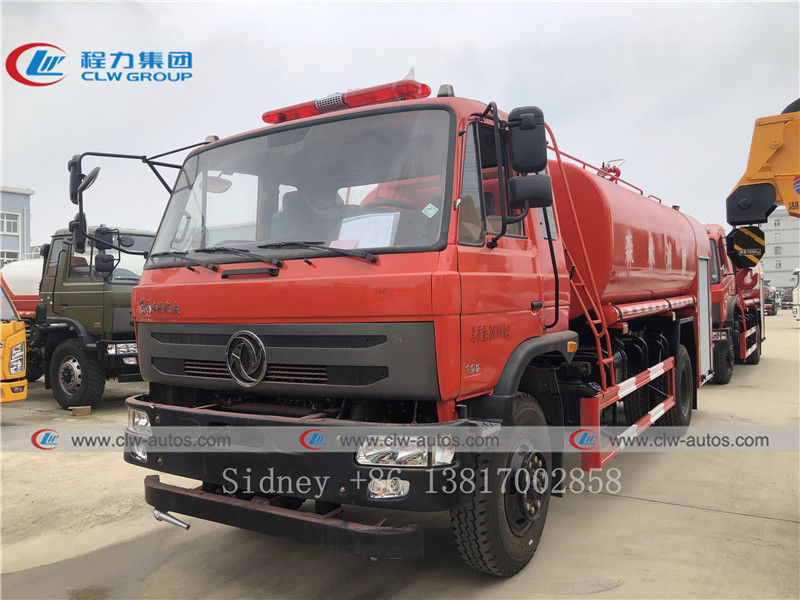

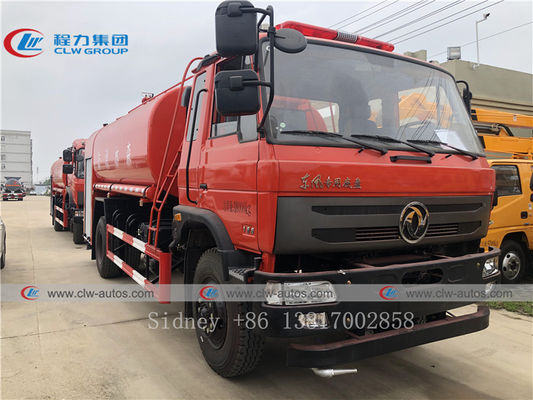

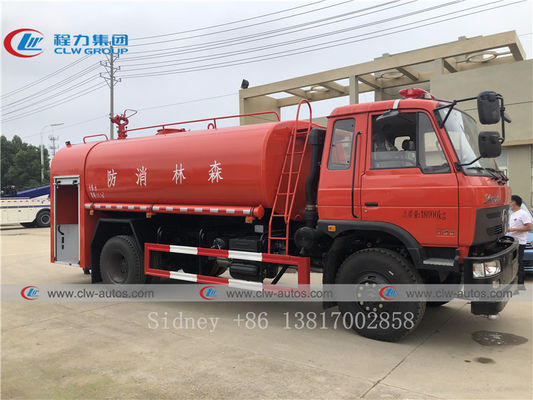

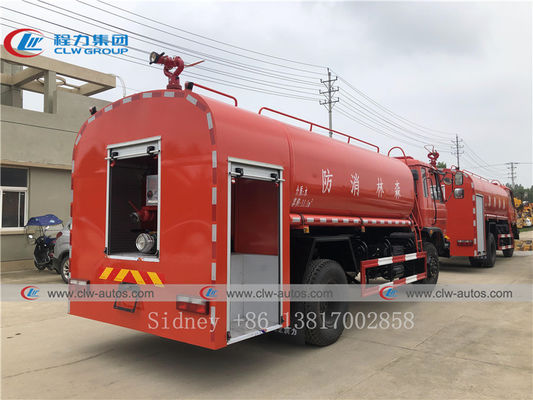

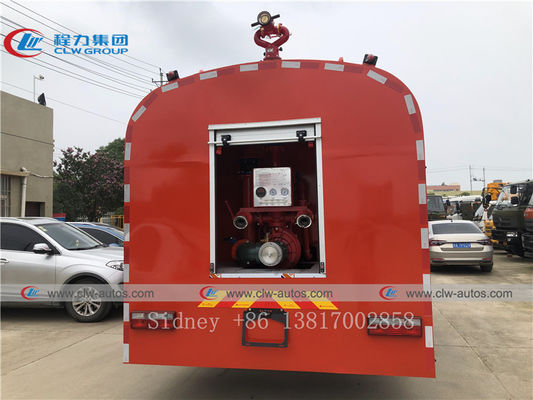

Dongfeng 145 model 4x2 11000Liters 11cbm water tank forest protection fire engine Fire fighting Truck
Description
Fire fighting truck, which is also called water fire engine,water foam fire truck,fire fighting equipment, fire appliance truck, foam fire tanker, water foam pumper, light rescue apparatus, fire fighting vehicle, foam discharging truck, foam tanker fire truck is a special vehicle designed primarily for fire fighting operations and to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.
Fire Fighting Trucks can be divided into several types:
1-- According to vehicle size, there are mini fire fighting truck,light fire fighting truck,medium fire fighting truck, heavy-duty fire fighting truck.
2-- According to chassis drive type, there are 4X2 or 6-wheel fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck for military use.
3-- According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck,Scania fire fighting truck and so on.
4-- According to fire extinguishant,there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck
5-- There are also fire rescue truck with special purpose as follows,
-- Forest protection fire truck
-- Foam supply fire truck;
-- Compressed air supply fire fighting truck;
-- Water tower fire truck ;
-- Earthquake rescue fire truck
Specification
| Overall Dimension(mm) | 8250*2480*3310 | Traction system | 4*2, left hand drive | ||
| Gross weight(kg) | 15550 | Curb weight(kg) | 8100 | ||
| Wheel base (mm) | 4500 mm | Axle number | 2 | ||
| Front/Rear suspension(mm) | 1430/2070 | Front/Rear track base (mm) | 1880/1860 | ||
| Approaching/Departure Angle(°) | 24/12(°) | Rated load(kg) | 2000 | ||
| Cab | Dual Cab, 2+3 seats, with air condition, alarm, lamp etc. | Maximum speed(km/h) | 90 | ||
| Number of Tyres | 6 (1 spare piece) | Tyre type | 10.00R20 | ||
| Working Range | Water ≥40 m | Tank Capacity | water tanker | Foam Tanker | Dry powder |
| 7000L | |||||
| Transmission | 5 forwarder,1 reverse gear,manual operation | Horse Power | 190 HP | ||

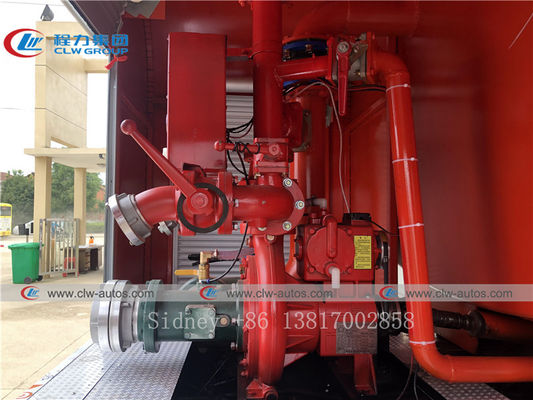

| Fire Pump |
1 Normal pressure fire pump Model number: BS40 flow rate:40L/S, Pressure :1.0Mpa |
||||
| Fire Monitor | Model PS20 Flow20 L/S Pressure1.0~1.2MPa Fire distance (water)Water ≥40m |
||||
| Power take-off | Electromagnetic valve control | ||||
| Adjustable water-cooled | |||||
| Splash oil lubrication | |||||
| Other Equipment | Light Bar, Remote control lamp, Flashing lights, Alarm,signs, etc. | ||||
Products Show
Equipment of fire rescue fighter truck
Production of fire rescue fighter truck
FAQ
Q1: What kinds of fire enigne truck I can order from your company?
A: There are various sizes and types of fire enigne truck with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied fire enigne truck to any overseas companies?
A: Yes,with need of government project,we offered fire fighting trucks to many Africa and south-east Asian,south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
