CLW 5cbm Concrete Mixer Truck With Steel Q345 Tank

CLW 5cbm Concrete Mixer Truck With Steel Q345 Tank
CLW 5cbm Concrete Mixer Truck With Steel Q345 Tank CLW 5cbm Concrete Mixer Truck With Steel Q345 Tank CLW 5cbm Concrete Mixer Truck With Steel Q345 Tank CLW 5cbm Concrete Mixer Truck With Steel Q345 Tank CLW 5cbm Concrete Mixer Truck With Steel Q345 Tank CLW 5cbm Concrete Mixer Truck With Steel Q345 Tank CLW 5cbm Concrete Mixer Truck With Steel Q345 Tank

Large Image :  CLW 5cbm Concrete Mixer Truck With Steel Q345 Tank

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW
Certification: CCC,ISO,GCC,DOT
Model Number: CLW5212

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD19500 - 27500
Packaging Details: Naked Pack with Wax
Delivery Time: 20-30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Unit Per Month
Detailed Product Description
Brand: CLW Fuel: Diesel
Volum: 5cbm,6cbm,7cbm,8cbm,9cbm,10cbm Hydraulic Motor: PMP,Eaton, Sauer Or Chinese Brand
Hydraulic Pump: Zf, Bonfiglioli Or Chinese Brand Reductor: ZF, PMP,Bonfiglioli,Sauer
Drum Thickness: 6mm With High Tensile Steel Blade Thickness: 5mm With Alloy Steel Q345
Water Tank Volume: 200-400L Filling Rate: 95%
Warranty: 1 Year User Manual: Yes
LOGO: As Customer's Request
High Light:

5cbm Concrete Mixer Truck

,

CLW Concrete Mixer Truck

,

CLW Cement Mixer Truck

China CLW brand 5000Liters 5cbm Concrete Mixer Truck Cement Mixer Drum Truck

Three main part of the concrete mixer truck:

1. German Rexroth Hydraulic pump, Motor, ZF reducer;

2. America Eton Hydraulic pump, Motor ;

3. Italy Bonfiglioli Reducer;

4. Italy PMP Hydraulic pump, Motor and reducer.

5.China brand pump, motor and reducer

The main part of concrete mixer transportation truck. It is mainly used for loading and mixing the concrete. The inside part of the mixing tank will have two stagger screw blade in 180 degree.When rotate the tank clock-wisely , the vane will rotate the concrete to the the end of the tank. The concrete will back when it arrived the end of the tank. Then the concrete will be mixed sufficient. When the tank rotated counter-wisely, the concrete will move to the outlet of the mixing tank and unload it out.


Product Description
1. Chassis: Dongfeng, Sinotruk, FOTON/ Forland, Faw, Shacman, etc.
2. High Tension Steel Q345 Tank Material in 5mm.

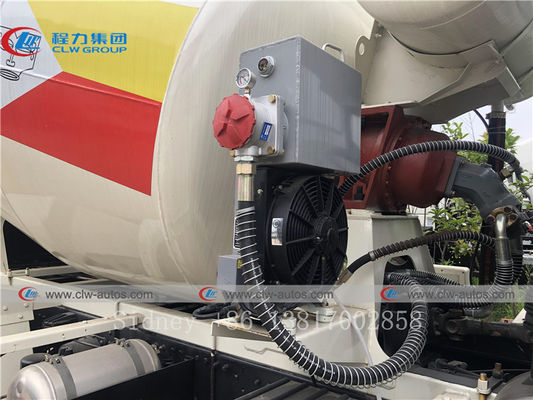

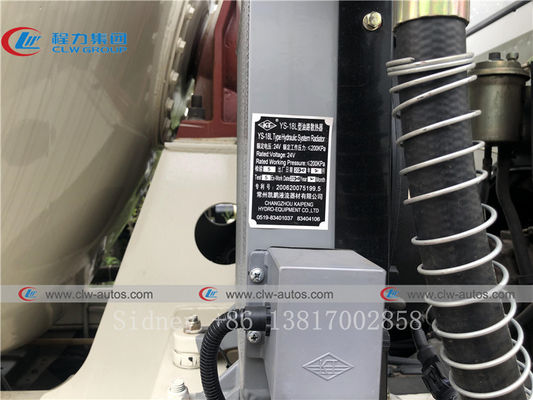

3. International Brand Motor, Pump, Reductor & Radiator
4. 400Liter Water Tank with Pressure Water Filling
5. Water Filling System to Keep the cement moisture.
6. Tank and hand Washing Device.





Product Specification

Truck Brand
CLW Concrete Mixer Light Truck
Driving wheel
4x2
Driving type
Left Hand Driving
Chassis Model
CLW
Dimension(Lx W x H)(unloaded)(mm)
7500*2498*3650
Approaching angle/Departure angle(°)
27/22
Overhang(front/rear) (mm)
1240/1955
Wheel base (mm)
3800
Leaf spring
11/12+9B
Max speed(km/h)
90
Curb weight(kg)
7085
Engine
Model
YC4D130-33, 4- stroke direct injection diesel engine, 4 cylinders in line with water cooling
Fuel type
Diesel
Horse Power, max(kw/rpm)
130HP
Displacement(L)
3.76
Emission
EURO III
Fuel tanker capacity (L)
300
Transmission
Model
WLY653H, 6 forwards and 1 reverse
Brake system
Service brake
Dual circuit compressed air brake
Parking brake
spring energy, compressed air operating on rear wheels
Front axle
3T
Rear axle
9T
Color
Optional
Tyre
9.00R20 All Steel Radial , 6+1 Spare tire
Cab
2persons allowed, with AC, NO Sleeper.
Upper Mixer Body
Agitating Capacity
5m3
Drum rotation speed
0-14r/min
Feeding Speed
>3.5m3/min
Water Tank Volume
Standard type with water indicator
Discharge Remain Ratio
<0.2%
Water supply
Pressing type

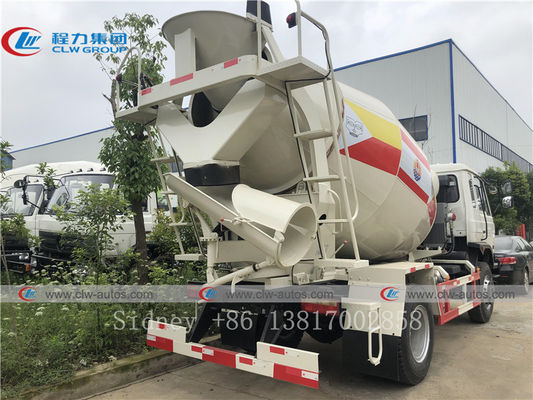

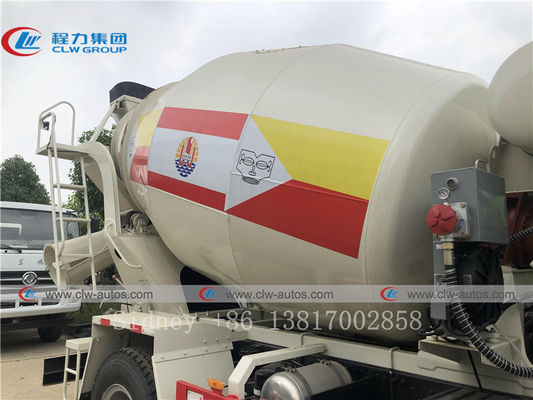

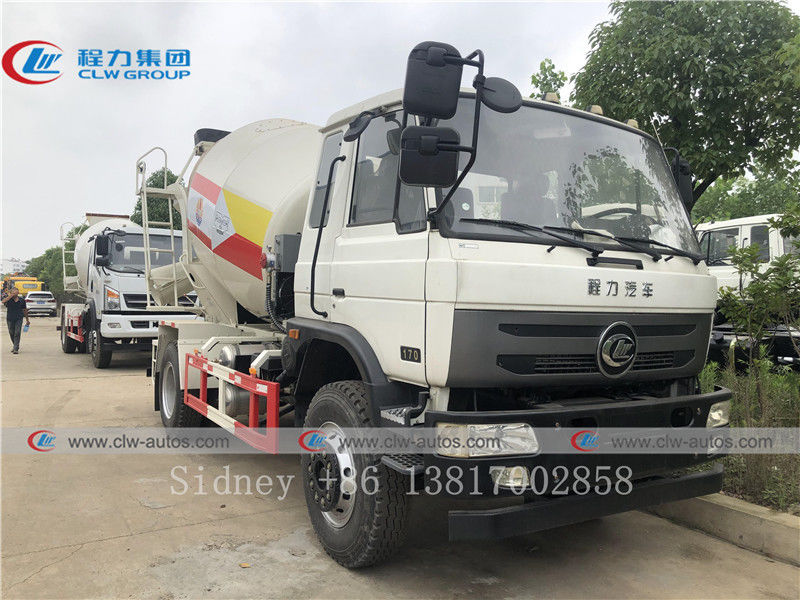

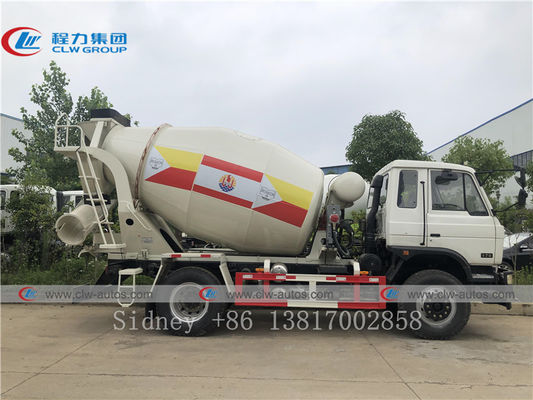

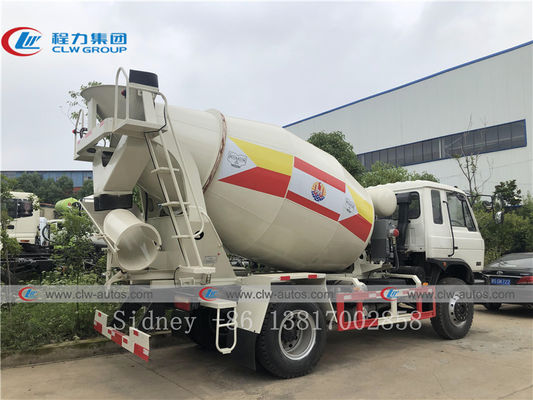

Reference Photos

CLW 5cbm Concrete Mixer Truck With Steel Q345 Tank 0

CLW 5cbm Concrete Mixer Truck With Steel Q345 Tank 1CLW 5cbm Concrete Mixer Truck With Steel Q345 Tank 2CLW 5cbm Concrete Mixer Truck With Steel Q345 Tank 3



Truck Diagram

CLW 5cbm Concrete Mixer Truck With Steel Q345 Tank 4





Working scene



CLW 5cbm Concrete Mixer Truck With Steel Q345 Tank 5



Factory overview

CLW 5cbm Concrete Mixer Truck With Steel Q345 Tank 6

CLW 5cbm Concrete Mixer Truck With Steel Q345 Tank 7

The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.

Products Catalog:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor truck
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )



CLW 5cbm Concrete Mixer Truck With Steel Q345 Tank 8

CLW 5cbm Concrete Mixer Truck With Steel Q345 Tank 9

Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment



FAQ



Q1: What kinds of concrete mixer trucks I can order from your company?


A: There are various sizes and types of concrete mixer trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.



Q2: Have you supplied concrete mixer truck to any overseas companies?


A: Yes,with need of government project,we offered concrete mixer trucks to many Africa and south-east Asian countries.



Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.



Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



Spare Parts



1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
