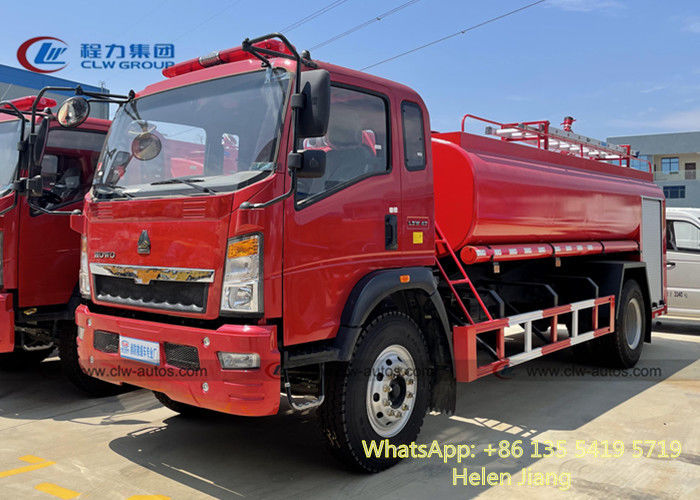

Sinotruk HOWO 4x2 140HP 10T Water Tank Fire Rescue Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Sinotruk HOWO 4x2 140HP 10T Water Tank Fire Rescue Truck

Sinotruk HOWO 4x2 140HP 10T Water Tank Fire Rescue Truck
Sinotruk HOWO 4x2 140HP 10T Water Tank Fire Rescue Truck Sinotruk HOWO 4x2 140HP 10T Water Tank Fire Rescue Truck Sinotruk HOWO 4x2 140HP 10T Water Tank Fire Rescue Truck Sinotruk HOWO 4x2 140HP 10T Water Tank Fire Rescue Truck Sinotruk HOWO 4x2 140HP 10T Water Tank Fire Rescue Truck Sinotruk HOWO 4x2 140HP 10T Water Tank Fire Rescue Truck

Large Image :  Sinotruk HOWO 4x2 140HP 10T Water Tank Fire Rescue Truck

Product Details:

Place of Origin: SUIZHOU, HUBEI, CHINA
Brand Name: CLW
Certification: CCC, ISO9001, BV, SGS
Model Number: CLW20210721

Payment & Shipping Terms:

Minimum Order Quantity: 1 units
Price: Negotiated
Packaging Details: Naked or Waxed before delivery
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units per Month
Detailed Product Description
Engine: YUCHAI Diesel Engine Drive Type: 4x2, 6 Wheels, 6 Wheeler
Transmission: Manual Control, Drive Model: Right Hand Drive, Or Left Hand Drive
Tank: With Water Tank And Fire Sprinkling System. Tank Material: Carbon Steel, Or Stainless Steel
Equipment: Fire Pump. Fire Brigade, Water Pump Loading Capacity: 10tons, 10 Tons, 10MT, 10T
Tank Volume: 10CBM, 10000L, 10000 Liters, 10M3 Fire Fighting Pump: Chinese Or International Brand Italy
Other Equipment: Front Spraying, Rear Sprinkler Etc
High Light:

10T Water Tank Fire Rescue Truck

,

140HP Fire Rescue Truck

,

Sinotruk HOWO 4x2 Firefighter Truck

Sinotruk HOWO 4X2 140HP 10000L 10 Tons Sprinkler Water Tank Fire Rescue Truck





Product Description
Fire sprinkler is also known as fire sprinkler, forest fire truck, multi-function fire truck, multi-purpose sprinkler, airport fire sprinkler, street, town and village fire sprinkler function, is a combination of fire truck and sprinkler. The dual-purpose vehicle is between the fire truck and the sprinkler. It has the integrated purpose of fire fighting and sprinkling. Compared with the fire truck, although it lacks the equipment box, it has the same spray range as the fire truck and has the same fire fighting function.

Forest fire trucks are the main firefighting equipment used by forestry, forest farms, forestry fire prevention offices, and forestry firefighting to extinguish fires. They can be divided into forest water tank fire trucks, forest rescue fire trucks, and forest fire fighting tool vehicles.

- According to chassis drive type, there are 4X2 or 6-wheel fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck for military use.

- According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck,Scania fire fighting truck and so on.





Features of fire rescue fighter truck:
---- HOWO chassis, perfect performance.
---- Snotruk engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- High quality fire pump.
---- Massive, durable, long service life.





Product Specification

Cabin Driving type 4x2
2080 Standard cab, with A/C. Left hand driven. 70° hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions Overall dimensions (L x W x H)mm 7995x2400x2900
Wheel base (mm) 4500
Wheel track (front/rear) (mm) 1240/2255
Approach/Departure angle(°) 27/20
Weight in KGS Tare Weight(kgs) 6000
Loading Capacity(kgs) 10000
Front axles loading capacity(kgs) 1x3200
Rear axles loading capacity(kgs) 1x8200
Max. driving speed(km/h) 90
Engine Brand YUCHAI
Model YC4E140-33
Type 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 140 HP
Emission standard Euro-III
Gearbox WLY6T51, 6 forwards & 1 reverse
Clutch Diaphragm spring clutch
Steering Gear Power steering
Fuel tank (L) 230L
Tire 8.25R20 with one spare, 7 pieces



Tank specification





10,000 liters, tank thickness is 4 mm, seal is 5 mm

◆Equipped with front(rear, side)sprinkler(sprinkling width>14m )

◆Equipped with pump(suction lift>6m)

◆Equipped with fire valve, water valve, and filter gauze

◆ Equipped with fire brigade system, fire gun on top.

◆ Equipped with Fire alarm lights on top of the cabin

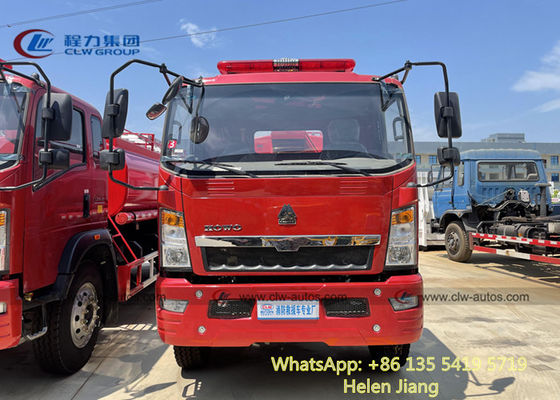

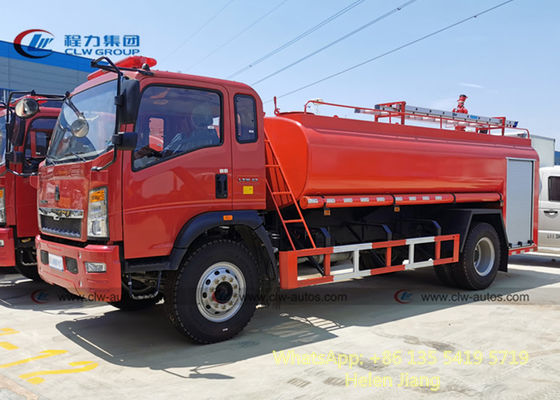

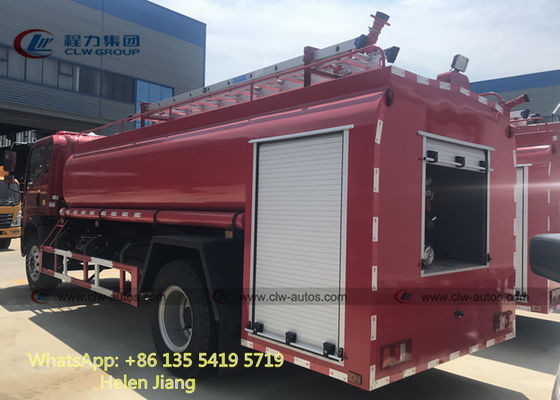

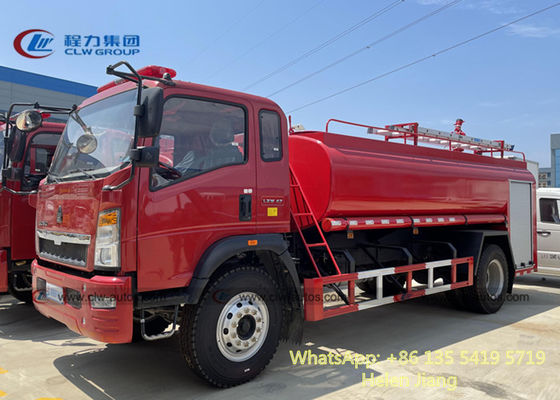

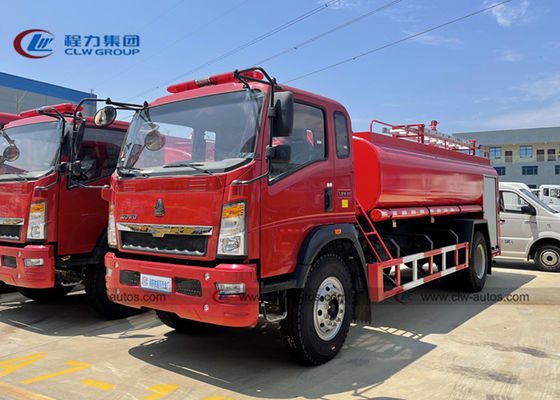

Sinotruk HOWO 4x2 140HP 10T Water Tank Fire Rescue Truck 0Sinotruk HOWO 4x2 140HP 10T Water Tank Fire Rescue Truck 1Sinotruk HOWO 4x2 140HP 10T Water Tank Fire Rescue Truck 2Sinotruk HOWO 4x2 140HP 10T Water Tank Fire Rescue Truck 3Sinotruk HOWO 4x2 140HP 10T Water Tank Fire Rescue Truck 4



More Pictures for Reference:



Sinotruk HOWO 4x2 140HP 10T Water Tank Fire Rescue Truck 5

Successful Cases:

Sinotruk HOWO 4x2 140HP 10T Water Tank Fire Rescue Truck 6



Delivery for Fire fighting truck:

Sinotruk HOWO 4x2 140HP 10T Water Tank Fire Rescue Truck 7

Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



FAQ



Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.



Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.



Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .


Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.



Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
