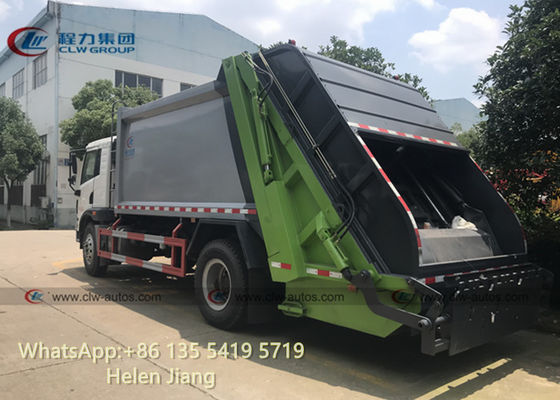

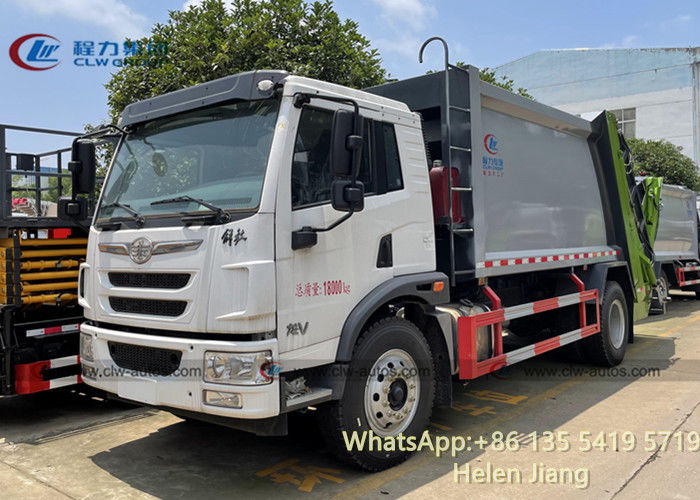

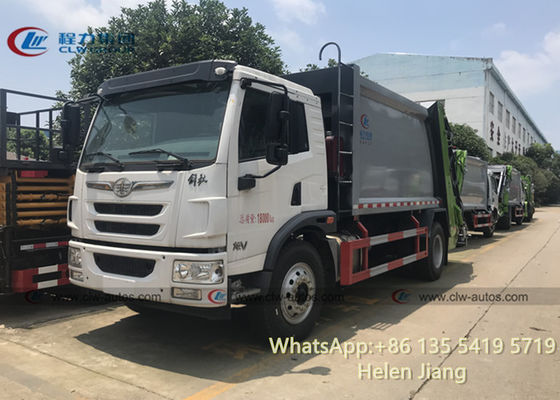

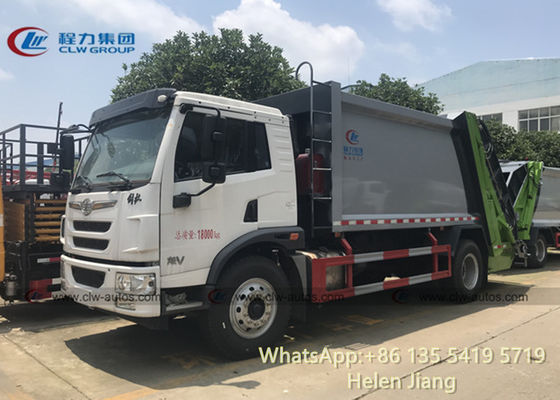

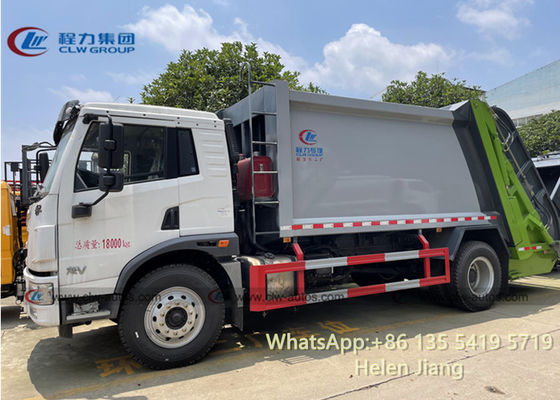

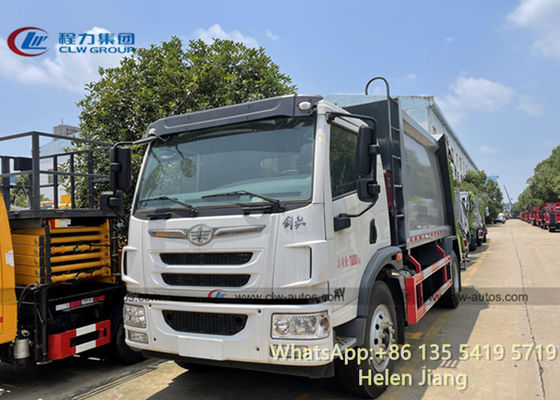

FAW 4x2 6 Wheels 10CBM Garbage Compactor Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

FAW 4x2 6 Wheels 10CBM Garbage Compactor Truck

FAW 4x2 6 Wheels 10CBM Garbage Compactor Truck
FAW 4x2 6 Wheels 10CBM Garbage Compactor Truck FAW 4x2 6 Wheels 10CBM Garbage Compactor Truck FAW 4x2 6 Wheels 10CBM Garbage Compactor Truck FAW 4x2 6 Wheels 10CBM Garbage Compactor Truck FAW 4x2 6 Wheels 10CBM Garbage Compactor Truck FAW 4x2 6 Wheels 10CBM Garbage Compactor Truck

Large Image :  FAW 4x2 6 Wheels 10CBM Garbage Compactor Truck

Product Details:

Place of Origin: SUIZHOU, HUBEI, CHINA
Brand Name: CLW
Certification: ISO9001, CCC, BV, SGS
Model Number: CLW20210722

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiated
Packaging Details: Naked or waxed before shipment
Delivery Time: 30-35 days after receiving the deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units per month
Detailed Product Description
Material: Carbon Steel, Product Name: Garbage Compactor Truck, Compressed Garbage Truck
Drive Type: 4X2 6WHEELS 6 WHEELER Drive Model: Left Hand Drive, RHD
Loading Capacity: 5 Tons, 6 Tons, 8 Tons, 5T, 6T. 7T, 8T Truck Brand: Sinotruk/Sinotruck HOWO, Shacman, FAW, FOTON, Jac
Tuck Type: Waste Collection Truck. Refuse Connection Truck Other Equipment: With Hyraulic Systerm
Condition: FAW Brand, Brand New Truck
High Light:

6 Wheels Garbage Compactor Truck

,

FAW 4x2 Garbage Compactor Truck

,

10CBM Waste Compactor Truck

FAW 4X2 6 Wheels 10M3 10CBM 10 cubic meters Garbage Caompactor Truck for Waste Collection





Product Description



  • Garbage trucks are widely used in sanitation, municipal, factory and mining enterprises, and residential areas where have a lot of garbage. Garbage trucks are classified into compressed garbage trucks, swing arm type, dump type, sealed type, docking type, hook type arm type, and pull arm type garbage truck. Garbage trucks can carry multiple compartments in one vehicle, which can effectively prevent secondary pollution during the loading and unloading process. The modified part is separable from the original car chassis, which is easy to maintain and maintain the mobility and driving performance of the original car. Customers who have special requirements for garbage trucks please contact with us at any time. We can produce the trucks according to your requirements.


product Specification



Vehicle parameters:
Overall dimensions (length * width * height) Barrel Turning Device: 7160×2250×2650mm
Tipping Device: 7460×2250×2650mm
Total mass 8275Kg
Rated contained mass 1500Kg
Curing quality 6580Kg
Wheelbase 3800mm
Front overhang / rear overhang 1210/2150,1210/2450
Approach / departure angle 24/13
Chassis parameters
Chassis type Dongfeng Dolika
Cab color White
Drive form 4*2
Wheelbase 4500mm
engine model CY4SK251(Euro V )
Engine power (kw) 115
Emission Standards GB17691-2005 (Euro V),GB3847-2005
Tire 7.50 Steel Wire Tyres (7)
Top loading parameters:
Effective volume of the box 10CBM
Box shape arc
Box material Bottom 4 sides 4
Compression ratio ≥2.5
Loading cycle once ≤35 s
Pushing garbage time ≤35s
control method automatic / manual
Hydraulic system pressure 16MPa
Hydraulic oil pump Hefei Changyuan (Zhonglian Heavy Industry)
Hydraulic cylinder Zoomlion supporting
PLC control system Siemens, Germany
Engine power control Fully automatic control
Tumbler mechanism Hang two 240L trash cans at the same time (Optional other types of flip frame)

FAW 8000 liter compactor Garbage truck Working parameter:

Hydraulic pump Long source large flow 32-80 pump, optional double pump and double valve Body material High strength T420 special steel plate
Hydraulic cylinder Xiamen Yinhua, Yantai Future Box thickness Lightweight design with 4mm at the bottom and 5 sides
Multi-way valve Jiangsu Zhongmei, Italy imports Sewage tank 2 (1 on the side and 1 on the rear)
Conversion mode Photoelectric switch (formerly pressure relay) Sewage seal Tail diversion groove + rubber hydraulic lock
Automatic control Standard configuration, Siemens PLC electronic control Lighting device Tail night light
Electric control box 3 (1 in the cab and 2 in the rear) safety devices Tail lift with hydraulic lock
Optional configuration Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system



FAW 4x2 6 Wheels 10CBM Garbage Compactor Truck 0FAW 4x2 6 Wheels 10CBM Garbage Compactor Truck 1FAW 4x2 6 Wheels 10CBM Garbage Compactor Truck 2FAW 4x2 6 Wheels 10CBM Garbage Compactor Truck 3



Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



FAQ



Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.



Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.



Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .


Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.



Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
