Product Details:
Payment & Shipping Terms:
|
| Engine: | YUCHAI Engine, 160hp | Drive Type: | 4x2, 6 Wheels, 6 Wheeler |
|---|---|---|---|
| Transmission: | Manual Control, | Drive Model: | Right Hand Drive, Or Left Hand Drive |
| Tank: | With Water Tank And Foam Tank. | Tank Material: | Carbon Steel, Or Stainless Steel |
| Equipment: | Fire Pump. Fire Brigade, Water Pump | Fire Pump Brand: | Chinese TOP Brand, Or Italy Brand |
| High Light: | Sinotruk HOWO 4x2 Fire Rescue Truck,LHD 6 Wheeler Fire Rescue Truck,Sinotruk HOWO 4x2 Fire Fighting Truck |
||
Sinotruk HOWO 4x2 Fire Fighting Truck Fire Rescue Truck with Water Foam Tank
Fire rescue fighter truck can be divided into several types:
1-- According to vehicle size, there are mini fire fighting truck,light fire fighting truck,medium fire fighting truck, heavy-duty fire fighting truck.
2-- According to chassis drive type, there are 4X2 or 6-wheel fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck for military use.
3-- According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck,Scania fire fighting truck and so on.
4-- According to fire extinguishant,there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck
5-- There are also fire rescue truck with special purpose as follows,
-- Foam supply fire truck;
-- Compressed air supply fire fighting truck;
-- Water tower fire truck ;
-- Earthquake rescue fire truck;
Features of fire rescue fighter truck:
---- HOWO chassis, perfect performance.
---- Snotruk engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- High quality fire pump.
---- Massive, durable, long service life.
| Cabin | Driving type 4x2 | |
| 2080 Standard cab, with A/C. Left hand driven. 70° hydraulically tillable to the front as attached photo for ref. | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 6998x2400x2900 |
| Wheel base (mm) | 4200 | |
| Wheel track (front/rear) (mm) | 1886/1845 | |
| Approach/Departure angle(°) | 27/20 | |
| Weight in KGS | Tare Weight(kgs) | 6000 |
| Loading Capacity(kgs) | 10000 | |
| Front axles loading capacity(kgs) | 1x3200 | |
| Rear axles loading capacity(kgs) | 1x8200 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Brand | YUCHAI |
| Model | YC4E140-33 | |
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 140 HP | |
| Emission standard | Euro-III | |
| Gearbox | WLY6T51, 6 forwards & 1 reverse | |
| Clutch | Diaphragm spring clutch | |
| Steering Gear | Power steering | |
| Fuel tank (L) | 230L | |
| Tire | 8.25R20 with one spare, 7 pieces | |
|
Tank specification
|
8,000 liters, tank thickness is 4 mm, seal is 5 mm ◆ Equipped with front(rear, side)sprinkler(sprinkling width＞14m ) ◆ Equipped with pump(suction lift＞6m) ◆ Equipped with fire valve, water valve, and filter gauze ◆ Equipped with fire brigade system, fire gun on top. ◆ Equipped with Fire alarm lights on top of the cabin |
|

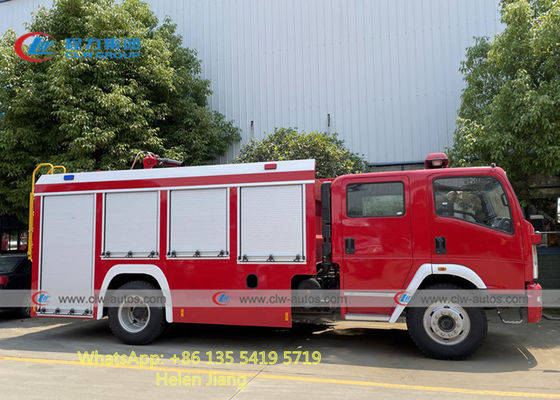

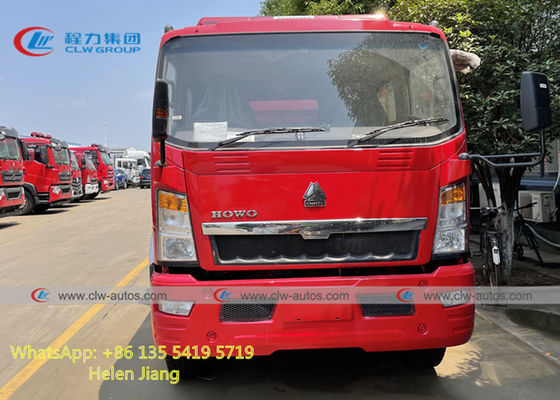

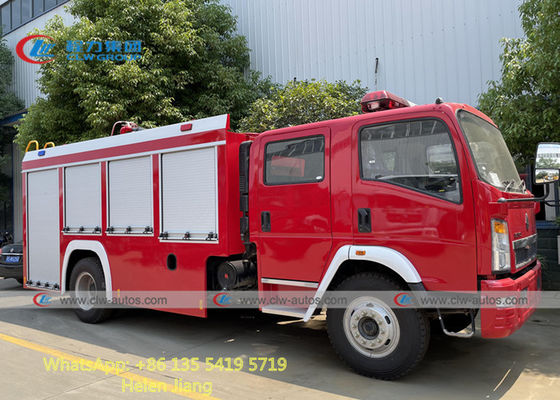

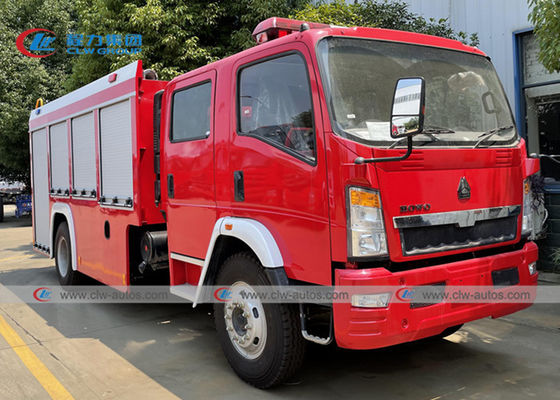

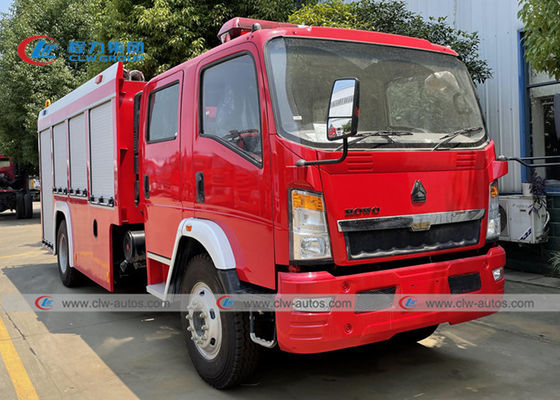

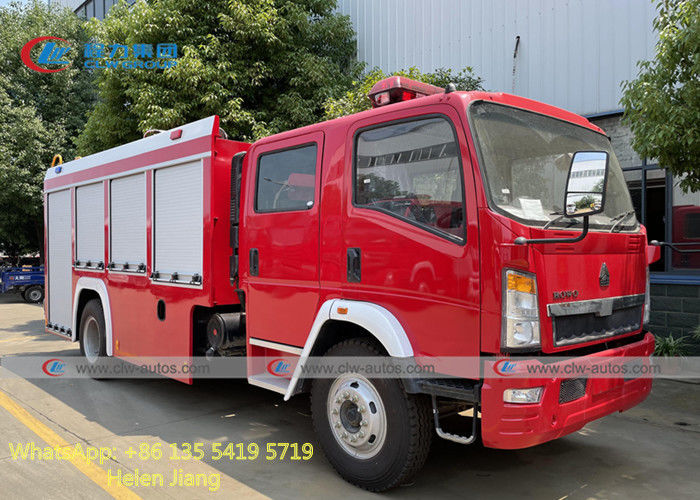

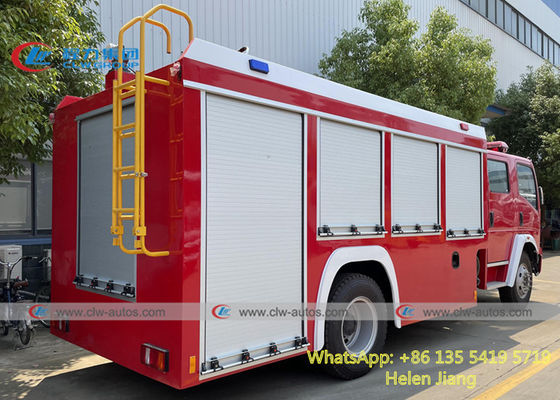

More Pictures for Reference:
