Product Details:
Payment & Shipping Terms:
|
| Engine: | Dongfeng Cummins Diesel Engine | Drive Type: | 4x4, 4x2 6 Wheels, 6 Wheeler |
|---|---|---|---|
| Transmission: | Manual Control, | Drive Model: | Right Hand Drive, Or Left Hand Drive |
| Tank: | With Water Tank And Fire Sprinkling System. | Tank Material: | Carbon Steel, Or Stainless Steel |
| Equipment: | Fire Pump. Fire Brigade, Water Pump | Loading Capacity: | 12tons, 12 Tons, 12MT, 12T |
| Tank Volume: | 12CBM, 12000L, 12000 Liters, 12M3 | Fire Fighting Pump: | Chinese Or International Brand Italy |
| Type: | For Forest Rescue, | ||
| High Light: | 12000L Fire Fighting Truck,190HP Fire Fighting Truck,Dongfeng 4x2 Fire Brigade Truck |
||
Dongfeng 4X2 4X4 190HP 12000L 12Tons Forest fire Extinguisher Rescue Fire Fighting Truck
Product Description
Fire sprinkler is also known as fire sprinkler, forest fire truck, multi-function fire truck, multi-purpose sprinkler, airport fire sprinkler, street, town and village fire sprinkler function, is a combination of fire truck and sprinkler. The dual-purpose vehicle is between the fire truck and the sprinkler. It has the integrated purpose of fire fighting and sprinkling. Compared with the fire truck, although it lacks the equipment box, it has the same spray range as the fire truck and has the same fire fighting function.
Forest fire trucks are the main firefighting equipment used by forestry, forest farms, forestry fire prevention offices, and forestry firefighting to extinguish fires. They can be divided into forest water tank fire trucks, forest rescue fire trucks, and forest fire fighting tool vehicles.
- According to chassis drive type, there are 4X2 or 6-wheel fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck for military use.
- According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck,Scania fire fighting truck and so on.
Features:
1. fire truck Main equipped:
1. fire truck chassis constitute cab, engine, gear box, steering wheel,beam,tyre,axles,etc.
2. Fire truck upper body with water/foam tank, fire pump,fire monitor,pipe,etc.
3. fire truck with Water fire fighting tank and foam fire fighting tank .or water fire fighting tank.
4. fire truck with fire pump is normal pressure or middle-low pressure, made in China or imported.
5. fire truck with fire monitor is controlled by Manual or Electric.
2. fire truck series:
fire turck capacity : 2000L- 25000L
fire truck drive type: 4x2,4x4,6x4, 6x6, 8x4
fire truck tank material: carbon steel, stainless steel, PE.
fire truck hand drive type: left hand drive , right hand drive
| Chassis Parameter | |||
| Chassis Model: | EQ1108 | ||
| Overall Dimension: (mm) | 8115*2500*3300mm | ||
| Fuel Type: | Diesel | ||
| Drive Type: | 4X2, Left Hand Drive /Right Hand Driving | ||
| Tyre Size: | 9.00-20/9.00R20/10.00-20/10.00R20 | ||
| Tyre Quantity: | 6, (front 2, rear 4) | ||
| Total Mass:(kg) | 14900 | ||
| Rated loading capacity:(kg) | 6000 | ||
| Front/Rear Suspension: (mm) | 1205/1895 | ||
| Approach/Departure(°): | 25/18 | ||
| Wheel Base(mm): | 3950/4200/4500/4700 | ||
| Maximum driving speed | 85km/h | ||
| Driver's Cab | all steel frame welded structure Cab,single row ,The cab is equipped with PTO control lights, 100W lights, LED lights, sirens, marker lights switch and rear lights etc | ||
| Gearbox | Manual, 6 forwarder with 1 reverse | ||
| Front Axle | Loading 3,600kg | ||
| Rear Axles | Loading 9,000kg | ||
| Engine | |||
| Engine Model: | Dongfeng Cummins brand : B170/190/210-33 , 6-cylinder in-line | ||
| Power: | 170/190/210 HP | Fuel type | diesel |
| Displacement | 5900ml | Emission standard | Euro 3 |
| Fire pump | |||
| Model | / | CB10/40,Normal pressure pump | |
| Pressure | Mpa | ≥1.0 | |
| Max suction height | m | 7 | |
| Flux | L/S | 40 | |
| Rated speed | r/min | 3000 | |
| Time of drawing water (s) | s | ≤35 | |
| Input diameter | mm | 125 | |
| Outlet diameter | mm | 2xΦ75 | |
| Fire monitor | |||
| Model | / | PL32 | |
| Fire fighting nozzle range | Water (m) | ≥50 | |
| Foam(m) | ≥45 | ||
| Flux | L/S | 32 | |
| Rated Working pressure | Mpa | 1.0 | |
| Rotation angle | (°) | 360 | |
| Tank | |||
| Water tanker | 3,000 liters ,carbon steel | ||
| Foam tanker | 2,000 liter ,carbon steel | ||
| Equipment List | |||
| Name | UNIT | QUANTITY | |
| 1.water suction hose, 4 m | piece | 2 | |
| 2.water filter | piece | 1 | |
| 3.dividing breeching | piece | 1 | |
| 4.Fire belt 13#, 80 | piece | 6 | |
| 5.Fire belt 13#, 65 | piece | 4 | |
| 6.Siamese | piece | 4 | |
| 7.Waist ax | piece | 2 | |
| 8.Hose bandage | piece | 1 | |
| 9.Hose bridge | piece | 1 | |
| 10.Hose hook | piece | 1 | |
| 11.Fire hydrant wrench on the ground | piece | 1 | |
| 12.Fire hydrant wrench underground | piece | 1 | |
| 13.Suction pipe wrench | piece | 1 | |
| 14.Dry powder fire extinguisher, 3 KG | piece | 1 | |
| 15.Fire bucket | piece | 1 | |
| 16.nozzle | piece | 1 | |
| 17.Multifunctional water gun | piece | 1 | |
| 18.Fire axe | piece | 1 | |
| 19.Fire spade | piece | 1 | |
| 20.Iron collar | piece | 1 | |
| 21.Fire picks | piece | 1 | |
| 22.adapter | piece | 1 | |
| 23.The accessory tools | set | 1 | |

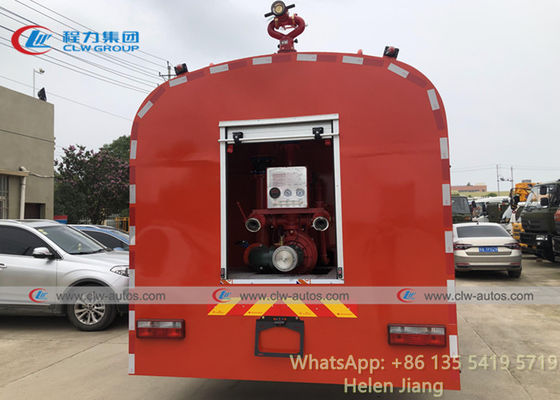

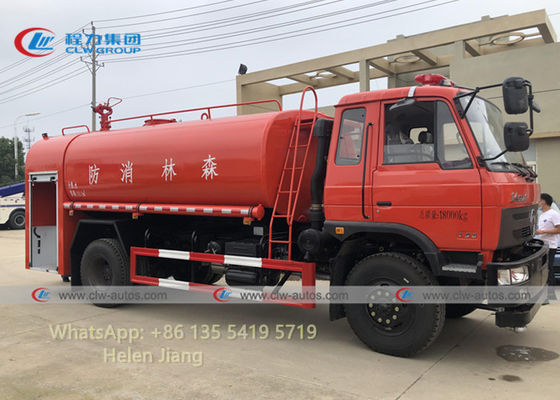

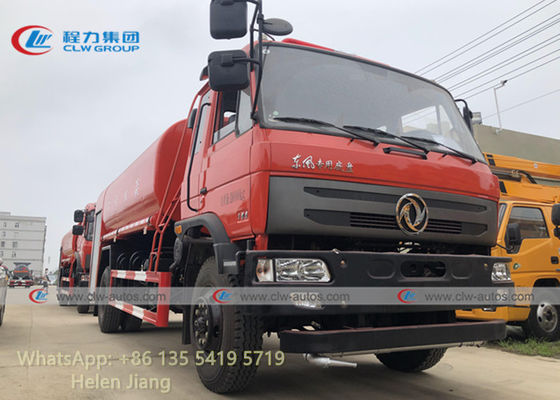

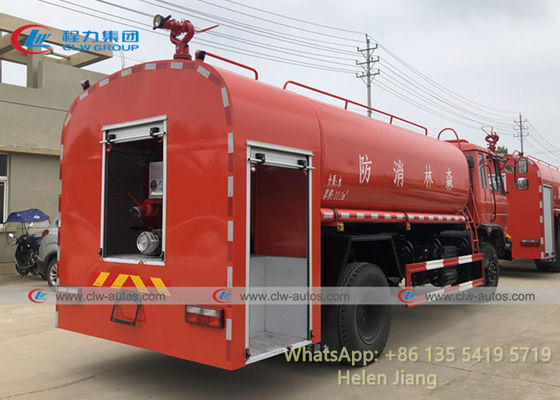

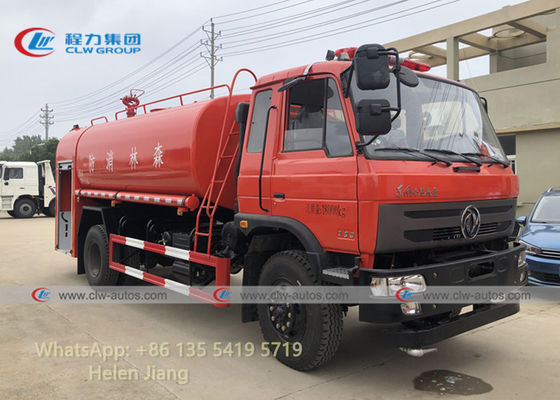

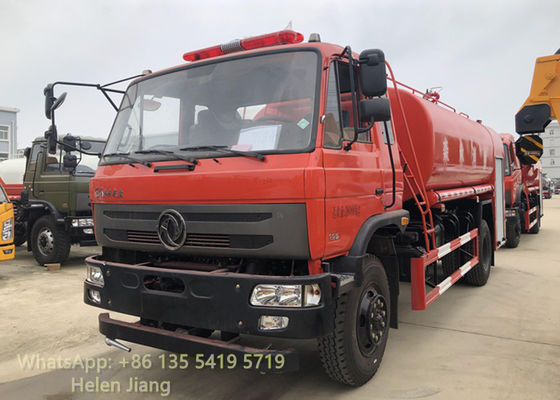

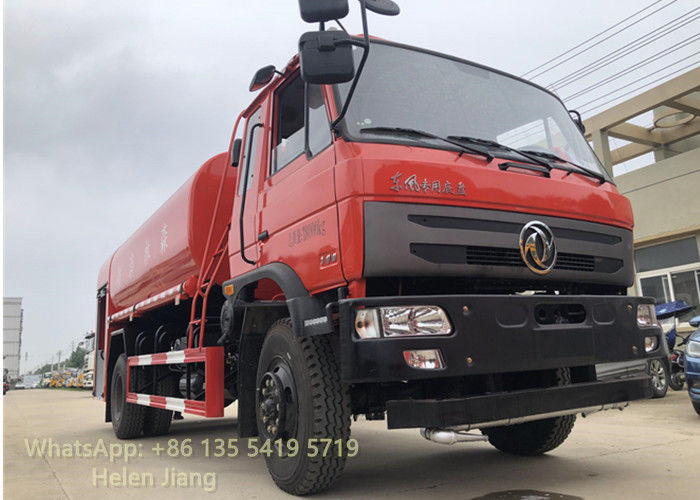

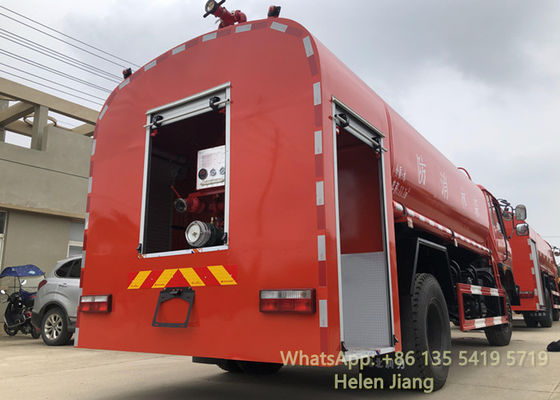

More Pictures for Reference:
Successful Cases:
Delivery for Fire fighting truck:
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
