Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Dongfeng, Sinotruk Howo, Foton, FAW, JAC, JMC, ISUZU, Etc. | Engine Brand: | WD615.47, 371HP |
|---|---|---|---|
| Crane Brand: | SANY, XCMG, CLW, Etc. | Driving Model: | LHD Or RHD |
| Gearbox: | 10 Forwards & 2 Reverses | Crane Capacity: | 20tons, 25tons, 30tons, Etc. |
| Crane Boom Type: | Straight Telescopic Boom Crane, Knuckle Boom Crane | Boom Type: | Folded Type, 4-Arm Telescopic Boom |
| Working Radius: | 14.3 Meters | Max. Lifting Moment(T.M): | 49.0 T.M |
| Turning Angle: | 400 Degree | Cargo Material: | Q235 Carbon Steel |
| Cargo Thickness: | Side 2mm, Bottom 3mm | Logo And Painting: | As Per Customer's Requirements |
| Delivery Time: | 30 Working Days | Warranty: | 1 Year |
| High Light: | SANY Palfinger Knuckle Boom Crane,25T Knuckle Boom Crane,Sinotruk Howo 8x4 Truck Mounted Crane |
||
Product Description
1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)
3. Advantage: One truck combines the functions of crane and dump truck.
Product Specification
| Parameters | |||
| Drive Model | 8X4, Left hand drive or right hand drive | ||
| Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 10500*2500*3850 mm | |
| Wheelbase (mm) | 1800+4600+1350 mm | ||
| Max. driving speed(km/h) | |||
| Engine | Model | WD615.47 | |
| Type | 6-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
| Horse Power(HP) | 371 HP | ||
| Displacement (ml) | 9726 ml | ||
| Emission standard | Euro II | ||
| Brakes |
Service brake: Dual circuit compressed air brake. Parking brake:(emergency brake): Spring energy, compressed air operating on rear wheels. Auxiliary brake: Engine exhaust valve brake. |
||
| Cabin | HW76. It can accommodate three people, With Air conditioner | ||
| Gearbox | 10 forwards & 2 reverses | ||
| Steering Gear | ZF, Power steering, hydraulic steering with power assistance | ||
| Fuel tank (L) | 400 | ||
| Tire | 12R22.5 Tubeless tire , 12 + 1(spare tire) | ||
| Flatbed | Loading Capacity(tons) | 30-40tons | |
| Crane | Brand | PALFINGER | |
| Working Platform | 400°turning(left or right), H-shape legs 360° | ||
| Material | Q235 Carbon steel | ||
| Boom Type | Folded type | ||
| Max. Lifting Weight(kg) |
Theoretical max.: 25000kg Effectively: 16500kg |
||
| Max. Working Radius(m) | 16.8 m | ||
| Max. Lifting height(m)(Hydraulic boom) | 20.5 m | ||
| Max. Lifting height(m)(With mechanic boom)(Optional) | 27.2 m | ||
| Max. Lifting Moment(T.M) | 49.0 T.M | ||
| Max. Oil Flow of Hydraulic System(L/min) | 80-100L/min | ||
| Max. Pressure of Hydraulic System(MPa) | 33.0 MPa | ||
| Crane Weight(kg) | 5400kg | ||

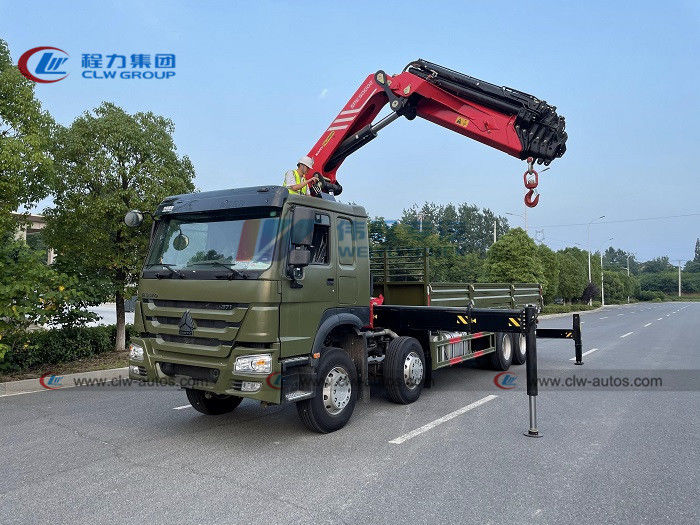

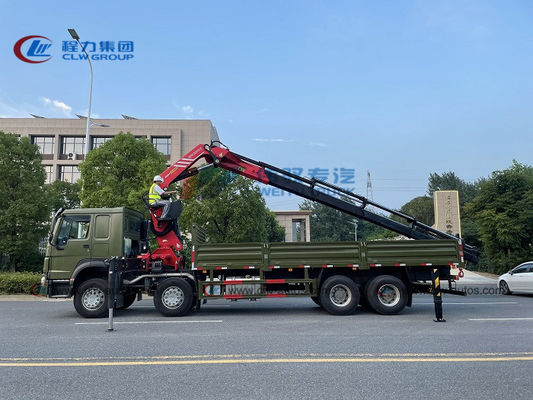

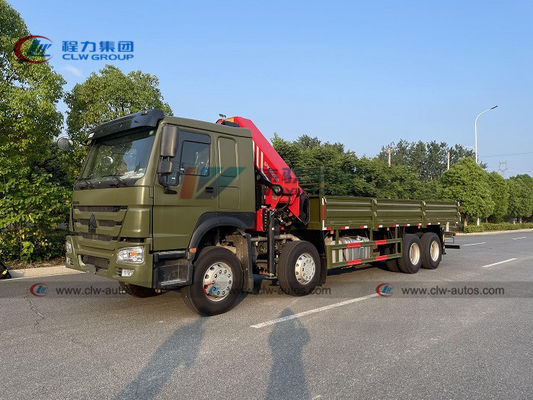

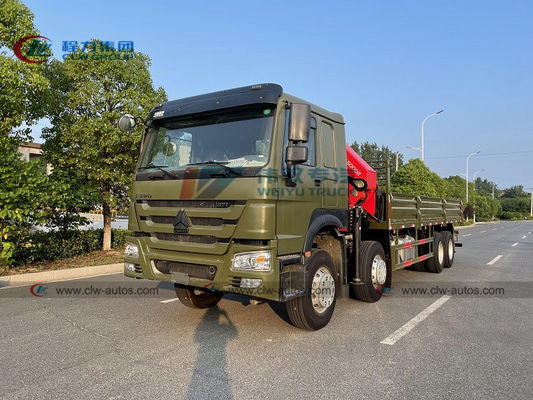

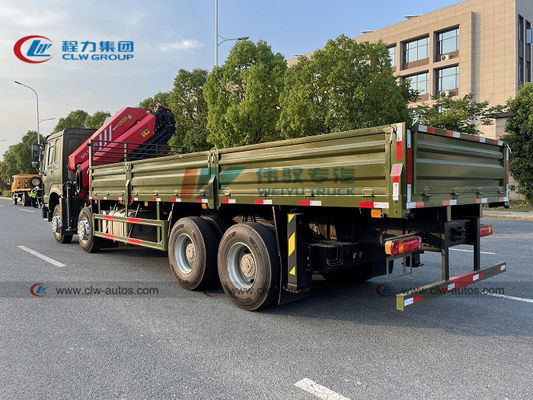

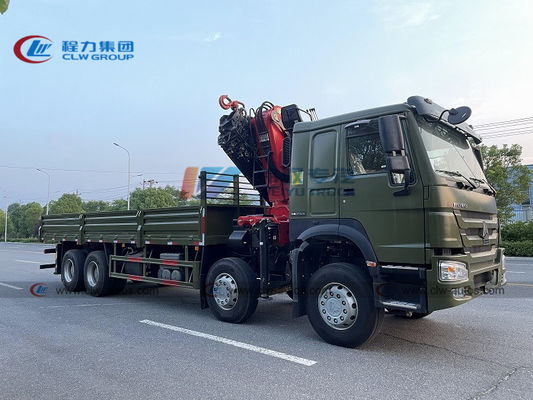

Reference Photos
Why do you choose palfinger crane?
★ Accurate positioning: smooth movement, accurate positioning, can complete high difficulty, high precision lifting tasks
★ Fuel saving: crane is 500-1000 kg light, and can be lifted under the state of engine idle, 30% fuel saving
★ Save trouble: the crane has a low failure rate and adopts a large number of maintenance-free designs. The maintenance is economical and simple, reducing the use cost by 30%
★ Save worry: timely and thoughtful service, one call to solve problems, save 30%-50% of maintenance cost
★ Strong operation capacity: the strongest lifting capacity, the extra-long lifting range, the operation capacity is increased by 10%-20%
★ Continuous operation: continuous operation under high temperature and heavy load environment, the operation efficiency can be increased by more than 30%.
We supply package solution for crane trucks, and provide lots of crane brands for your choice
Working Situation
Sales Service
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of truck mounted crane I can order from your company?
A: We can supply straight boom and folded boom truck mounted crane. The lifitng capacity of crane is from 3tons to 30tons, we will give our procurement suggestion to our client as per their requirements.
Q2: What is your production standard of your Truck mounted crane products?
A: China GB standard.
Q3: Can we adopts International brand crane for this truck mounted crane?
A: Sure, we already cooperated with many international brand supplier, such as XCMG and SANY PALFINGER etc. We CLW Group also can produce crane.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
