Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel, | Product Name: | Waste Recycling Truck, Hook Lifting Garbage Truck |
|---|---|---|---|
| Drive Type: | 4X2 6WHEELS 6 WHEELER | Drive Model: | Left Hand Drive, RHD |
| Loading Capacity: | 5 Tons, 6 Tons, 8 Tons, 5T, 6T. 7T, 8T | Truck Brand: | Sinotruk HOWO, Dongfeng, Shacman, FAW, FOTON, Jac |
| Tuck Type: | Waste Collection Truck. Refuse Connection Truck | Other Equipment: | With Hyraulic System, Lifting Arm |
| Condition: | Dongfeng Brand, Brand New Truck | Control System: | Multi-Valve |
| Loading&Unloading: | Hydraulic Oil Cylinder | ||
| High Light: | Roll Off Hooklift Garbage Truck,Hydraulic Hooklift Garbage Truck,Dongfeng 4x2 Roll Off Garbage Truck |
||
Dongfeng 4*2 8Tons Hydraulic Rolling Off Hook Lifting Garbage Truck
Product Description
1. Garbage Bin with different size options of waste collection truck: 2cbm to 18cbm.
2. Hydraulic Control Loading & Unloading System.
3. Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.
4. High-tensile steel chains: imported hydraulic oil cylinder and sealing material.
5. Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.
product Specification
| Upperstructure Parameters | |||
| Total mass (Kg) | 15800 | Tank volume (m3) | 8cbm |
| The rated load mass (Kg) | 8450 | Overall dimensions (mm) | 5500*2490*2600 |
| Curb weight (Kg) | 7155 |
Bridge must take a number of (a person) |
3 |
|
Approach Angle/ Angle of departure (°) |
20/17 |
Before hanging/rear suspension (mm) |
1430/1570 |
| Axle weight (Kg) | 5600/10200 | Top speed (Km/h) | 98 |
| Chassis Technical Parameters | |||
| Chassis models | DFL1160BX1V | The name of the chassis | The truck chassis |
| Brand name | watershave | Production enterprise |
Dongfeng commercial vehicle co., LTD |
| Number of shaft | 2 | Number of tires | 6 |
| The wheelbase (mm) | 3950, 4500, 4700, etc. | ||
| Tire size |
9.00R20 16PR,10.00-20 16PR,10.00-20 18PR,10.00R20 14PR,10.00R20 16PR,10.00R20 18PR,10R22.5 16PR, 275/80R22.5,275/70R22.5 16PR,275/70R22.5 18PR,295/80R22.5 |
||
|
Steel plate spring leaf number |
7/9+6,8/10+8,10/11+10 |
Before the wheel track (mm) |
1880, 1900, 1920 |
| Fuel type | diesel |
After the wheel track (mm) |
1800, 1860, 1820 |
|
Emissions according to the standard |
five GB3847-2005, GB17691-2005 countries | ||
| Engine type |
Engine manufacturing enterprises |
Displacement (ml) | Power (Kw) |
| ISD210 50 |
Dongfeng cummins engine co., LTD |
6700 | 155 |

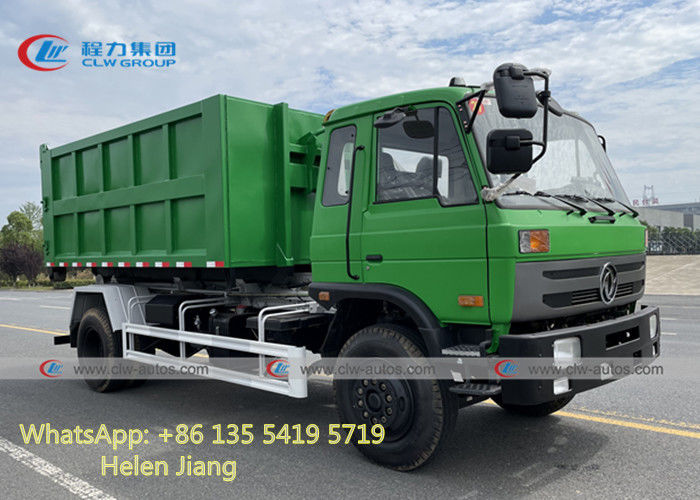

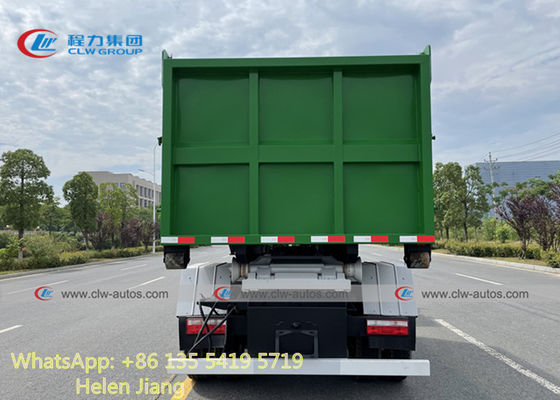

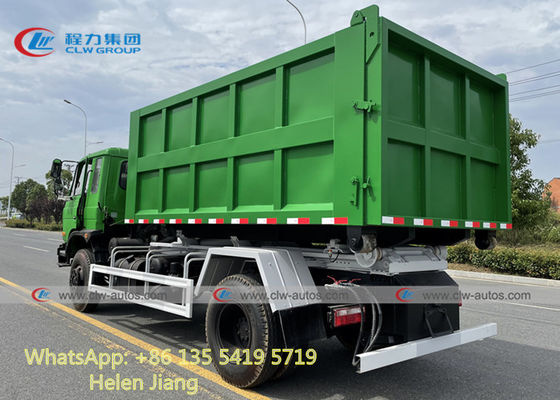

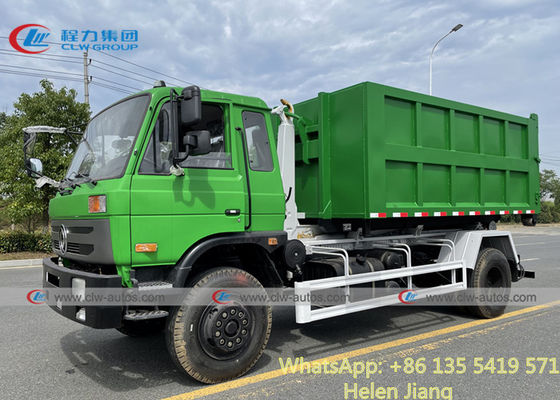

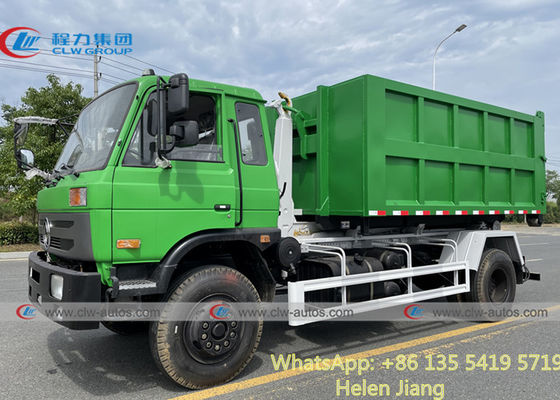

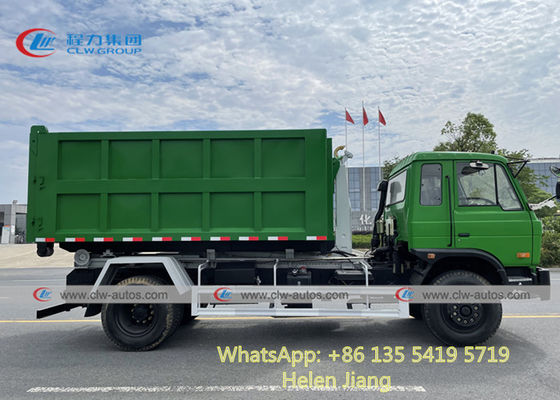

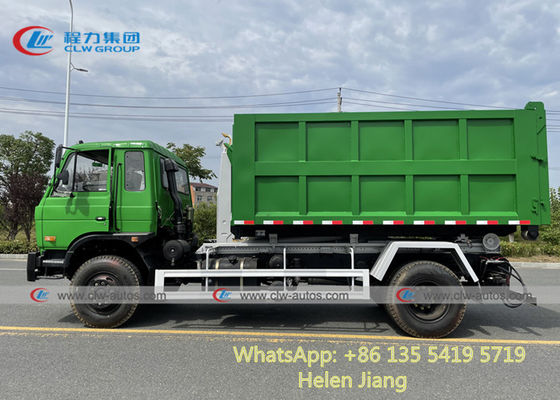

More detailed pictures for Hook Lifting Garbage Truck:
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
