Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel, | Product Name: | Rear Dumper Waste Recycling Truck, Sealed Garbage Truck |
|---|---|---|---|
| Drive Type: | 4X2 6WHEELS 6 WHEELER | Drive Model: | Left Hand Drive, Or RHD |
| Loading Capacity: | 5 Tons, 6 Tons, 8 Tons, 5T, 6T. 7T, 8T | Truck Brand: | Sinotruk HOWO, Dongfeng, Shacman, FAW, FOTON, Jac |
| Tuck Type: | Waste Collection Truck. Refuse Recycling Truck | Other Equipment: | With Hyraulic System, Lifting Arm Dumper Tipping |
| Condition: | Dongfeng Brand, Brand New Truck | Control System: | Multi-Valve |
| Loading&Unloading: | Hydraulic Oil Cylinder | ||
| High Light: | Dongfeng Rear Loader Garbage Truck,4x2 Rear Loader Garbage Truck,Dongfeng Back Loader Garbage Truck |
||

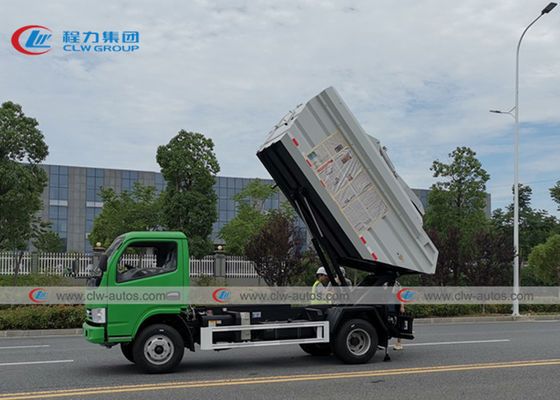

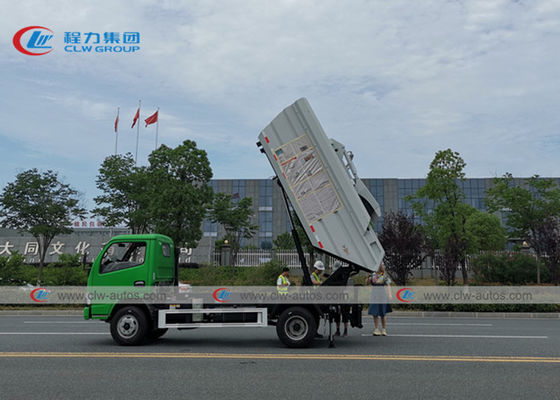

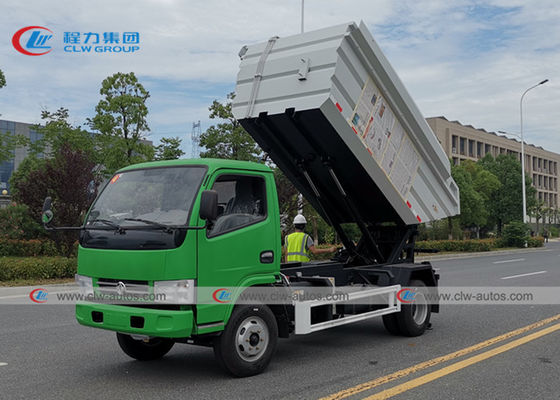

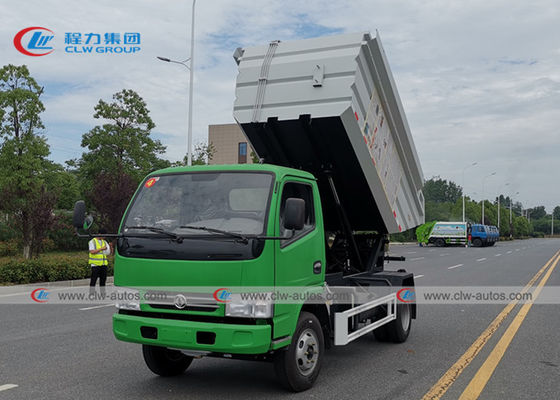

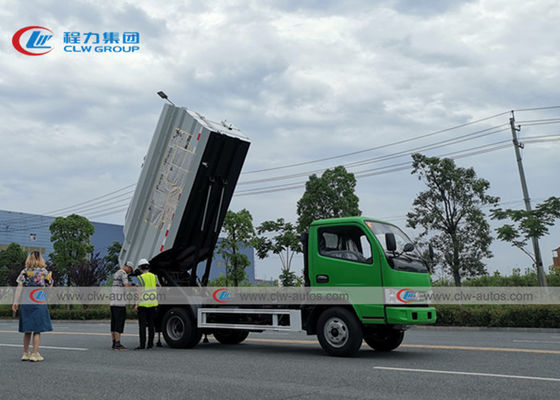

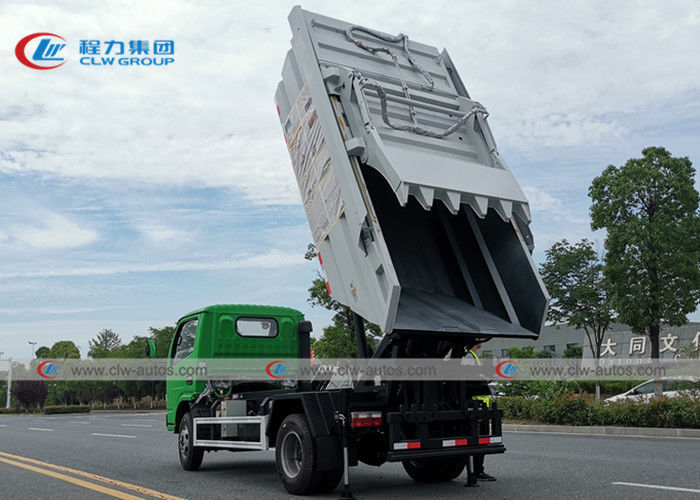

Dongfeng 4*2 Small Hydraulic Rear Tipping Sealed Garbage Truck
Product Description
1-- Garbage compactor truck is divided into compactor garbage truck, swing arm garbage truck, hook lift garbage truck, roll on roll off garbage truck,bin lift garbage truck,dumper garbage truck,sealed garbage truck,container garbage truck, rear load garbage truck and so on.
2-- Easy Full Automatic Operation: computer control system for loading and unloading operations.
3-- One Person Operation: Reducing sanitation working, greatly improves the working environment.
4-- Double Operation System: computer control system and manual operation greatly improves the vehicle usage rate.
5-- Capacity: option for 3-20m3 garbage truck.
6-- Steering wheel: both left and right hand drive,meet the needs of different countries
7-- Emission standard: option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 garbage truck
8-- Truck chassis: option for japanese and chinese brand,such as dongfeng,isuzu,faw,foton,howo,jac,jmc,forland.
product Specification
| Upperstructure Specification | ||
| Compector Box | Box Volume | 5CBM/3CBM |
| Box Capacity | 10Ton | |
| Dirty Water Tank Volume | 0.2CBM | |
| Hopper Volume | 0.8CBM | |
| Compression density | 0.8-0.9T/CBM | |
| Compression ratio | 3-4 | |
| Compression cycle time | ≤15 s | |
| Unload garbage time | ≤23 s | |
| Body Thickness | Side | 3mm, Carbon Steel-Q345A |
| Bottom | 4mm, Carbon Steel-Q345A | |
| The Electromagnetic Valve | UZCT-115/24V, 2sets | |
| Hydraulic Pressure | 16Mpa | |
| Controlling Way | Manual and electrical control | |
| Other Configuration |
|
|
| Options | Tail feed flip frame or flip bucket, PLC one-button control system, etc. |
|
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
