Product Details:
Payment & Shipping Terms:
|
| Product Name: | Garbage Compactor Truck, Compressed Waste Refuse Compactor Trucks | Drive Type: | 4X2 6WHEELS 6 WHEELER Rear Load Refuse Truck |
|---|---|---|---|
| Drive Model: | Left Hand Drive, Right Hand Drive | Loading Capacity: | 4 Tons, 5 Tons, 6 Tons, 4T, 5T. 6T, 7T |
| Truck Brand: | Sinotruk/Sinotruck HOWO, Shacman, FAW, FOTON, Jac | Tuck Type: | Waste Collection Truck. |
| Other Equipment: | With Hyraulic Systerm | Condition: | China HOWO Brand, Brand New Truck |
| High Light: | 140hp Refuse Compactor Truck,4x2 Refuse Compactor Truck,Sinotruk Howo Waste Compactor Truck |
||
Sinotruk Howo 4x2 140hp Garbage Compactor 4m3 -8m3 Waste Refuse Compactor Trucks
Product Features
Product introduction:
The compressed garbage truck adopts the integrated technology of electromechanical and liquid, with the help of the combined automatic control system of machine, electricity and liquid, through the special devices such as the carriage, the loader and the push shovel, the garbage can be poured, crushed or flattened, and the garbage can be packed into the car and compacted and shirked. The main features are simple and efficient garbage collection, automatic repeated compression and peristaltic compression function, high compression ratio, large loading quality, automatic operation, good power, environmental protection, high vehicle utilization efficiency.
Chassis configuration:
The car uses Dongfeng new D9 row half 2315 cab, 250 frame, Cummins 180 horsepower / Yuchai 170 horsepower, National five-emission engines, 6/8 gearbox, 3.9 T Front bridge, 8T back bridge, 250MM double beam, 9.00 tyres, Air brake, Clutch booster, Air conditioning, Electronic windows, Central lock, Exhaust - assisted braking, Dryer, Break the air brake, ABS, With the direction of the original factory, good sight, beautiful appearance generous, Flexible and comfortable operation.
Upper configuration:
New ribless box, beautiful plane arc, effective compression volume 10-12 cubic meters, tail with flip feeding mechanism, electronic control manual double control system, cab and rear double control box, tail with 3 cm rubber seal strip, With sewage collection tank, large-capacity sewage tank, the box can be painted as required patterns and words.
Accessories: chassis certificate, chassis consistency certificate, vehicle certificate, warranty manual, service station catalogue, special invoice, tools, hydraulic pipe gasket.
Vehicle advantages:
Dongfeng high-end chassis configuration high 10-12 square compression volume, a car can be used for several sets, generally used for long-distance garbage transfer, word loading, high transfer efficiency, save fuel costs.
product Specification
| Cabin | Driving type 4x2 | ||
| 2080 Standard cab, with three seats, with A/C. Right Hand Driven. 70°hydraulically tillable to the front as attached photo for ref. | |||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8000x2450x3100 | |
| Wheel base (mm) | 4500 | ||
| Wheel track (front/rear) (mm) | 1798/1764 | ||
| Approach/Departure angle(°) | 27/20 | ||
| Weight in KGS | Tare Weight | 6400 | |
| Loading Capacity | 5000 | ||
| Front axles loading capacity | 1x3200 | ||
| Rear axles loading capacity | 1x8200 | ||
| Max. driving speed(km/h) | 90 | ||
| Engine | Brand | YUCHAI | |
| Model | YC4E140-20 | ||
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
| Horse Power(HP) | 140 HP | ||
| Emission standard | Euro Ⅱ | ||
| Gearbox | WLY6T51 , 6 forwards &1 reverse | ||
| Clutch | Diaphragm spring clutch | ||
| Steering Gear | Power steering | ||
| Fuel tank (L) | 230 L | ||
| Tire | 8.25R20 All radial tires with one spare, 7 pieces | ||
| Compression garbage box body system | |||
| Body Volume | 8 CBM | ||
| Cycle Time of Filling(S) | ≤40 | ||
| Lifting Time of Filler(S) | 8-10 | ||
| Time of Discharging | ≤60 | ||
| Working Pressure(MPA) | 16 | ||
| Composed by hermetic garbage tank, hydraulic system, operation system. The entire truck is hermetic, can automatically compress and dump the garbage .and the sewage generated in the process of the compression all go into the sewage tank. | |||

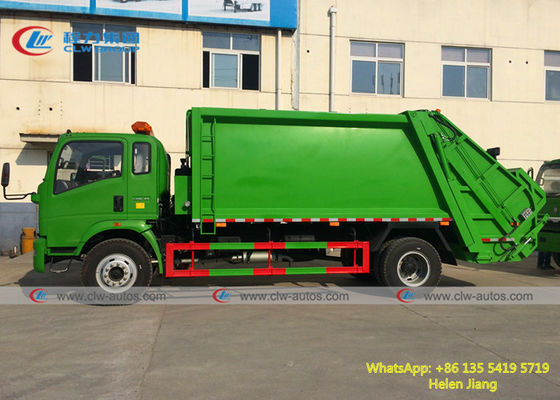

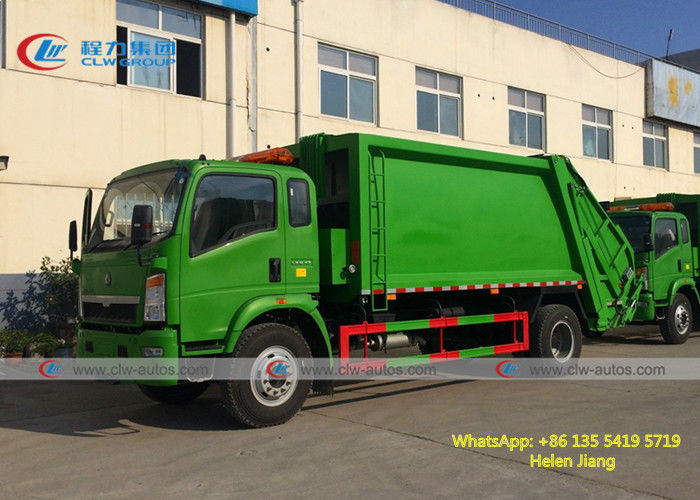

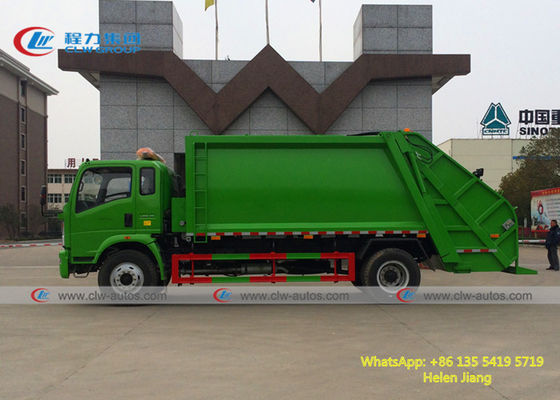

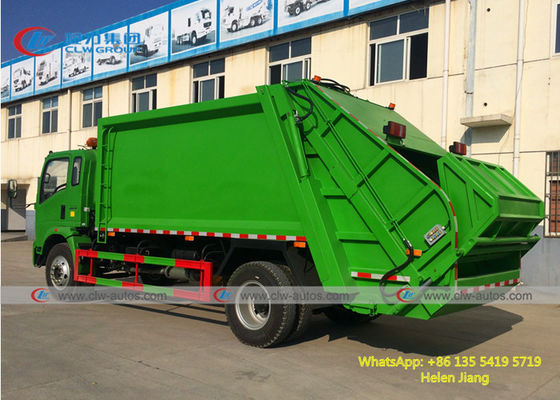

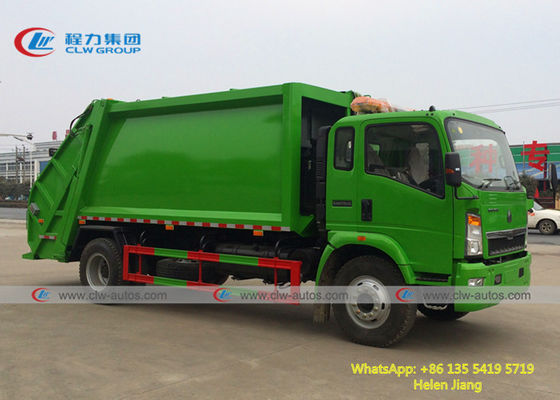

More pictures for Sinotruk HOWO 4x2 140hp Garbage Compactor 4m3 -8m3 Waste Refuse Compactor Trucks
Porducts details and drawings:

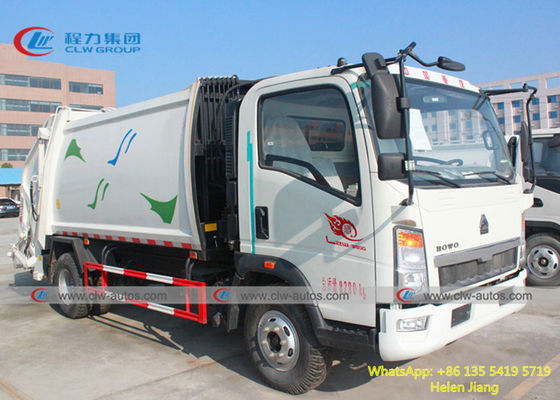

Other Types of Garbage trucks:
Warranty:
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
