Product Details:
Payment & Shipping Terms:
|
| Product Name: | Garbage Compactor Truck, Compressed Waste Refuse Compactor Trucks | Drive Type: | 4X2 6WHEELS 6 WHEELER Rear Load Refuse Truck |
|---|---|---|---|
| Drive Model: | Left Hand Drive, Right Hand Drive | Loading Capacity: | 3 Tons, 4 Tons, 5 Tons, 3T, 4T. 5T, 6T |
| Truck Brand: | Sinotruk HOWO, JMC, Shacman, FAW, FOTON, Jac | Tuck Type: | Waste Collection Truck. |
| Other Equipment: | With Hyraulic Systerm | Condition: | JMC Brand, Brand New Truck |
| Garbage Bin Thickness: | 4mm | ||
| High Light: | JMC Garbage Compactor Truck,5M3 Garbage Compactor Truck,6M3 Rear Loader Garbage Truck |
||
JMC 4X2 115hp 5M3 6M3 Rubbish Refuse Collector Rear Loader Garbage Compactor Trucks
Product Features
CLW Garbage trucks are widely used in sanitation, municipal, factory and mining enterprises, and residential areas where have a lot of garbage. Garbage trucks are classified into compressed garbage trucks, swing arm type, dump type, sealed type, docking type, hook type arm type, and pull arm type garbage truck. Garbage trucks can carry multiple compartments in one vehicle, which can effectively prevent secondary pollution during the loading and unloading process. The modified part is separable from the original car chassis, which is easy to maintain and maintain the mobility and driving performance of the original car. Customers who have special requirements for garbage trucks please contact with us at any time.
product Specification
|
product name
|
JMC 5000 CBM garbage compactor truck
|
Chassis model
|
CLW5139GSSD3
|
|
Actual volume ( cubic )
|
3
|
Total mass (kg)
|
4495
|
|
Engine horsepower
|
115
|
Rated load mass (Kg)
|
165
|
|
Engine name
|
howo
|
Emission Standards
|
Euro III
|
|
Dimensions (MM)
|
6150×2150×2400
|
Fuel type
|
Diesel
|
|
Number of tires
|
6
|
Tire specifications
|
7.50-16LT |
|
Wheelbase (MM)
|
3360
|
Maximum speed (km/h)
|
95
|
|
Front track
|
1495
|
Rear track
|
1490
|
|
Performance profile
|
Compressed Garbage Truck Adopts Electromechanical and Hydraulic Integration Technology. With The Combined Automatic Control System of Machine, Electricity and Liquid, Computer Control and Manual Operation System, IT CAN the Realize The dumping, Crushing or pressing of Garbage through Special Devices SUCH AS Filler and Pusher The compressed garbage truck has the functions of automatic repeated compression and Peristaltic Compression, high compression ratio, good sealing performance, large load capacity, convenient operation, good environmental protection, and high power utilization of the whole vehicle. | ||
|
Dedicated configuration
|
New non-ribbed box body, flat arc with beautiful appearance, effective compression volume of 5 cubic meters, tail with reverse feeding mechanism, electronically controlled manual dual control system, double control box for cab and tail, tail belt 3 After the centimeter , the rubber sealing bead has a sewage collection tank, a large-capacity sewage tank, and the cabinet can be printed with patterns and words as required.
|
||
|
Compression ratio
|
3-4 times
|
Compression density
|
0.8-0.9T/M3
|
|
Trash bin volume
|
5 cubic
|
Filling time
|
≤15 seconds
|
|
Lift cycle
|
≤15 seconds
|
Discharge time
|
≤23 seconds
|
|
engine
|
Chaochai 102/Yuchai 115 hp
|
Compression method
|
Bidirectional compression
|
|
Optional configuration
|
Flip bucket, hanging bucket rack, PLC automatic control
|
||

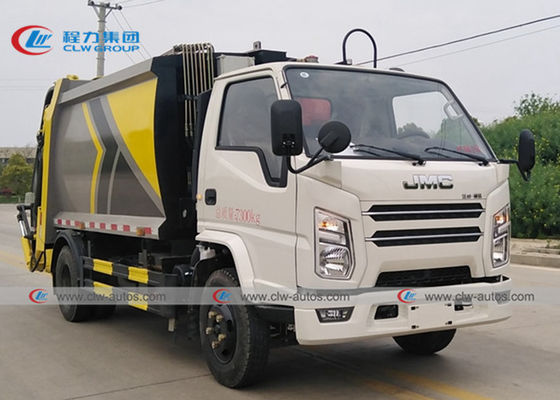

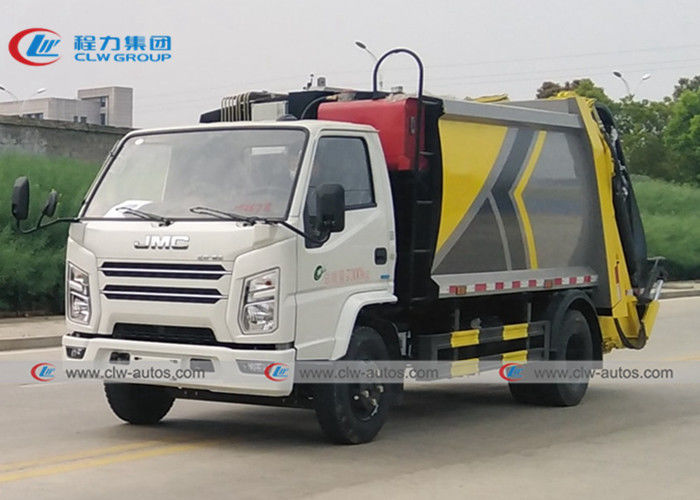

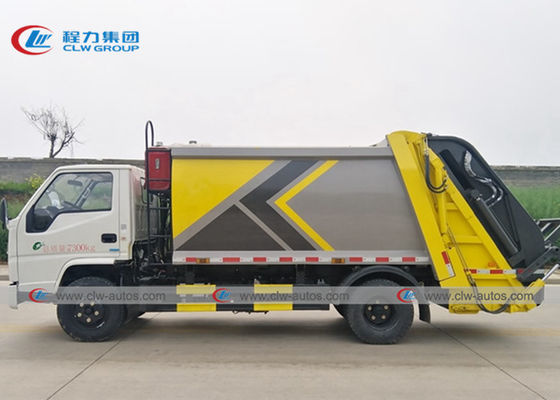

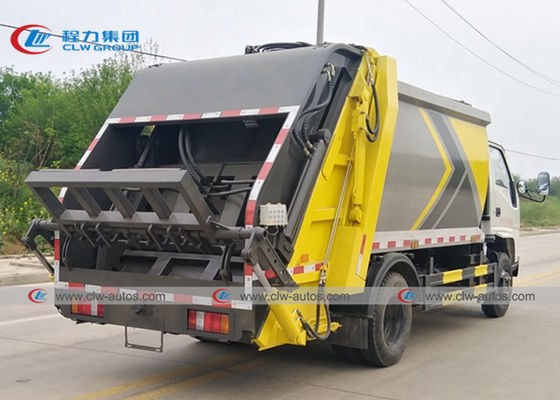

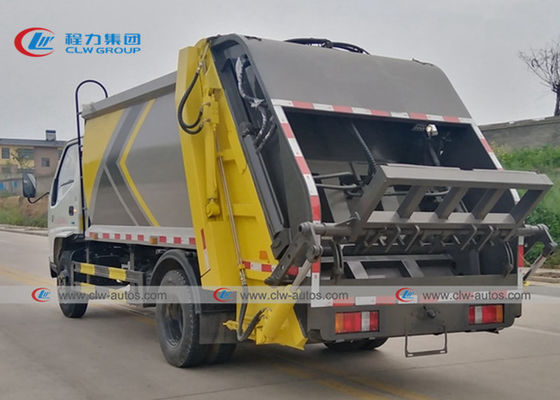

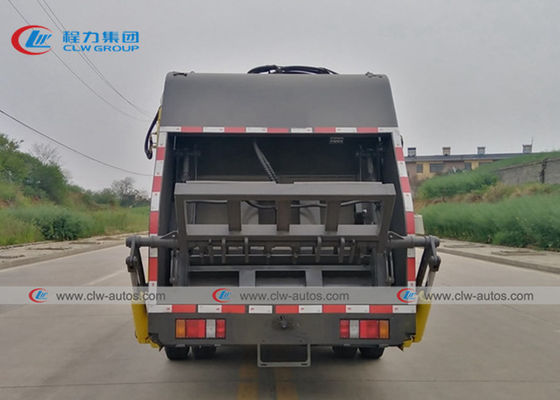

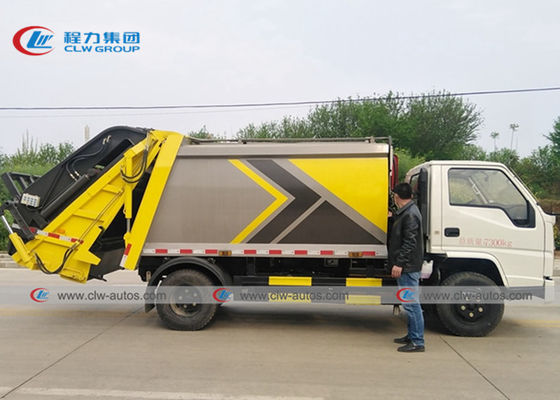

More pictures for JMC 4X2 115hp 5M3 6M3 Rubbish Refuse Collector Rear Loader Garbage Compactor Trucks
Porducts details:
Other Types of Garbage trucks:
Warranty:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2, We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3, With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers' trust and support.
4, Packaging Details : nude , covered with wax, small type can be put into 20'GP OR 40'GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
