Sinotruk Howo 4x2 4CBM Water Tank Fire Fighting Truck

Large Image : Sinotruk Howo 4x2 4CBM Water Tank Fire Fighting Truck

Product Details:

Place of Origin:	SUIZHOU,CHINA
Brand Name:	CLW
Certification:	CCC,SGS,BV
Model Number:	CLW5885

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	US $21,098-29,540
Packaging Details:	naked,waxed,bulk ship,ro-ro
Delivery Time:	30 days after receiving deposit
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 UNITS/MONTH

Contact Now

Detailed Product Description

Truck Chassis:	Dongfeng,Howo,ISUZU,Shacman,CAMC,Foton	Capacity:	2tons,3ton,5ton,6tons,8ton,10tons,12ton,14ton,16ton
Type:	Water Tank Fire Truck,foam,dry Powder Fire Truck,rescue Fire Truck	Fire Pump:	Chinese Brand
Fire Monitor Range:	≥50M	Flow Rate Of Monitor:	48L/s
Flow Rate Of Pump:	60L/s	Steering:	LHD Or RHD
Highlight:	4CBM Water Tank Fire Fighting Truck , Howo 4x2 Fire Fighting Truck , Howo 4x2 Fire Brigade Truck

Sinotruk Howo 4x2 light truck 4CBM 4000Liters Water Tank Fire Fighting Truck

Product Description

1) HOWO 4X2 fire fighting truck is composed with truck body and cabin,cabin is two rows,which can allow 6 persons.The front part of truck body is equipment room,middle is water tank and foam tank,rear is pump room.

2) To ensure good performance of fire trucks,howo fire truck is equipped with middle and low pressure fire pump CB20.10/30.60 with flow rate at 60L/S and Chengdu Wester fire monitor PL48(PM160)or PS60W(SG160).

3) Fire trucks are widely used in factory, terminal, oil&gas depot to insure emergency fire cases.

Specifications

Vehicle Parameters
Chassis	HOWO ZZ1040	Overall Dimension	6790X2100X2850mm
GVW	6600 kg	Curb weight	4325 kg
Wheelbase	3800 mm	Driving type	4x2
Steering	LHD or RHD	Gear box	WLY6T46, Manual
Cab Seats	2+3	Max Speed	90 km/h
Tire	7.00-16	Tire No.	6+1 pcs
Axles	2	Axle Load	2.4+ 4.2 Tons
Engine Parameters
Mode	YUNNEI YN4102QBZL	Power	116hp
Emissions	3.76L	Emission Standard	Diesel, Euro 3
Type	4 stroke,4-cylinders in line, water cooling
Special Function
Capacity	Water tank 4000L
Fire Pump	1. CB10/30, 30L/s, pressure:1.0MPa 2.Suction time≤ 35s(7m suction depth)centrifugal pump
Fire Monitor	PL24, 24L/S/,1.0MPa, fire nozzle range:≥60m(water)
Other Attachments
One row and half cab Tank material is carbon steel Q235A,with thickness 4 mm; Truck body with aluminum alloy rolling door; PTO control indicator installed in cab, also with 100W siren, LED alarm lamp, sign light, lighting switch, rear lighting and etc.

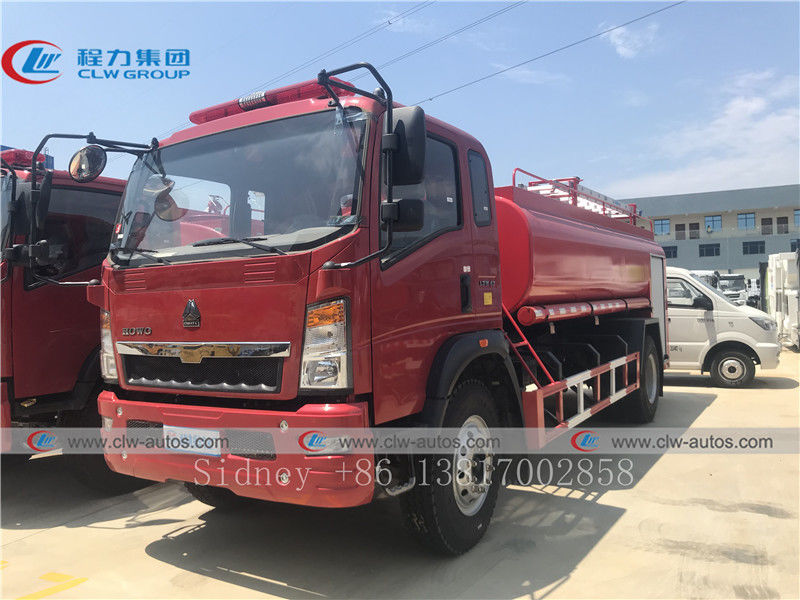

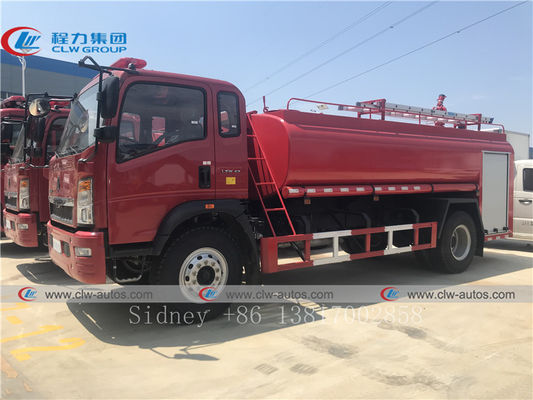

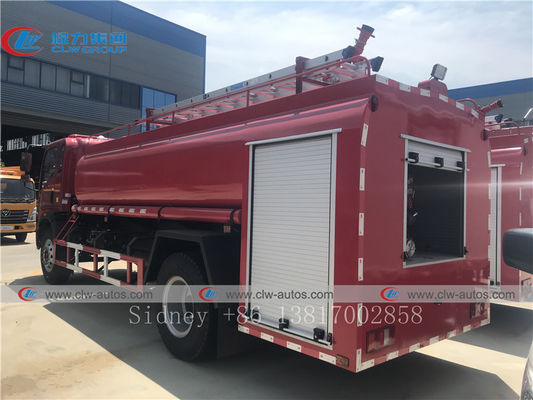

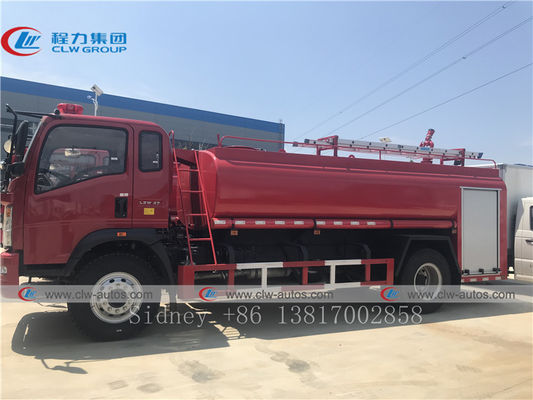

Reference photos

Sinotruk Howo 4x2 4CBM Water Tank Fire Fighting Truck 2

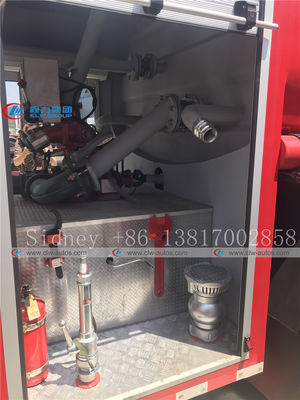

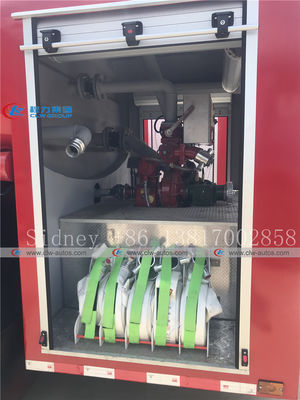

Fire fighting truck accessories

Sinotruk Howo 4x2 4CBM Water Tank Fire Fighting Truck 4

Successful cases

Fire truck workshop

Factory overview

Sinotruk Howo 4x2 4CBM Water Tank Fire Fighting Truck 7

Sinotruk Howo 4x2 4CBM Water Tank Fire Fighting Truck 8

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of fire fighting truck I can order from your company?

A: There are various sizes and types of fire fighting trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied fire fighting trucks to any overseas companies?

A: Yes,with need of government project,we offered fire fighting trucks to many Africa and south-east Asian,south-American countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
