Dongfeng 4x2 4M3 5M3 Rear Loader Waste Compactor Truck

Dongfeng 4x2 4M3 5M3 Rear Loader Waste Compactor Truck
Dongfeng 4x2 4M3 5M3 Rear Loader Waste Compactor Truck Dongfeng 4x2 4M3 5M3 Rear Loader Waste Compactor Truck Dongfeng 4x2 4M3 5M3 Rear Loader Waste Compactor Truck Dongfeng 4x2 4M3 5M3 Rear Loader Waste Compactor Truck Dongfeng 4x2 4M3 5M3 Rear Loader Waste Compactor Truck Dongfeng 4x2 4M3 5M3 Rear Loader Waste Compactor Truck

Large Image :  Dongfeng 4x2 4M3 5M3 Rear Loader Waste Compactor Truck

Product Details:

Place of Origin: SUIZHOU, HUBEI, CHINA
Brand Name: CLW
Certification: ISO9001, CCC, BV, SGS
Model Number: CLW20210819

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiated
Packaging Details: Naked or waxed before shipment
Delivery Time: 30-35 days after receiving the deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units per month
Detailed Product Description
Drive Type: 4X2 6WHEELS 6 WHEELER Rear Load Refuse Truck Drive Model: Left Hand Drive, Right Hand Drive
Loading Capacity: 4 Tons, 5 Tons, 3 Tons, 4T, 5T. 6T, 3T Truck Brand: Sinotruk/Sinotruck HOWO, Shacman, FAW, FOTON, Jac
Tuck Type: Waste Collection Truck. Other Equipment: With Hyraulic Systerm
Condition: China Dongfeng Brand, Brand New Truck Fuel Type: Diesel
Type: Dongfeng Garbage Compactor Truck After-sales Service Provided: Overseas Third-party Support Available,Online Support,Video Technical Support,Free Spare Parts,Field Maintenance And Repair Service
Transmission Type: Manual Product Name: Garbage Transport Truck,waste Bin Compactor Truck,compactor Garbage Truck Price
Truck Type: Compactor Rear Loader Recycling Roll,Garbage Compressor,Garbage Compactor Name: Garbage Compactor Recycling Truck
High Light:

Dongfeng Waste Compactor Truck

,

5M3 Waste Compactor Truck

,

Dongfeng Refuse Compactor Truck

China Dongfeng 4x2 4M3 5M3 Compactor Garbage/Refuse/Rubbish/Waste Collection Truck





Product Description



  • Garbage Compactor Truck change the dirty appearance of the city and eliminate the secondary pollution
  • Easy Full Automatic Operation: Computer control system for loading and unloading operations.
  • One Person Operation: Reducing sanitation working, greatly improves the working environment.
  • Double Operation System: Computer control system and manual operation greatly improves the vehicle usage rate.



Specifications for China Dongfeng 4x2 4M3 5M3 Compactor Garbage/Refuse/Rubbish/Waste Collection Truck:



Cabin Driving type 4x2
With A/C. Left Hand Drive.
Vehicle Main Dimensions Overall dimensions (L x W x H)mm 6220*2050*2570
Wheel base (mm) 3308
Wheel track (front/rear) (mm) 1504/1425
Approach/Departure angle(°) 24/16
Weight in KGS Tare Weight 5400
Front axles loading capacity 1800kg
Rear axles loading capacity 3500kg
Max. driving speed(km/h) 110
Engine Brand Cummis
Type 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 102 HP
Emission standard Euro III
Gearbox 5 forwards &1 reverse
Clutch Diaphragm spring clutch
Steering Gear Power steering
Tire 7.00R16 All radial tires with one spare, 7 pieces
Compression garbage box body system
Body Volume 3-6m3
Material Thickness 4mm
Cycle Time of Filling(S) ≤40
Lifting Time of Filler(S) 8-10
Time of Discharging ≤60
Working Pressure(MPA) 16
Composed by hermetic garbage tank, hydraulic system, operation system. The entire truck is hermetic, can automatically compress and dump the garbage .and the sewage generated in the process of the compression all go into the sewage tank.

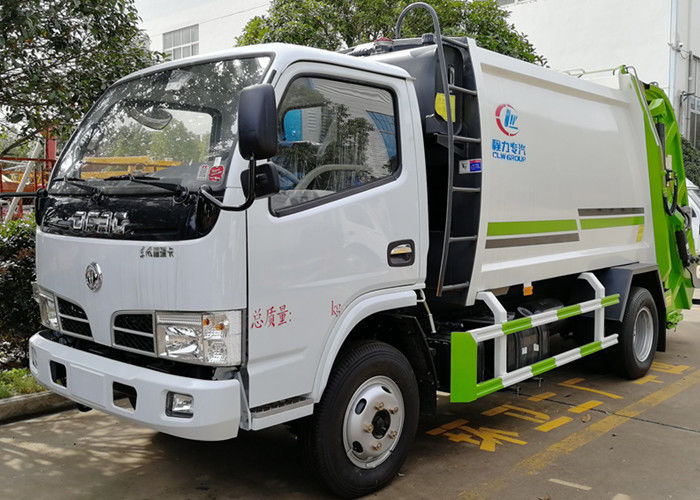

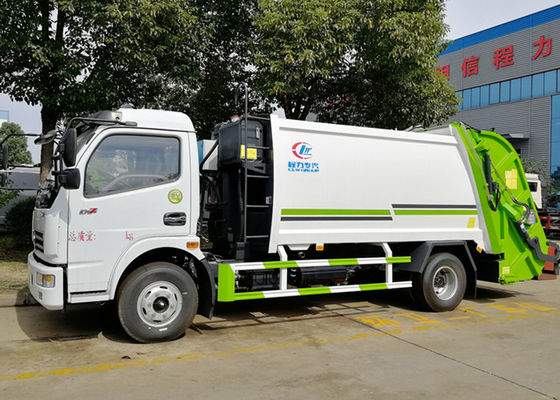

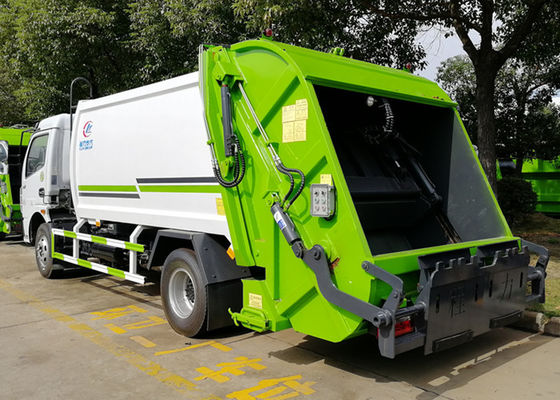

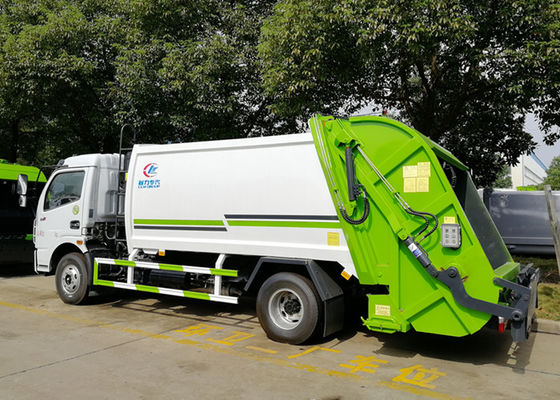

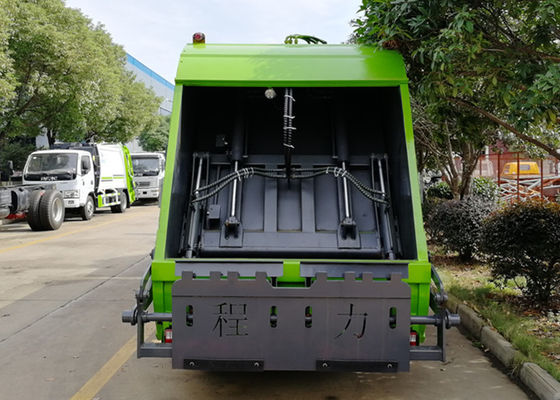

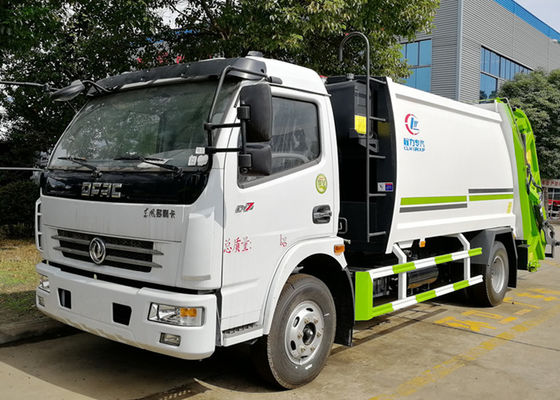

The detailed pictures for China Dongfeng 4x2 4M3 5M3 Compactor Garbage/Refuse/Rubbish/Waste Collection Truck:

Dongfeng 4x2 4M3 5M3 Rear Loader Waste Compactor Truck 0Dongfeng 4x2 4M3 5M3 Rear Loader Waste Compactor Truck 1Dongfeng 4x2 4M3 5M3 Rear Loader Waste Compactor Truck 2Dongfeng 4x2 4M3 5M3 Rear Loader Waste Compactor Truck 3Dongfeng 4x2 4M3 5M3 Rear Loader Waste Compactor Truck 4

Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



FAQ



Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.



Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.



Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .


Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.



Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
