Bulk Order of 5m3 5000L 7cbm 7000Liters Waste Collection Garbage Compactor Trucks

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Bulk Order of 5m3 5000L 7cbm 7000Liters Waste Collection Garbage Compactor Trucks

Bulk Order of 5m3 5000L 7cbm 7000Liters Waste Collection Garbage Compactor Trucks
Bulk Order of 5m3 5000L 7cbm 7000Liters Waste Collection Garbage Compactor Trucks Bulk Order of 5m3 5000L 7cbm 7000Liters Waste Collection Garbage Compactor Trucks Bulk Order of 5m3 5000L 7cbm 7000Liters Waste Collection Garbage Compactor Trucks Bulk Order of 5m3 5000L 7cbm 7000Liters Waste Collection Garbage Compactor Trucks Bulk Order of 5m3 5000L 7cbm 7000Liters Waste Collection Garbage Compactor Trucks Bulk Order of 5m3 5000L 7cbm 7000Liters Waste Collection Garbage Compactor Trucks

Large Image :  Bulk Order of 5m3 5000L 7cbm 7000Liters Waste Collection Garbage Compactor Trucks

Product Details:

Place of Origin: SUIZHOU, CHINA
Brand Name: CLW
Certification: CCC, ISO, BV, SGS
Model Number: CLW5107CZ

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Naked Pack with Wax
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000Units/Month
Detailed Product Description
Chassis Brand: Dongfeng, Isuzu, Sinotruk Howo, Foton, JAC, Etc. Campacting Ratio: 0.6-0.8 Ton/m3
Compression Ratio: 3-4 Compression Cycle Time: ≤15 S
Unload Garbage Time: ≤23 S Hydraulic Pressure: 16Mpa
Garbage Box Thickness: Side 3mm, Bottom 4mm, Carbon Steel-Q345A Garbage Box Volume: 5cbm, 6cbm, 7cbm, 8cbm, Etc.
Garbage Box Capacity: 3ton, 4ton, 5ton, Etc. Dirty Water Tank Volume: 0.2CBM
Hopper Volume: 0.8CBM Controlling Way: Manual And Electrical Control
Logo And Painting: As Per Customer's Request Delivery Time: 30-35 Working Days
Warranty: 1 Year
High Light:

7000L Garbage Compactor Truck

,

Yuchai Engine Garbage Compactor Truck

,

Dongfeng Waste Collection Truck

Bulk Order of 5m3 5000L 7cbm 7000Liters Waste Collection Garbage Compactor Trucks









Product Description

1. Dongfeng 7,000 liter compactor garbage truck chassis configuration: adopting the Dongfeng Duolika 4*2 special sanitation vehicle series chassis, equipped with Yuchai 130HP diesel engine, 5-gear box, air brake, dynamic rotation, clutch booster, 8.25R16 steel tire, cruise at fixed speed. The wheelbase is 3800mm according to requirements.
2. Compactor garbage truck is a special sanitation vehicle mainly used to collect household garbage and other compressible garbage of urban residents. Compactor garbage truck is composed of sealed garbage bin, hydraulic system and operating system. The whole truck is fully sealed, and all sewage from the compression, dumping, and compression process enters the sewage tank, which completely solves the problem of secondary pollution during the garbage transportation process. The key components are imported, which has high pressure, It has the advantages of good sealing, convenient operation, safety and labor saving.

3. Volume : 3-20m3 garbage truck.
4. Steering wheel: both left and right hand drive,meet the needs of different countries.
5. Emission standard: Euro 1,Euro 2,Euro 3,Euro 4,Euro 5, etc.
6. Truck chassis: Dongfeng, ISUZU, FAW, SINOTRUK HOWO, JAC, FOTON, etc.



Product Features

1. Hydraulic system, including the control valve, oil cylinder, connecting pipeline and other key parts, has advanced structure, reliable performance, simple operation and convenient maintenance.
2. Advanced electric control system adopts imported PLC integrated control, mechatronics-hydraulic integrated control, and high degree of automation.
3. The pushing plate control valve is equipped with a back pressure valve, which can highly improve the loading efficiency.
4. The beautiful streamlined appearance design, and the upper body adopts special high-strength anti-corrosion steel plate, which extends the service life of the truck.
5.
Double Operation System: electrical control system and manual operation greatly improves the vehicle usage rate.





Product Specifications

Dongfeng 7CBM Garbage Compactor Truck
Overall Dimension 6220*2050*2570 mm Gross Vehicle Weight 7360 kg
Curb Weight 5400 kg Loading Weight 5000 kg
Wheel Base 3800 mm Front / Rear Axle 3000 kg / 6000kg
Cabin 3 Passengers Allowed, with Air Conditioner, Radio, etc.
Engine Yuchai
Engine horsepower 130HP, EURO II
Max Driving Speed 90 km/h
Gear Box 5 Forward Gear, 1 Reverse Gear,
Tire 8.25R16 (6 pieces with one spare)
Garbage Bin Capacity 7CBM
Material 4mm Carbon Steel for Garbage Bin Body
Design Whole unit with Leakage Proof Design
Ways of Loading Rear Loading with optional Bucket Lifting System
Garbage Compact Ratio 1/3 - 1/4
Control System One control Panel on the back, One Control system in back of Cabin
Dispensing System 1. Equipped with air-tight dustbin, hydraulic system and operating system.
2. Automatic loading, compressing and discharging, all handled by 1 person
3. Sewage water collection tank to avoid any pollution during handling.
4. Large Pressure, Good Leakage Proof, Convenient Operation
Dependable Security
5. Electrical Control Panel for compacting system.
6. Cycling time<14~18s
Remarks 1. Color is optional
2. Customized LOGO painting as per customer request

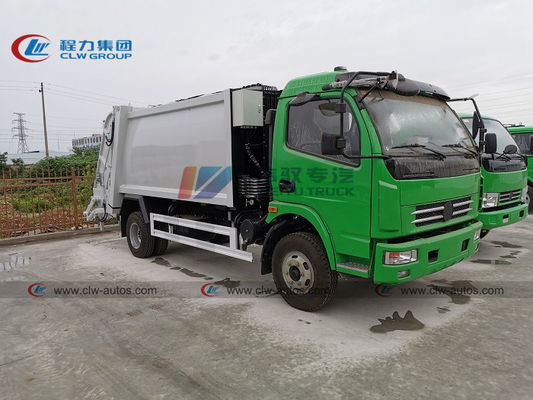

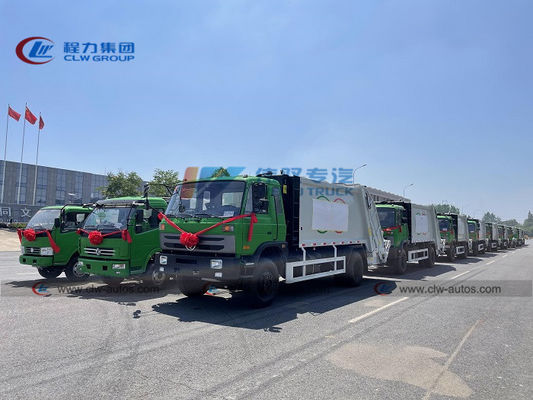

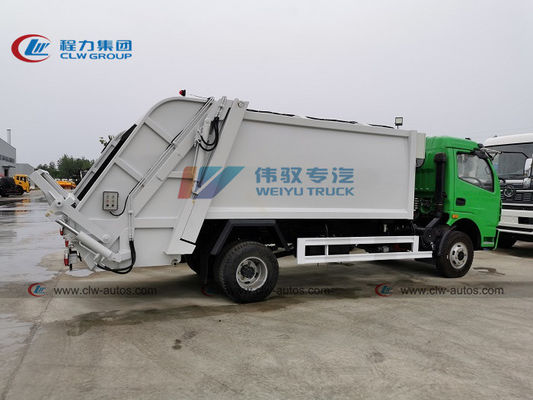

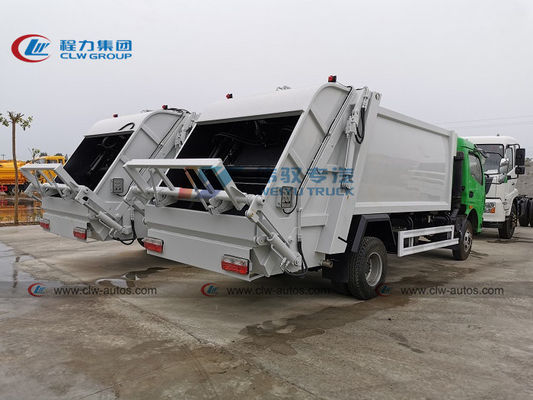

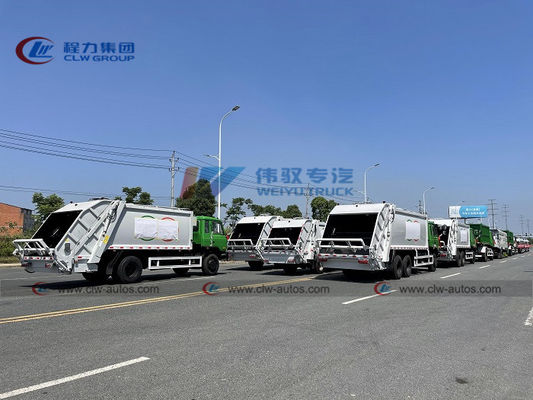

Reference Photos

Bulk Order of 5m3 5000L 7cbm 7000Liters Waste Collection Garbage Compactor Trucks 0

Bulk Order of 5m3 5000L 7cbm 7000Liters Waste Collection Garbage Compactor Trucks 1

Bulk Order of 5m3 5000L 7cbm 7000Liters Waste Collection Garbage Compactor Trucks 2

Bulk Order of 5m3 5000L 7cbm 7000Liters Waste Collection Garbage Compactor Trucks 3

Bulk Order of 5m3 5000L 7cbm 7000Liters Waste Collection Garbage Compactor Trucks 4

Bulk Order of 5m3 5000L 7cbm 7000Liters Waste Collection Garbage Compactor Trucks 5

Bulk Order of 5m3 5000L 7cbm 7000Liters Waste Collection Garbage Compactor Trucks 6

Bulk Order of 5m3 5000L 7cbm 7000Liters Waste Collection Garbage Compactor Trucks 7

Bulk Order of 5m3 5000L 7cbm 7000Liters Waste Collection Garbage Compactor Trucks 8



Bulk Order of 5m3 5000L 7cbm 7000Liters Waste Collection Garbage Compactor Trucks 9whatsapp Flora +86 13971508969



Structure Diagram

Bulk Order of 5m3 5000L 7cbm 7000Liters Waste Collection Garbage Compactor Trucks 10

Bulk Order of 5m3 5000L 7cbm 7000Liters Waste Collection Garbage Compactor Trucks 11



Main Details

Bulk Order of 5m3 5000L 7cbm 7000Liters Waste Collection Garbage Compactor Trucks 12





After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact
Lea for more details+86 155 2791 1810.



FAQ

Q1: What kinds of garbage truck I can order from your company?

A: We can supply different sizes and types garbage trucks as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.



Q2: What is your production standard of garbage truck products?

A: China GB local standard.



Q3: Can we adopts International brand fuel pump for garbage truck?

A: Sure, we already cooperated with many international brand supplier.



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
