Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Dongfeng/Sinotruk HOWO/Foton/Shacman, Etc. | Extinguishing Agents: | Water |
|---|---|---|---|
| Key Parts: | Pump | Accessories: | Standard Configure |
| Purpose: | Fire Fighting Truck, Emergency Rescue | Flow Rate Of Fire Pump: | 30L/S 1.0MPa |
| Water Pump: | Chinese Or International Brand | Fire Fighting Pump: | Chinese Or International Brand |
| Fire Fighting Monge: | Chinese Or International Brand | Throw Range: | 55m |
| Tanker Capacity: | 20000L, 30000L | Fire Monitor Rotation Angle: | 360 Degree |
| On-Site Training: | According To Client Request | Logo And Color: | As Per Customer's Requests |
| Warranty: | 1 Year | ||
| High Light: | 336HP Fire Brigade Truck,20 Ton HOWO Fire Brigade Truck,20 Ton HOWO Firefighter Truck |
||
Product Description
Fire sprinkler is also known as fire sprinkler, forest fire truck, multi-function fire truck, multi-purpose sprinkler, airport fire sprinkler, street, town and village fire sprinkler function, is a combination of fire truck and sprinkler. The dual-purpose vehicle is between the fire truck and the sprinkler. It has the integrated purpose of fire fighting and sprinkling. Compared with the fire truck, although it lacks the equipment box, it has the same spray range as the fire truck and has the same fire fighting function.
Forest fire trucks are the main firefighting equipment used by forestry, forest farms, forestry fire prevention offices, and forestry firefighting to extinguish fires. They can be divided into forest water tank fire trucks, forest rescue fire trucks, and forest fire fighting tool vehicles.
-According to chassis drive type, there are 4X2 or 6-wheel fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck for military use.
-According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck,Scania fire fighting truck and so on.
Product Specification
| Description | Parameters |
| Overall Dimension | 7260*2500*3460 |
| GVW | 22500kg |
| Engine Model | Sinotruk |
| Engine Power | 336HP/247kW |
| Wheelbase | 4300+1350mm |
| Driving Type | 6X4 |
| Max.speed | 95km/h |
| Passengers | 1+1+4 |
| Fire pump rated flow | 60L/s@1.0Mpa; |
| water monitor rated flow | 48-64L/s |
| Water monitor range | Water range≥55m |
| Approach angle | ≥16° |
| Departure angle | ≥23° |
| Water tank capacity | 20Tons |
| Fire pump model | CB10/30 |

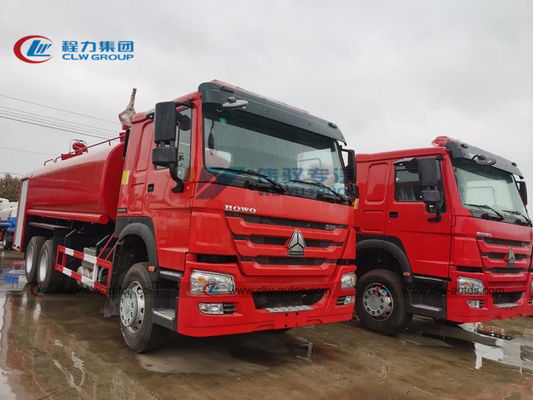

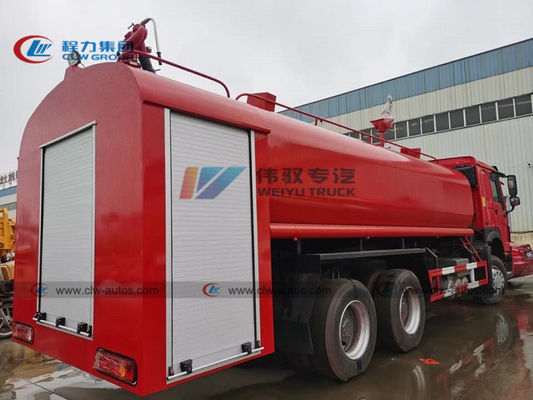

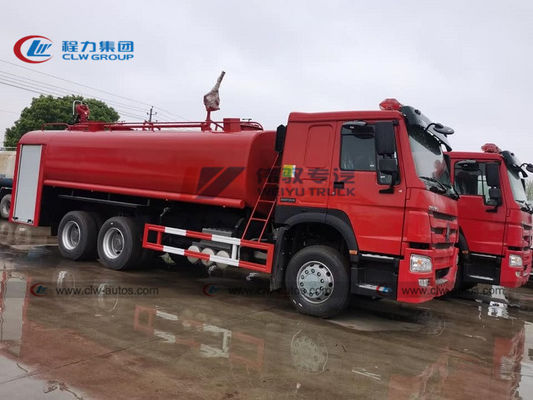

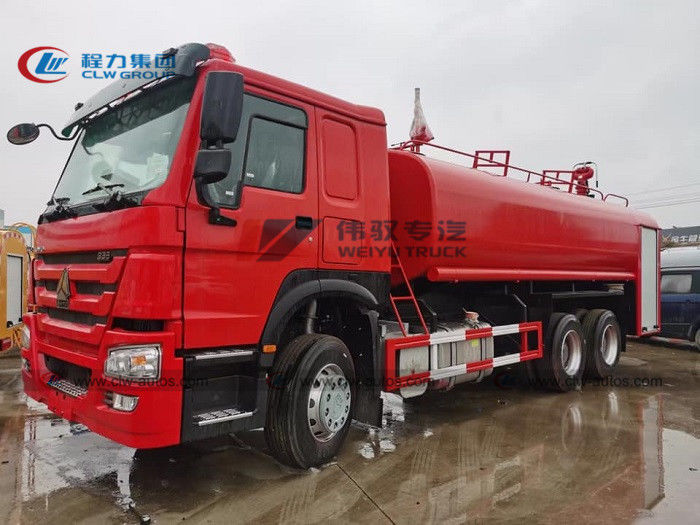

Reference Photos
We provide package solution and customized drawing for every fire fighting truck
Main Details and Tools
Different Capacities of Fire Truck
After-sales Service
1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Lea For More Details: +86 155 2791 1810.
FAQ
Q1: What kind of fire truck I can order from your company?
A: There are various types and sizes of fire trucks with different functions and different capacity, you can contact us and tell your request. We will recommend you suitable product.
Q2: Have you supplied fire truck to any overseas companies?
A: Yes, we have supplied fire trucks to African, south-east Asian, south-American and other more than 80 countries and regions.
Q3: Can we adopts International brand parts or accessories for fire truck?
A: Sure, we already cooperated with many international brand suppliers.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
