Dongfeng DFAC Duolica 10000L Tank Water Sprinkler Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Dongfeng DFAC Duolica 10000L Tank Water Sprinkler Truck

Dongfeng DFAC Duolica 10000L Tank Water Sprinkler Truck
Dongfeng DFAC Duolica 10000L Tank Water Sprinkler Truck Dongfeng DFAC Duolica 10000L Tank Water Sprinkler Truck Dongfeng DFAC Duolica 10000L Tank Water Sprinkler Truck Dongfeng DFAC Duolica 10000L Tank Water Sprinkler Truck Dongfeng DFAC Duolica 10000L Tank Water Sprinkler Truck Dongfeng DFAC Duolica 10000L Tank Water Sprinkler Truck Dongfeng DFAC Duolica 10000L Tank Water Sprinkler Truck

Large Image :  Dongfeng DFAC Duolica 10000L Tank Water Sprinkler Truck

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW
Certification: CCC,ISO
Model Number: CLW5122

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: USD21925-29852
Packaging Details: Naked packing,Ro-ro,Bulk Ship
Delivery Time: 20-30 Days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500Unit Per Month
Detailed Product Description
Material: Q235 Carbon Steel Thickness: 4 Mm
Fuel: Diesel Driving Type: 4*2, Left/right Hand Driving
Pump: China Famous Brand/International Brand Suction Height: 7 Meters
Water Canon Range: 30 Meters Sprinkling Width: 14 Meters
Operating Video: Yes Use Manual: Yes
Front Spray And Rear Spray: Yes Warranty: One Year
LOGO: As Per Customer's Request
High Light:

10000L Tank Water Sprinkler Truck

,

Dongfeng DFAC Duolica Water Sprinkler Truck

,

Dongfeng DFAC Duolica Water Spray Truck

Dongfeng DFAC Duolica D9 model water tanker 10000L 10CBM fire sprinkler truck water spray truck



Description



Water bowser truck, is also called as the sprinkler, and multi-function green watering truck.

It is mainly used in city road, large factory area, army, landscape garden and other departments for leaning the pavement, sanitation, dust-proof, watering, and spraying farming chemicals for beautify the environment and for fire brigade.

From another point, while being urgent, the sprinkler is also used as the fire fighting truck.

The sprinkler is equipped with front, rear and side sprinkler head, and then it covers large watering fields, making great efficiency.

This kind of the watering truck could be one most important kind in all environmental trucks.


1. Optional chassis brand: Dongfeng, Sinotruk, Foton, Faw, Shacman, Isuzu;
2. Water Tank Material: High Tension Steel Q235/Q345,stainless steel 304B for option.
3. Reliable and high quality water pump
4. Optional for insulation layer which is suitable for warm water delivery.

5. Sprinking Width of portable water truck :>14M
6. Rear working platform with water cannon range of portable water truck :30 meters

7. The truck can be equipped with advanced facilities such as medicine tray, medicine pump, anti-corrosion and rust prevention in the tank, multi-directional water inlet and outlet joints, solenoid valves, pneumatic valves, etc. to meet the needs of different users.



Specifications

product name Dongfeng water tanker 10,000L fire sprinkler truck
Total mass (kg) 12400 Tank volume (m3) 9-10
Rated mass (kg) 6270,6205 Dimensions (mm) 7360X2480X3150
Curb weight (kg) 6000 Cargo compartment size (mm) XX
The number of passengers in the cab (person) 2,3 Maximum loading weight(kg) 10,000
Approach angle/departure angle (°) 17/12 Front suspension/rear suspension (mm) 1250/2160
Axle load (kg) 4300/8100 Maximum speed (km/h) 88
Remarks:

Remarks: The vehicle is equipped with tank body, piping system, operating system, sprinkler pump, power take-off,

and the water pump is driven by the transmission shaft to complete the sprinkling work;

the effective volume of the tank: 9-10 cubic meters, the overall size of the tank (long/long axis)

/Short axis) The tank demension is (mm): 3800/1900/1200.

Chassis technical parameters
Chassis Brand Dongfeng Chassis Model Duolica D9
Manufacturer

Dongfeng Motor Group Co., Ltd.

Number of axes 2 Number of tires 6
Wheelbase (mm) 3950
Tire specifications 8.25R20, 9.00R20
Number of leaf spring 8/10+7 Front track (mm) 1820
Fuel type Diesel Rear track (mm) 1800
Emission standard GB18285-2005, GB17691-2018 Euro IV
Engine model Engine manufacturer Engine capacity Engine power
YCS04160N-60 Guangxi Yuchai Machinery Co., Ltd. 4156 118kw/160hp


Reference photos

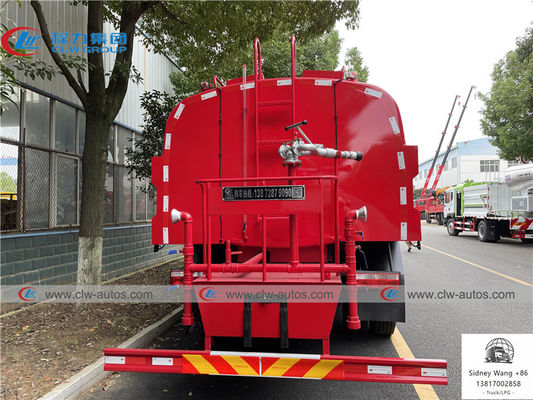

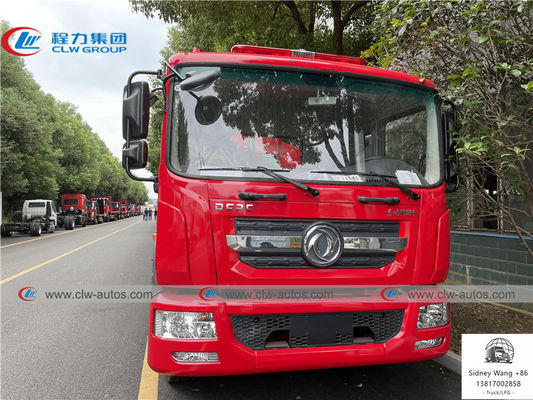

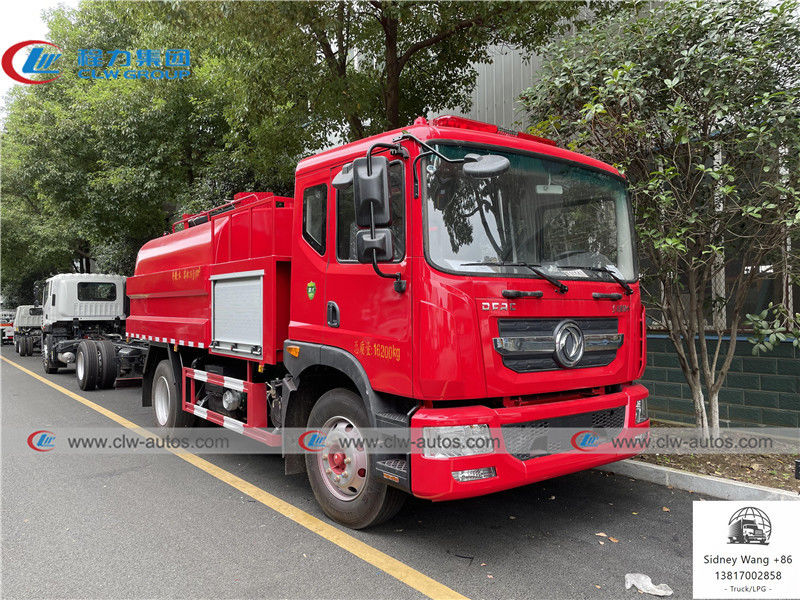

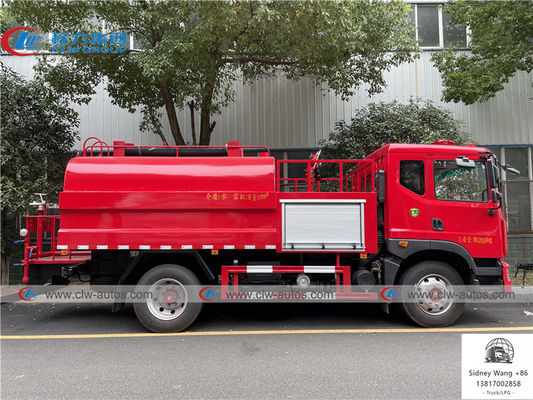

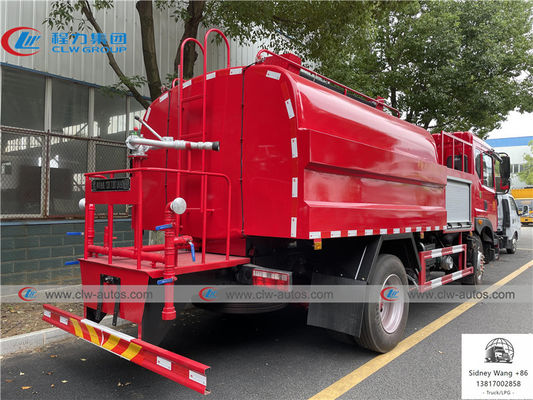

Dongfeng DFAC Duolica 10000L Tank Water Sprinkler Truck 0Dongfeng DFAC Duolica 10000L Tank Water Sprinkler Truck 1

Dongfeng DFAC Duolica 10000L Tank Water Sprinkler Truck 2Dongfeng DFAC Duolica 10000L Tank Water Sprinkler Truck 3


Water Truck Diagram

Dongfeng DFAC Duolica 10000L Tank Water Sprinkler Truck 4


Working Show
Dongfeng DFAC Duolica 10000L Tank Water Sprinkler Truck 5

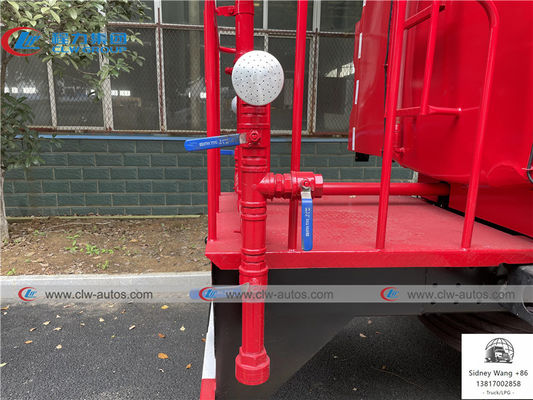

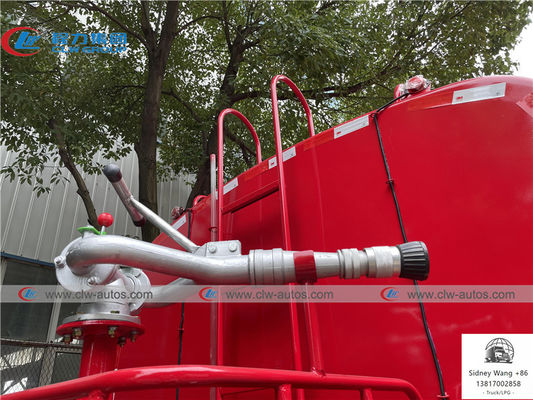

Truck Details
Dongfeng DFAC Duolica 10000L Tank Water Sprinkler Truck 6
Dongfeng DFAC Duolica 10000L Tank Water Sprinkler Truck 7



Water bowser truck production line

Dongfeng DFAC Duolica 10000L Tank Water Sprinkler Truck 8



Factory overview

Dongfeng DFAC Duolica 10000L Tank Water Sprinkler Truck 9

Dongfeng DFAC Duolica 10000L Tank Water Sprinkler Truck 10



Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
