Product Details:
Payment & Shipping Terms:
|
| Box Material: | Carbon Steel Q235 | Truck Brand: | Dongfeng,howo,jac,jmc,faw,forland,foton |
|---|---|---|---|
| Truck Engine: | Chaochai Engine 102hp,120hp,170hp,190hp | Gearbox: | 6 Forward & 1 Reverse |
| Tire: | 7.00R16,6 Pcs With One Spare | Steering: | Lhd,left Hand Drive,rhd,right Hand Drive |
| High Light: | 5CBM Garbage Compactor Truck,KAMA Garbage Compactor Truck,KAMA Refuse Compactor Truck |
||
| Product Name | Kama Diesel Engine and Turbo charger Type 5000L garbage compactor truck | ||
| Chassis brand | China KAMA | Wheel base (mm) | 3300 mm |
| Overall Dimension(mm) | 5850*2000*2300 | Driving type | 4*2, left hand drive |
| Gross weight (kg) | 4495 | Number of Leaf Springs | 8/9+5,6/8+4 |
| Curb weight(kg) | 3465 | Rated loading capacity(Kg) | 5000 |
| Transmission | 5 speed forward with 1 reverse manual | Axle number | 2 |
| Fuel type | Diesel oil | Braking system | Air brake |
| Approaching/Departure Angle(°) | 19/15(°) | F/R Axle load(kg) | 1785/2710 |
| Passengers in cab | 2 | Maximum speed(km/h) | 90 |
| Number of Tyres | 6 (with1 spare tire) | Tyre type | 7.00-16 |
| Front/Rear suspension(mm) | 1032/1518 | Front/Rear track base (mm) | 1506/1442 |
| Engine parameters | |||
| Engine Brand | Dongfeng Chaoyang | Engine Model | CY4102-C3F |
| Displacement (L) | 3.856 L | Emission Standard | EURO 5 |
| Power (kw/hp) | 70/95 | Maximum torque | 365N/m |
| Number of cylinders | 4 | Cylinder spread pattern | In-line |
| Operation control system | Electrically hydraulic control | Rated rotation(rpm) | 3200 |
| Equipment | |||
| Refuse Container capacity | 5m3/5000Liters | Rubbish Discharging Time | <= 30 s |
| Loading Circulation Time | 12- 30s | Compressed Proportion | 1:3 / 1:2 |

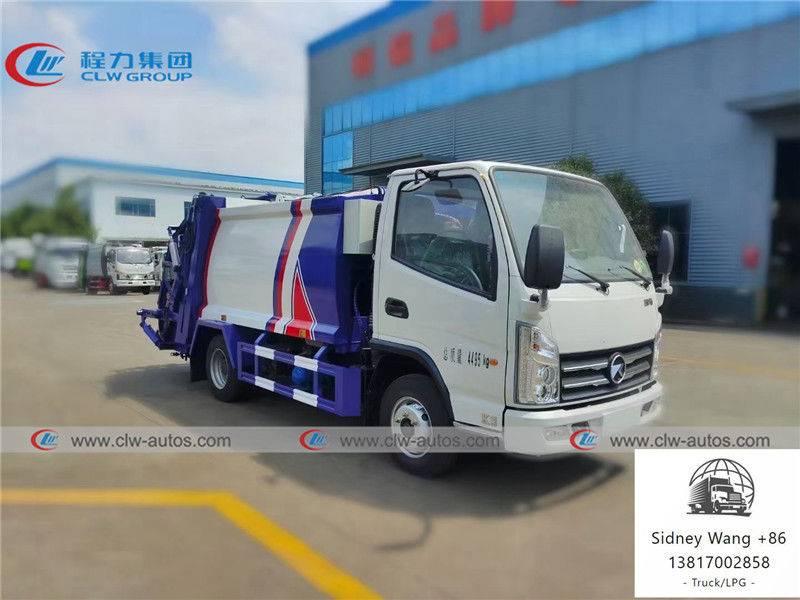

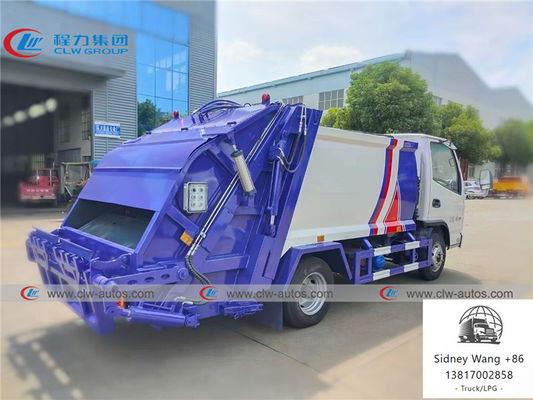

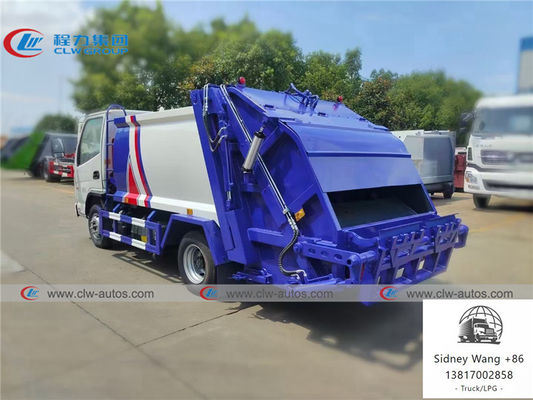

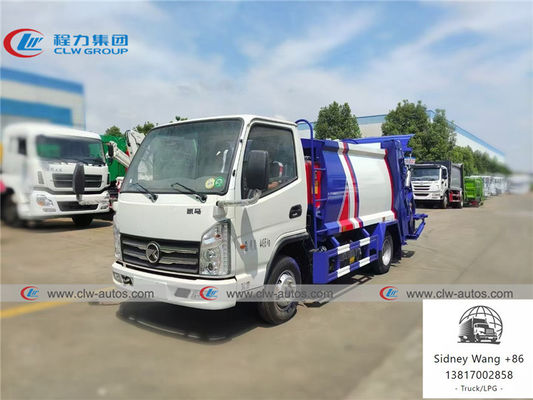

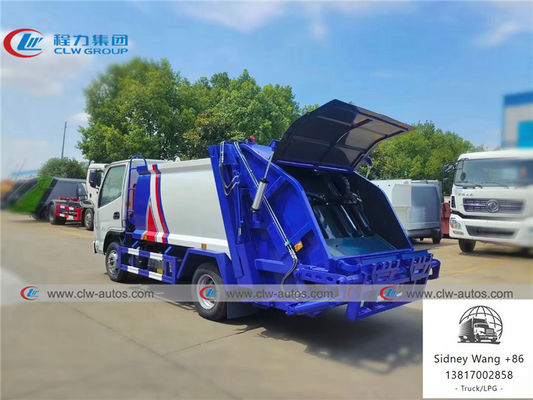

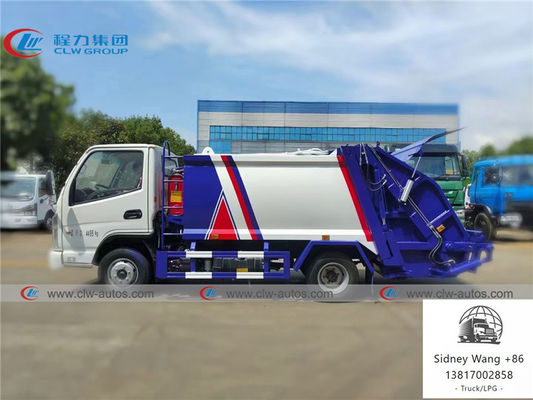

Reference photos
Main parts
Truck Diagram
Factory overview
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
