Truck Chassis: | Dongfeng,Howo,ISUZU,Shacman,CAMC,Foton | Capacity: | 10tons,15ton,18ton, 20ton |
---|---|---|---|
Type: | Water Tank Fire Truck,foam,dry Powder Fire Truck,rescue Fire Truck | Fire Pump: | Chinese Brand |
Fire Monitor Range: | ≥50M | Flow Rate Of Monitor: | 48L/s |
Flow Rate Of Pump: | 60L/s | Steering: | LHD Or RHD |
Highlight: | 20000L Fire Rescue Truck,Sinotruk Howo 8x4 Fire Rescue Truck,371HP Fire Brigade Truck |

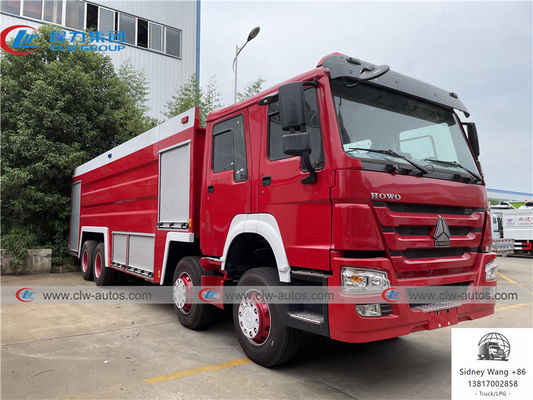

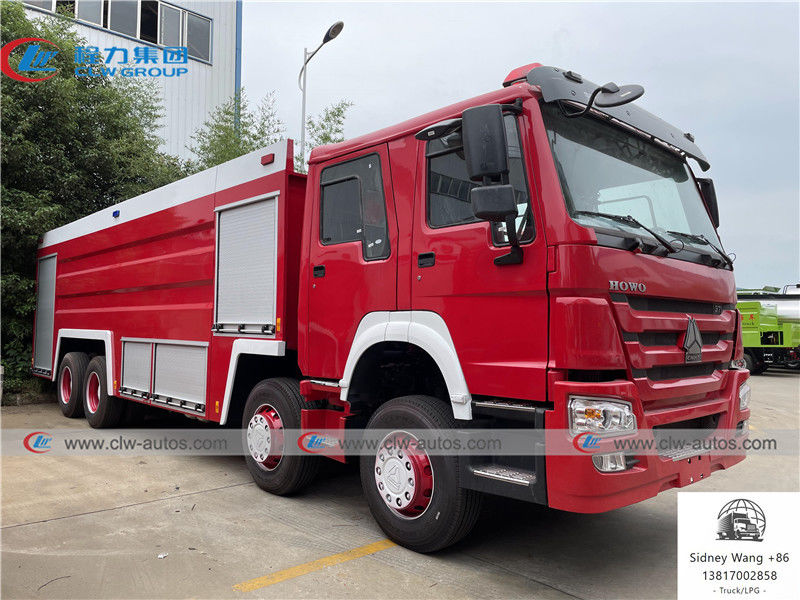

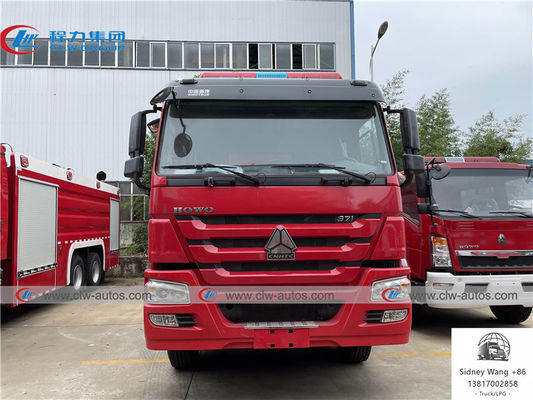

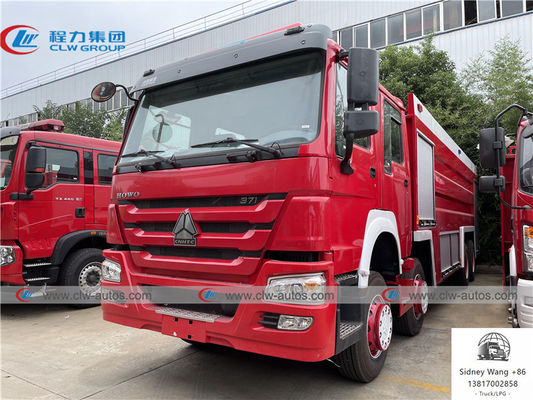

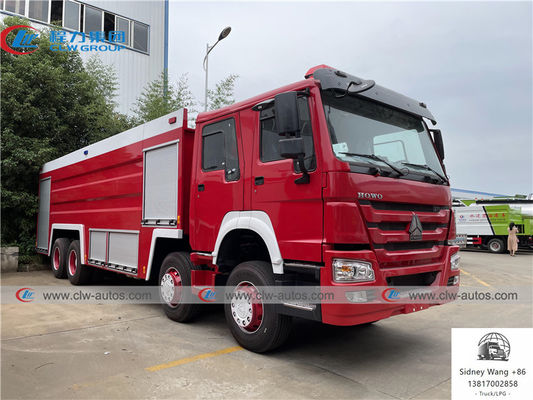

Sinotruk HOWO 8X4 371hp 20000L 20tons Fire Rescue Water and Foam Tank Truck Fire Fighting Truck Emergency Fire Engine Fire Pumper Trucks
Product descriptions
Fire fighting truck is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread,
reducing the loss caused by fire maximumly. Which is also called fire water truck, fire fighting tanker, water tank fire truck,
fire appliance, fire fighting engine, fire-extinguishing water truck, water tender, fire service truck, fire hydrant and fire water
tanker.
Fire Truck, also called Fire Engine, Fire Rescue Truck, Fire Fighting Truck, Firefighting Truck, Firefighting Apparatus Truck, Firefighting Truck, Fire Vehicle, Fire Rescue Vehicle, Fire Fighting Vehicle, Firefighting Vehicle, Firefighting Apparatus Vehicle, Firefighting Vehicle.
It is a vehicle that equiped firefighting apparatus and customized for use during firefighting operations. These trucks are highly customized depending on their needs and the duty they would be performing.
For the Firefighting Truck tank mediums, we have three types: water, foam, dry powder. And for the tanks material, we have carbon steel, stainless steel and PP material. And tank volume is from 3000L to 25000L.
1. HOWO 6X4 fire fighting truck is composed with truck body and cabin,cabin is two rows,which can allow 6 persons.The front part of truck body is equipment room,middle is water tank and foam tank,rear is pump room.
2) To ensure good performance of fire trucks,howo fire truck is equipped with middle and low pressure fire pump CB20.10/30.60 with flow rate at 60L/S and Chengdu Wester fire monitor PL48(PM160)or PS60W(SG160).
3) Fire trucks are widely used in factory, terminal, oil & gas depot to insure emergency fire cases.
1. Fire fighting truck chassis Model: ISUZU,SINOTRUK, SHACMAN, DONGFENG, FOTON, tec.
2. Engine Model: Dongfeng Cummins (260HP-375HP), Yuchai (290HP-375HP), weichai(270HP-380HP).
3. Drive model: 4x2 , 6x4 , 8x4;
4. Engine: EuroII, III, IV, V, VI Emission standard;
5. Right/Left hand drive ;
6. Fire fighting truck type: water tank, water and foam tank,water,foam and powder
Product Specifications
Truck name | Sinotruk howo 8x4 fire engine fire fighting truck | ||
Drive Model | Left hand 8x4 | ||
Chassis | ZZ1257 | ||
Fact cubage | 23cbm(water tank:20cbm, foam tank: 3cbm) | ||
Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 11900X2500X3635 | |
Wheel base (mm) | 1800+4600+1350 | ||
Overhang (front/rear) (mm) | 1500/2950 | ||
Wheel track (front/rear) (mm) | 2022/1830/1830 | ||
Approach/Departure angle(°) | 16/15 | ||
Weight in KGS | Curb Weight | 17300 | |
GVW. | 41000 | ||
Max. driving speed(km/h) | 85 | ||
Engine | Model | WD615.47 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
Horse Power(HP) | 371 | ||
engine capacity(ml) | 9726 | ||
Emission standard | Euro II | ||
Gearbox | 10 forwards & 2 reverse | ||
Clutch | Reinforced diaphragm clutch | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Fuel tank (L) | 400 | ||
Tire | 12.00R20 , 12pcs + 1 spare | ||
Brakes | dual circuit compressed air brake | ||
UPPER | |||
Water tank Volume | 20cbm | ||
Foam tank Volume | 3cbm | ||
Protective material | Carbon steel | ||
Key Equipment | |||
Fire Pump | Mode | CB30.60 | |
Flow | 60L/s | ||
Pressure | 1.0Mpa | ||
Fire Monitor | Mode | PL48 | |
Pressure | 1.0-1.2MPa | ||
Flow | 48L/S | ||
Fire Distance(water/foam) | ≥65m/60m | ||
Rotation Angle(°) | 360/-30~80 |
Reference photos
Successful cases
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of fire fighting truck I can order from your company?
A: There are various sizes and types of fire fighting trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied fire fighting trucks to any overseas companies?
A: Yes,with need of government project,we offered fire fighting trucks to many Africa and south-east Asian,south-American countries.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
