Sinotruk HOMAN 4x2 RHD 10M3 Compressed Garbage Compactor Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Sinotruk HOMAN 4x2 RHD 10M3 Compressed Garbage Compactor Truck

Sinotruk HOMAN 4x2 RHD 10M3 Compressed Garbage Compactor Truck
Sinotruk HOMAN 4x2 RHD 10M3 Compressed Garbage Compactor Truck Sinotruk HOMAN 4x2 RHD 10M3 Compressed Garbage Compactor Truck Sinotruk HOMAN 4x2 RHD 10M3 Compressed Garbage Compactor Truck Sinotruk HOMAN 4x2 RHD 10M3 Compressed Garbage Compactor Truck Sinotruk HOMAN 4x2 RHD 10M3 Compressed Garbage Compactor Truck Sinotruk HOMAN 4x2 RHD 10M3 Compressed Garbage Compactor Truck

Large Image :  Sinotruk HOMAN 4x2 RHD 10M3 Compressed Garbage Compactor Truck

Product Details:

Place of Origin: SUIZHOU, HUBEI, CHINA
Brand Name: CLW
Certification: ISO9001, CCC, BV, SGS
Model Number: CLW20210903

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiated
Packaging Details: Naked or waxed before shipment
Delivery Time: 30-35 days after receiving the deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units per month
Detailed Product Description
Product Name: Garbage Compactor Truck, Compressed Waste Refuse Compactor Trucks Drive Type: 4X2 6WHEELS 6 WHEELER Rear Load Refuse Truck
Drive Model: Left Hand Drive, Right Hand Drive, RHD Loading Capacity: 6 Tons, 8 Tons, 10 Tons, 6T, 7T. 8T, 10T
Truck Brand: Sinotruk/Sinotruck HOMAN, Shacman, FAW, FOTON, Jac Tuck Type: Waste Collection Truck.
Other Equipment: With Hyraulic Systerm Condition: China HOMAN Brand, Brand New Truck
Fuel Type: Diesel After-sales Service Provided: Overseas Third-party Support Available,Online Support,Video Technical Support,Free Spare Parts
Transmission Type: Manual Emission Standard: Euro 3,Euro 4,Euro 2
Truck Type: Garbage Compressor,Garbage Compactor Engine Power: 150-250HP
Name: New Refuse Compactor Trucks,garbage Compactor Recycling Truck
High Light:

10M3 Garbage Compactor Truck

,

Sinotruk HOMAN 4x2 Garbage Compactor Truck

,

RHD Compressed Garbage Truck

Sinotruk HOMAN 4x2 RHD 10M3 10CBM Compression Compressed Garbage Compactor Truck





Product Features



  • Product introduction:

    Garbage compactor truck ,also called compactor garbage truck , garbage truck for sale , trash compactor , compression garbage truck , refuse truck , garbage collection vehicle, waste truck container garbage truck, compact garbage trucks, waste compactor trucks, compactor garbage truck for sale etc



    Garbage compactor truck capacity from 3 cbm to 18cbm all available .



    Chengli brand Garbage compactor truck advantage :

    1 Dual operation both at the rear of compactor garbage truck and inside cabin , easy control

    2 Famous brand hydraulic pump to drive hydraulic valve to keep garbage compactor truck safety

    3 Cheap price , one year warranty

    4 Garbage bin lifting system could design as customer’s requirement .

    5 Lock system is operated by machinery hydraulic system can reduce second pollution mostly.



    Chassis configuration:

    The car uses Dongfeng new D9 row half 2315 cab, 250 frame, Cummins 180 horsepower / Yuchai 170 horsepower, National five-emission engines, 6/8 gearbox, 3.9 T Front bridge, 8T back bridge, 250MM double beam, 9.00 tyres, Air brake, Clutch booster, Air conditioning, Electronic windows, Central lock, Exhaust - assisted braking, Dryer, Break the air brake, ABS, With the direction of the original factory, good sight, beautiful appearance generous, Flexible and comfortable operation.



    Upper configuration:

    New ribless box, beautiful plane arc, effective compression volume 10-12 cubic meters, tail with flip feeding mechanism, electronic control manual double control system, cab and rear double control box, tail with 3 cm rubber seal strip, With sewage collection tank, large-capacity sewage tank, the box can be painted as required patterns and words.

    Accessories: chassis certificate, chassis consistency certificate, vehicle certificate, warranty manual, service station catalogue, special invoice, tools, hydraulic pipe gasket.



    Vehicle advantages:

    Dongfeng high-end chassis configuration high 10-12 square compression volume, a car can be used for several sets, generally used for long-distance garbage transfer, word loading, high transfer efficiency, save fuel costs.


product Specification

Specification
Brand Name
SINOTRUK HOMAN
Overall Dimension
8500×2500×3000 mm(option)
Gross Vehicle Weight
16000 kg
Curb Weight
6095 kg
Loading Weight
6700 kg
Wheel Base
3815 mm(option)
Front / Rear Axle
2500/4800 kg
Cabin
Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio,
Engine horsepower
120HP, EUR II(option)
Max Driving Speed
90 km/h
Gear Box
5 Forward Gear, 1 Reverse Gear,
Tire
7.00R16, steel wire tire, 6pc with 1 spare tire
Garbage Bin
Capacity
7cbm or 8CBM(option))
Material
4mm Carbon Steel for Garbage Bin Body
Design
Whole unit with Leakage Proof Design
Ways of Loading
Rear Loading with optional Bucket Lifting System
Garbage Compact Ratio
1/3 - 1/4
Control System
One control Panel on the back, One Control system in back of Cabin
Dispensing System
1. Equipped with air-tight dustbin, hydraulic system and operating system.
2. Automatic loading, compressing and discharging, all handled by 1 person
3. Sewage water collection tank to avoid any pollution during handling.
4. Large Pressure, Good Leakage Proof, Convenient Operation
Dependable Security
5. Electrical Control Panel for compacting system.
6. Cycling time<14~18s
Remarks
1. Color is optional
2. Customized LOGO painting as per customer request

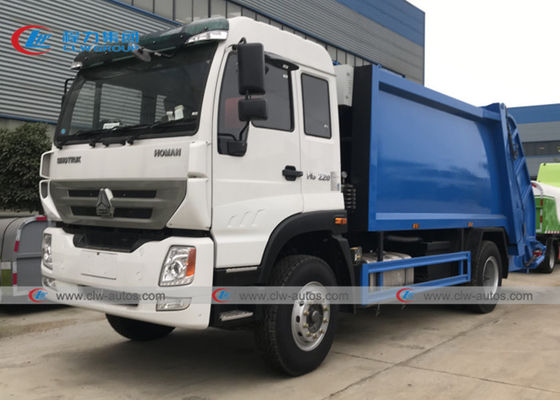

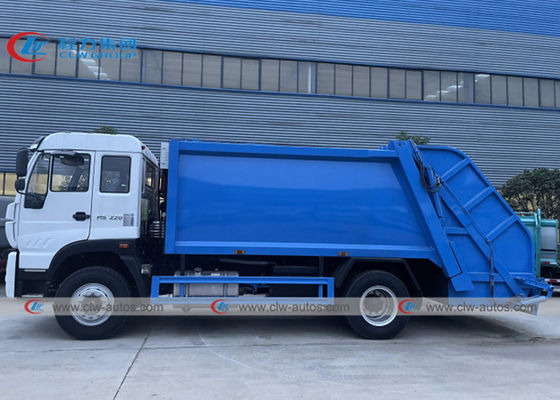

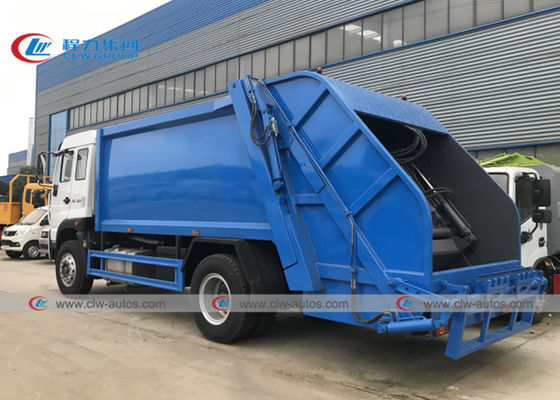

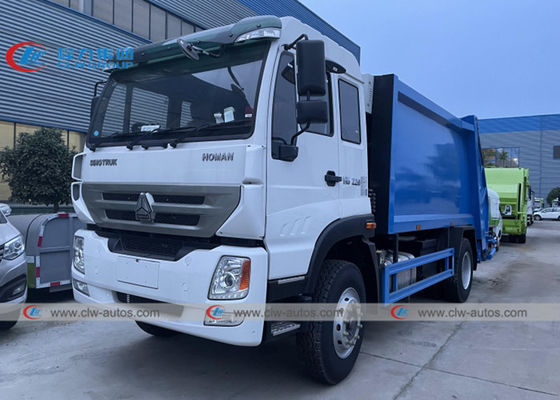

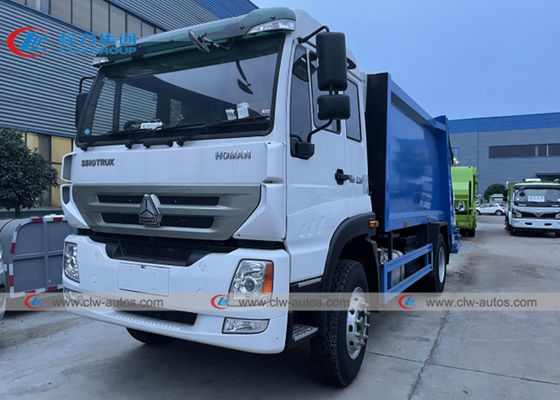

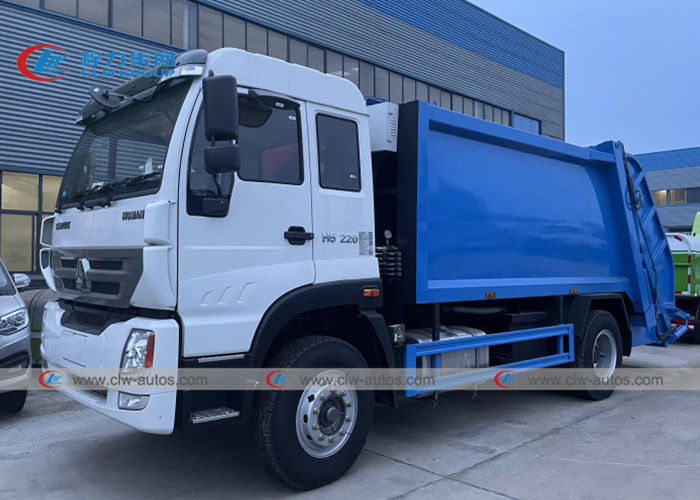

More pictures for Sinotruk HOMAN 4x2 RHD 10M3 10CBM Compression Compressed Garbage Compactor Truck:

Sinotruk HOMAN 4x2 RHD 10M3 Compressed Garbage Compactor Truck 0Sinotruk HOMAN 4x2 RHD 10M3 Compressed Garbage Compactor Truck 1Sinotruk HOMAN 4x2 RHD 10M3 Compressed Garbage Compactor Truck 2Sinotruk HOMAN 4x2 RHD 10M3 Compressed Garbage Compactor Truck 3





Porducts details and drawings:



Sinotruk HOMAN 4x2 RHD 10M3 Compressed Garbage Compactor Truck 4



Other Types of Garbage trucks:

Sinotruk HOMAN 4x2 RHD 10M3 Compressed Garbage Compactor Truck 5

Warranty:



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



FAQ



Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.



Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.



Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .


Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.



Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
