Product Details:
Payment & Shipping Terms:
|
| Box Material: | Carbon Steel Q235B | Truck Brand: | Dongfeng |
|---|---|---|---|
| Truck Engine: | Cummins | Gearbox: | Fast 8Forward & 1 Reverse |
| Tire: | 10.00-20, 10.00R20, 11.00-20, 11.00R20 | Axle: | 5Ton Front Axle & 10Ton Rear Axle |
| High Light: | 20cbm Compressed Garbage Truck,Shacman Waste Removal Trucks,15T Waste Removal Trucks |
||
Description
A garbage truck is a truck specially designed to collect municipal solid waste and transport it to a solid waste treatment facility, such as a landfill or transfer station. Other common names for this type of truck include trash truck in the United States, and refuse truck, dustcart, rubbish truck, junk truck, bin wagon, dustbin lorry, bin lorry or bin van elsewhere. Technical names include waste collection vehicle and refuse collection vehicle (RCV). These trucks are a common sight in most urban areas.
Compression/compactor Garbage/trash trucks
The compression garbage truck consists of a sealed garbage compartment, a hydraulic system and an operating system. The whole vehicle is a fully sealed type, and all the sewage in the process of self-compression, self-dumping, and compression enters the sewage tank, which more thoroughly solves the problem of secondary pollution during garbage transportation and avoids inconvenience to people. Imported parts have the advantages of high pressure, good sealing, convenient operation and safety. Optional rear hanging bucket turning mechanism or garbage bucket turning mechanism.
Feature
1-- garbage truck is divided into compactor garbage truck, swing arm garbage truck, hook lift garbage truck, roll on roll off garbage truck,bin lift garbage truck,dumper garbage truck,sealed garbage truck,container garbage truck, rear load garbage truck and so on.
2-- Easy Full Automatic Operation: computer control system for loading and unloading operations.
3-- One Person Operation: Reducing sanitation working, greatly improves the working environment.
4-- Double Operation System: computer control system and manual operation greatly improves the vehicle usage rate.
5-- Capacity of rear loader compressed garbage truck: option for 3-22m3 compressed garbage truck
6-- Steering wheel of rear loader compressed garbage truck: both left and right hand drive,meet the needs of different countries
7-- Emission standard of compressed garbage truck: option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 compressed garbage truck
8-- Truck chassis of compressed garbage truck: option for japanese and chinese brand,such as shacman, dongfeng, isuzu, faw, foton, howo, jac, jmc, forland...
Product Specifications
| Product | Shacman 6X4 LHD/RHD 20CBM Compactor Garbage Truck | |
| Cab | Single row and half with one sleeper; with air-conditioner. | |
|
Chassis |
Brand | SHACMAN |
| Chassis model | SX1255UM | |
| Drive type | 6×4, LHD/RHD | |
| Tire | 11.00-20/12.00-20 | |
| Tire No. | 10+1(spare) | |
| Braking System | Air braking | |
| Clutch | Dry clutch, hydraulic remote control | |
| Transmission | 8 forward gear, 1 reverse gear, manual mechanical type | |
| Engine | Model | WP10.290 |
| Horse Power(hp) | 290 | |
| Displacement(cc)/Power(kw) | 9726/213 | |
| Emission | Euro 3 | |
|
Main Parameters |
Overall dimension (L*W*H/mm) | 9251*2490*3020 |
| Wheelbase(mm) | 4325+1350 | |
| Axles No. | 3 | |
| GVW(kg) | 25000 | |
| Curb Weight(kg) | 14870 | |
| Leaf spring No. | 8/9 | |
| Approaching/Departure Angle(°) | 20/16 | |
| Front/Rear trace(mm) | 1986,1860/1860 | |
| Front/Rear suspension(mm) | 1460/3340 | |
| Max speed(km/h) | 90 | |
| Front/Rear Axle Load(kg) | 7000/18000 | |
| Garbage compactor Volume | 20CBM/20,000Liters | |
| Box material | Carbon steel | |
| Filling Time in Each Run | ≤12s | |
| Unloading Time in Each Run | 40s | |

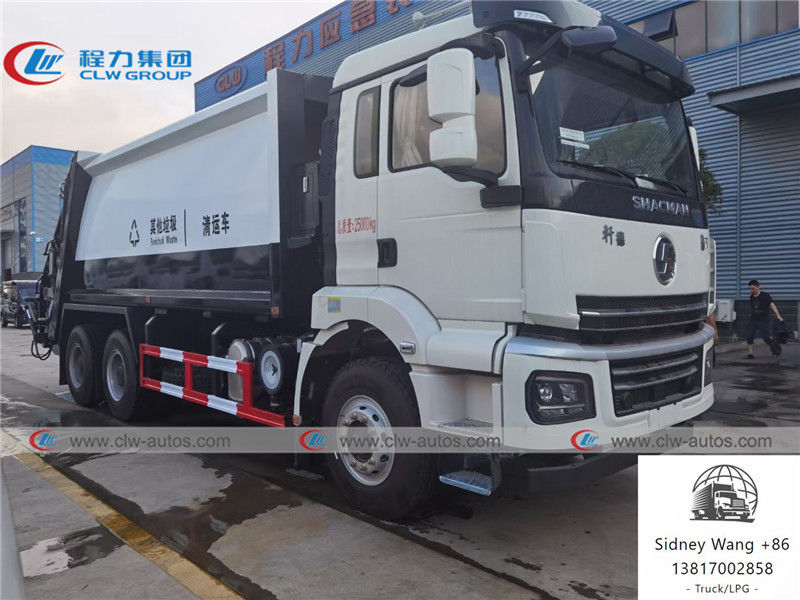

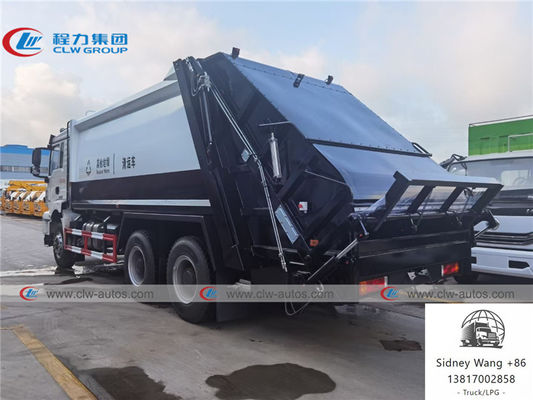

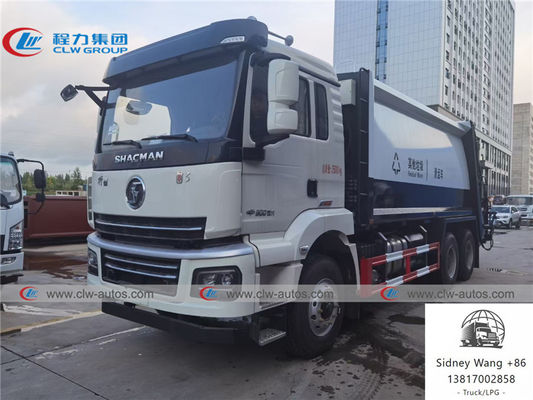

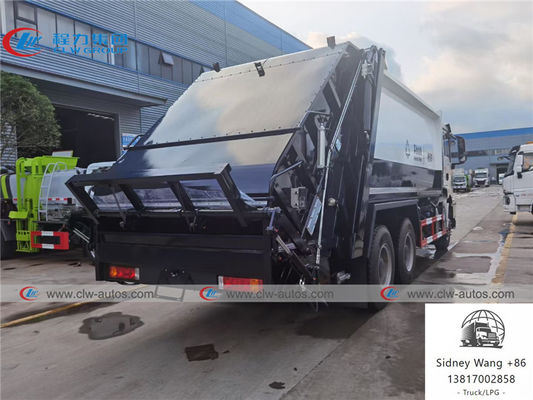

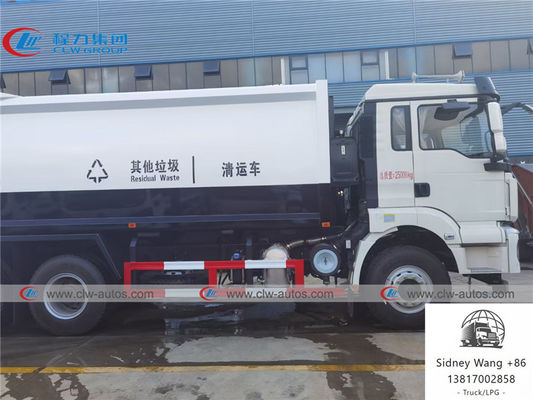

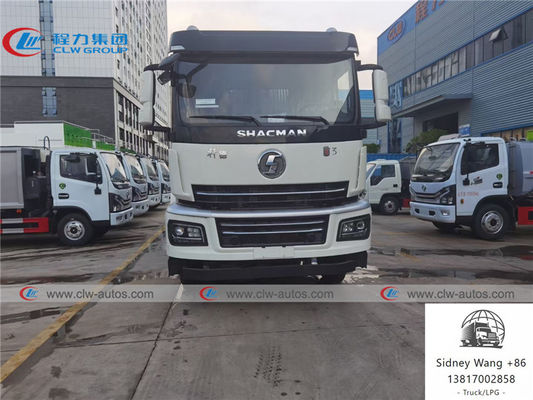

Product Photos
Truck diagram
Main parts
Factory overview
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
