Product Details:
Payment & Shipping Terms:
|
| Material: | Q235 Carbon Steel | Thickness: | 5 Mm |
|---|---|---|---|
| Fuel: | Diesel | Driving Type: | 4*2, Left/right Hand Driving |
| Pump: | China Famous Brand/International Brand | Suction Height: | 7 Meters |
| Water Canon Range: | 30 Meters | Sprinkling Width: | 14 Meters |
| Operating Video: | Yes | Use Manual: | Yes |
| Front Spray And Rear Spray: | Yes | Warranty: | One Year |
| LOGO: | As Per Customer's Request | ||
| High Light: | 10M3 Water Bowser Truck,HOWO 4x2 Water Bowser Truck,LHD Water Tank Truck |
||
HOWO 4x2 left hand drive 10000Liters 10CBM water bowser water tank truck
Description
Water bowser truck, is also called as the sprinkler, and multi-function green watering truck.
It is mainly used in city road, large factory area, army, landscape garden and other departments for leaning the pavement, sanitation, dust-proof, watering, and spraying farming chemicals for beautify the environment and for fire brigade.
From another point, while being urgent, the sprinkler is also used as the fire fighting truck.
The sprinkler is equipped with front, rear and side sprinkler head, and then it covers large watering fields, making great efficiency.
This kind of the watering truck could be one most important kind in all environmental trucks.
1. Optional chassis brand: Dongfeng, Sinotruk, Foton, Faw, Shacman, Isuzu;
2. Water Tank Material: High Tension Steel Q235/Q345,stainless steel 304B for option.
3. Reliable and high quality water pump
4. Optional for insulation layer which is suitable for warm water delivery.
5. Sprinking Width of portable water truck :＞14M
6. Rear working platform with water cannon range of portable water truck :30 meters
7. The truck can be equipped with advanced facilities such as medicine tray, medicine pump, anti-corrosion and rust prevention in the tank, multi-directional water inlet and outlet joints, solenoid valves, pneumatic valves, etc. to meet the needs of different users.
Specifications
|
Chassis No
|
ZZ1167M4617C
|
|||
|
Brand
|
SINOTRUK—HOWO
|
|||
|
Driving type
|
Left Hand Driving
|
|||
|
Dimension(Lx W xH)(unloaded)(mm)
|
8500×2496×3048
|
|||
|
Tank Volume(m3)
|
10m3/10000Liters/10cbm
Tankbody(thickness):5mm, Material:carbon steel;
Sprinkling equipment both in front and in rear; Special anti-corrosion treatment
|
|||
|
Approaching angle/Departure angle(°)
|
16/15
|
|||
|
Overhang(front/rear) (mm)
|
1500/2200
|
|||
|
Wheel base (mm)
|
4600
|
|||
|
Max speed(km/h)
|
75
|
|||
|
Curb weight(kg)
|
7800
|
|||
|
Total weight(kg)
|
16000
|
|||
|
Engine
|
Specification
|
Water-cooled, four strokes, 6 cylinders in line with water cooling, turbocharged and inter-cooling, directly injection
|
||
|
Engine Model
|
WD615.62
|
|||
|
Fuel type
|
Diesel
|
|||
|
Power
|
266HP
|
|||
|
Emission
|
EURO II
|
|||
|
Fuel tanker capacity(L)
|
350
|
|||
|
Transmission
|
Model
|
HW13710,10 forward&2 reverse
|
||
|
Brake system
|
Service brake
|
Dual circuit compressed air brake
|
||
|
Parking brake
|
spring energy, compressed air operating on rear wheels
|
|||
|
Steering system
|
Model
|
8198
|
||
|
Front axle
|
HF7
|
|||
|
Rear axle
|
ST13
|
|||
|
Color
|
Optional
|
|||
|
Tyre
|
12R22.5 tubeless tires
6+1 spare |
|||
|
Electrical system
|
Battery
|
2X12V/165Ah
|
||
|
Alternator
|
28V-1500kw
|
|||
|
Starter
|
7.5Kw/24V
|
|||
|
Cab
|
HOWO76 cab, all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
|
|||

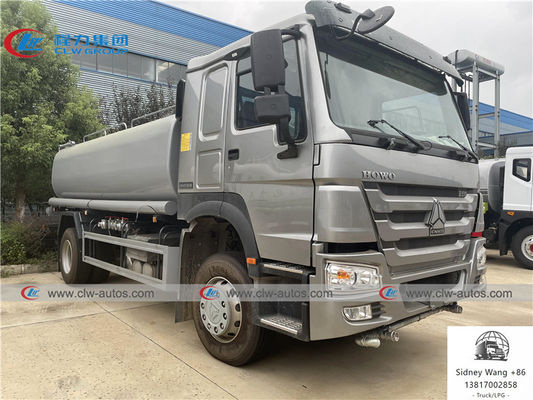

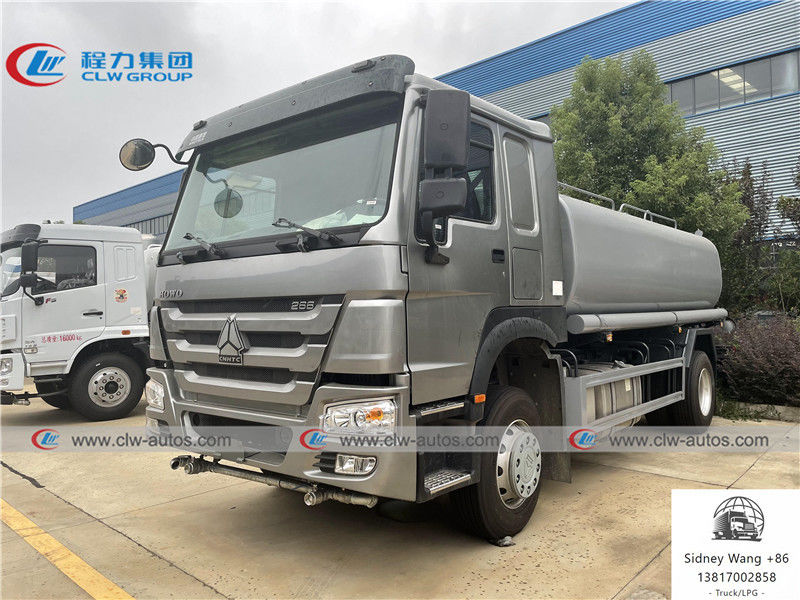

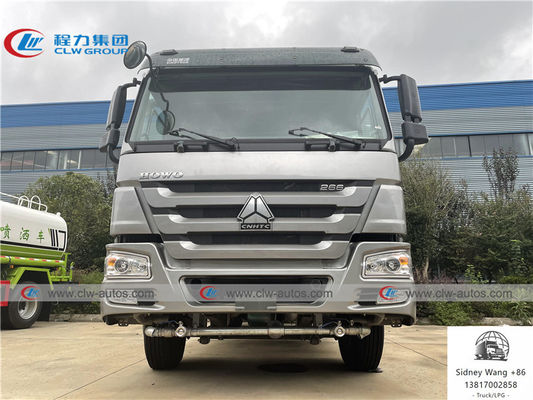

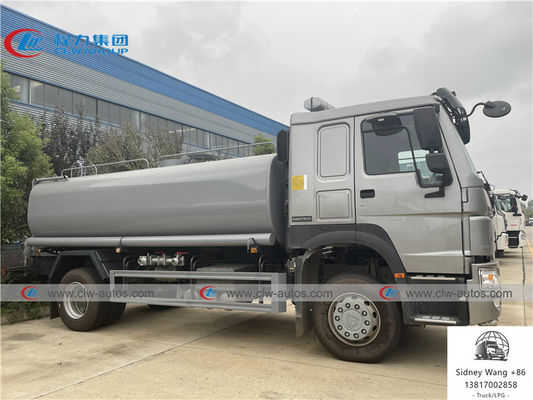

Reference photos
Water Truck Diagram
Working Show

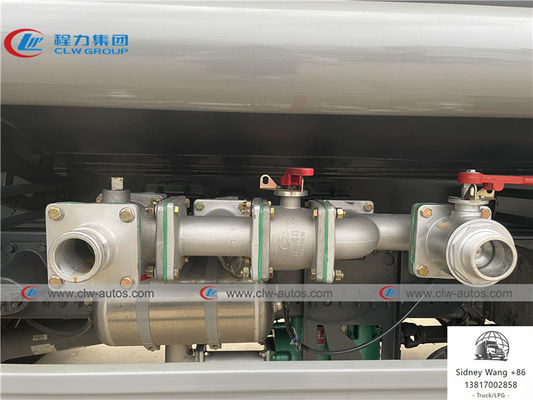

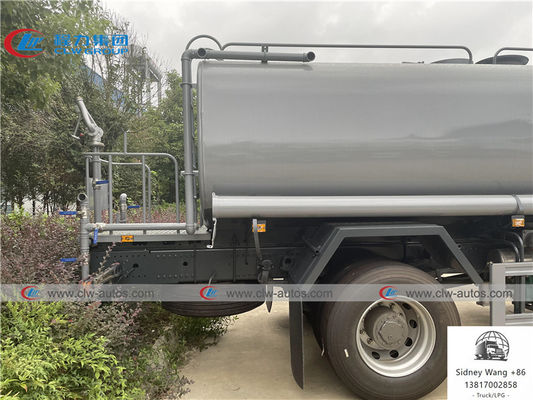

Truck Details
Water bowser truck production line
Factory overview
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
