Product Details:
Payment & Shipping Terms:
|
| Brand: | Dongfeng | Engine: | Cummins 340hp +PTO |
|---|---|---|---|
| Gearbox: | 9 Forward & 1 Reverse | Mixer Capacity: | 10CBM, 10000Liter, 12CBM, 12000 Liters |
| Hydraulic Motor: | EATON, PMP, | Hydraulic Pump: | EATON, PMP, Bonfiglioli, |
| Reductor: | ZF, PMP,Bonfiglioli,Sauer | ||
| High Light: | 10 Wheeler Concrete Mixer Truck,Dongfeng Concrete Mixer Truck,10cbm Cement Mixer Truck |
||
10 Wheels 6x4 10cbm 10000Liters Capacity Dongfeng Concrete Mixer Truck cement mixer truck concrete pump truck
Description:
Cement mixer truck is made of chassis, mixing cylinder, transmission system, water supply and other components. Mixer hydraulic motor, variable piston pump, reducer, cooler are all imported brands.
Mixer components: two types of chassis, transmission system, hydraulic system, rack, mixing tank, into the material device, water supply system, control system, people ladder and other parts.
Concrete mixer main special accessories including power take, stirring cylinder front and rear support, reducer, hydraulic system, mixing tube, control mechanism, cleaning system.
The working principle: the power of the chassis is removed by the power take-off force, and drive the hydraulic pump of the hydraulic system. The mechanical energy can be converted into hydraulic power to the hydraulic motor. The motor drives the reducer again and drives the mixing system by the reducer.
Cement mixer truck can be customized from 2 m3 to 20 m3, on tricycle, 4x2, 6x6, 6x4, 6x2, 8x4, 8x6 chassis and so on.
Features
1. Dongfeng 10 m3 cement mixer truck made of reducer, pump, motor, cement drum, radiator, pipe network system, vacuum gauge, water system, charge and discharge and other components.
2. Truck equipped with imported hydraulic system: Germany ZF, Italy PMP and Germany Rexroth brands reducer; Italy PMP, Germany Rexroth and the United States Sauer brands pump and motor, which make our truck more Stable in operation, lower failure rate and longer service life.
3. Drum is with Q345 high wear-resistant manganese steel, head 8mm, drum body 6mm, and 5mm high-strength steel leaf is wear-resistant manganese steel 520JJ.
4. Our company installs the wear-resistant steel strip on the blade (effectively reduces the drum's wear and prolongs the service life of the drum), the spiral layout of the blade adopts the international leading technology, which can reduce the concrete residue to 2% ~ 3%, and it reached the leading level in the same industry.
Product Specifications
| Vehicle parameters | |||
| Vehicle Model | CLW5135 | Vehicle Brand | CLW |
| Overall dimensions | 8800×2500×3930mm | Curb weight | 12920kg |
| Loading capacity | 10M3/10,000Liters | ||
| Chassis parameters | |||||
| Chassis model | DFL5250 | Chassis brand | DONGFENG | ||
| Overall dimensions | 7920x2500x3030mm | Wheel base | 3650+1350mm | ||
| Front/rear wheel track | 1986/1860/1860mm | Front/rear suspension | 1460/1460mm | ||
| Approach/departure angle | 25/30° | Maximum speed | 90km/h | ||
| Chassis Manufacturer | Dongfeng Motor Company | ||||
| Cab | Configuration | Single row,allowable 2 passengers,air conditioner | |||
| Color | white,other color is optional | ||||
| Engine | Model | L340-30 | |||
| Emission | Euro 3 | ||||
| Type | 6 cylinders,in-line,4-stroke,turbo inter-cooling,diesel engine | ||||
| Rated power | 340hp,rated power speed 2200rpm | ||||
| Displacement | 8900ml | ||||
| Max.torque | 1350N·m | ||||
| Manufacturer | Dongfeng Cummins Engine Co., Ltd. | ||||
| Tire | Size | 11.00R20 steel wire tire | |||
| Number | 10+1 nos | ||||
| Fuel tank | 380L | ||||
| Front axle | 7.0 tons | ||||
| Rear axle | 13.0 tons | ||||
| Drive form | 6X4 | ||||
| Rated voltage | 24V,DC | ||||
| Transmissions | Gearbox 9JS150T-B, 9 speed forward 1 reverse. | ||||
| Steering device | Power assisted steering | ||||
| Steering wheel | Left hand drive | ||||
| Selective configuration | Wheel base 3800+1350mm,gearbox 8JS150T-B | ||||
| If there is a slight change in the chassis parameters above,please take the actual product as the standard | |||||
| Concrete mixer truck structure parameters | ||||
| Loading capacity | 10m3 | Tank material | 5mm alloy steel | |
| Tank front head | 8mm alloy steel | Reducer | Germany ZF5300 | |
| Hydraulic pump | Germany REXROTH | Hydraulic motor | Germany REXROTH | |
| Radiator | KAIPENG | Color and Logo | Optional | |
| Standard configuration | chassis,sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device. | |||
| 9-10m3 | Germany ZF5300 reducer,Germany REXROTH hydraulic pump,Germany REXROTH hydraulic motor,KAIPENG radiator,mixer tank(main tank 5mm alloy steel wear resistant material,front tank head 8mm alloy steel wear resistant material) | |||
| Selective configuration |
Emergency high pressure oil hose(4 pieces),12m emergency oil hose(Italy),water cannon,large tool box,electric water supplying system. Italy Bonfiglioli/Italy PMP reducer,Italy PMP/Italy MESSOR/America EATON/America SAUER hydraulic pump,Italy PMP/America EATON/America SAUER hydraulic motor. |
|||

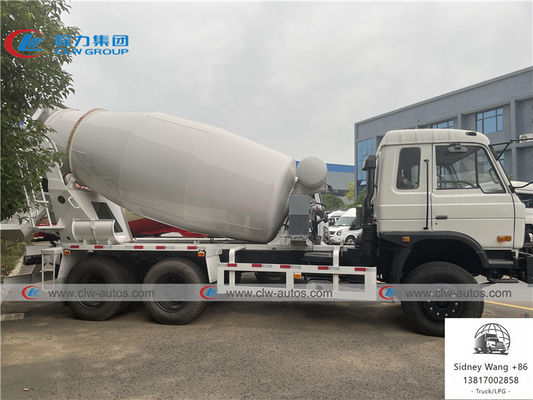

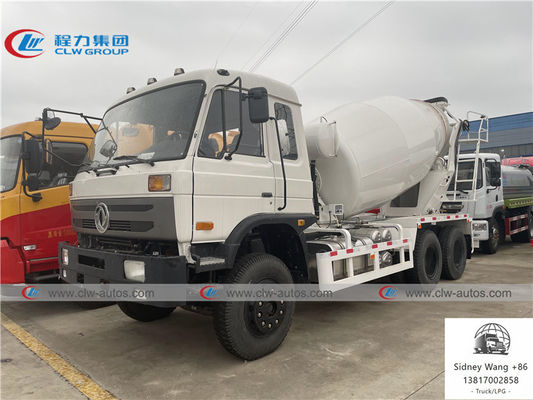

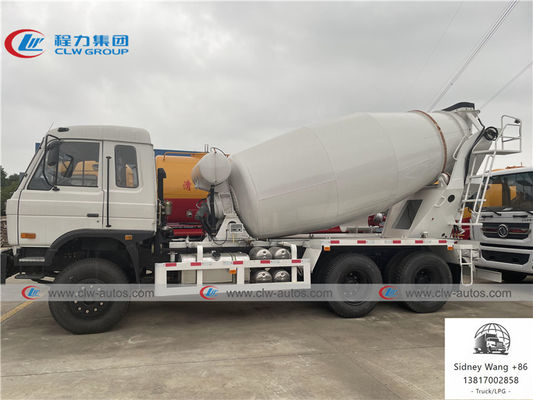

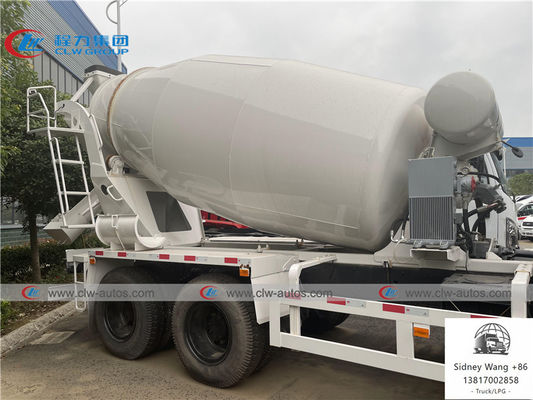

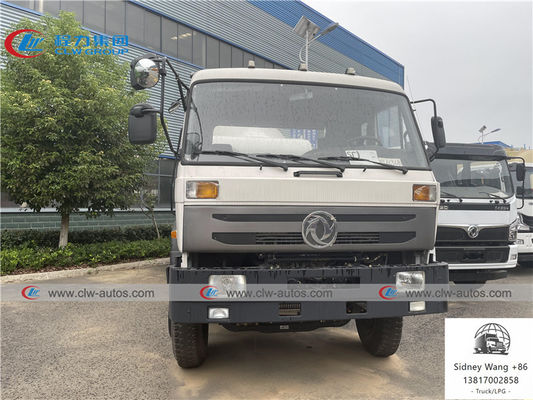

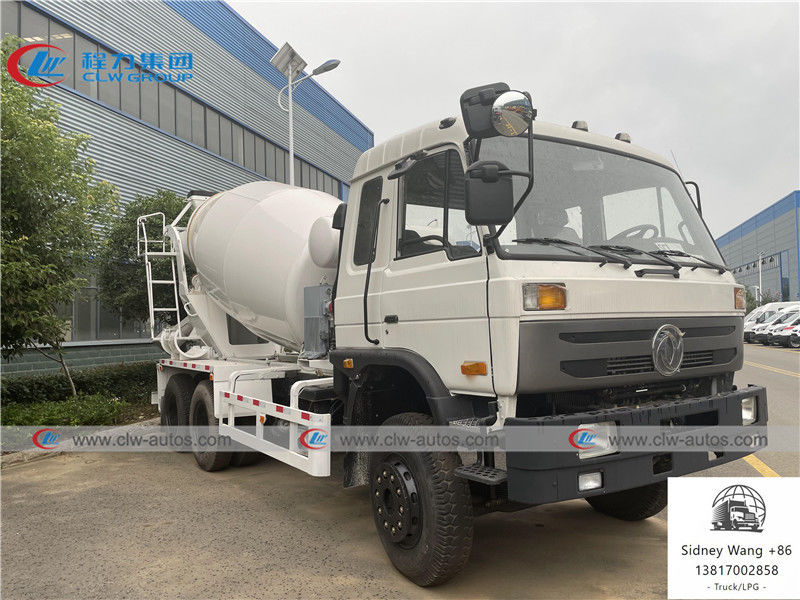

Product Photos
Truck Diagram
Parts
Production workshop
Factory Overview
Overseas Exhibition and Local Support
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of concrete mixer trucks I can order from your company?
A: There are various sizes and types of concrete mixer trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied concrete mixer truck to any overseas companies?
A: Yes,with need of government project,we offered concrete mixer trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
