| Product Name: | Garbage Compactor Truck, Compressed Waste Refuse Compactor Trucks | Drive Type: | 4X2 6WHEELS 6 WHEELER Rear Load Refuse Truck |
|---|---|---|---|
| Drive Model: | Left Hand Drive, Right Hand Drive, RHD | Loading Capacity: | 6 Tons, 8 Tons, 10 Tons, 6T, 7T. 8T, 10T |
| Truck Brand: | Sinotruk/Sinotruck HOMAN, Shacman, FAW, FOTON, Jac | Tuck Type: | Waste Collection Truck. |
| Other Equipment: | With Hyraulic Systerm | Condition: | China HOMAN Brand, Brand New Truck |
| Fuel Type: | Diesel | After-sales Service Provided: | Overseas Third-party Support Available,Online Support,Video Technical Support,Free Spare Parts |
| Transmission Type: | Manual | Emission Standard: | Euro 3,Euro 4,Euro 2 |
| Truck Type: | Garbage Compressor,Garbage Compactor | Engine Power: | 150-250HP |
| Name: | New Refuse Compactor Trucks,garbage Compactor Recycling Truck | ||
| High Light: | 12M3 Garbage Compactor Truck,FOTON AUMAN Garbage Compactor Truck,FOTON AUMAN Compressed Garbage Truck |
||
FOTON AUMAN 6 Wheels Cummins Engine 12M3 12CBM Compressed Garbage Compactor Truck
Product Description:
1. foton Auman chassis with weichai engine
2. compactor garbage truck capacity 8-12 cubic meters
3. ISO 3C certification
4. one year warranty
Detailed Specification for FOTON AUMAN truck chassis with Cummins Engine:
| Cabin | Left rudder/half row | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 8325×2462×2750 |
| Wheel base(mm) | 4800 | |
| Weight data | Curb weight(kg) | 4770 |
| Gross vehicle weight(kg) | 22000 | |
| Persons in cab (persons) | 2 | |
| Engine | Model | ISB220 40 |
| Emissions standards | EURO-IV | |
| Displacement(L) | 5.9 | |
| Rated Power | 162 | |
| Max torque | 800 | |
| Gearbox | Model | 8JS105TA |
| Clutch | Type | Single dry diaphragm spring |
| Front axle | Type | 5.5.T |
| Rear axle | Type/Mainreducetion ratio | 10T/4.875 |
| Suspension | Front suspension/Leaf spring number | Non-independent suspension longitudinal plate spring /10 |
| Rear suspension/Leaf spring number | Non-independent suspension longitudinal plate spring /10+8 | |
| Brake system | Service brake | Drum-type pneumatic brake |
| Parking brake | Barely able to brake | |
| Basic equipment | Hydraulic turn-over/cruising manual air conditioning/radial tire with inner tube 10.00R20/ manual door and window and rearview mirror/front + rear stabilizer bar /MP3 / power steering/knit shock absorber seat (air bag) | |
Upper equipment for FOTON AUMAN Garbage Compactor truck:
| Technical Parameters | Effective volume of trash bin | 10-15m³ |
| Filler volume | 1.5m³ | |
| Rated pressure of hydraulic system | 19(Mpa) | |
| Loader working time | ≤25(mm) | |
| Trash dumping time | ≤40(s) | |
| Filler lifting time | ≤12(s) | |
| Wastewater tank volume | ≥300(L) | |
| Manipulator flip quality | ≥600(Kg) | |
| Back flip form | Hanging bucket | |
| Top material (Curved box) |
Front box | 5mm bottom plate, 4mm side plate, 3mm top plate, Q345 steel plate |
| Dozer | Q345B steel plate | |
| Stuffer | Q345B steel plate | |
| Scraper skateboard assembly | Q345B steel plate | |
| Rear flip device | Q345B steel plate and profile | |
| Subframe material | Made of Q345 manganese plate | |
| Hydraulic system | Cylinder | Foshan naval power |
| Oil pump | Hefei Changyuan | |
| Multi-way valve | Hefei Changyuan | |
| Process requirements | Corrosion inside the tank | Industrial grade anti-corrosion |
| Welding and spraying requirements | Execute in accordance with "Fukuda Overseas Compression Garbage Truck Top Installation Specification" | |
| Glue requirements | The tank body, mudguard, sub-frame welded joints and side lights need to be treated with sealant |

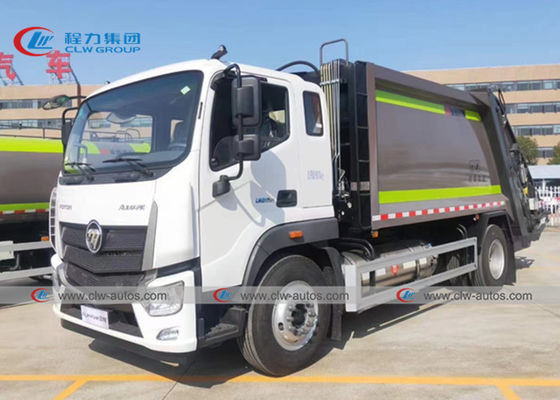

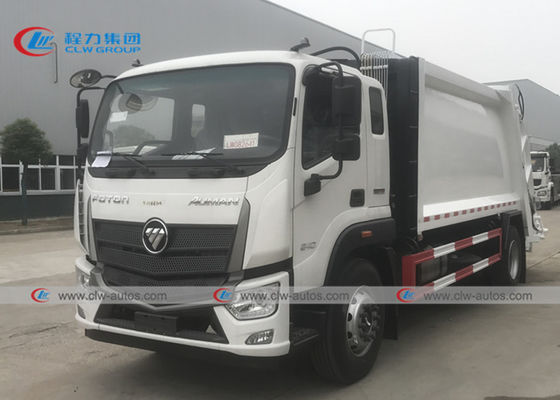

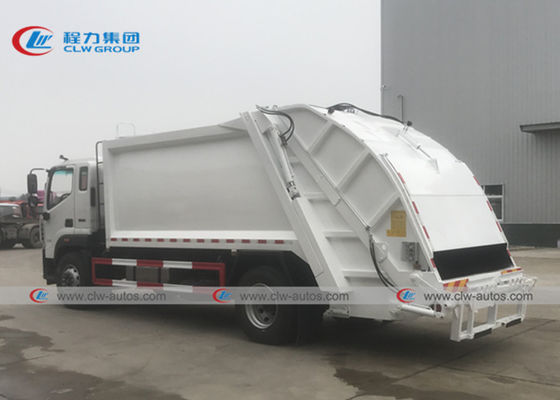

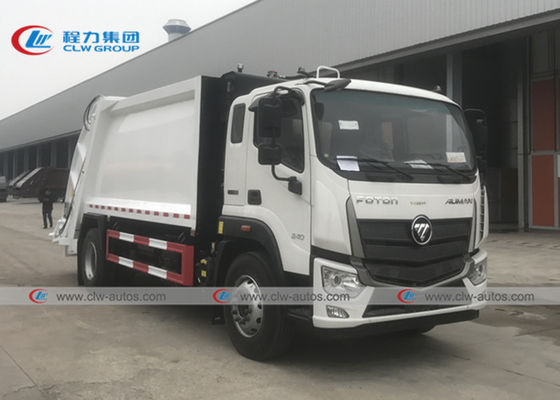

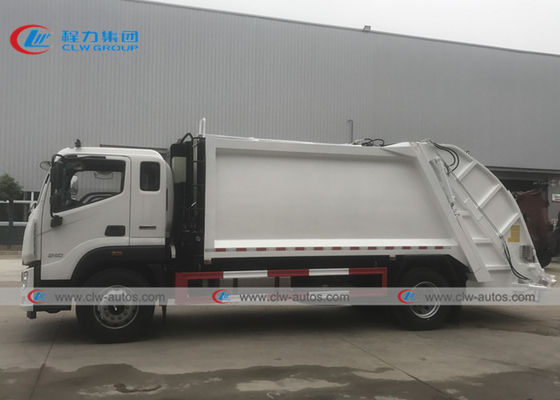

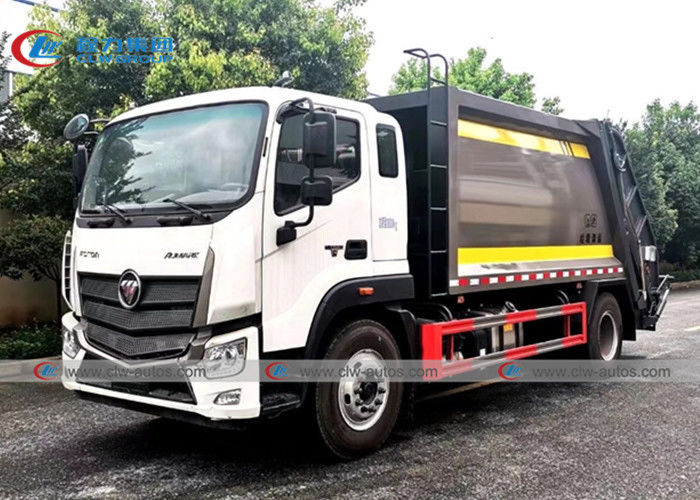

More pictures for FOTON AUMAN 6 Wheels Cummins Engine 12M3 12CBM Compressed Garbage Compactor Truck:
Porducts details and drawings:
Other Types of Garbage trucks:
Warranty:
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
