Sinotruck HOWO 6 Wheeler 4x2 140HP 6M3 Garbage Compactor Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Sinotruck HOWO 6 Wheeler 4x2 140HP 6M3 Garbage Compactor Truck

Sinotruck HOWO 6 Wheeler 4x2 140HP 6M3 Garbage Compactor Truck
Sinotruck HOWO 6 Wheeler 4x2 140HP 6M3 Garbage Compactor Truck Sinotruck HOWO 6 Wheeler 4x2 140HP 6M3 Garbage Compactor Truck Sinotruck HOWO 6 Wheeler 4x2 140HP 6M3 Garbage Compactor Truck Sinotruck HOWO 6 Wheeler 4x2 140HP 6M3 Garbage Compactor Truck Sinotruck HOWO 6 Wheeler 4x2 140HP 6M3 Garbage Compactor Truck

Large Image :  Sinotruck HOWO 6 Wheeler 4x2 140HP 6M3 Garbage Compactor Truck

Product Details:

Place of Origin: SUIZHOU, HUBEI, CHINA
Brand Name: CLW
Certification: ISO9001, CCC, BV, SGS
Model Number: CLW20210909

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiated
Packaging Details: Naked or waxed before shipment
Delivery Time: 30-35 days after receiving the deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units per month
Detailed Product Description
Product Name: Garbage Compactor Truck, Compressed Waste Refuse Compactor Trucks Drive Type: 4X2 6WHEELS 6 WHEELER Rear Load Refuse Truck
Drive Model: Left Hand Drive, Right Hand Drive, RHD Loading Capacity: 2 Tons, 3 Tons, 4 Tons, 3T, 4T. 5T, 6T
Truck Brand: Sinotruk/Sinotruck HOMAN, Shacman, FAW, FOTON, Jac Tuck Type: Waste Collection Truck.
Other Equipment: With Hyraulic Systerm Condition: China HOWO Brand, Brand New Truck
Fuel Type: Diesel After-sales Service Provided: Overseas Third-party Support Available,Online Support,Video Technical Support,Free Spare Parts
Transmission Type: Manual Emission Standard: Euro 3,Euro 4,Euro 2
Truck Type: Garbage Compressor,Garbage Compactor Engine Power: 90HP-140HP
Name: New Refuse Compactor Trucks,garbage Compactor Recycling Truck
High Light:

6M3 Garbage Compactor Truck

,

140HP Garbage Compactor Truck

,

6 Wheeler 4x2 Waste Collection Truck

Sinotruck HOWO 6 Wheeler 4*2 140HP 6M3 Compresssion Garbage Compactor Waste Collection Truck





we are professional garbage compactor trucks manufacturer with various capacities depending on the type of truck chassis and user requirement.garbage compactor truck is composed of sealed compartments, hydraulic system and the operating system. The vehicle is fully sealed, compressed and dumping automizedly. The waste water in the process of compacting, is all flowing into the water dustbin. And that throughly solve the secondary pollution in the process of waste transportation issues, to avoid the inconvenience to people. The key parts of the vehicle adopt imported components,high pressure, good sealing, convenient operation, safety and so on. The vehicle can choose to equip the hanging barrels flip machanism or reverse garbage bucket.


Detailed Specification for Sinotruck HOWO 6 Wheeler 4*2 140HP 6M3 Compresssion Garbage Compactor Waste Collection Truck:



Cabin Driving type 4x2
2080 Standard cab, with three seats, with A/C. Right Hand Driven. 70°hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions Overall dimensions (L x W x H)mm 65000x2450x3100
Wheel base (mm) 3800
Wheel track (front/rear) (mm) 1798/1764
Approach/Departure angle(°) 27/20
Weight in KGS Tare Weight 6400
Loading Capacity 5000
Front axles loading capacity 1x3200
Rear axles loading capacity 1x8200
Max. driving speed(km/h) 90
Engine Brand YUCHAI
Model YC4E140-20
Type 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 140 HP
Emission standard Euro Ⅱ
Gearbox WLY6T51 , 6 forwards &1 reverse
Clutch Diaphragm spring clutch
Steering Gear Power steering
Fuel tank (L) 230 L
Tire 8.25R20 All radial tires with one spare, 7 pieces
Compression garbage box body system
Body Volume 6 CBM
Cycle Time of Filling(S) ≤40
Lifting Time of Filler(S) 8-10
Time of Discharging ≤60
Working Pressure(MPA) 16
Composed by hermetic garbage tank, hydraulic system, operation system. The entire truck is hermetic, can automatically compress and dump the garbage .and the sewage generated in the process of the compression all go into the sewage tank.

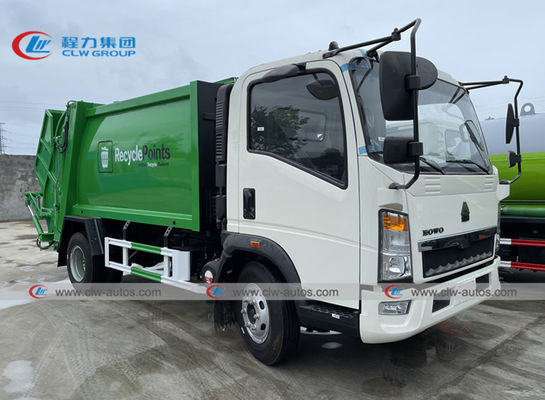

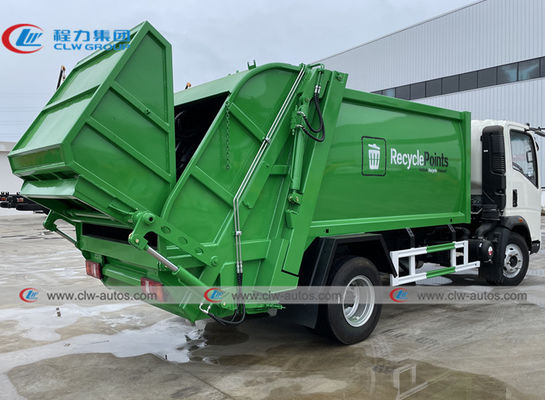

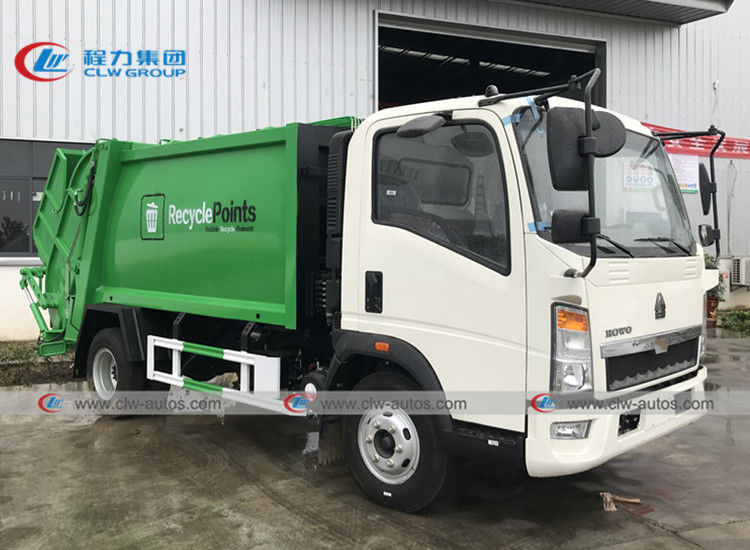

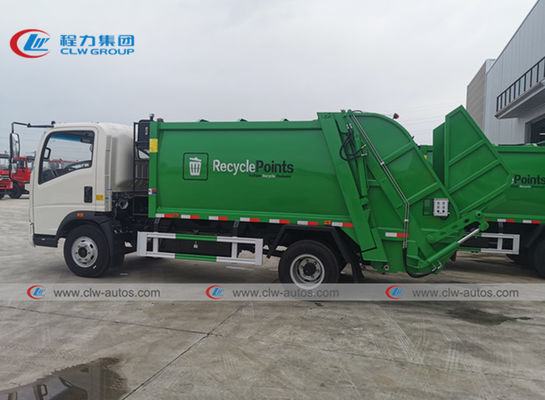

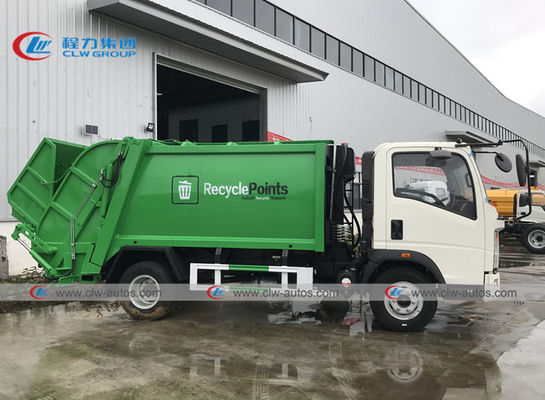

More pictures for Sinotruck HOWO 6 Wheeler 4*2 140HP 6M3 Compresssion Garbage Compactor Waste Collection Truck

Sinotruck HOWO 6 Wheeler 4x2 140HP 6M3 Garbage Compactor Truck 0Sinotruck HOWO 6 Wheeler 4x2 140HP 6M3 Garbage Compactor Truck 1Sinotruck HOWO 6 Wheeler 4x2 140HP 6M3 Garbage Compactor Truck 2Sinotruck HOWO 6 Wheeler 4x2 140HP 6M3 Garbage Compactor Truck 3Sinotruck HOWO 6 Wheeler 4x2 140HP 6M3 Garbage Compactor Truck 4

Porducts details and drawings:



Sinotruck HOWO 6 Wheeler 4x2 140HP 6M3 Garbage Compactor Truck 5



Other Types of Garbage trucks:

Sinotruck HOWO 6 Wheeler 4x2 140HP 6M3 Garbage Compactor Truck 6

Warranty:



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



FAQ



Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.



Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.



Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .


Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.



Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
