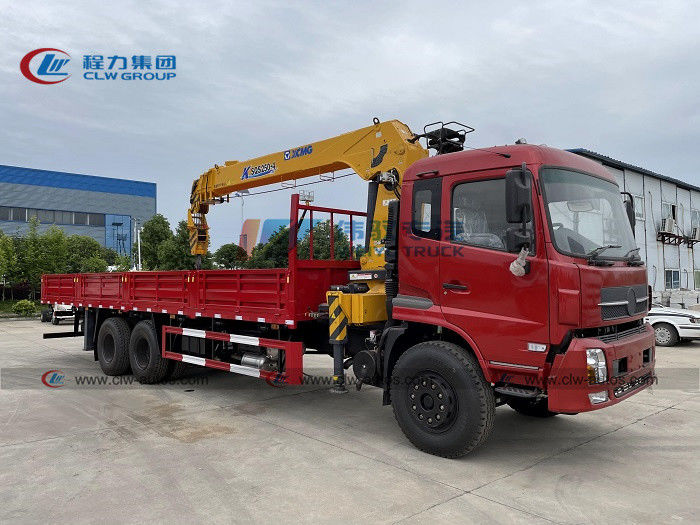

Dongfeng 6x4 10t 12t 16t Truck Mounted Hydraulic Crane With Straight Arm

Dongfeng 6x4 10t 12t 16t Truck Mounted Hydraulic Crane With Straight Arm
Dongfeng 6x4 10t 12t 16t Truck Mounted Hydraulic Crane With Straight Arm Dongfeng 6x4 10t 12t 16t Truck Mounted Hydraulic Crane With Straight Arm Dongfeng 6x4 10t 12t 16t Truck Mounted Hydraulic Crane With Straight Arm Dongfeng 6x4 10t 12t 16t Truck Mounted Hydraulic Crane With Straight Arm Dongfeng 6x4 10t 12t 16t Truck Mounted Hydraulic Crane With Straight Arm

Large Image :  Dongfeng 6x4 10t 12t 16t Truck Mounted Hydraulic Crane With Straight Arm

Product Details:

Place of Origin: SUIZHOU, CHINA
Brand Name: CLW
Certification: CCC, ISO, BV, SGS
Model Number: CLW5076BPS

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Naked Packed with Wax
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Units/Month
Detailed Product Description
Chassis Brand: Dongfeng, Sinotruk Howo, Foton, FAW, JAC, JMC, ISUZU, Etc. Engine Brand: Yuchai, 180HP
Gearbox: Fast, 8 Forwards & 2 Reverse Crane Brand: SANY, XCMG, CHENGLI, Etc.
Crane Capacity: 6.3ton, 8ton, 10ton, 12ton, 14ton, 16ton, Etc. Crane Boom Type: Straight Telescopic Crane, Knuckle Crane
Boom Type: Straight 4-Arm Telescopic Boom Cargo Material: Q235 Carbon Steel
Cargo Thickness: Side 1.5mm, Bottom 2.5mm Logo And Color: As Per Customer's Requests
Delivery Time: 30-35 Working Days Warranty: 1 Year
High Light:

16t Truck Mounted Hydraulic Crane

,

12t Truck Mounted Hydraulic Crane

,

Dongfeng 6x4 Truck Mounted Crane

High Quality China Dongfeng 6*4 10t 12t 16t Heavy Duty Truck Mounted Hydraulic Straight Arm Crane Truck






Product Description

1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)
3. Advantage: One truck combines the functions of crane and dump truck.

Product Specification

Crane Specification
Cargo Body Dimension 6100*2300*550(mm)
Material Q235 carbon steel
Cargo Thickness Side 1.5mm, Bottom 2.5mm
Working System Boom Type Straight 4-Arm telescopic boom
Crane Crane Brand Chinese famous brands
Range of Sprayer 30m
Max Lifting Moment 25(T.M)
Max Lifting Capacity 10000(kg)
Max lifting height 12(m)
Rotation angle 360(°)
Installation space 1150(mm)
Recommented power 30(kw)
Maximum working pressure 26(Mpa)
Max Flow 63(l/min)
Crane weight 3800(kg)
Oil tank capacity 160(L)
Leg Leg type H type
Leg Span 2.28-5.9(m)
Hydraulic system Pressure 18(M pa)
Capacity 70(l)
Other Configuration Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.
Options Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.

Reference Photos

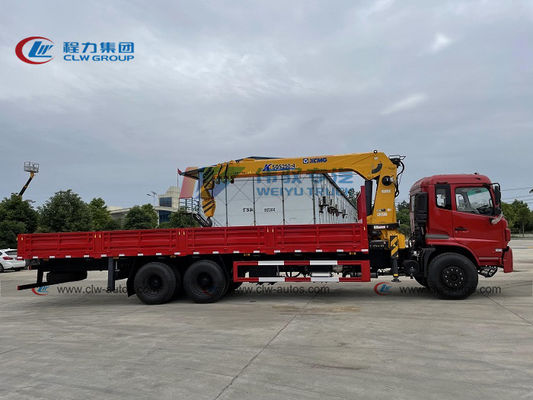

Dongfeng 6x4 10t 12t 16t Truck Mounted Hydraulic Crane With Straight Arm 0

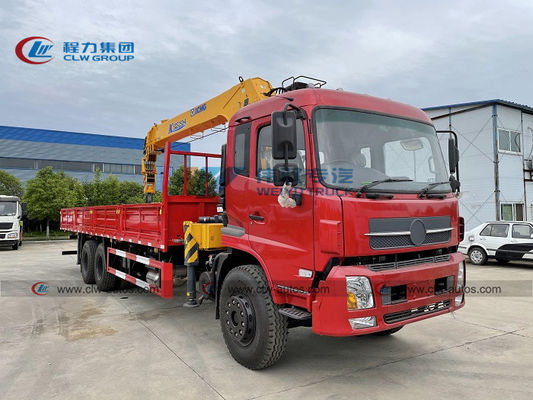

Dongfeng 6x4 10t 12t 16t Truck Mounted Hydraulic Crane With Straight Arm 1

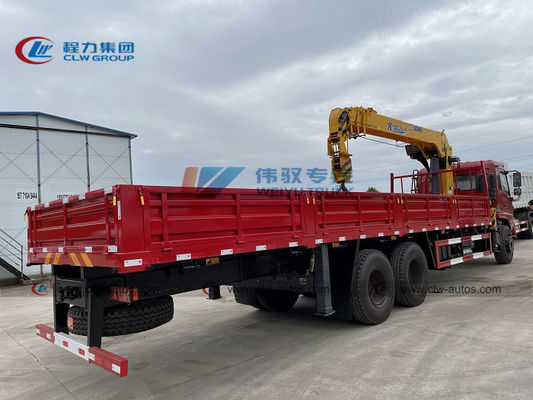

Dongfeng 6x4 10t 12t 16t Truck Mounted Hydraulic Crane With Straight Arm 2

Working Situation

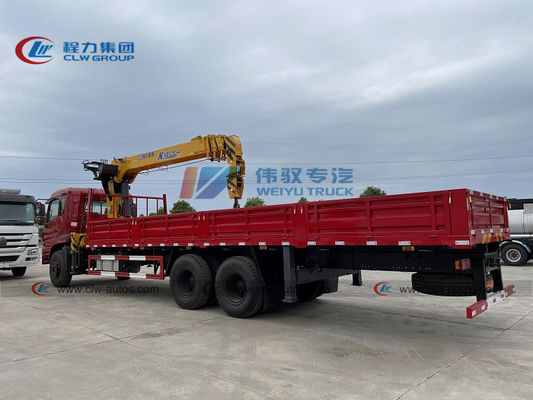

Dongfeng 6x4 10t 12t 16t Truck Mounted Hydraulic Crane With Straight Arm 3


After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Flora For More Details: +86 13971508969.



FAQ

Q1: What kinds of truck mounted crane I can order from your company?

A: We can supply straight boom and folded boom truck mounted crane. The lifitng capacity of crane is from 3tons to 30tons, we will give our procurement suggestion to our client as per their requirements.

Q2: What is your production standard of your Truck mounted crane products?
A: China GB standard.

Q3: Can we adopts International brand crane for this truck mounted crane?
A: Sure, we already cooperated with many international brand supplier, such as XCMG and SANY PALFINGER etc. We CLW Group also can produce crane.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
