Left Hand Driving Foton 4x4 113HP Water Bowser Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Left Hand Driving Foton 4x4 113HP Water Bowser Truck

Left Hand Driving Foton 4x4 113HP Water Bowser Truck
Left Hand Driving Foton 4x4 113HP Water Bowser Truck Left Hand Driving Foton 4x4 113HP Water Bowser Truck Left Hand Driving Foton 4x4 113HP Water Bowser Truck Left Hand Driving Foton 4x4 113HP Water Bowser Truck

Large Image :  Left Hand Driving Foton 4x4 113HP Water Bowser Truck

Product Details:

Place of Origin: SUIZHOU, CHINA
Brand Name: CLW
Certification: CCC, BV, SGS
Model Number: CLW0570BP

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: naked, waxed-bulk ship-ro-ro
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units/month
Detailed Product Description
Brand: Dongfeng,Sinotruk,Foton,Isuzu,Faw,Shacaman Drive Mode: 4*2 4*4 6*2 8*4, Etc. As Per Cusomer Request.
Tank Material: Q235B And Stainless Steel For Optional Tank Size: 5CBM; 8CBM; 10CBM; 12CBM; 15CBM
Tank Capacity: 5t; 8t; 10t; 12t; 15t Tank Thickness: 4mm; 5mm; 6mm
Water Pump Flow: 20m³/h Water Diversion Time: <15min
Sprayer Dimension: 1100*500*1700mm Water Cannon Range: 30m
Water Consumption: 0.8—1 M3/h Water Suction Depth: 7m
Water Sprinkle Width: 15m Logo And Painting: As Per Customer's Requests
Delivery Time: 30-35 Working Days Warranty: 1 Year
High Light:

Foton Water Bowser Truck

,

4x4 Water Bowser Truck

,

Foton Water Sprinkler Truck

Foton 4*4 Water Delivery Tanker Truck Watering Cart Transport Sprinkler Spray Tank Bowser Truck



Product Description

1. Optional chassis brand: Dongfeng, Sinotruk, Foton, Faw, Shacaman, Isuzu;
2. Water Tank Material: High Tension Steel Q235/Q345,stainless steel 304B for option.
3. Reliable and high quality water pump
4. Optional for insulation layer which is suitable for warm water delivery.

Product Specification

General Technical Parameters
Overall Dimension 7000*2300*2500(mm)
Gross Vehicle Weight 8280(Kg)
Curb Weight 3785(Kg)
Chassis Specification
Chassis Brand Foton
Drive model 4*4
Cabin Single, Left Hand Driving
Number of Passengers 3 (2 in cabin, 1 in working platform)
Engine Model 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
Power 83KW/113HP
Emission standard EURO 2or 3
Displacement 3856(ml)
Fuel type Diesel
Gearbox 5Forwards & 1Reverse
Brake System Air break
Wheel Base 3800(mm)
Front/Rear Axle Loading 2700/5000(Kg)
Tire 8.25R20, 6pcs + 1 spare tire
Max Driving Speed 90(km/h)
Superstructure Specification
Water Tanker Dimension 4200*1900*1300(mm)
Material Q235B carbon steel
Tanker volume 5500Liters
Thickness of Tanker 4mm
Water Pump Material carbon steel
Vertical suction 7m
Sprinkling width 15m
Range of Water Gun 30m
Pump Flow 20m³/h
Range of Water Pump 90m
Other Configuration High quality vacuum pump, power take off, ball valves, filter screen, water hoses, sprinkler device, manhole, fense&ladder, vice-beams, anti-wave clapboard, metering tube, etc.
Options Caution light, inlet valve, medicine tray, pneumatic valve, cylinder, sprayer, etc.

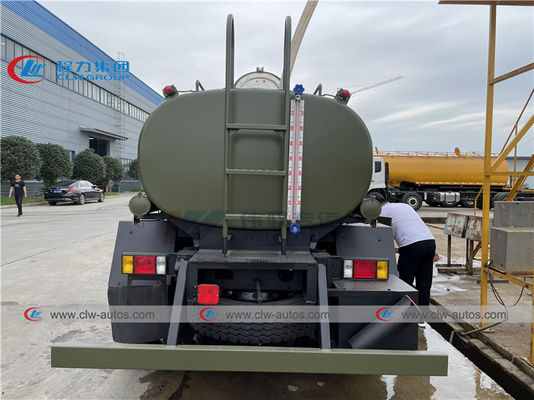

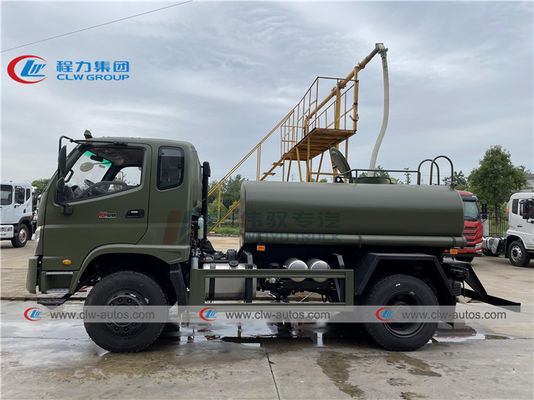

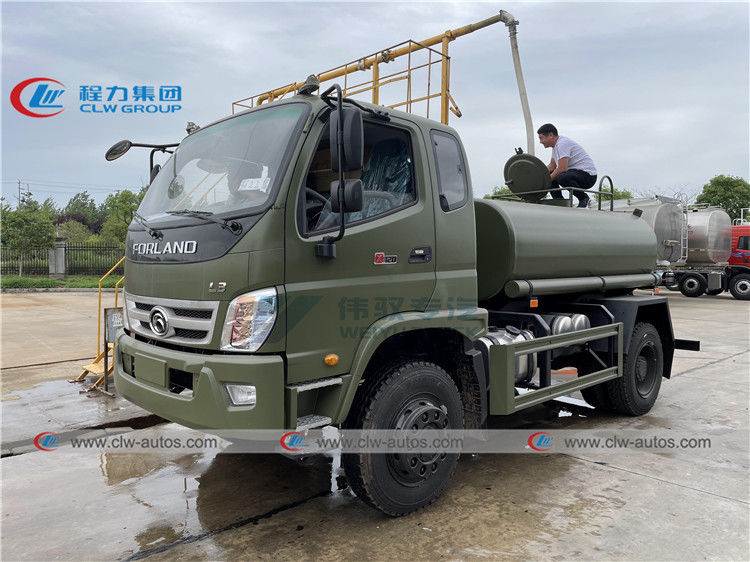

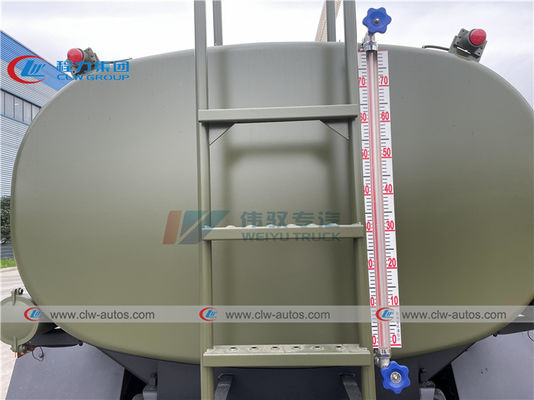

Reference Photos

Left Hand Driving Foton 4x4 113HP Water Bowser Truck 0

Left Hand Driving Foton 4x4 113HP Water Bowser Truck 1
Left Hand Driving Foton 4x4 113HP Water Bowser Truck 2

Left Hand Driving Foton 4x4 113HP Water Bowser Truck 3

Left Hand Driving Foton 4x4 113HP Water Bowser Truck 4
Left Hand Driving Foton 4x4 113HP Water Bowser Truck 5
Left Hand Driving Foton 4x4 113HP Water Bowser Truck 6



After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Flora+86 13971508969.



FAQ

Q1: What kinds of water bowser I can order from your company?
A: There are various sizes and types of water bowsers with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied water bowsers to any overseas companies?
A: Yes,with need of government and construction project,we offered water bowsers to many Africa and south-east Asian,south-American countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
