HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Home ProductsGarbage Compactor Truck

Dongfeng 4x2 8CBM Diesel Engine Sanitation Vehicle

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Dongfeng 4x2 8CBM Diesel Engine Sanitation Vehicle

Dongfeng 4x2 8CBM Diesel Engine Sanitation Vehicle
Dongfeng 4x2 8CBM Diesel Engine Sanitation Vehicle Dongfeng 4x2 8CBM Diesel Engine Sanitation Vehicle Dongfeng 4x2 8CBM Diesel Engine Sanitation Vehicle Dongfeng 4x2 8CBM Diesel Engine Sanitation Vehicle Dongfeng 4x2 8CBM Diesel Engine Sanitation Vehicle Dongfeng 4x2 8CBM Diesel Engine Sanitation Vehicle

Large Image :  Dongfeng 4x2 8CBM Diesel Engine Sanitation Vehicle

Product Details:

Place of Origin: SUIZHOU, HUBEI, CHINA
Brand Name: CLW
Certification: ISO9001, CCC, BV, SGS
Model Number: CLW20211009

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiated
Packaging Details: Naked or waxed before shipment
Delivery Time: 30-35 days after receiving the deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units per month
Detailed Product Description
Material: Carbon Steel, Drive Type: 4X2 6WHEELS 6 WHEELER
Drive Model: Left Hand Drive, RHD Loading Capacity: 6 Tons, 7 Tons, 8 Tons, 9T, 6T. 7T, 8T
Truck Brand: Sinotruk/Sinotruck HOWO, Dongfeng, FAW, FOTON, Jac Tuck Type: Waste Collection Truck. Refuse Connection Truck
Other Equipment: With Hyraulic Systerm Condition: Garbage Compactor Truck, Compressed Type
Type: Compactor,dongfeng Garbage Compactor Truck Product Name: Garbage Transport Truck,waste Bin Compactor Truck,compactor Garbage Truck Price
Truck Type: Compactor Rear Loader Recycling Roll,Garbage Compressor,Garbage Compactor Engine Type: Dongfeng Cummins Diesel
Name: New Refuse Compactor Trucks,garbage Compactor Recycling Truck
High Light:

8CBM Sanitation Vehicle

,

Dongfeng Sanitation Vehicle

,

Diesel Engine Garbage Compactor Truck

Dongfeng 4x2 New Sanitation Compression Vehicle Diesel Engine 8CBM Garbage Compactor Truck





Product Description



Truck Chassis configuration: 4 x2 rear single-axle drive, new wide body green cab, Chaochai 160 horsepower, Diesel engine, EURO-3 Emission Standard; 6-speed gearbox manual control, electric windows, original air conditioning, power steering, air brake,7.00-16 tires with spare tires.



Compactor garbage truck Bodywork configuration: Compressed volume 8 cubic meters, made by T420 special steel plate integral bending, equipped with Xiamen Yinhua hydraulic cylinder oil leakage replacement, Changyuan 63 + 20 double hydraulic pump with 3 + 2 double valve, Zhongmei multi-way valve, Siemens PLC control, electro-optic switch, 2 sewage collection boxes, 3 operation control boxes, with night light, equipped with two-way compression function, two-way hydraulic lock dripping.




product Specification



Technical parameters
Name 8 cubic compressed garbage truck
Cross weight (kg) 15995 Permitted number of passengers in the cab ( people) 3
Rated capacity (kg) 6900,6100 Overall dimension 7690X2500X3250
Curb weight (kg) 8900,9700
Approach/Departure: (°) 19/13 F/R overhang:(mm) 1230/2510,1230/2270
Axle load (kg) 5595/10400 Max speed (km/h) 90
Details :

Note: 1. This car adopts two wheelbase chassis: 3950 and 4500.

2. Optional cab with chassis.

3. This car has five optional flipping styles: A: triangulator device, B: bucket hanging device, C: arm swinging device, D: large landing bucket device, E: no rear flipping device. When ABCD is selected, the corresponding relationship between the vehicle length (mm)/ wheelbase (mm)/ rear suspension (mm)/ maintenance mass (Kg) is :7690/3950/2510/8900; When choosing E, the vehicle vehicle (mm)/long wheelbase (mm)/rear suspension (mm) as follows: the relation between 7450/3950 0/4500/2270800/2270.

4. Protective material :Q235 carbon steel, connection mode: the right and left side protection is welded to the auxiliary beam, and the rear protection is exempted by special device.

5. ABS system manufacturer, model: jiaozuo borico control technology co., LTD.

6. The corresponding relationship between engine and fuel consumption value is (L/100km): yc4eg170-50/26.0, yc4eg185-50/26.3,ISB180 50/27.8,ISD160 50/26.3.

7. Special device: box body. Mainly used for urban sanitation waste collection and transportation. 8. The car can optionally install the appearance of three-cylinder large landing bucket device and swing arm device, as well as the appearance of two-cylinder swing arm device, three-cornered bucket device and large landing bucket device.

Chassis technical parameter
Chassis type EQ1165LJ9BDE Chassis type Cargo chassis
Chassis brad dongfeng Chassis manufacturer: Dongfeng automobile company ,.ltd
Axes number 2 Tire number 6
wheelbase:(mm) 3950
Tire specifications 9.00R20
Leaf springs number 8/10+7 Front tread (mm) 1858,1949,1765,1891
Fuel type Diesel oil Rear tread (mm) 1806,1865,1750
Emission basis: GB17691-2005,GB3847-2005
Engine type Engine manufacturer Displacement Engine power
ISB180 50 Dongfeng Cummins engine co. LTD 5900 132

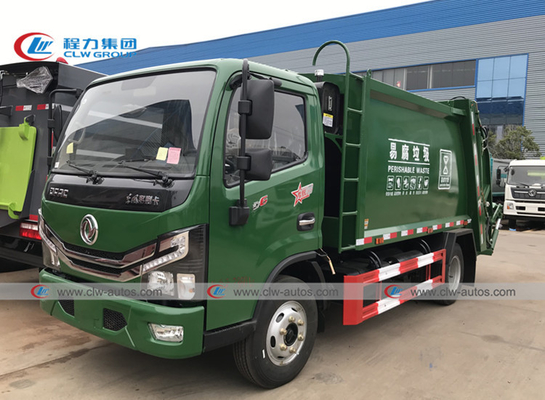

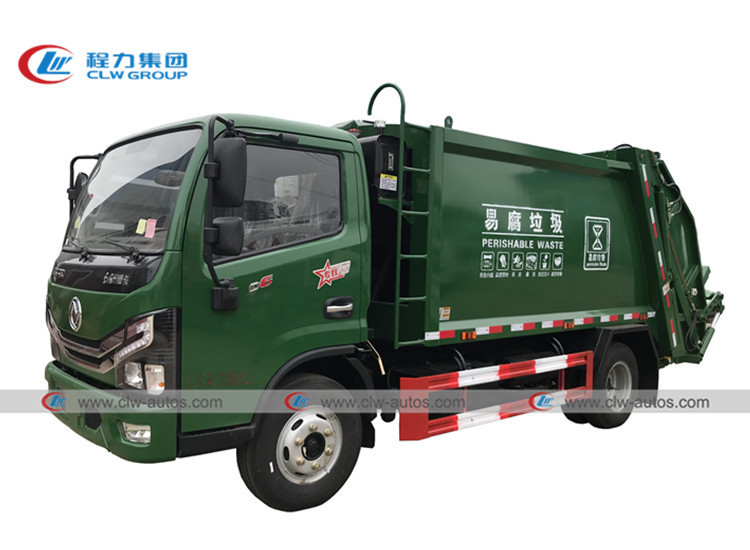

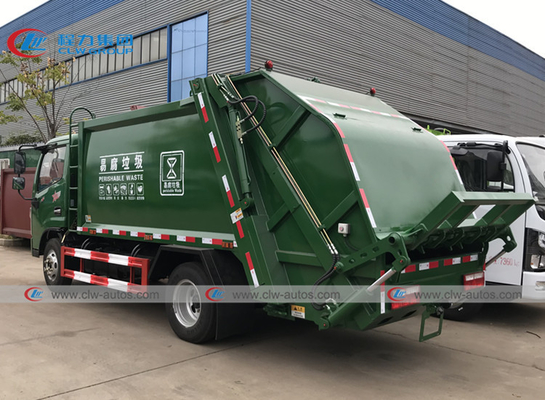

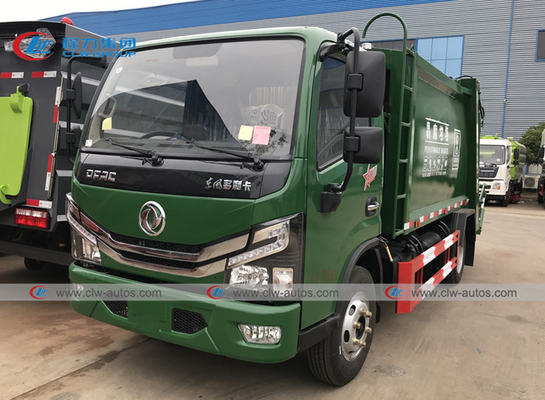

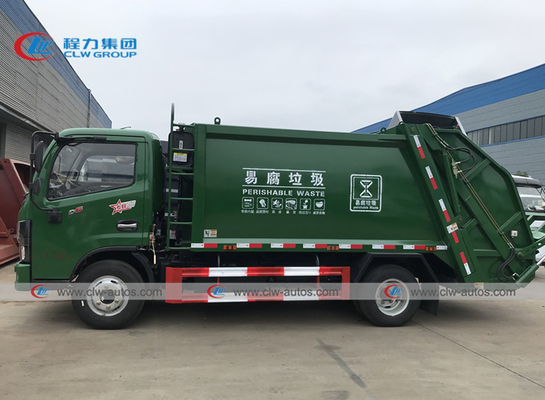

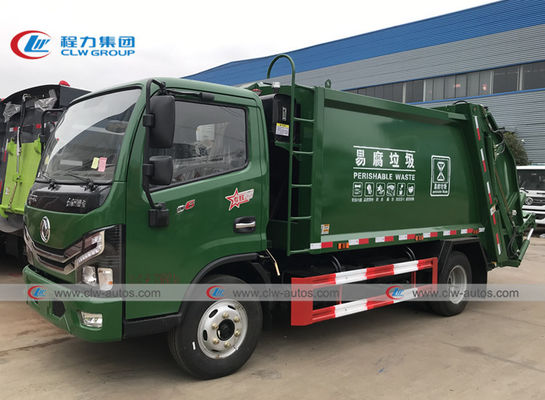

More picture for Dongfeng 4x2 New Sanitation Compression Vehicle Diesel Engine 8CBM Garbage Compactor Truck:

Dongfeng 4x2 8CBM Diesel Engine Sanitation Vehicle 0Dongfeng 4x2 8CBM Diesel Engine Sanitation Vehicle 1Dongfeng 4x2 8CBM Diesel Engine Sanitation Vehicle 2Dongfeng 4x2 8CBM Diesel Engine Sanitation Vehicle 3Dongfeng 4x2 8CBM Diesel Engine Sanitation Vehicle 4

Dongfeng 4x2 8CBM Diesel Engine Sanitation Vehicle 5



Warranty



1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.



2, We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .



3, With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers' trust and support.



4, Packaging Details : nude , covered with wax, small type can be put into 20'GP OR 40'GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.



FAQ



Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.



Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.



Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .


Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.



Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
