Product Details:
Payment & Shipping Terms:
|
| Tanker Material: | Carbon Steel | Product Name: | Garbage Compactor Truck, Compressed Garbage Truck |
|---|---|---|---|
| Drive Type: | 4X2 6WHEELS 6 WHEELER | Drive Model: | Left Hand Drive |
| Loading Capacity: | 8 Tons, 9 Tons, 10 Tons, 8T, 9T. 10T, 12T | Truck Brand: | Sinotruk/Sinotruck HOWO, ISUZU, FAW, FOTON, Jac |
| Tuck Type: | Waste Collection Truck. | Other Equipment: | With Hyraulic Systerm |
| Condition: | ISUZU Japan Brand, Brand New Truck | Volume: | 10cbm, 12cbm, 14cbm, 10m3, 12m3, 14m3 |
| After-sales Service Provided: | Overseas Third-party Support Available,Online Support,Video Technical Support,Free Spare Parts | Warranty: | 1 Year,12 Months |
| Truck Type: | Compactor Rear Loader Recycling Roll,Garbage Compressor,Garbage Compactor | Name: | Compactor GarbageTruck,new Refuse Compactor Trucks,garbage Compactor Recycling Truck |
| High Light: | 12CBM Waste Collection Truck,ISUZU FTR Waste Collection Truck,LHD Sanitation Truck |
||
ISUZU FTR 4X2 6 wheels 12CBM 12M3 Sanitation Compression Waste Collection Truck
Product Description
1-- garbage truck compactor is divided into compactor garbage truck, swing arm garbage truck, hook lift garbage truck, roll on roll off garbage truck,bin lift garbage truck,dumper garbage truck,sealed garbage truck,container garbage truck, rear load garbage truck and so on.
2-- Easy Full Automatic Operation: computer control system for loading and unloading operations.
3-- One Person Operation: Reducing sanitation working, greatly improves the working environment.
4-- Double Operation System: computer control system and manual operation greatly improves the vehicle usage rate.
5-- Capacity: option for 3-20m3 garbage truck.
6-- Steering wheel: both left and right hand drive,meet the needs of different countries
7-- Emission standard: option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 garbage truck
8-- Truck chassis: option for japanese and chinese brand,such as dongfeng,isuzu,faw,foton,howo,jac,jmc,forland...
Specifications of garbage truck compactor
| Drive type | 4*2, New condition, LHD | ||
| Vehicle Main Dimensions | (L x W x H)mm | 8500×2490×3250 | |
| Wheel base (mm) | 4500 or 4700 | ||
| Track front/rear mm | 1880/1800 | ||
| F/R Axle-Load | 6300/13000 kg, | ||
| Approach/departure angle | 19/12 | ||
| Weight in KGS | Curb Weight | 9850kg | |
| GVW | 15800kg | ||
| Max. driving speed(km/h) | 98 | ||
| Engine | Brand | isuzu Brand,Diesel ENGINE | |
| Model | 4HK1-TCG40 | ||
| Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling; | ||
| Horse Power(HP) | 190hp | ||
| Emission standard | Euro IV | ||
| Gearbox | 6 forwards& 1 reverse | ||
| Clutch | Reinforced diaphragm clutch | ||
| Tire | 9.00R20,10.00R20,9R22.5 or 10R22.5, 7 pc including 1 spare tire | ||
| Steering Gear | power steering, hydraulic steering with power assistance | ||
| Equipment for Garbage Compactor | |||
| Garbage Box Material | Carbon Steel Q235 | ||
| Garbage Box Volume | 12cbm or 14cbm | ||
| Body material | Floor plate 5mm and side plate 4mm | ||
| Waste water tank | 200L | ||
| Filling container volume | 500L | ||
| Filling time | 8~10s | ||
| Filling cycle time | 50~60s/time | ||
| Discharge time | 30~40s | ||
| Hydraulic System | Chinese brand,consist of oil pump,oil cylinder,front valve,rear valve,pressure gauge,oil box,filter and pipelines.Front valve controls push panel and strike-off board. | ||
| Push Panel | Used to push and squeeze garbage,works together with the skid way in the box | ||

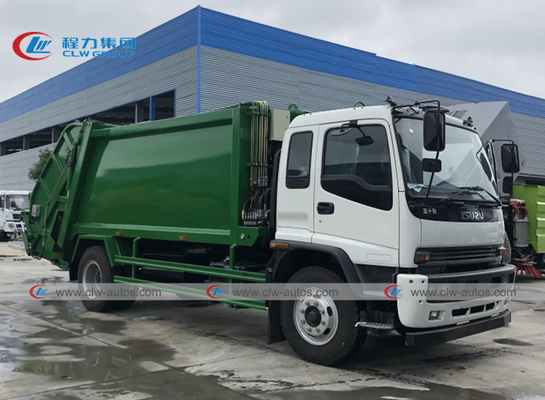

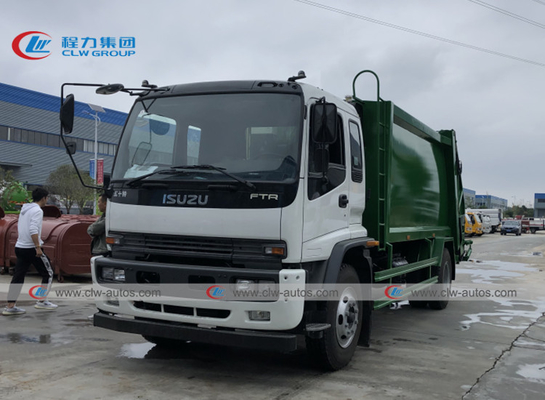

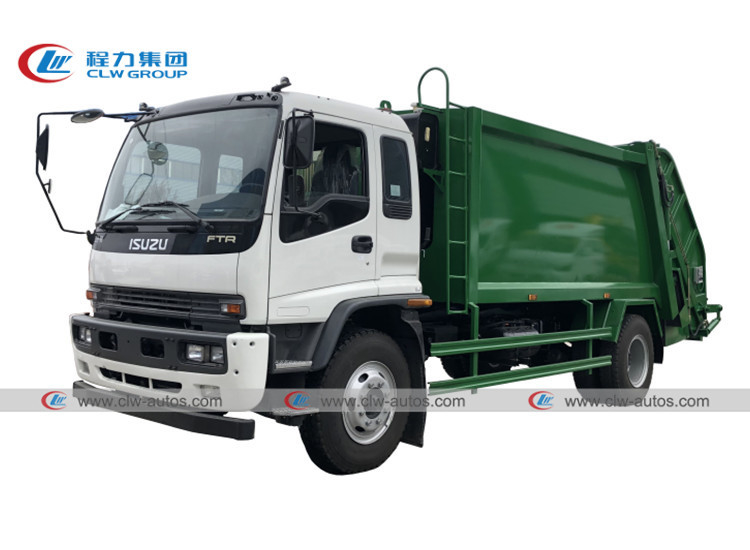

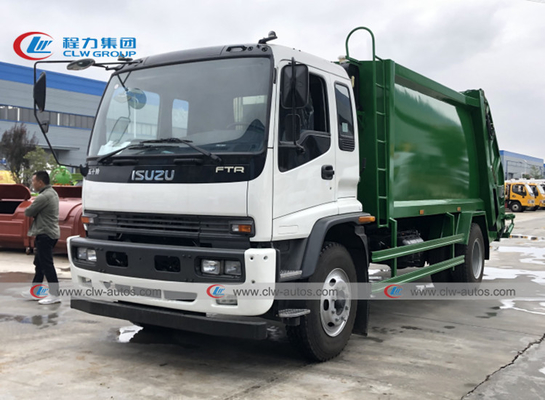

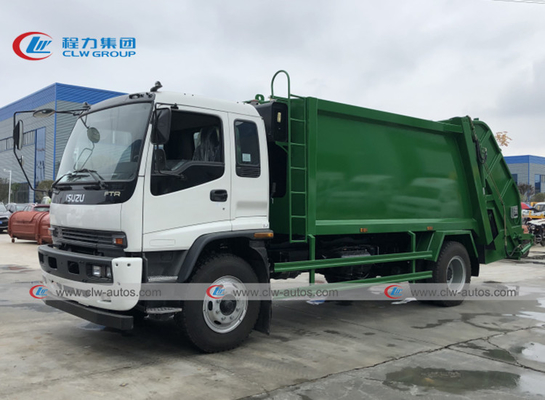

The pictures for ISUZU FTR 4X2 6 wheels 12CBM 12M3 Sanitation Compression Waste Collection Truck:
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A.Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
