Product Details:
Payment & Shipping Terms:
|
| Truck Chassis: | Dongfeng,Howo,ISUZU,Shacman,CAMC,Foton | Capacity: | 4tons/4CBM |
|---|---|---|---|
| Type: | Water Tank Fire Truck,foam,dry Powder Fire Truck,rescue Fire Truck | Fire Pump: | Chinese Brand |
| Fire Monitor Range: | ≥50M | Flow Rate Of Monitor: | 48L/s |
| Flow Rate Of Pump: | 60L/s | Steering: | LHD Or RHD |
| High Light: | 4000L Water Tank Fire Engine Truck,Dongfeng Duolicar Fire Pumper Truck,4x2 Fire Pumper Truck |
||
4000L 4tons Dongfeng Duolicar 4x2 Water tank Fire rescue truck fire pumper truck fire engine
Product Description
Fire fighter truck, which is also called water fire engine, water foam fire truck, fire fighting equipment, fire appliance truck, foam fire tanker, water foam pumper, light rescue apparatus, fire fighting vehicle, foam discharging truck, foam tanker fire truck is a special vehicle designed primarily for fire fighting operations and to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.
Fire Fighting Trucks can be divided into several types:
1-- According to vehicle size, there are mini fire fighting truck,light fire fighting truck,medium fire fighting truck, heavy-duty fire fighting truck.
2-- According to chassis drive type, there are 4X2 or 6-wheel fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck for military use.
3-- According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck,Scania fire fighting truck and so on.
4-- According to fire extinguishant,there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck
5-- There are also fire rescue truck with special purpose as follows,
-- Foam supply fire truck;
-- Compressed air supply fire fighting truck;
-- Water tower fire truck ;
-- Earthquake rescue fire truck;
Specification
| Item | Unit | Description | ||||||||
| Model | Dongfeng 4000Liters 4tons Fire Truck | |||||||||
| Dimension | mm | 6850*2285*2930 | ||||||||
| Tank Dimension | Liters | Water Tank | Foam Tank | |||||||
| 4000 | For option | |||||||||
| Material | carbon steel | Stainless steel | ||||||||
| Curb Weight | kg | 5000 | ||||||||
| Wheel Base | mm | 3800 | ||||||||
| F/R track base | mm | 1835/1750 | ||||||||
| F/R Axled-Load | Kg | 3050/4400 | ||||||||
| Suspension | Steel Spring | |||||||||
| Approach/Departure angle | . | 34/14 | ||||||||
| Tire | Model | 8.25-16 , 6 Unit +1 Spare Unit | ||||||||
| Traction system | Type | 4*2 | ||||||||
| Max speed | Km/h | 90 | ||||||||
| Engine model | Model | CY4102-E3C | ||||||||
| Emission/Ps | 3856 cc / 124 Ps, 91 Kw | |||||||||
| Horse Power | 124 | |||||||||
| Power | 345 N.m-1300~1500r/min | |||||||||
| Type | Diesel, 4cylinder, Turbocharge , water cooling. | |||||||||
| manufactuere | Dongfeng Chaoyang Engine Power Co.,Ltd | |||||||||
| Gear box | Type | 6F&1R, Manual | ||||||||
| Electric system | V | 24 | ||||||||
| Cab | Person | 3 | ||||||||
| Type | Reversable, Manual | |||||||||
| Steering | Powering , LHD or RHD | |||||||||
| Installing | Mp3, Radio | |||||||||
| Air Conditioner | Equipped | |||||||||
| Fire Cannon Specification on the top of fire truck | ||||||||||
| Fire Cannon model | PS 30 | Working Range | Water >45 m | |||||||
| Foam type, Optional Item | ||||||||||
| PP 24, Multi | Working Range | Foam >40 m | ||||||||
| Working angle | - 30 ~ 80 | Operation | Mannual | |||||||
| working pressure | 1~1.2 Mpa | |||||||||
| Flowing Speed | 48 L / s | |||||||||
| Fire Pump Specification | ||||||||||
| Fire Pump model | CB 10 / 30 | |||||||||
| Flowing Speed | 30 L / s | Pressure | <1.0 Mpa | |||||||
| Liquid input Port | DN 135mm x 1 | water suction pipe | 8 m, one Unit | |||||||
| Liquid Output Port | DN 80mm x 2 , with ball valve control | |||||||||
| Liquid Output Port | DN 65mm x 2, with ball valve control | |||||||||
| Outside water input port | ||||||||||
| Liqid input Port | DN 65 x 2 Unit, at two side of fire truck | |||||||||
| Foam tank specifiation ( Option ) | ||||||||||
| Volum is customized , pipe and valve are all stainless steel material | ||||||||||
| Installing | ||||||||||
| Long beem alarm light, light detector x2~12 V 60W, 5 Unit Window type warehous, Rear climp ladder | ||||||||||
| Spare List | ||||||||||
| Fire Pipe | DN 65 x 8 Unit | Fire Pipe | DN 80 x 4 Unit | |||||||
| Fire Pipe Length | 20 m | |||||||||
| Fire pipe protector | 4 | Fire Pipe storage | 1 | |||||||
| Fire Pipe Hocker | 4 | Fire extinguisher | 1 | |||||||
| Fire bucket | 1 | Fir axe | 1 | |||||||
| Fire Crowbars | 1 | Iron collars | 1 | |||||||
| Liquid port Connector | 5 Unit, Y type, U type, X Type | |||||||||
| Fire spanner | 2 Unit, Above ground fire hydrant, undergound hydrant. | |||||||||
| Spanner | 2 Unit, for sunction pipe | |||||||||
| Fire cannon | 3 Unit, two for water, one for foam ( Optional) | |||||||||
| Fire ladder | 12 m foldable aluminum alloy steel ladder | |||||||||
| Option Item | Fire cloth, safety cabline. | |||||||||

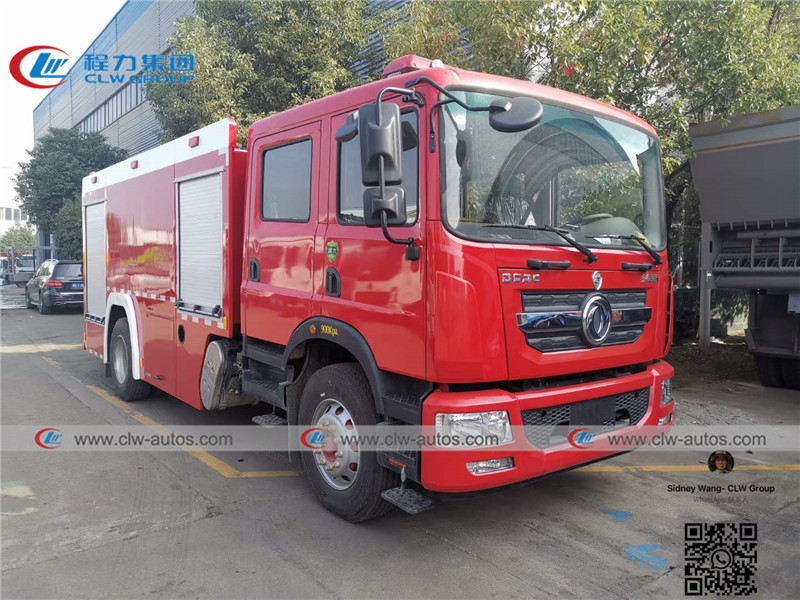

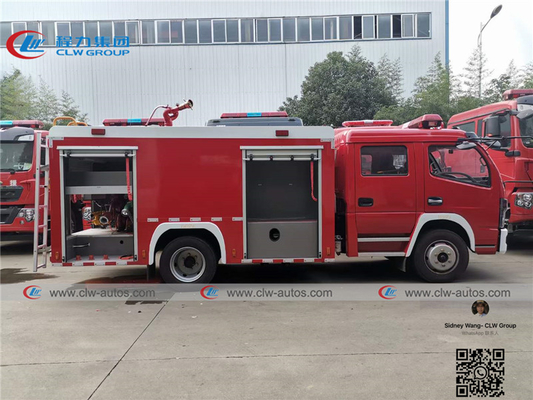

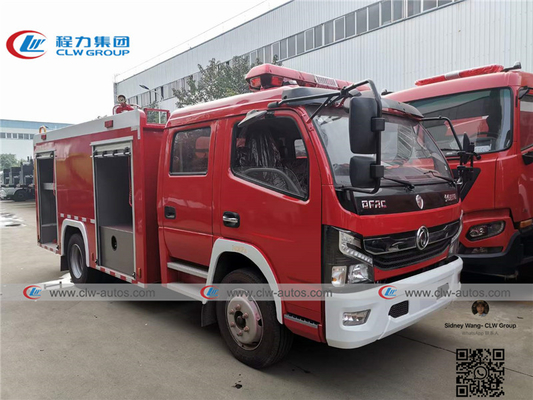

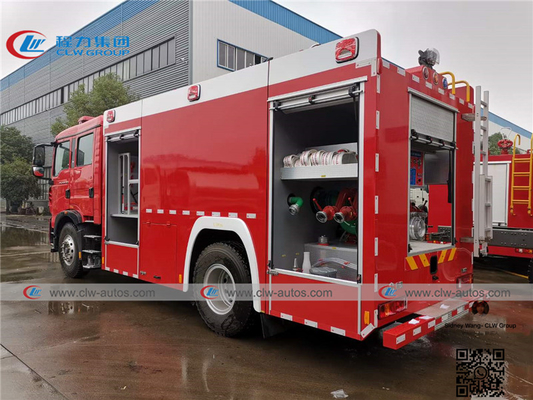

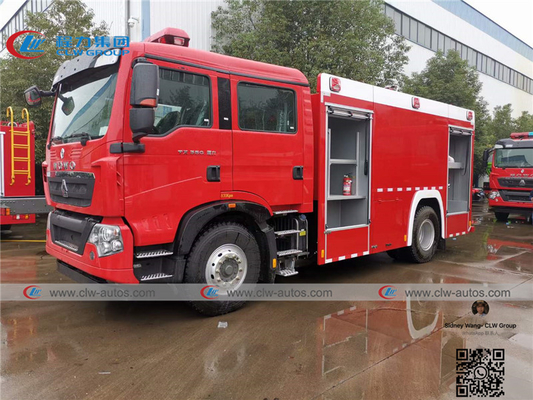

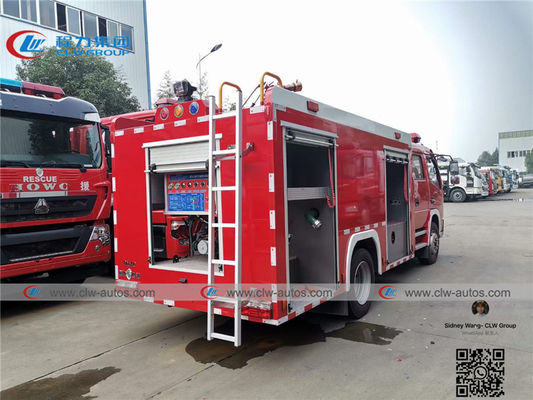

Products Show
Equipment of fire rescue fighter truck
Production of fire rescue fighter truck
Factory overview
FAQ
Q1: What kinds of fire enigne truck I can order from your company?
A: There are various sizes and types of fire enigne truck with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied fire enigne truck to any overseas companies?
A: Yes,with need of government project,we offered fire fighting trucks to many Africa and south-east Asian,south-American countries.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
After Sales Service
Email & Phone call tracking for each truck on timely manners.
