Product Details:
Payment & Shipping Terms:
|
| Truck Chassis: | Dongfeng,Howo,ISUZU,Shacman,CAMC,Foton | Capacity: | 2tons,3ton,5ton,6tons,8ton,10tons,12ton,14ton,16ton |
|---|---|---|---|
| Type: | Water Tank Fire Truck,foam,dry Powder Fire Truck,rescue Fire Truck | Fire Pump: | Chinese Brand |
| Fire Monitor Range: | ≥55M | Flow Rate Of Monitor: | 48L/s |
| Flow Rate Of Pump: | 60L/s | Steering: | LHD Or RHD |
| High Light: | 8cbm Foam Tank Fire Engine Truck,Sinotruk Howo Fire Engine Truck,Howo 4x2 Fire Pumper Truck |
||
Sinotruk howo 4x2 8cbm 8000liters foam tank fire fighting truck fire engine fire pumper truck fire fighter trucks
Product Description
1) HOWO 4X2 fire fighting truck is composed with truck body and cabin,cabin is two rows,which can allow 6 persons.The front part of truck body is equipment room,middle is water tank and foam tank,rear is pump room.
2) To ensure good performance of fire trucks,howo fire truck is equipped with middle and low pressure fire pump CB20.10/30.60 with flow rate at 60L/S and Chengdu Wester fire monitor PL48(PM160)or PS60W(SG160).
3) Fire trucks are widely used in factory, terminal, oil&gas depot to insure emergency fire cases.
Specifications
| Cabin | Driving type 4x2 LHD | ||
| Double Row Cab with Air condition | |||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8400×2500×3425 | |
| Wheel base (mm) | 4600 | ||
| Wheel track (front/rear) (mm) | 2022/1830 | ||
| Weight in KGS | Tare Weight | 11000 | |
| Payload | 12000 | ||
| Front axles loading capacity | 1x7000 | ||
| Rear axles loading capacity | 1x16000 | ||
| Max. driving speed(km/h) | 102 | ||
| Engine | Brand | SINOTRUK | |
| Model | WD615.87 | ||
| Type | 4-stroke direct injection , 6-cylinder in-line , turbo-charged and inter-cooled | ||
| Horse Power(HP) | 290 HP | ||
| Emission standard | Euro 2 | ||
| Gearbox | HW15710, 10 Forwards gear & 2 reverse gear | ||
| Clutch | Reinforced diaphragm clutch, diameter 430mm | ||
| Steering Gear | ZF 8098,power steering, hydraulic steering with power assistance | ||
| Fuel tank (L) | 300 | ||
| Tire | 12R22.5 tubeless tyre, 7 pcs including one spare tire | ||
| Tank Capacity (L) | Foam: 8,000 | ||
| Fire Pump | Flow | 40L/s at Low Pressure 1.0 MPa | |
| 20L/s at Middle Pressure 2.0 Mpa | |||
| Fire Monitor | Model | SP30 | |
| Pressure | 1.0-1.2 MPa | ||
| Flow | 30L/S | ||
| Range | Water≥55m | ||
| Foam≥40m | |||
| Rotation angle | 360° Horizontal | ||
| -30°~80° Pitch Angle | |||

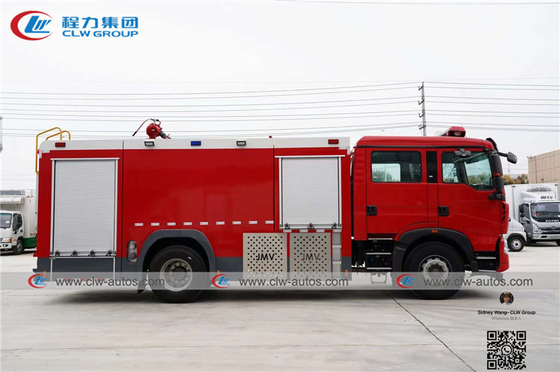

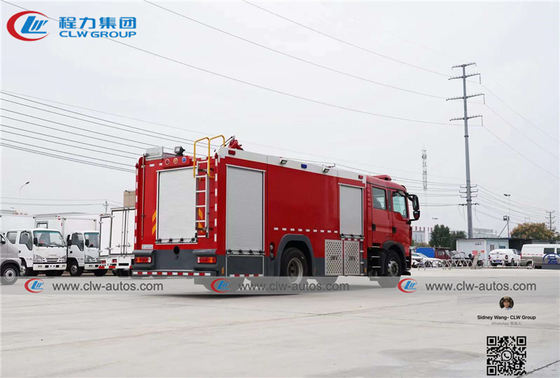

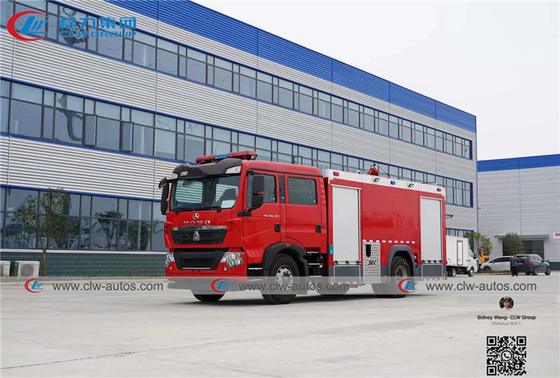

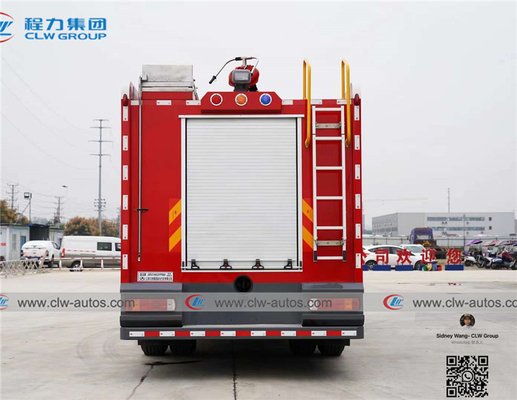

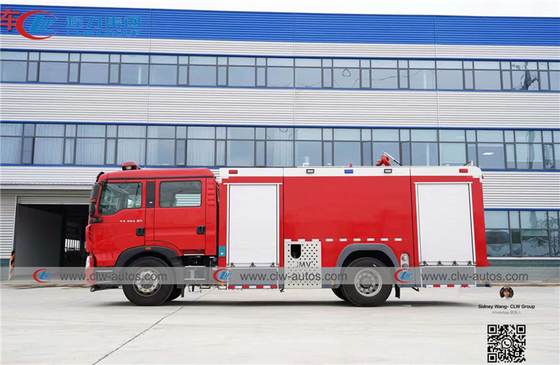

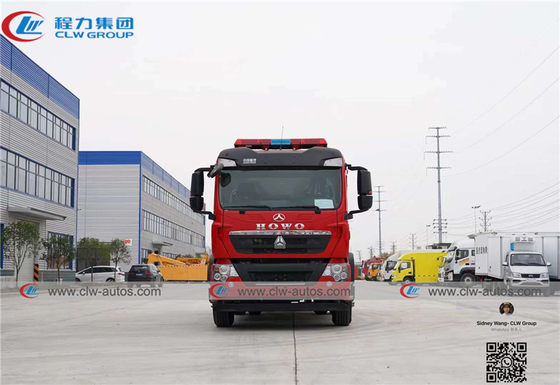

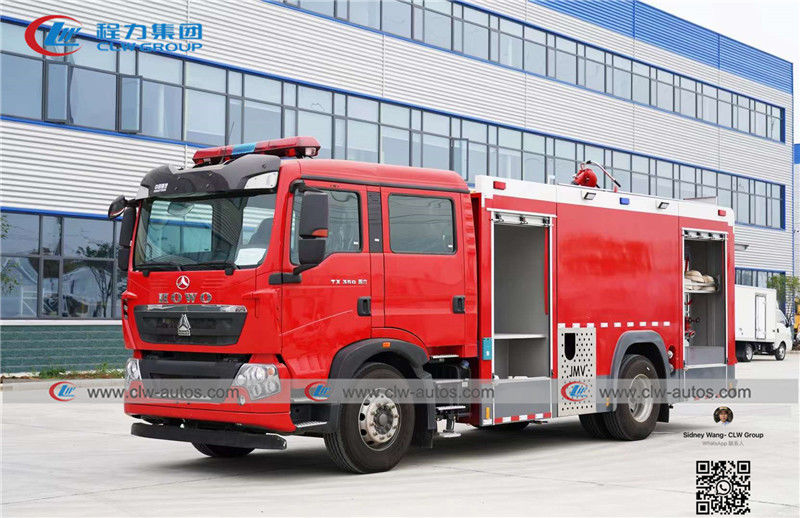

Reference photos
Fire fighting truck accessories
Successful cases
Fire truck workshop
Factory overview
Our Service
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
After Sales Service
Email & Phone call tracking for each truck on timely manners.
