HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Home ProductsWater Bowser Truck

Foton Rowor 12m3 Water Sprinkler Truck With Q235 Carbon Steel Tank

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Foton Rowor 12m3 Water Sprinkler Truck With Q235 Carbon Steel Tank

Foton Rowor 12m3 Water Sprinkler Truck With Q235 Carbon Steel Tank
Foton Rowor 12m3 Water Sprinkler Truck With Q235 Carbon Steel Tank Foton Rowor 12m3 Water Sprinkler Truck With Q235 Carbon Steel Tank Foton Rowor 12m3 Water Sprinkler Truck With Q235 Carbon Steel Tank Foton Rowor 12m3 Water Sprinkler Truck With Q235 Carbon Steel Tank Foton Rowor 12m3 Water Sprinkler Truck With Q235 Carbon Steel Tank Foton Rowor 12m3 Water Sprinkler Truck With Q235 Carbon Steel Tank

Large Image :  Foton Rowor 12m3 Water Sprinkler Truck With Q235 Carbon Steel Tank

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW
Certification: CCC,ISO
Model Number: CLW5674

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: USD17925-29852
Packaging Details: Naked packing,Ro-ro,Bulk Ship
Delivery Time: 20-30 Days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500Unit Per Month
Detailed Product Description
Material: Q235 Carbon Steel Thickness: 5 Mm
Fuel: Diesel Driving Type: 4*2, Left/right Hand Driving
Pump: China Famous Brand/International Brand Suction Height: 7 Meters
Water Canon Range: 30 Meters Sprinkling Width: 14 Meters
Operating Video: Yes Use Manual: Yes
Front Spray And Rear Spray: Yes Warranty: One Year
LOGO: As Per Customer's Request
High Light:

12m3 Water Sprinkler Truck

,

Foton Rowor Water Sprinkler Truck

,

Foton Rowor Water Spraying Truck

FOTON Rowor 12000Liters 12m3 12tons Water Tank Bowser truck water sprinkler truck water spraying tanker truck





Water bowser truck, is also called as the sprinkler, and multi-function green watering truck.

It is mainly used in city road, large factory area, army, landscape garden and other departments for leaning the pavement, sanitation, dust-proof, watering, and spraying farming chemicals for beautify the environment.

From another point, while being urgent, the sprinkler is also used as the fire fighting truck.

The sprinkler is equipped with front, rear and side sprinkler head, and then it covers large watering fields, making great efficiency.

This kind of the watering truck could be one most important kind in all environmental trucks.

Description
1. Optional chassis brand: Dongfeng, Sinotruk, Foton, Faw, Shacman;
2. Water Tank Material: High Tension Steel Q235/Q345,stainless steel 304B for option.
3. Reliable and high quality water pump
4. Optional for insulation layer which is suitable for warm water delivery.


Specification



Technique parameter
Name FOTON Rowor water bowser truck L×W×H mm 8400×2420×3100(mm)
Chassis Model EQ5072 Water tank Dimension(mm) 4400×2200×1500(mm)
GVW 18800(Kg) Approach/Departure angle 16/8(°)
Loading capacity 12050(Kg) front/rear suspension 1365/2435(mm)
curb mass 6750(Kg) Max. speed 85(km/h)
Engine manufacturer displacement(ml) power(kw)

ISDe185 30
Dongfeng Cummins Engine Co., Ltd. 6700 136
Emission standards GB17691-2005Euro3,GB3847-2005
Axle 2 front tread 1900/1800(mm)
Wheelbase 4500 rear tread 1800(mm)
Tyre 6 tyre size 9.00-20,9.00R20,10.00-20,10.00R20
Fuel type diesel spring 10/10+8
Axle load 5900/9900 cab passenger 3
Note Tank capacity: 12000Liters/12cbm/12tons

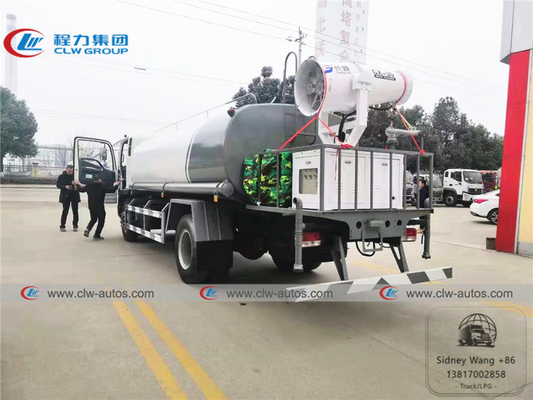

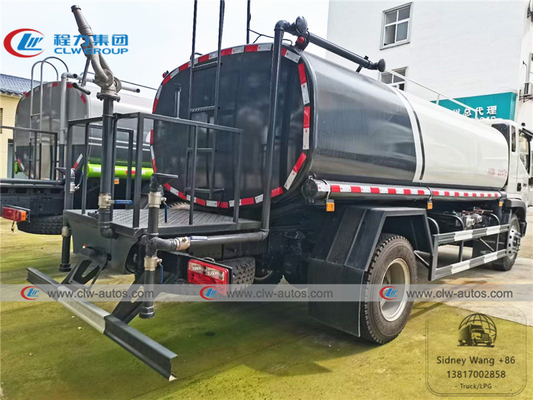

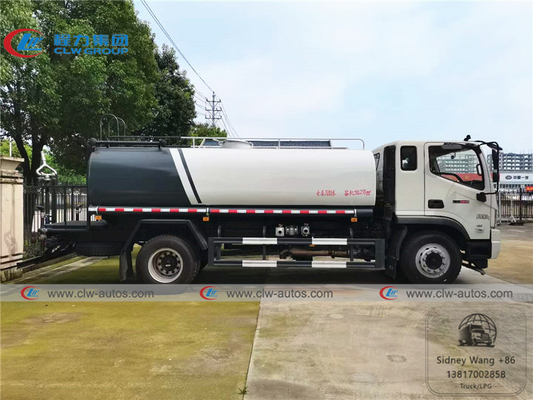

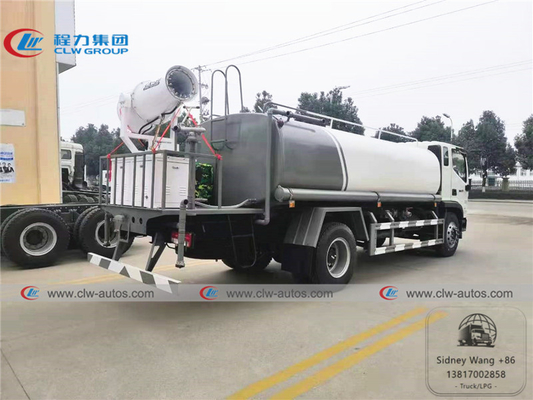

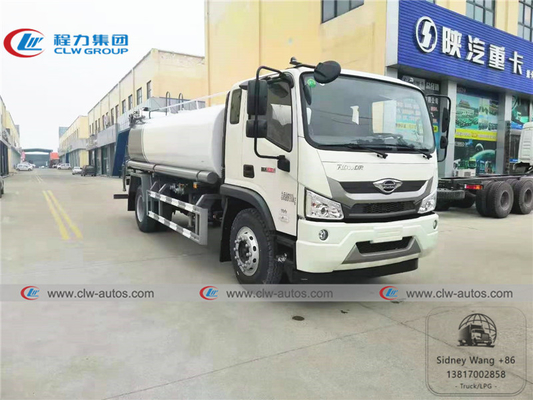

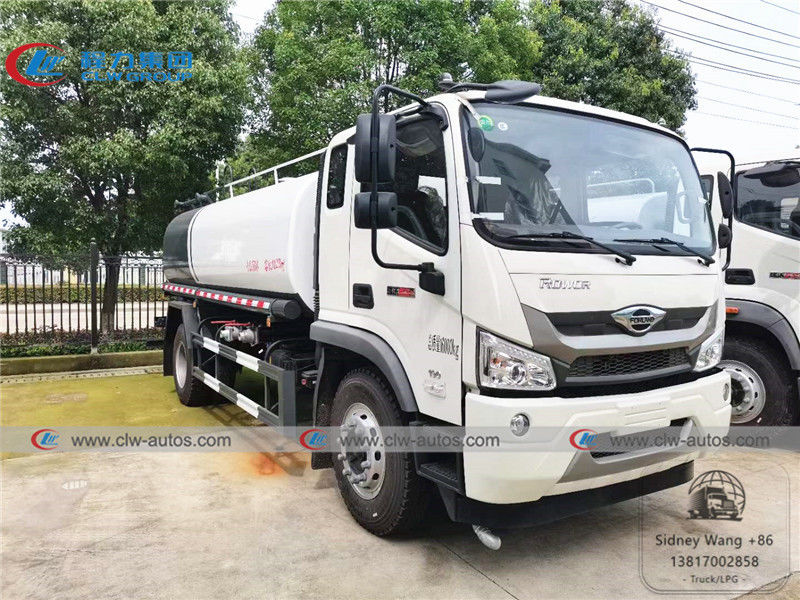

Reference photos

Foton Rowor 12m3 Water Sprinkler Truck With Q235 Carbon Steel Tank 0Foton Rowor 12m3 Water Sprinkler Truck With Q235 Carbon Steel Tank 1Foton Rowor 12m3 Water Sprinkler Truck With Q235 Carbon Steel Tank 2Foton Rowor 12m3 Water Sprinkler Truck With Q235 Carbon Steel Tank 3



Water Truck Diagram

Foton Rowor 12m3 Water Sprinkler Truck With Q235 Carbon Steel Tank 4
Working Show
Foton Rowor 12m3 Water Sprinkler Truck With Q235 Carbon Steel Tank 5

Truck Details
Foton Rowor 12m3 Water Sprinkler Truck With Q235 Carbon Steel Tank 6
Foton Rowor 12m3 Water Sprinkler Truck With Q235 Carbon Steel Tank 7



Water bowser truck production line:



Foton Rowor 12m3 Water Sprinkler Truck With Q235 Carbon Steel Tank 8



Factory overview

Foton Rowor 12m3 Water Sprinkler Truck With Q235 Carbon Steel Tank 9

Foton Rowor 12m3 Water Sprinkler Truck With Q235 Carbon Steel Tank 10



After-Sale Service :



We will shoot detailed operation videos for customers on how to use the sprinkler and the precautions for car maintenance. The truck is equipped with some basic wearing parts, which is convenient for later use and replacement. We Provide a one-year warranty period, and provide factory-price accessories for life (the freight is paid by the customer).



Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



Spare Parts



1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.



Shipment



Land transportation or Ship by bulk cargo ship, container, roro ship



After Sales Service



Email & Phone call tracking for each truck on timely manners.
