8x4 HOWO Flatbed Truck Mounted Telescoping Boom Crane

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

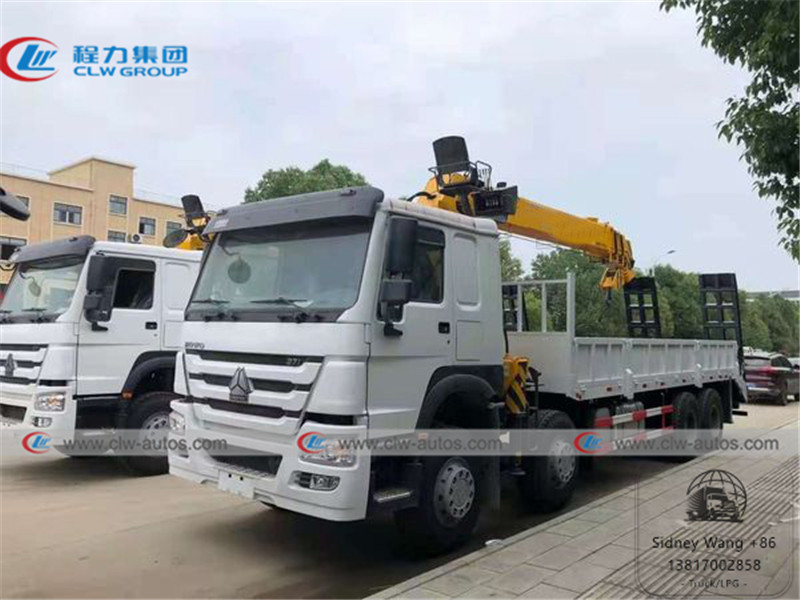

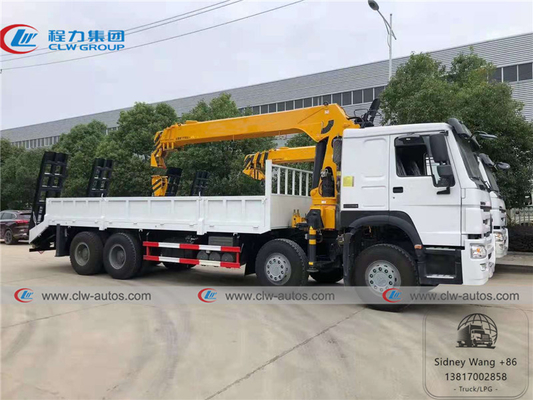

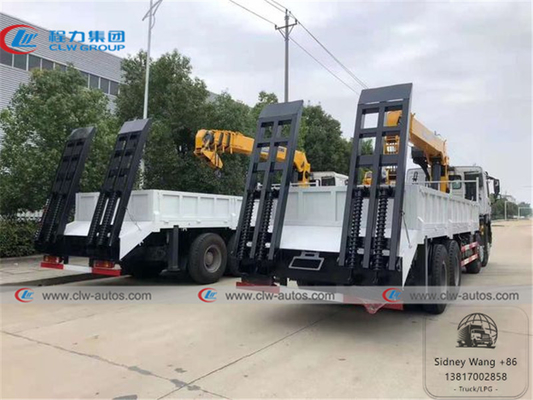

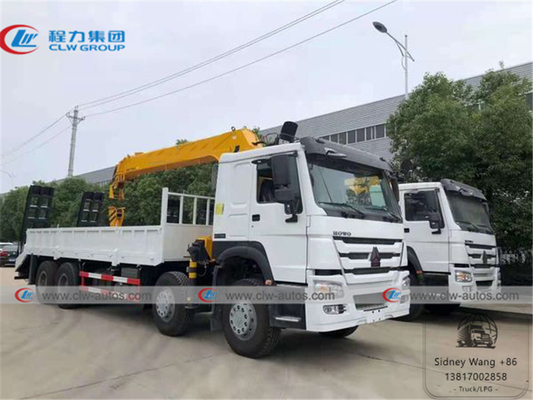

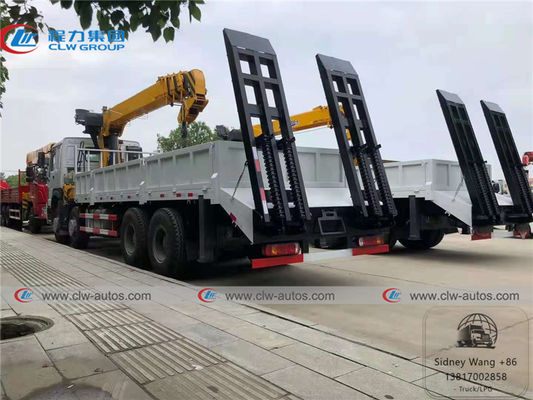

8x4 HOWO Flatbed Truck Mounted Telescoping Boom Crane

8x4 HOWO Flatbed Truck Mounted Telescoping Boom Crane
8x4 HOWO Flatbed Truck Mounted Telescoping Boom Crane 8x4 HOWO Flatbed Truck Mounted Telescoping Boom Crane 8x4 HOWO Flatbed Truck Mounted Telescoping Boom Crane 8x4 HOWO Flatbed Truck Mounted Telescoping Boom Crane 8x4 HOWO Flatbed Truck Mounted Telescoping Boom Crane 8x4 HOWO Flatbed Truck Mounted Telescoping Boom Crane

Large Image :  8x4 HOWO Flatbed Truck Mounted Telescoping Boom Crane

Product Details:

Place of Origin: SUIZHOU, CHINA
Brand Name: CLW
Certification: CCC, ISO, BV, SGS
Model Number: CLW5711

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Naked Packed with Wax
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Units/Month
Detailed Product Description
Condition: New Chassis Brand: Sinotruk Howo, Dongfeng, Foton, FAW, JAC, JMC, ISUZU, Etc.
Engine Brand: WD615.47 371HP Gearbox: Fast, 10forwards And 2reverse
Crane Brand: SANY, XCMG, CHENGLI, Etc. Crane Boom Type: Straight Telescopic Crane, Knuckle Crane
Max. Lifting Load: 16tons Boom Type: Straight 4-Arm Telescopic Boom
Cargo Material: Q235 Carbon Steel Cargo Thickness: Side 3mm, Bottom 4mm
Feature: Truck Crane Application: Construction,Truck Crane
Color: DEPENDS Origin: 100% China
Warranty: 1 Year
High Light:

Flatbed Truck Mounted Telescoping Boom Crane

,

HOWO Truck Mounted Telescoping Boom Crane

,

8x4 Truck Mounted Boom Crane

8x4 HOWO flatbed cargo Truck Mounted Telescopic straight arm 16Tons Crane with Construction Equipment

Product Description

-- Truck mounted crane(also called Truck with Crane, Truck Crane) is used for lifting different kinds of cargo such as tree, steel pipeline, telegraph pole and stone etc.
-- Truck mounted crane can be divided into various types as follows,
1) according to truck brands, there are SINOTRUK HOWO, FOTON, Dongfeng, SHACMAN, CAMC, JAC, JMC and ISUZU Truck mounted crane;
2) according to driving model: 4x2, 4x4, 6X4, 6x6, 8x4, 8x8 and 10x4 Truck mounted crane;
3) according to lifting weight: 2tons 3.2tons 5tons 6.3tons 8tons 10tons 12tons 15tons 18tons 20tons 25tons 30tons 50tons 60tons 80tons 100tons 120tons 150tons Truck mounted crane
4) According to crane type,there are telescopic and knuckle Truck mounted crane.

A crane mounted on a truck carrier provides the mobility for this type of crane. This crane has two parts: the carrier, often referred to as the Lower, and the lifting component which includes the boom, referred to as the Upper. These are mated together through a turntable, allowing the upper to swing from side to side. These modern hydraulic truck cranes are usually single-engine machines, with the same engine powering the undercarriage and the crane. The upper is usually powered via hydraulics run through the turntable from the pump mounted on the lower. In older model designs of hydraulic truck cranes, there were two engines. One in the lower pulled the crane down the road and ran a hydraulic pump for the outriggers and jacks. The one in the upper ran the upper through a hydraulic pump of its own. Many older operators favor the two-engine system due to leaking seals in the turntable of aging newer design cranes.

Feature
-- Crane: China famous Brand
-- Landing leg: Hydraulic control, top quality, easy for operation.
-- Storage box: High quality carbon steel Q235
-- Truck chassis: HOWO



Specification
Items Descriptions Parameter
General Vehicle name HOWO 8x4 truck mounted telescopic crane
Driving type 8x4
The total mass(kg) 31000
Curb weight(kg) 13205
Overall dimensions (mm) 11600x2500x3700
Cargo box size(mm) 8200x2394x550
Engine Fuel type Diesel
Engine brand Weichai
Engine model WD615.47
Engine power(kw/hp) 272/371
Displacement(ml) 9760
Emission standard Euro 2
Chassis Chassis model HOWO
Steering wheel Left or right hand drive
Axle 4
Front/rear axle load(kg) 6500*2/16000*2
Top speed(km/h) 85
Wheelbase (mm) 1350+5850+1300
Wheel tread(mm) 1940/1860
Front/rear suspension(mm) 1250/2550
Approach/departure angle 29/12









Crane

Crane Brand Optional
Crane type Straight four arms
Max Lift weight 16Tons
Max lifting moment 30T.m
Rotation angel 360°
Crane weight 5200kg
Installation space 1300mm


 Reference Photos



Crane Details
8x4 HOWO Flatbed Truck Mounted Telescoping Boom Crane 0

Working Situation

8x4 HOWO Flatbed Truck Mounted Telescoping Boom Crane 1


Factory overview

8x4 HOWO Flatbed Truck Mounted Telescoping Boom Crane 2

8x4 HOWO Flatbed Truck Mounted Telescoping Boom Crane 3

Sales Service


1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


FAQ



Q1: What kinds of truck mounted crane I can order from your company?

A: We can supply straight boom and folded boom truck mounted crane. The lifitng capacity of crane is from 3tons to 30tons, we will give our procurement suggestion to our client as per their requirements.

Q2: What is your production standard of your Truck mounted crane products?
A: China GB standard.

Q3: Can we adopts International brand crane for this truck mounted crane?
A: Sure, we already cooperated with many international brand supplier, such as XCMG and SANY PALFINGER etc. We CLW Group also can produce crane.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!



Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



Spare Parts



1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
