Product Details:
Payment & Shipping Terms:
|
| Brand: | Dongfeng,Sinotruk,Foton,Isuzu,Faw,Shacaman | Drive Mode: | 4*2 4*4 6*2 8*4, Etc. As Per Cusomer Request. |
|---|---|---|---|
| Tank Material: | Q235B And Stainless Steel For Optional | Tank Size: | 5CBM; 8CBM; 10CBM; 12CBM; 15CBM |
| Tank Capacity: | 5t; 8t; 10t; 12t; 15t | Tank Thickness: | 4mm; 5mm; 6mm |
| Water Pump Flow: | 40m³/h | Water Diversion Time: | <15min |
| Water Consumption: | 0.8—1 M3/h | Warranty: | 1 Year |
| High Light: | Foton 5000L Water Bowser Truck,Foton Drinking Water Truck,SS 304 2B Water Bowser Truck |
||
Foton Light truck 5000Liters 5cbm 304 stainless steel drinking water tank delivery truck
Description:
1. Optional chassis brand of portable water truck: Dongfeng, Isuzu, Sinotruk, FOTON/Forland, Faw, Shacaman, etc.
2. Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.
3. Sprinking Width of portable water truck: ≥14M
4. Rear working platform with water cannon range of portable water truck: ≥28M
5. Reliable and high quality water pump
Specifications
| Condition | New condition/Left hand drive/4x2 | ||
| Chassis | Chassis Brand | FOTON | |
| Curb weight(kg) | 3360 | ||
| Loading weight(kg) | 4950 | ||
| Gross weight(kg) | 7360 | ||
| Wheelbase(mm) | 3300 mm | ||
| Dimensions(mm) | 6500x2100x2400mm | ||
| Front Loading Capacity (Ton) | 2 | ||
| Rear Loading Capacity (Ton) | 4.5 | ||
| Max. driving speed(km/h) | 90 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels | ||
| Auxiliary brake: engine exhaust valve brake | |||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 6 pcs with one spare tire | |
| Specifications | 7.00R16 | ||
| Transmission | Manual type, 6 Forwards and 1 reverse | ||
| Cabin | Single row seat, Tiltable. It can accommodate three people. With air conditioner. | ||
| Engine | Brand | Chaochai | |
| Fuel type | Diesel | ||
| Horsepower(HP) | 120HP | ||
| Cylinder number | 4 | ||
| Emission standard | Euro 3 | ||
| Upper structure | |||
| Water tank | Capacity | 5000liters/5cbm/5tons | |
| Tank Dimension(mm) | 3420x1700x1000mm | ||
| Tank material | Q235 carbon steel | ||
| Thickness(mm) | 4 | ||

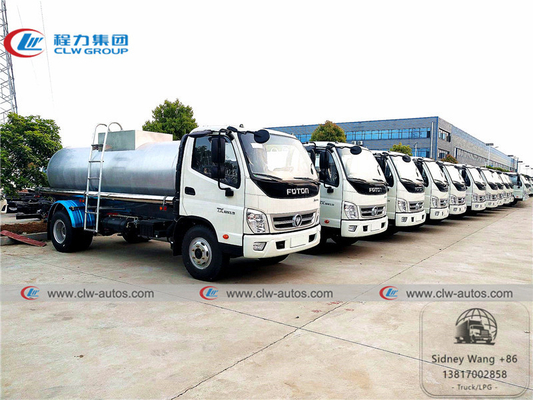

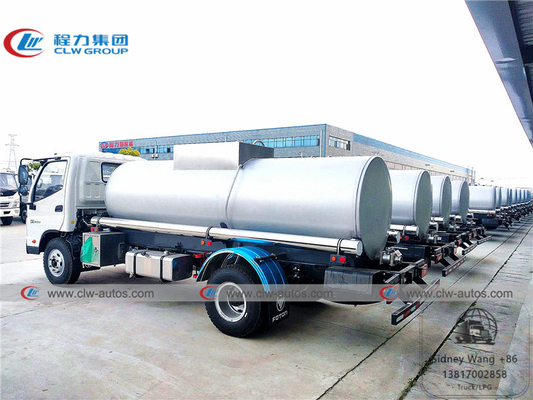

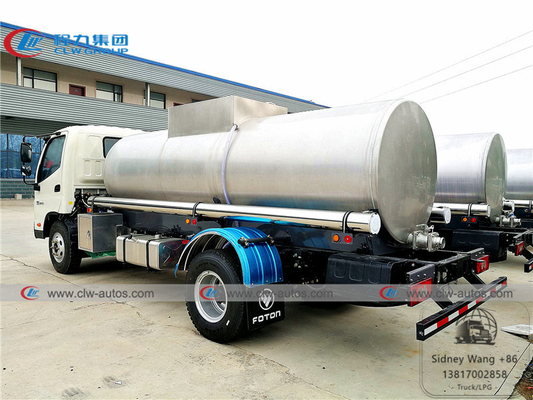

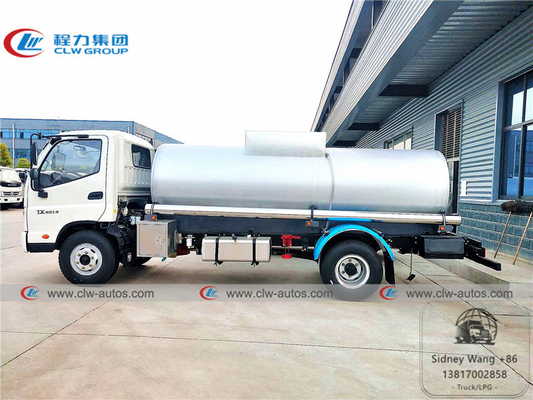

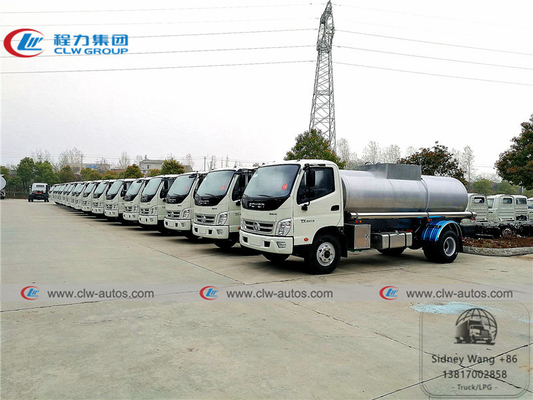

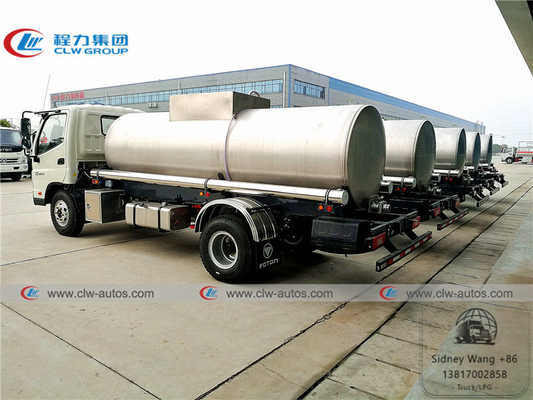

Reference photos
Factory overview
Sales Service
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of water bowser I can order from your company?
A: There are various sizes and types of water bowsers with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied water bowsers to any overseas companies?
A: Yes,with need of government and construction project,we offered water bowsers to many Africa and south-east Asian,south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
