Product Details:
Payment & Shipping Terms:
|
| Brand: | Dongfeng,FOTON, HOWO, JAC, JMC, SHACMAN,FAW | Material: | Carbon Steel Q235A |
|---|---|---|---|
| Thickness: | Side 3 Mm And Bottom 4 Mm | Wheel Base: | 4700mm |
| Engine Brand: | Cummins 190HP | Loading Capacity: | 9ton To 10tons |
| Control System: | Chinese Top Brand Operate System. | Compression Rate: | 0.6-0.7 |
| Logo: | Customized Logo | Painting: | Three Layer |
| Warranty: | 1 Year | ||
| High Light: | 14cbm Compactor Garbage Truck,LHD Compactor Garbage Truck,Dongfeng Waste Collection Vehicle |
||
Product Description
1-- Easy Full Automatic Operation of garbage compactor truck : computer control system for loading and unloading operations.
2-- One Person Operation of garbage compactor truck: Reducing sanitation working, greatly improves the working environment.
3-- Double Operation System of garbage compactor truck: computer control system and manual operation greatly improves the vehicle usage rate.
| Dongfeng 14CBM Compactor Garbage Truck Waste Collection Vehicle | |||
| Overall Dimension | 8470×2500×3150 mm | Gross Vehicle Weight | 16000 kg |
| Curb Weight | 8520 kg | Loading Weight | 8000 kg |
| Wheel Base | 4700 mm | Front / Rear Axle | 5000/1000 kg |
| Cabin | Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio, | ||
| Engine | Cummins Brand | ||
| Engine horsepower | 190HP, EURO 3 | ||
| Max Driving Speed | 90 km/h | ||
| Gear Box | 8 Forward Gear, 1 Reverse Gear, | ||
| Tire | 10.00-20 ( 6 pieces with one spare) | ||
| Garbage Bin | Capacity | ||
| Material | 4mm Carbon Steel for Garbage Bin Body | ||
| Design | Whole unit with Leakage Proof Design | ||
| Ways of Loading | Rear Loading with optional Bucket Lifting System | ||
| Garbage Compact Ratio | 1/3 - 1/4 | ||

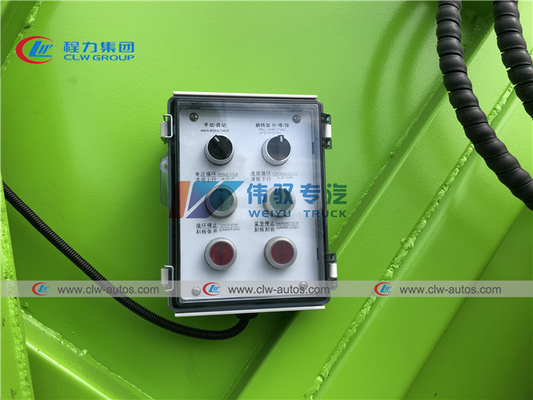

| Control System | One control Panel on the back, One Control system in back of Cabin | ||
| Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. | ||
| 2. Automatic loading, compressing and discharging, all handled by 1 person | |||
| 3. Sewage water collection tank to avoid any pollution during handling. | |||
| 4. Large Pressure, Good Leakage Proof, Convenient Operation | |||
| Dependable Security | |||
| 5. Electrical Control Panel for compacting system. | |||
| 6. Cycling time<14~18s | |||
| Remarks | 1. Color is optional | ||
| 2. Customized LOGO painting as per customer request | |||
Compactor Carbage Truck Production Process
Professional engineer team who has more than 20 years experience in design and producing garbage trucks
30 days production after receive deposit
One year warranty for majoy parts on garbage trucks
Operation video and user manual
Factory price for spare parts whenever needed
Regular customer after-sale visiting
Online technical guidance whenever needed
Life-long service whenever needed
FAQ
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
