Product Details:
Payment & Shipping Terms:
|
| Brand: | HOWO,Dongfeng,FOTON, JAC, JMC, SHACMAN,FAW | Material: | Carbon Steel Q235A |
|---|---|---|---|
| Thickness: | Side 4mm And Bottom 4 Mm | Wheel Base: | 4350+1300 Mm |
| Engine Brand: | SINOTRUK HOWO, WD615.47 | Loading Capacity: | 12tons To 13tons |
| Control System: | Chinese Top Brand Operate System. | Compression Rate: | 0.6-0.7 |
| Logo: | Customized Logo | Three Layer Painting: | Primer, Anti-rust Paint, Top Coat |
| Warranty: | 1 Year | ||
| High Light: | 18m3 Garbage Compactor Truck,SINOTRUK HOWO 12T Garbage Compactor Truck,SINOTRUK HOWO Waste Collection Truck |
||
Product Description
1-- Easy Full Automatic Operation of garbage compactor truck : computer control system for loading and unloading operations.
2-- One Person Operation of garbage compactor truck: Reducing sanitation working, greatly improves the working environment.
3-- Double Operation System of garbage compactor truck: computer control system and manual operation greatly improves the vehicle usage rate.

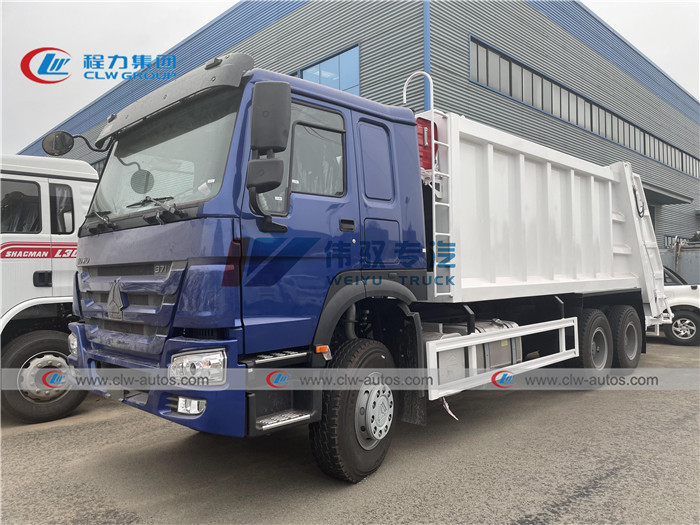

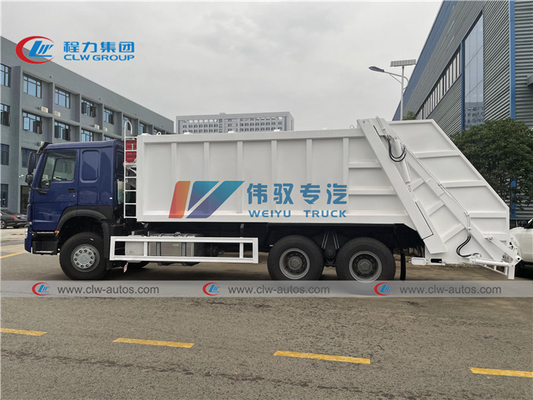

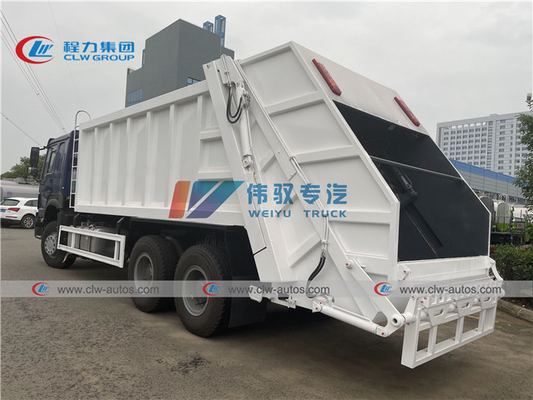

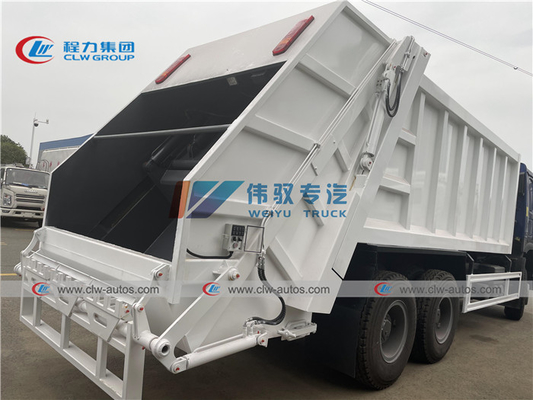

| SINOTRUK HOWO 18m3/12tons Garbage Compactor Truck for Waste Collection | |||
| Overall Dimension | 10500×2500×3400 mm | Gross Vehicle Weight | 26000 kg |
| Curb Weight | 14870 kg | Loading Weight | 11000 kg |
| Wheel Base | 4350+1300 mm | Front / Rear Axle | 2*7000/16000 kg |
| Cabin | Left/Right Hand Driving, 3 Passengers Allowed, with Air Conditioner, Radio, | ||
| Engine | SINOTRUK HOWO WD615.47 | ||
| Engine horsepower | 371HP, EURO 2/3 | ||
| Max Driving Speed | 90 km/h | ||
| Gear Box | Manual type,10 Forward Gear and 2 Reverse Gear, | ||
| Tire | 12R22.5 ( 10 pieces with one spare) | ||
| Garbage Bin | Capacity | 18CBM | |
| Material | 5mm Carbon Steel for Garbage Bin Body | ||
| Design | Whole unit with Leakage Proof Design | ||
| Ways of Loading | Rear Loading with optional Bucket Lifting System | ||
| Garbage Compact Ratio | 0.6 - 0.7 | ||
| Control System | One control Panel on the back, One Control system in back of Cabin | ||

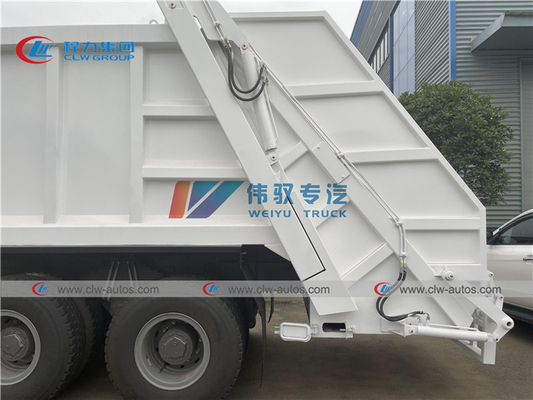

| Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. | ||
| 2. Automatic loading, compressing and discharging, all handled by 1 person | |||
| 3. Sewage water collection tank to avoid any pollution during handling. | |||
| 4. Large Pressure, Good Leakage Proof, Convenient Operation | |||
| Dependable Security | |||

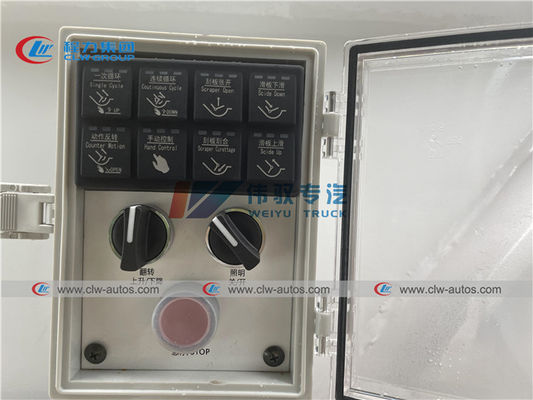

| 5. Electrical Control Panel for compacting system. | |||
| 6. Cycling time<14~18s | |||
| Remarks | 1. Color is optional | ||
| 2. Customized LOGO painting as per customer request | |||
Compactor Carbage Truck Production Process
Professional engineer team who has more than 20 years experience in design and producing garbage trucks
30 days production after receive deposit
One year warranty for majoy parts on garbage trucks
Operation video and user manual
Factory price for spare parts whenever needed
Regular customer after-sale visiting
Online technical guidance whenever needed
Life-long service whenever needed
FAQ
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
