HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Home ProductsWater Bowser Truck

ISUZU 14000L Water Sprinkler Truck With Q235 Carbon Steel Tank

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

ISUZU 14000L Water Sprinkler Truck With Q235 Carbon Steel Tank

ISUZU 14000L Water Sprinkler Truck With Q235 Carbon Steel Tank
ISUZU 14000L Water Sprinkler Truck With Q235 Carbon Steel Tank ISUZU 14000L Water Sprinkler Truck With Q235 Carbon Steel Tank ISUZU 14000L Water Sprinkler Truck With Q235 Carbon Steel Tank ISUZU 14000L Water Sprinkler Truck With Q235 Carbon Steel Tank ISUZU 14000L Water Sprinkler Truck With Q235 Carbon Steel Tank ISUZU 14000L Water Sprinkler Truck With Q235 Carbon Steel Tank

Large Image :  ISUZU 14000L Water Sprinkler Truck With Q235 Carbon Steel Tank

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW
Certification: CCC,ISO
Model Number: CLW5079dcx

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: Naked packing,Ro-ro,Bulk Ship
Delivery Time: 20-30 Days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500Unit Per Month
Detailed Product Description
Truck Chassis: ISUZU,HOWO,Dongfeng,FAW,JAC,JMC,FOTON Material: Carbon Steel Q235A
Thickness: Side 4mm, Buttom 4mm Fuel: Diesel Type
Water Pump: China Famous Brand Suction Height: 7 M
Cannon Range: 28 M Sprinkling Width: 14 M
Operation Video: Yes User Manual: Yes
Logo: As Customer's Request Warranty: 1 Year
High Light:

14000L Water Sprinkler Truck

,

ISUZU Water Sprinkler Truck

,

Q235 Carbon Steel Water Tanker Truck

ISUZU 14tons Water Tanker Truck 14000Liters Watering Cart Sprinkler Spray Water Bowser Truck

Product Description

1. Optional chassis brand of portable water truck : Dongfeng, Sinotruk, FOTON/Forland, Faw, Shacaman,JAC,JMC
2. Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.
3. Sprinking Width of portable water truck :>14M
4. Rear working platform with water cannon range of portable water truck :28M
5. Reliable and high quality water pump (Chinese Top brand or Italy Brand)
6. Purpose: water sprinker for road cleaning, drinking water transport


Specifications of 14000 liters water tanker truck


ConditionNew condition/Left hand drive/4x2
ChassisBrandISUZU FVR
Curb weight(kg)6305 kg
Loading weight(kg)11705 kg
Gross weight(kg)18000 kg
Wheelbase(mm)5000 mm
Dimensions(mm)9900*2500*3400 mm
Front Loading Capacity (Ton)6.3
Rear Loading Capacity (Ton)13
Max. driving speed(km/h)90 km/h
ClutchReinforced diaphragm clutch
BrakesService brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake
Steering GearPower steering, hydraulic steering with power assistance
TireQuantity6 pcs with one spare tire
Specifications10.00-20
TransmissionManual type,6 Forwards and 1 reverse
CabinSingle row seat, Tiltable. It can accommodate three people. With air conditioner.
EngineBrandISUZU
Fuel typeDiesel
Power(kw)177 kw
Horsepower(HP)240 HP
Cylinder number6
Emission standardEuro 4
Upper
Water tankCapacity(cbm/tons)14/14
Tank materialQ235 carbon steel
Thickness(mm) 5
Water pumpChina local brand
Suction Height7M
Function1, Front Side Rear Sprinkling width≥14m
2, Water cannon range≥28m
Remarks1. AM/FM radio
2. 2pcs water hose.
3. Color is optional


Water Truck Digram


ISUZU 14000L Water Sprinkler Truck With Q235 Carbon Steel Tank 0

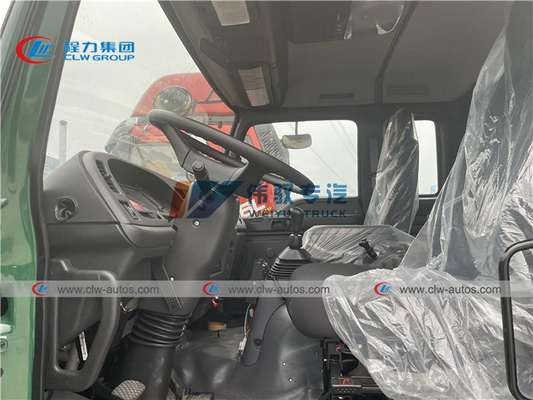

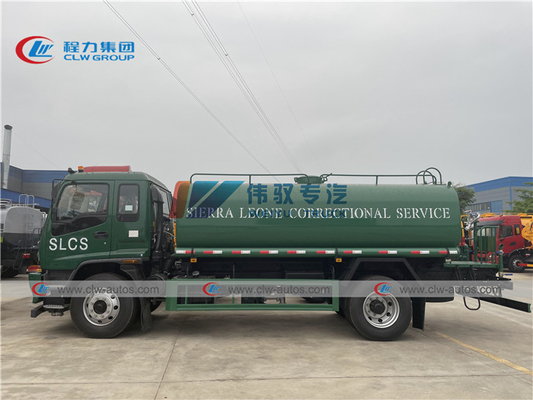

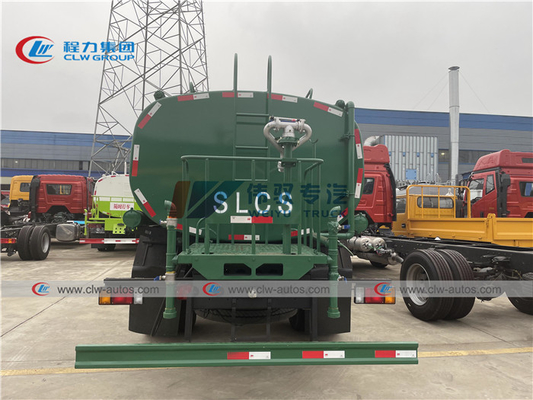

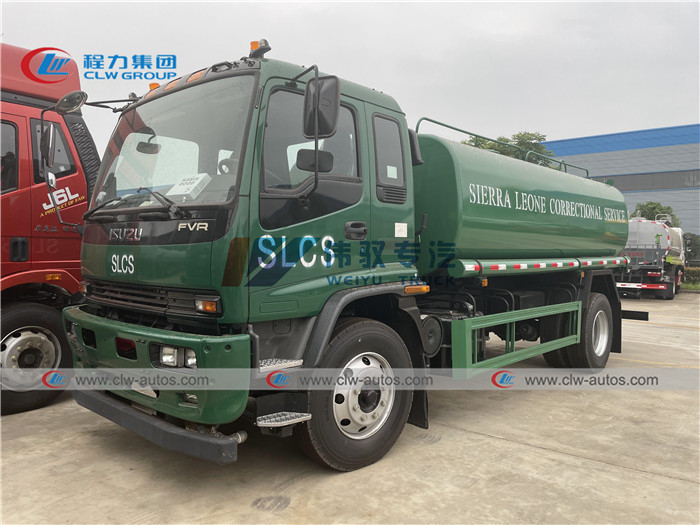

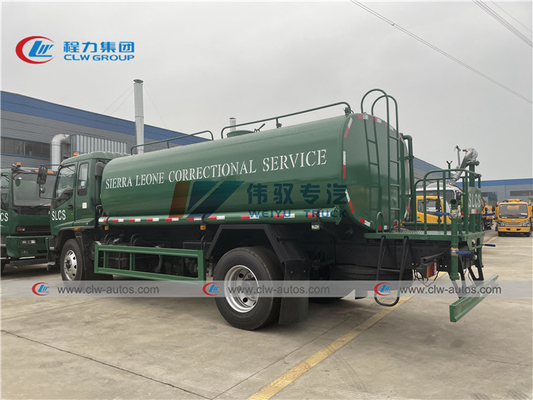

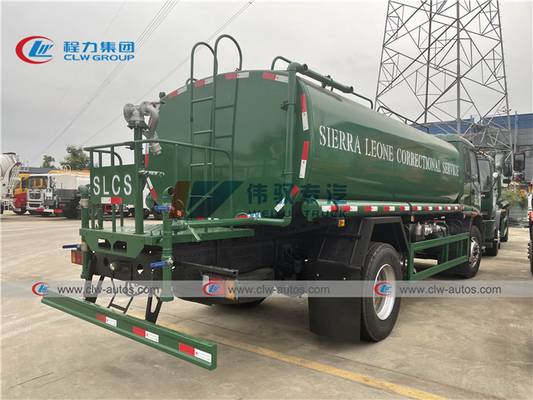

Truck details:

ISUZU 14000L Water Sprinkler Truck With Q235 Carbon Steel Tank 1ISUZU 14000L Water Sprinkler Truck With Q235 Carbon Steel Tank 2ISUZU 14000L Water Sprinkler Truck With Q235 Carbon Steel Tank 3

Working Diagram


ISUZU 14000L Water Sprinkler Truck With Q235 Carbon Steel Tank 4


Production Line for Water Tank Truck

ISUZU 14000L Water Sprinkler Truck With Q235 Carbon Steel Tank 5



Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.



FAQ



Q1: What kinds of water bowser I can order from your company?
A: There are various sizes and types of water bowsers with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied water bowsers to any overseas companies?
A: Yes,with need of government and construction project,we offered water bowsers to many Africa and south-east Asian,south-American countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
