Product Details:
Payment & Shipping Terms:
|
| Brand: | DONGFENG, FAW,FOTON, HOWO, JAC, JMC, ISUZU | Drive Wheel: | 4x2 |
|---|---|---|---|
| Components: | Loading, Compressing,Discharging | Campacting Ratio: | 0.6-0.7 Ton/Cbm |
| Operating System: | One In The Cabin, One On The Back Of The Truck | Purpose: | Domestic Garbage Transport |
| Warranty: | One Year For Major Parts | LOGO: | As Per Customer's Request |
| Operation Video: | Yes, With Multi-language For Choice | Technical Support: | Whenever Need |
| High Light: | Dongfeng 6cbm Compressed Garbage Truck,LHD Dongfeng Compressed Garbage Truck,Dongfeng Garbage Transport Truck |
||

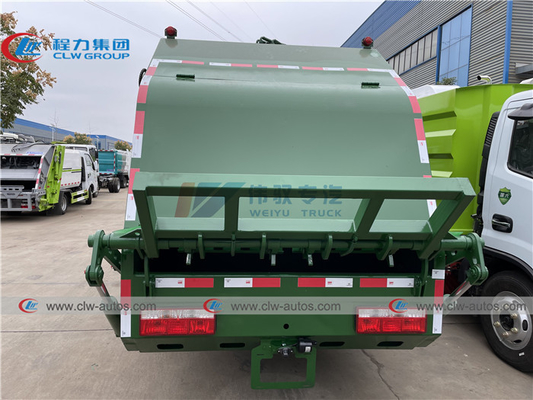

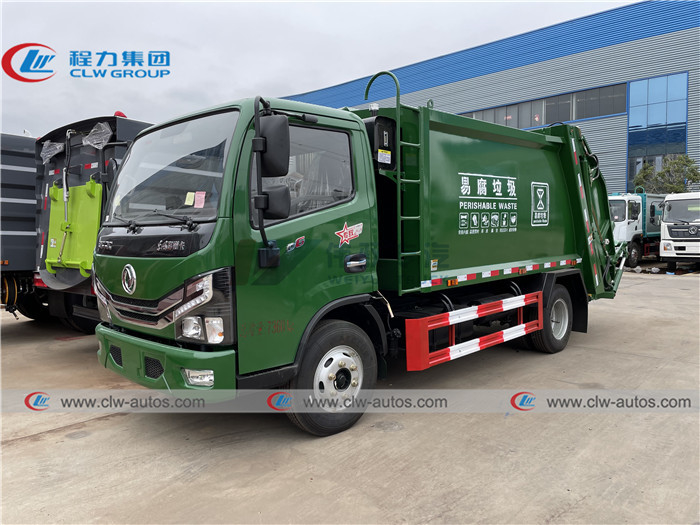

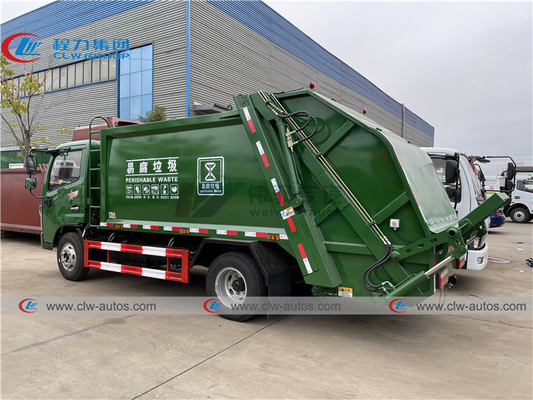

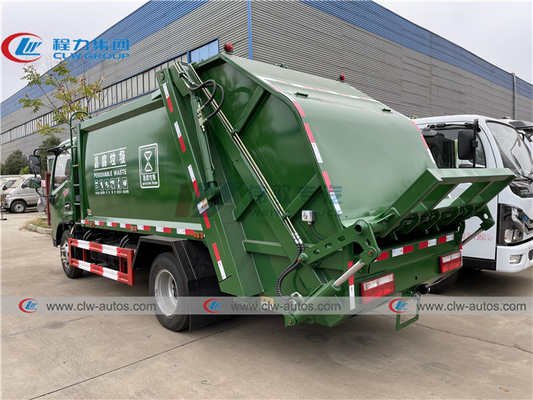

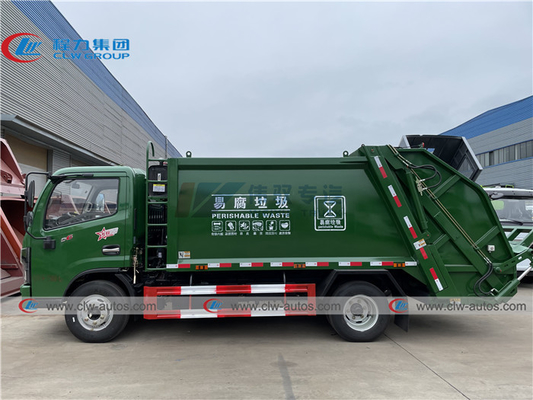

Dongfeng 6cbm Compressed Garbage Truck Waste Transport Truck
Specifications of 6CBM Garbage Compactor Truck
| Dongfeng 6CBM Compressed Garbage Truck | |||||
| Overall Dimension | 6220×2050×2570 mm | Gross Vehicle Weight | 7360 kg | ||
| Curb Weight | 5400 kg | Loading Weight | 1830 kg | ||
| Wheel Base | 3308 mm | Front / Rear Axle | 5000 kg / 10000kg | ||
| Cabin | Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio, | ||||
| Engine | |||||
| Engine horsepower | 102HP, EURO II | ||||
| Max Driving Speed | 90 km/h | ||||
| Gear Box | 5 Forward Gear, 1 Reverse Gear, | ||||
| Tire | 7.00R16 (6 pieces with one spare) | ||||
| Garbage Bin | Capacity | 6CBM | |||
| Material | 4mm Carbon Steel for Garbage Bin Body | ||||
| Design | Whole unit with Leakage Proof Design | ||||
| Ways of Loading | Rear Loading with optional Bucket Lifting System | ||||
| Garbage Compact Ratio | 1/3 - 1/4 | ||||
| Control System | One control Panel on the back, One Control system in back of Cabin | ||||
| Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. | ||||
| 2. Automatic loading, compressing and discharging, all handled by 1 person | |||||
| 3. Sewage water collection tank to avoid any pollution during handling. | |||||
| 4. Large Pressure, Good Leakage Proof, Convenient Operation | |||||
| Dependable Security | |||||
| 5. Electrical Control Panel for compacting system. | |||||
| 6. Cycling time＜14~18s | |||||
| Remarks | 1. Color is optional | ||||
| 2. Customized LOGO painting as per customer request | |||||
Diagram
Working Show
Quick feedback to solve your questions
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
