Product Details:
Payment & Shipping Terms:
|
| Brand: | DONGFENG, FAW,FOTON, HOWO, JAC, JMC, ISUZU | Drive Wheel: | 4x2 |
|---|---|---|---|
| Components: | Loading, Compressing,Discharging | Campacting Ratio: | 0.6-0.7 Ton/Cbm |
| Operating System: | One In The Cabin, One On The Back Of The Truck | Purpose: | Domestic Garbage Transport |
| Warranty: | One Year For Major Parts | Operation Video: | Yes, With Multi-language For Choice |
| Technical Support: | Whenever Need | LOGO: | As Per Customer's Request |
| High Light: | 8cbm Waste Disposal Truck,LHD Waste Disposal Truck,8cbm Garbage Compression Truck |
||
8 CBM Waste Disposal Truck Recycling Service Garbage Compression Truck
Specifications of 8cbm Waste Disposal Truck
|
Dongfeng 8CBM waste disposal truck |
|||||
|
Overall Dimension |
7480×2490×3250 mm |
Gross Vehicle Weight |
8880 kg |
||
|
Curb Weight |
6360 kg |
Loading Weight |
2440 kg |
||
|
Wheel Base |
3800mm |
Front / Rear Axle |
2500 kg / 5000kg |
||
|
Cabin |
Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio, |
||||
|
Engine |
Chaochai |
||||
|
Engine horsepower |
120HP |
||||
|
Max Driving Speed |
90 km/h |
||||
|
Gear Box |
6 Forward Gear, 1 Reverse Gear, |
||||
|
Tire |
8.25R16 (6 pieces with one spare) |
||||
|
Garbage Bin |
Capacity |
8CBM |
|||
|
Material |
4mm Carbon Steel for Garbage Bin Body |
||||
|
Design |
Whole unit with Leakage Proof Design |
||||
|
Ways of Loading |
Rear Loading with optional Bucket Lifting System |
||||
|
Garbage Compact Ratio |
0.6 - 0.7 |
||||
|
Control System |
One control Panel on the back, One Control system in back of Cabin |
||||
|
Dispensing System |
1. Equipped with air-tight dustbin, hydraulic system and operating system. |
||||
|
2. Automatic loading, compressing and discharging, all handled by 1 person |
|||||
|
3. Sewage water collection tank to avoid any pollution during handling. |
|||||
|
4. Large Pressure, Good Leakage Proof, Convenient Operation |
|||||
|
Dependable Security |
|||||
|
5. Electrical Control Panel for compacting system. |
|||||
|
6. Cycling time<14~18s |
|||||
|
Remarks |
1. Color is optional |
||||
|
2. Customized LOGO painting as per customer request |
|||||

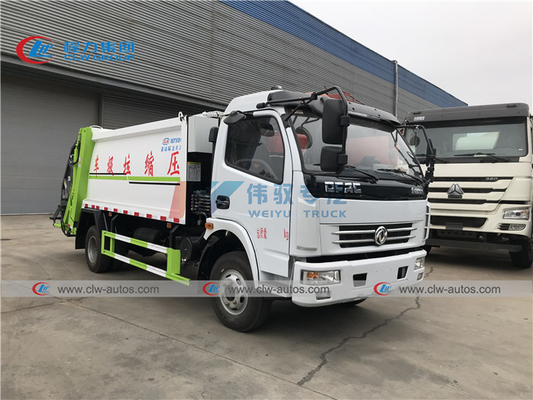

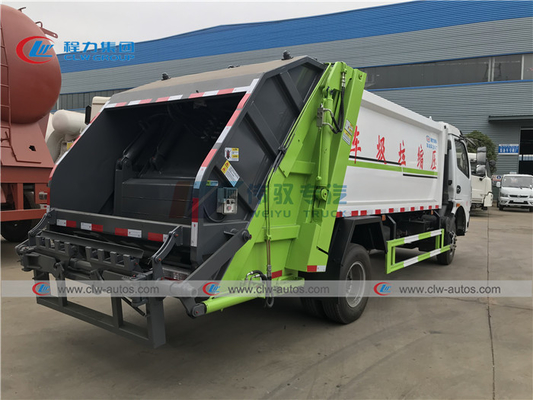

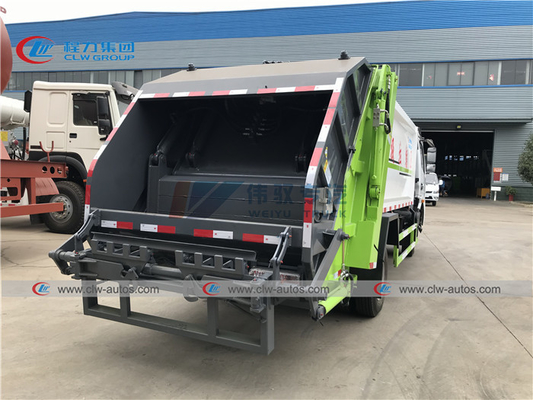

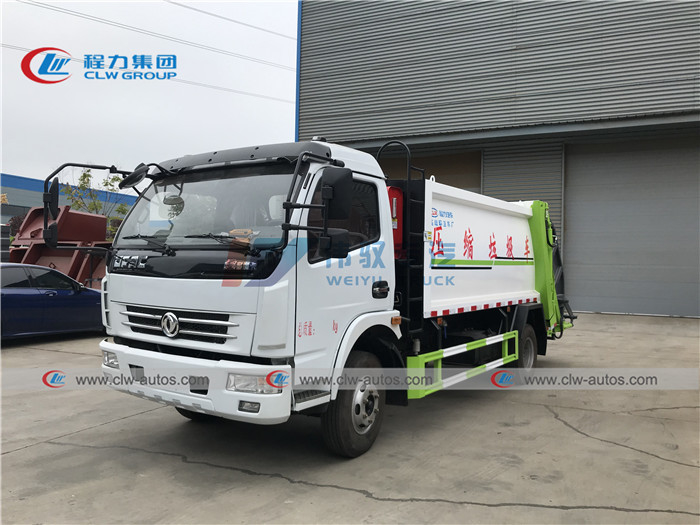

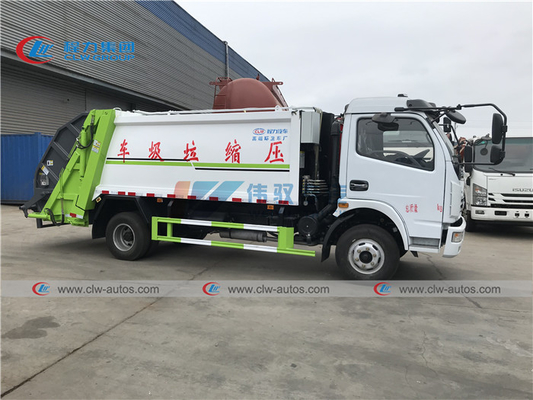

Truck details
Diagram
Working Show
Quick feedback to solve your questions
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
