| Brand: | DONGFENG, FAW,FOTON, HOWO, JAC, JMC, ISUZU | Wheel Base: | 4700mm |
|---|---|---|---|
| Garbage Container Material: | Q345B, High Intense Carbon Steel | Thickness: | 5 Mm For Both Side And Buttom Container |
| Components: | Loading, Compressing,Discharging | Campacting Ratio: | 0.6-0.7 Ton/Cbm |
| Operating System: | One In The Cabin, One On The Back Of The Truck | Warranty: | One Year For Major Parts |
| Operation Video: | Yes, With Multi-language For Choice | Technical Support: | 20 Years Experienced Engineer Will Help You Whenever Need |
| Usage: | Domestic Garbage Transport | LOGO: | As Per Customer's Request |
| High Light: | 14cbm Refuse Collection Truck,210HP Refuse Collection Truck,14cbm Compression Garbage Truck |
||

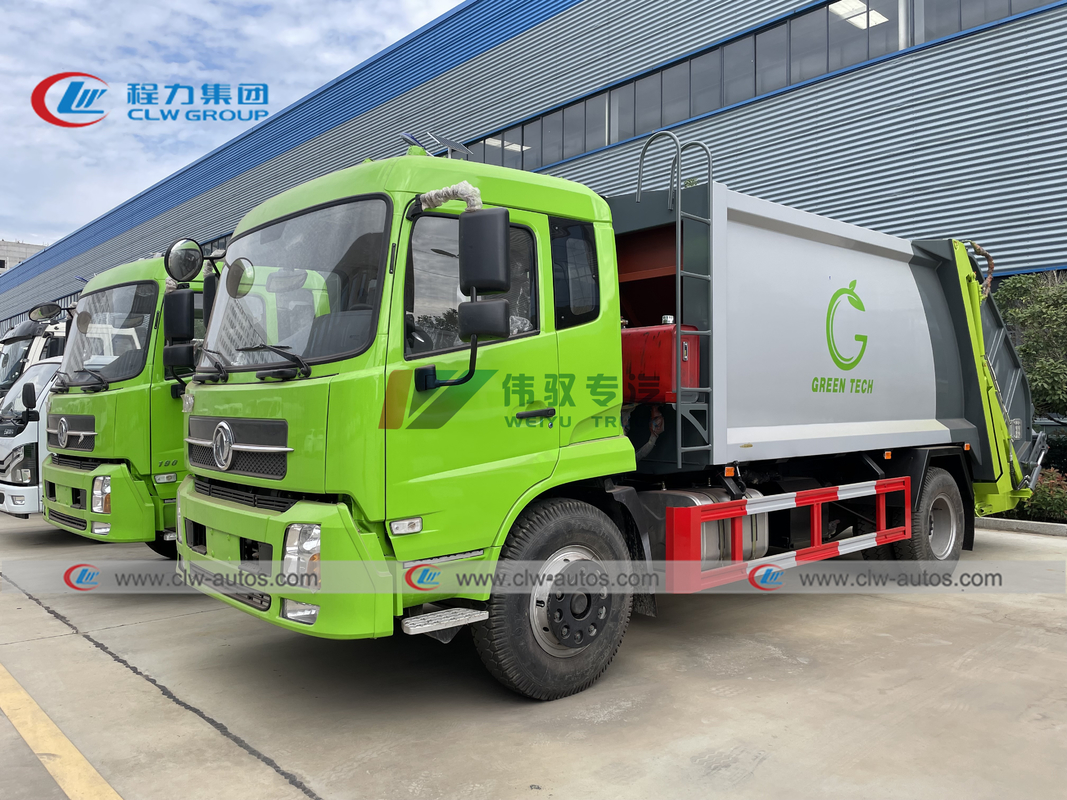

14cbm Refuse Collection Truck 14m3 Compression Garbage Truck
Specifications of 14CBM Refuse Collection Truck
| Dongfeng 6CBM Compressed Garbage Truck | |||||
| Overall Dimension | 8350×2490×3250 mm | Gross Vehicle Weight |
15800 kg |
||
| Curb Weight | 9850 kg | Loading Weight | 5755 kg | ||
| Wheel Base | 3800 mm | Front / Rear Axle | 5000 kg / 10000kg | ||
| Cabin | Left Hand Driving, 3 Passengers Allowed, with Air Conditioner, Radio | ||||
| Engine | Cummins | ||||
| Engine horsepower | 210HP, EURO II | ||||
| Max Driving Speed | 90 km/h | ||||
| Gear Box | 8 Forward Gear, 1 Reverse Gear, | ||||
| Tire | 9.000R20 (6 pieces with one spare) | ||||
| Garbage Bin | Capacity | 14CBM | |||
| Material | 5mm Carbon Steel for Garbage Bin Body | ||||
| Design | Whole unit with Leakage Proof Design | ||||
| Ways of Loading | Rear Loading with optional Bucket Lifting System | ||||
| Garbage Compact Ratio | 0.6 - 0.7 | ||||

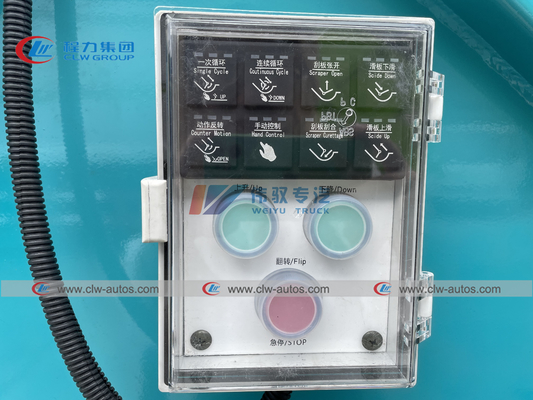

| Control System | One control Panel on the back, One Control system in back of Cabin | ||||
| Working System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. | ||||
| 2. Automatic loading, compressing and discharging, all handled by 1 person | |||||
| 3. Sewage water collection tank to avoid any pollution during handling. | |||||
| 4. Large Pressure, Good Leakage Proof, Convenient Operation | |||||
| Dependable Security | |||||
| 5. Electrical Control Panel for compacting system. | |||||
| 6. Cycling time＜14~18s | |||||
| Remarks | 1. Color is optional | ||||
| 2. Customized LOGO painting as per customer request | |||||

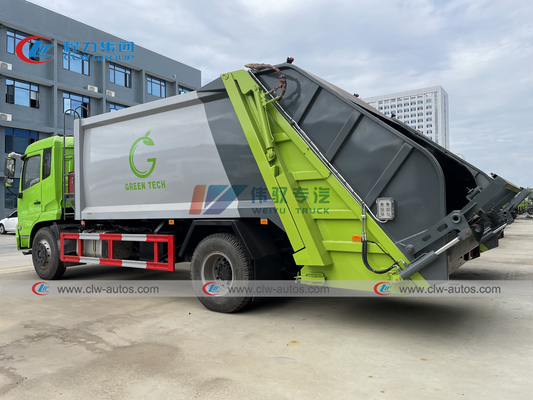

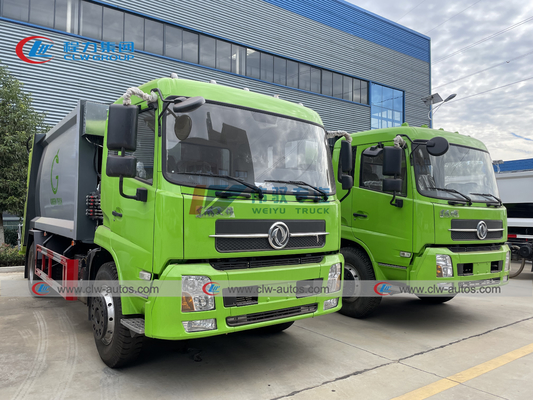

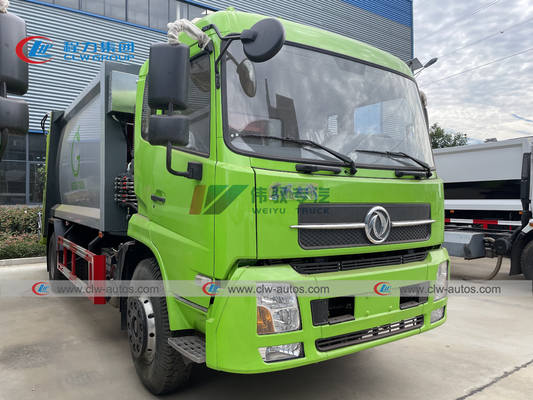

Truck Details:
Diagram
Working Show
Quick feedback to solve your questions
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
