| Brand: | KAIMA,DONGFENG, FAW,FOTON, HOWO, JAC, JMC, ISUZU | Drive Wheel: | 4x2 |
|---|---|---|---|
| Garbage Container Material: | Q345B, High Intense Carbon Steel | Thickness: | 4 Mm For Both Side And Buttom Container |
| Components: | Loading, Compressing,Discharging | Campacting Ratio: | 0.6-0.7 Ton/Cbm |
| Operating System: | One In The Cabin, One On The Back Of The Truck | Usage: | Domestic Garbage Transport |
| Warranty: | One Year For Major Parts | Operation Video: | Yes, With Multi-language For Choice |
| Technical Support: | 20 Years Experienced Engineer Will Help You Whenever Need | LOGO: | As Per Customer's Request |
| High Light: | 5m3 Compression Garbage Truck,LHD Compression Garbage Truck,Hydraulic Garbage Compactor Truck |
||

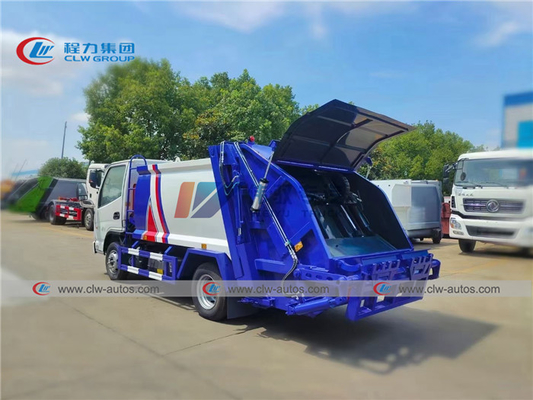

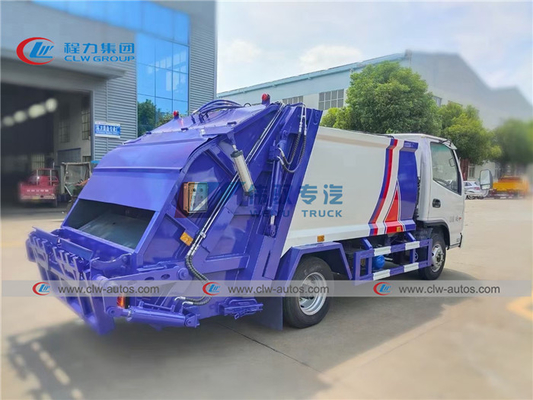

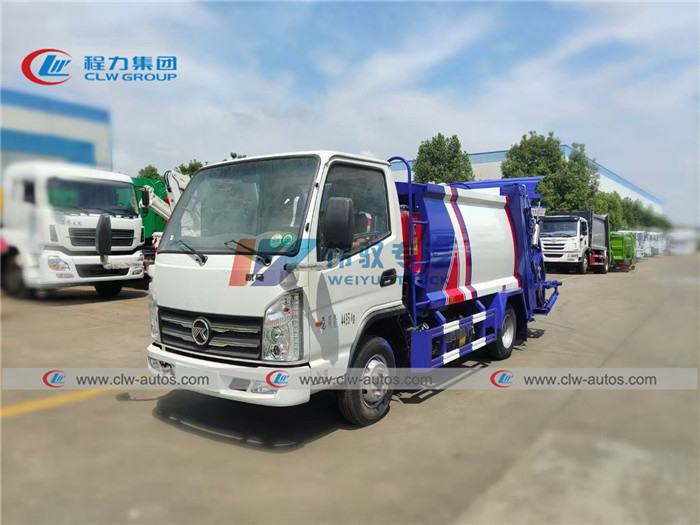

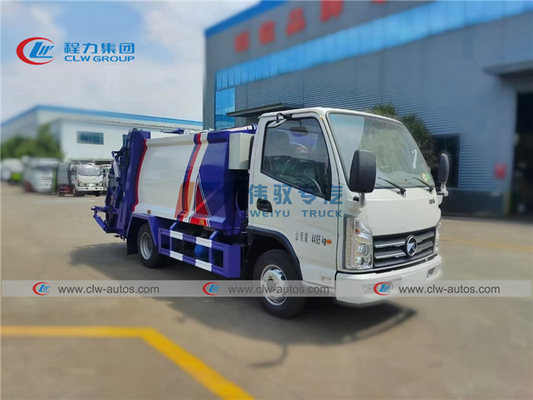

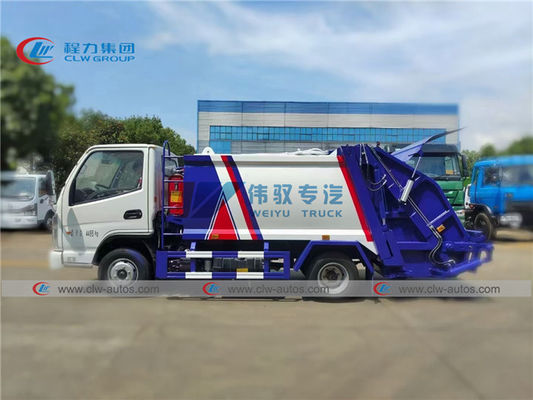

5m3 Compression Garbage Trucks Hydraulic Garbage Compactor Truck
Specifications of 5m3 Compression Garbage Truck
| Dongfeng 6CBM Compressed Garbage Truck | |||||
| Overall Dimension | 6220 ×2050×2570 mm | Gross Vehicle Weight |
8275 kg |
||
| Curb Weight | 4350 kg | Loading Weight | 1830 kg | ||
| Wheel Base | 3308 mm | Front / Rear Axle | 1800 kg / 3500kg | ||
| Cabin | Left Hand Driving, 2/3 Passengers Allowed, with Air Conditioner, Radio | ||||
| Engine | Chaochai | ||||
| Engine horsepower | 98HP, EURO II | ||||
| Max Driving Speed | 90 km/h | ||||
| Gear Box | 5 Forward Gear, 1 Reverse Gear, | ||||
| Tire | 7.00R16 (6 pieces with one spare) | ||||
| Garbage Bin | Capacity | 5CBM | |||
| Material | Q345B, 4mm Carbon Steel for Garbage Bin Body | ||||
| Design | Whole unit with Leakage Proof Design | ||||
| Ways of Loading | Rear Loading with optional Bucket Lifting System | ||||
| Garbage Compact Ratio | 0.6 - 0.7 | ||||
| Control System | One control Panel on the back, One Control system in back of Cabin | ||||
| Working System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. | ||||
| 2. Automatic loading, compressing and discharging, all handled by 1 person | |||||
| 3. Sewage water collection tank to avoid any pollution during handling. | |||||
| 4. Large Pressure, Good Leakage Proof, Convenient Operation | |||||
| Dependable Security | |||||
| 5. Electrical Control Panel for compacting system. | |||||
| 6. Cycling time＜14~18s | |||||
| Remarks | 1. Color is optional | ||||
| 2. Customized LOGO painting as per customer request | |||||
Diagram
Working Show
Quick feedback to solve your questions
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
