Product Details:
Payment & Shipping Terms:
|
| Material: | Q235 Carbon Steel | Thickness: | 5 Mm |
|---|---|---|---|
| Fuel: | Diesel | Driving Type: | 4*2, Left/right Hand Driving |
| Pump: | China Famous Brand/International Brand | Suction Height: | 7 Meters |
| Water Canon Range: | 30 Meters | Sprinkling Width: | 14 Meters |
| Operating Video: | Yes | Use Manual: | Yes |
| Front Spray And Rear Spray: | Yes | Warranty: | One Year |
| LOGO: | As Per Customer's Request | ||
| High Light: | Shacman 4x2 Water Bowser Truck,15000L Water Spraying Truck,Q235 Tank Water Spraying Truck |
||
Shacman 15000Liters 15tons water bowser truck water sprinkler tank truck water spraying truck
Description:
1) Dust suppression spray device:
The closed hydraulic system is driven by the chassis full power take-off device. Thanks to the hydraulic system that directly drives the spray fan, the energy efficiency is high and the spray range is very long. The fan adopts alloy blades, and the fan has three levels silencers that make the working noise is low.
2) Low pressure flushing device
Standard devices include front duckbill flushing, cone hedging, rear sprinkler nozzle, remote water cannon, greening irrigation, pressure outlet interface, etc.
Automatic washing device is optional installed, which can move up and down, rotate around and change the shape of water column.
Advantage:
1. Water, disinfectant, dust suppressant and other liquid materials can be added in the tank, and the spray arm can rotate 360 degrees;
2. Contact induction spray system, uniform spraying, suitable for different size cars and vehicles, no spillage, spray arm with vehicle number recognition and recording function.
3. Simple operation: In the cab, all the operation functions of the vehicle can be completed.
Specifications:
| Items | Parameter | ||
| Water Tank Parameter | Tank Capacity | 15,000Liters | |
| Tank Material | Carbon Steel Q235 (Q345 for optional) | ||
| Overall dimension (mm) | Length | 8900 | |
| Width | 2500 | ||
| Height | 3020 | ||
| Sprinkler Width | ≥14m | ||
| Sprinkler Speed | 0-20km/h | ||
| Gun range | ≥28-30m | ||
| Flow | 40m³/h | ||
| Rotation | 360° | ||
| Gun position | Front; Rear; two sides | ||
| Chassis | Chassis Brand | Shacman | |
| Drive Mode | 4x2 | ||
| Tire type | 9.00-20 tire | ||
| Tire No. | 6+1 units | ||
| Max speed | 90 km/h | ||
| Cab |
1. Flat roof, All-steel-welded construction 2. Spring suspensions with hydraulic shock absorbers 3. Air condition 4. 2 seats 1-DIN AM/FM CD/MP3 Player |
||
| Engine | Power | 176kw / 240hp | |
| Fuel type | diesel | ||
| Emission Standard | Euro 3 & Euro 4 | ||
| Gearbox | Control type | Manual | |
| Gear | 8 forward & 1 reverse | ||

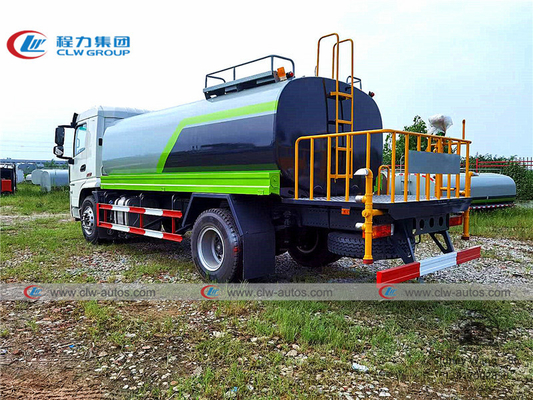

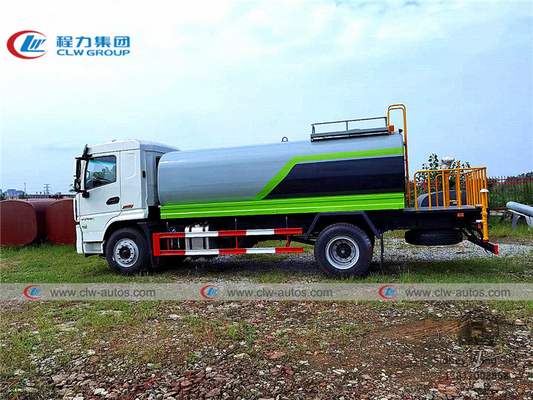

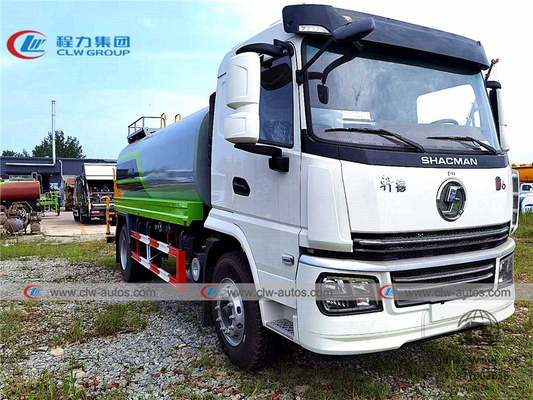

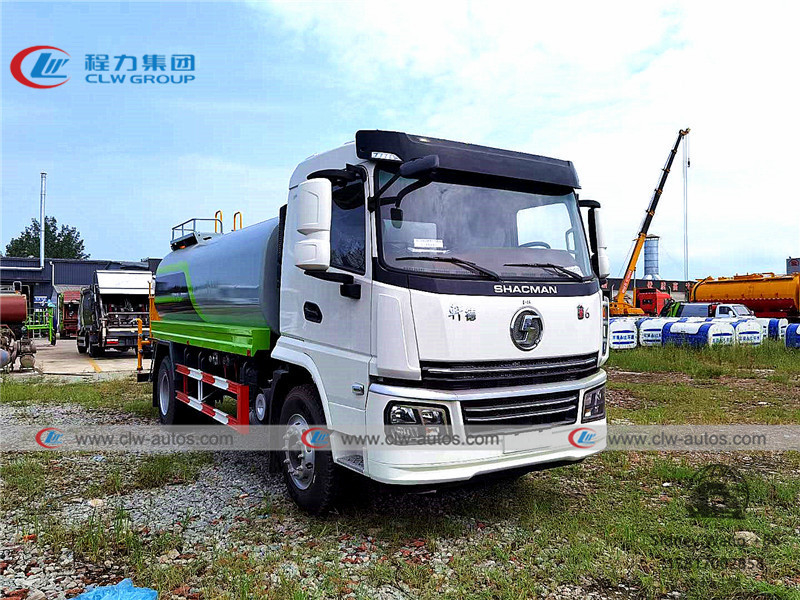

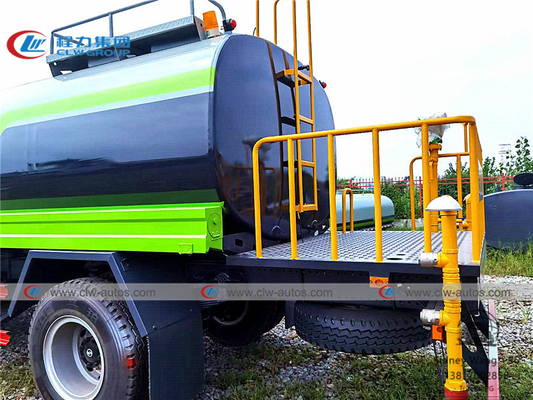

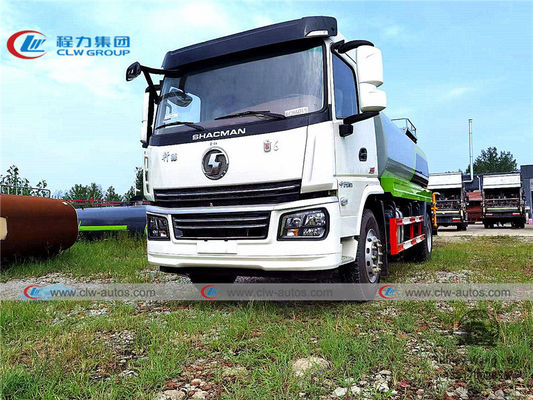

Reference photos
Water Truck Diagram
Working Show
Truck Details
Water bowser truck production line
Factory overview
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
