Product Details:
Payment & Shipping Terms:
|
| Brand: | FOTON, ISUZU, Dongfeng, HOWO, JAC, JMC, SHACMAN,FAW | Function: | Garbage Compactor, Waste Removal |
|---|---|---|---|
| Material: | Carbon Steel Q235B | Thickness: | Side 4 Mm And Bottom 4 Mm |
| Tank Volume: | 9cbm/9000Liters/7tons | Wheel Base: | 3950mm |
| Horsepower: | 140HP | Hydraulic Pump: | Chinese Famous Brand |
| Control System: | Siemens Brand Operate System. | Warranty: | 1 Year |
| Control: | Both Manual And Electric Control | ||
| High Light: | 9cbm Garbage Compactor Truck,Dongfeng Huashen 4x2 Garbage Compactor Truck,Dongfeng Huashen 4x2 Waste Removal Truck |
||
Dongfeng Huashen 4x2 9cbm 9000liters garbage compactor truck waste removal truck for sanitation services
Product Descriptions
1. Making garbage collection simple: change the dirty appearance of the city and eliminate the secondary pollution;
2. High compression ratio and large loading capacity which is 2 times larger than usual garbage truck;
3. Easy Full Automatic Operation: electrical control system for loading and unloading operations.
4. One Person Operation: Reducing sanitation work, greatly improves the working efficiency.
5. Double Operation System: electrical control system and manual operation greatly improves the vehicle usage rate.
Product Specifications
| Truck Chassis Specification | |||
| Chassis model | CLW5 | ||
| Cab | Dongfeng single row cab | ||
| Driving Type | 4*2 Left or right hand driving | ||
| Max Speed (km/h) | 100 | ||
| Overall dimension(mm) | 7465×2270×2800 | ||
| GVW( kg) | 12200 | ||
| Mass in working order ( kg) | 4460 | ||
| Wheelbase(mm) | 3950 | ||
| F/R track base (mm) | 1569/1530 | ||
| F/R overhang (mm) | 1068/1997 | ||
| Approach/Departure Angel | 22/25 | ||
| Tire | 8.25R20 6+1 pcs | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | 6-speed | ||
| Bridge | Front axle | 3T | |
| Rear axle | 6T | ||
| Enging | Model | YC4E140-33 140hp | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled four-stroke, direct injection, turbocharged | ||
| Exhaust(ml) | 4257 | ||
| Max output power/rotate speed (hp/rpm ) | 140/2800 | ||
| Braking system | Service Brake | Compressed air brake | |
| Park Brake | Spring energy | ||
| Auxiliary brake | engine exhaust brake | ||
| Eletric system | 24v | ||
| Upper-Body specification | |||
| Material of tank | Material : Q235,Thickness :4(mm) side /4(mm) rear | ||
| Dirty tank volume | 9cbm/9000Liters/9M3/7tons | ||
| Filler volume | 500L | ||
| Filing time(s) | 8~10s | ||
| Filling cycle time(s) | 50~60s/once | ||
| Discharge type | Rear Discharging | ||
| Time for Discharging | 30-40S | ||
| Hydraulic pressure | 16Mpa | ||
| Controlling way | Manualy and electrical control | ||

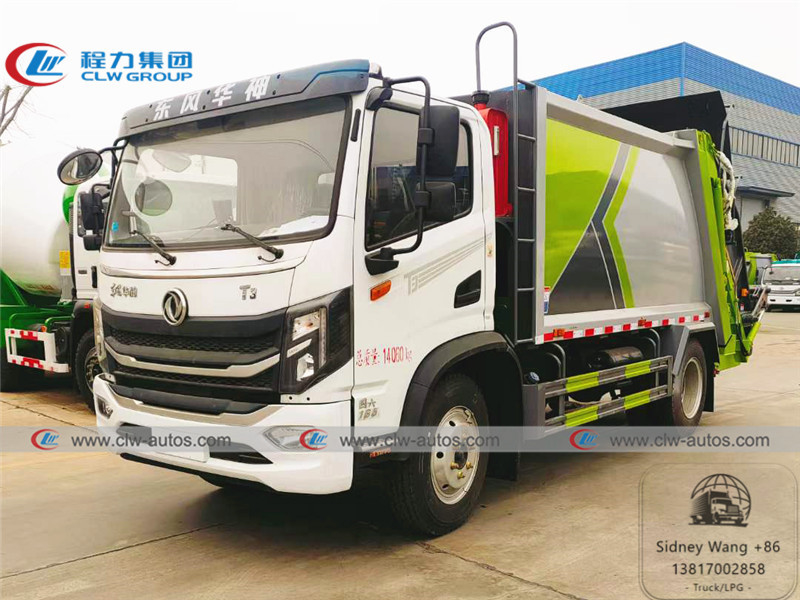

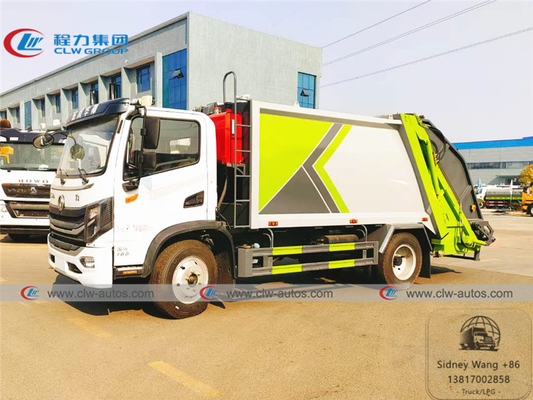

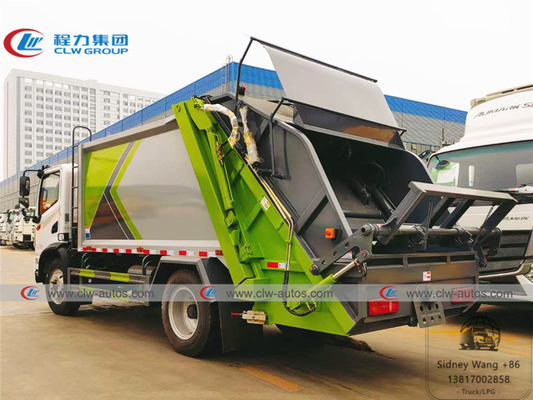

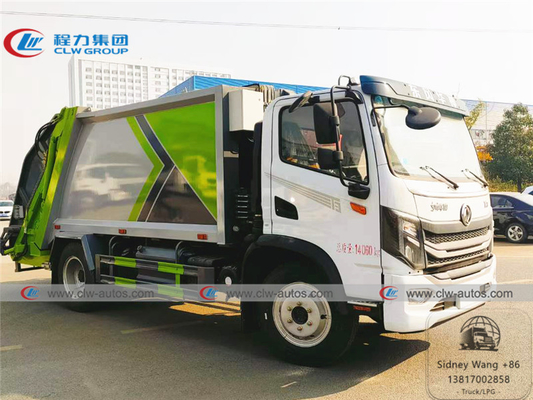

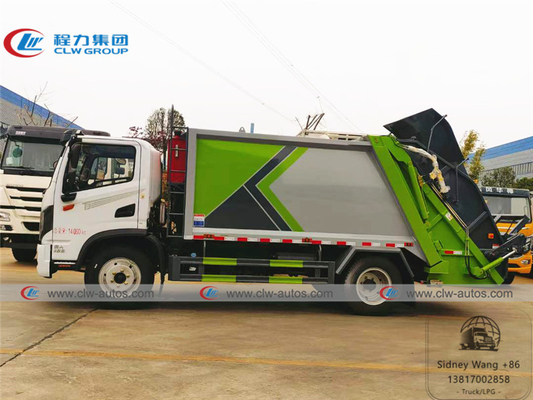

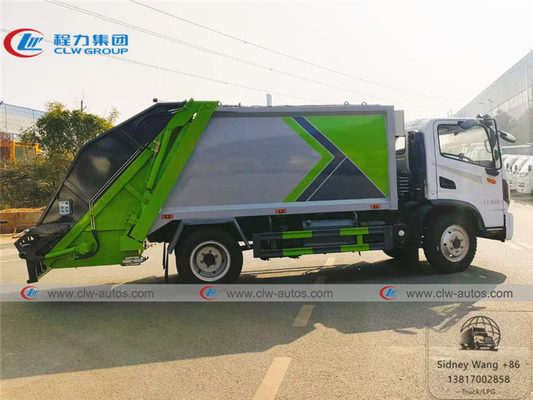

Reference photos
Diagram of compactor garbage truck
Main parts of garbage truck
Compactor Carbage Truck Production Process
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
