Product Details:
Payment & Shipping Terms:
|
| Brand: | Shacman | Engine: | WP10.340E32+PTO |
|---|---|---|---|
| Gearbox: | 9 Forward & 1 Reverse | Mixer Capacity: | 14CBM, 14000Liter, 18CBM, 18000 Liters |
| Hydraulic Motor: | EATON, PMP, | Hydraulic Pump: | EATON, PMP, Bonfiglioli, |
| Reductor: | ZF, PMP,Bonfiglioli,Sauer | ||
| High Light: | Shacman 8x4 Concrete Mixer Truck,14000L Concrete Mixer Truck,18000L Cement Mixer Truck |
||
Shacman 8x4 drive 14000liters 18000liters Capacity heavy duty Concrete Mixer Truck cement mixer truck
Description:
Cement mixer truck made of chassis, mixing cylinder, transmission system, water supply and other components. Mixer hydraulic motor, variable piston pump, reducer, cooler are all imported brands.
Mixer components: two types of chassis, transmission system, hydraulic system, rack, mixing tank, into the material device, water supply system, control system, people ladder and other parts.
Concrete mixer main special accessories including power take, stirring cylinder front and rear support, reducer, hydraulic system, mixing tube, control mechanism, cleaning system.
The working principle: the power of the chassis is removed by the power take-off force, and drive the hydraulic pump of the hydraulic system. The mechanical energy can be converted into hydraulic power to the hydraulic motor. The motor drives the reducer again and drives the mixing system by the reducer.
Cement mixer truck can be customized from 2 m3 to 20 m3, on tricycle, 4x2, 6x6, 6x4, 6x2, 8x4, 8x6 chassis and so on.
Features of Shacman concrete mixer truck
1. Shacman 14-18m3 cement mixer truck made of reducer, pump, motor, cement drum, radiator, pipe network system, vacuum gauge, water system, charge and discharge and other components.
2. Truck equipped with imported hydraulic system: Germany ZF, Italy PMP and Germany Rexroth brands reducer; Italy PMP, Germany Rexroth and the United States Sauer brands pump and motor, which make our truck more Stable in operation, lower failure rate and longer service life.
3. Drum is with Q345 high wear-resistant manganese steel, head 8mm, drum body 6mm, and 5mm high-strength steel leaf is wear-resistant manganese steel 520JJ.
4. Our company installs the wear-resistant steel strip on the blade (effectively reduces the drum's wear and prolongs the service life of the drum), the spiral layout of the blade adopts the international leading technology, which can reduce the concrete residue to 2% ~ 3%, and it reached the leading level in the same industry.
Specifications
| Condition | New condition/Left or right hand drive/8X4 | ||||||
| Chassis | Brand | Shacman | |||||
| Gross vehicle weight | 31000 kg | ||||||
| Curb weight(kg) | 15870 kg | ||||||
| Wheelbase(mm) | 1900+4300+1350mm | ||||||
| Dimensions(mm) | 10500×2490×3950 mm | ||||||
| Axle Load(kg) | 7000/ 18000kg | ||||||
| Wheel track front/rear(mm) | 2050/1850 | ||||||
| Max. driving speed(km/h) | 85 km/h | ||||||
| Brake | Air brake | ||||||
| Tire | Number | 12pcs with one spare tire | |||||
| Specifications | 12.00R20 | ||||||
| Fuel tank(L) | 400 L | ||||||
| Fuel Consumption | 33-38L/100KM | ||||||
| Transmission | Faster, 9 Forwards and 1 Reverse with PTO | ||||||
| Cabin | It can accommodate three people, With Air conditioner | ||||||
| Engine | Model | Cummins, ISLe320 30,Water cooled, 4-stoke, direct injection, and intercooled | |||||
| Horsepower(HP) | 250kw/340HP | ||||||
| Emission standard | Euro 3/4/5 | ||||||
| Upper | |||||||
| Mixer drum | Max. Capacity | 14000liters -18000liters | |||||
| Material | High strength steel Q345, 6mm thickness | ||||||
| Vane | Material | Alloy steel Q345, 5mm thickness | |||||
| Specification | Feeding Speed (m3/min) | ≥2.8 | |||||
| Discharging Speed (m3/min) | ≥1.2 | ||||||
| Discharging Residual rate(%) | ≤0.5 | ||||||
| Mixing Tank Rotating Speed (RPM) | 0-17 | ||||||
| Discharging range | 180° full range | ||||||
| Driving system | Option | Option 1 | Option 2 | Option 3 | |||
| Hydraulic Pump | US EATON 5423 | SAUER 75 | SUNNY 56 | ||||
| Hydraulic Motor | US EATON 5433 | SAUER | SUNNY 63 | ||||
| Reducer | Germany ZF4300 brand | Italy Bonfiglioli | China local brand | ||||
| Radiator | China local brand | ||||||
| Water supply system | Water Tank Capacity (liters) | 400 | |||||
| Water supply type | Pneumatic water supply | ||||||
| Control system | Control Way | Connecting Rod Controlling | |||||
| Structure Features |
|
||||||
| Remarks | 1. Color is optional | ||||||

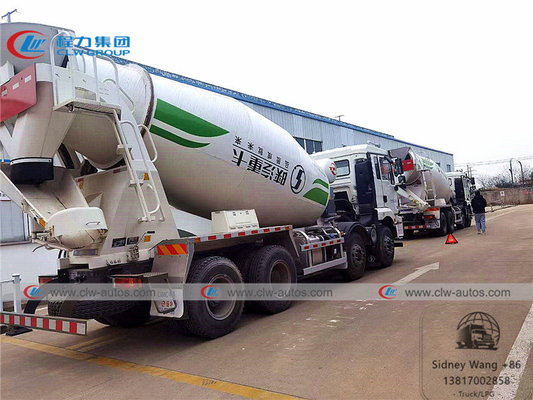

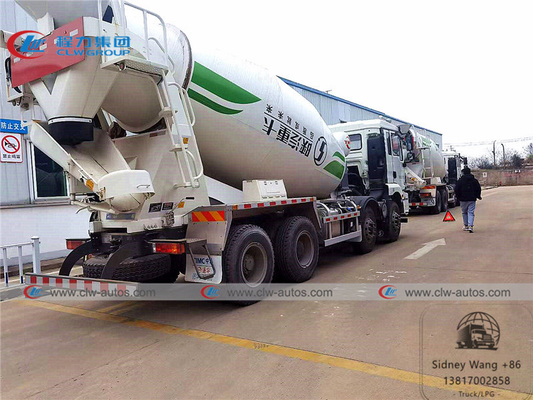

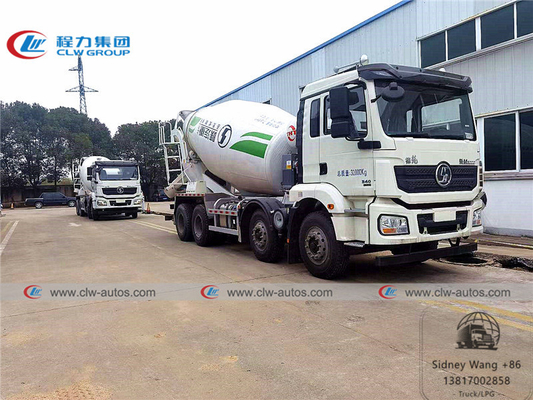

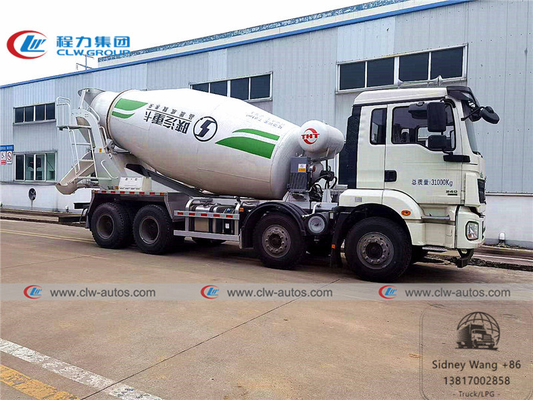

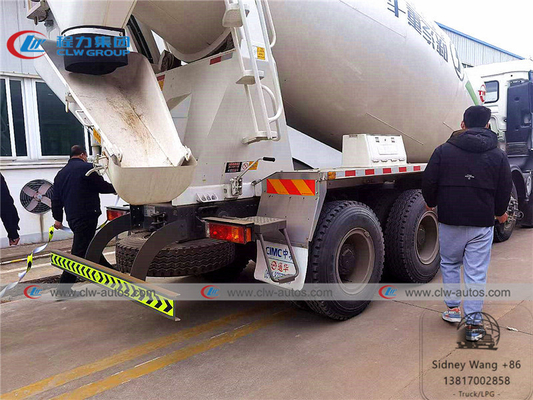

Product Photos
Truck Diagram
Parts
Production workshop
Factory Overview
Overseas Exhibition and Local Support
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
After Sales Service
Email & Phone call tracking for each truck on timely manners.
FAQ
Q1: What kinds of concrete mixer trucks I can order from your company?
A: There are various sizes and types of concrete mixer trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied concrete mixer truck to any overseas companies?
A: Yes,with need of government project,we offered concrete mixer trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
