3 Axle 24CBM 40T U Shape Side Lifting Tipper Semi Trailer

3 Axle 24CBM 40T U Shape Side Lifting Tipper Semi Trailer
3 Axle 24CBM 40T U Shape Side Lifting Tipper Semi Trailer 3 Axle 24CBM 40T U Shape Side Lifting Tipper Semi Trailer 3 Axle 24CBM 40T U Shape Side Lifting Tipper Semi Trailer 3 Axle 24CBM 40T U Shape Side Lifting Tipper Semi Trailer 3 Axle 24CBM 40T U Shape Side Lifting Tipper Semi Trailer

Large Image :  3 Axle 24CBM 40T U Shape Side Lifting Tipper Semi Trailer

Product Details:

Place of Origin: SUIZHOU, HUBEI, CHINA
Brand Name: CLW
Certification: ISO9001, CCC, BV, SGS
Model Number: CLW20210110

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiated
Packaging Details: Naked or waxed before shipment
Delivery Time: 30-35 days after receiving the deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units per month
Detailed Product Description
Tipper Material: Q345B, T700, HARDOX Axle: FUWA, BPW, L1, Brand
Axle Loading: 13tons, Or 16tons, 20Tons Tipper Box: 24m3, 30M3, 32M3, 35M3
Loading Capacity: 50tons, 60tons, 50T, 60T, 40TONS Front Axle: 13 Tons, Or 16 Tons, Liftable
Suspension: Front: Air Bag, Rear: Mechenical Suspension. Tipper Body: U-shape, Or Square Shape
Side Thickness: 6mm Bottom Thickness: 8mm
High Light:

40T Tipper Semi Trailer

,

24CBM Tipper Semi Trailer

,

24CBM 3 Axle Semi Trailer

3 Axle 40Tons U-shape Side Lifting Hydraulic Cylinder Tipping Tipper Semi-trailer





Product Description



CLW dump trailers adopt high strength steel,these make the product increase longer serivce life. And the loading capacity are 40t, 60t, 80t, 100t.

CLW Tippers equipped with reliable hydraulic cylinder. We can customize the tipper trailers according to your special need, like U shape dump, end dump, side tipper, and container tippers including skeleton and flatbeds trailers.

We use well-known brand axles, FUWA, BPW. It's with high performance, and reliable to use.



Advantage:

1. Double-plate main beam for heavy-duty dump trailer, which have stronger carrying capacit, it is not easy to damage.

2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

3. with 4 units vice beam and cross balance beam . The lattice structure of the side door makes the side door more solid

4. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.

5. The leaf spring is widened and thickened, the shock absorption effect is good.

6. Strengthened Ribs, unique structure design to maximize the payload.


product Specification




Trailer Model

3 Axle 24CBM U Shape Tipper Semi Trailer

Overall dimension

11200X2550X3500mm

Inner Dimension

10000X2300X1500mm

Loading capacity

50T

Axle brand and number

16TFuwa 3units

Wheel base(mm)

6100+1320+1320

Kingpin

50# or 90#

Steel Spring

10/10/10 leaf spring suspension

The material of Main beam

The height of the beam is 500 mm,
upper plate is14mm,down plate is 16mm,
middle plate is 8mm.

Lifting

HYVA hydraulic lifting system, model:FC214-5-09030,
lifting weight:55-90Tons, Maxim Lifting Weight 90Tons

Tyre and quantity

12R22.5 tubeless tires, 12 pieces

Landing gear

28ton, double speed operation

Thickness

bottom:8mm, side:6mm

Traction Pin

Φ90MM or 50MM

Brake system

ABS braking system

Brake air chamber

Four double and two single chamber

Electrical system

24V,7 pin socket,One set 6-core standard Cable

Light

Tail lamp with turn signal, brake light & reflector,
side lamp etc

Tool box

1 set

Spare tire carrier

2 sets

Painting

Optional

Packing

Polish with wax before shipping

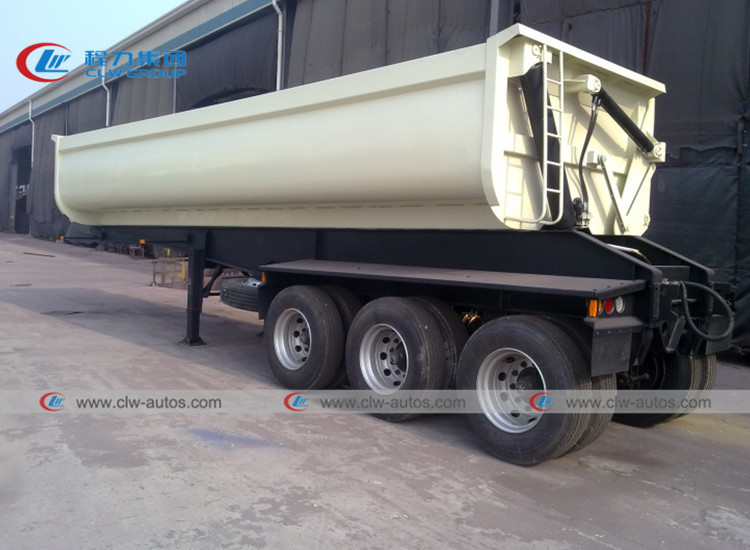

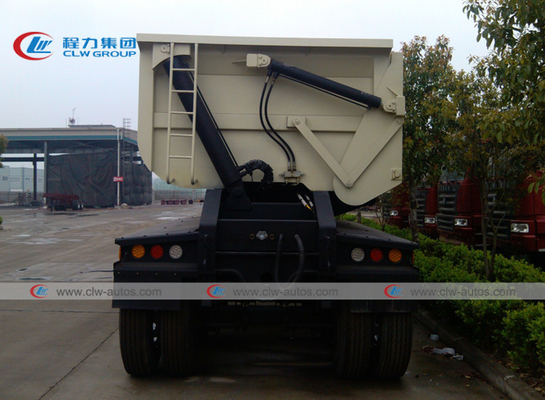

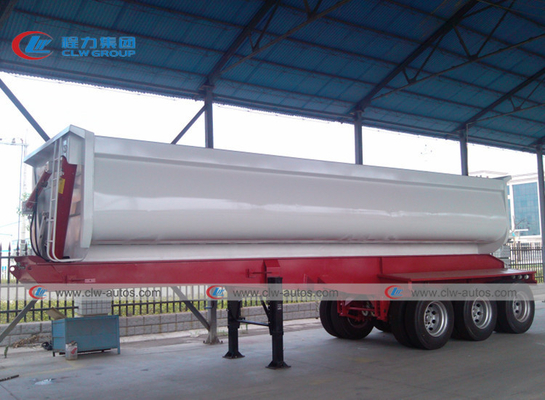

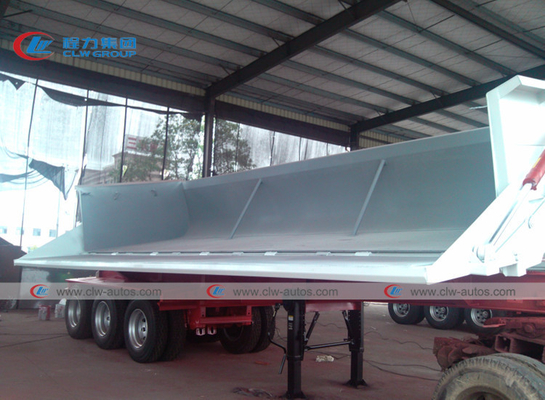

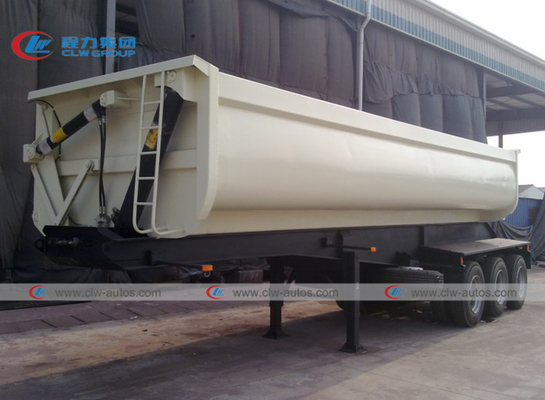

the pictures of 3 Axle 40Tons U-shape Side Lifting Hydraulic Cylinder Tipping Tipper Semi-trailer

3 Axle 24CBM 40T U Shape Side Lifting Tipper Semi Trailer 03 Axle 24CBM 40T U Shape Side Lifting Tipper Semi Trailer 13 Axle 24CBM 40T U Shape Side Lifting Tipper Semi Trailer 23 Axle 24CBM 40T U Shape Side Lifting Tipper Semi Trailer 33 Axle 24CBM 40T U Shape Side Lifting Tipper Semi Trailer 43 Axle 24CBM 40T U Shape Side Lifting Tipper Semi Trailer 53 Axle 24CBM 40T U Shape Side Lifting Tipper Semi Trailer 6



Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



Our Service:

1. Professional design model of chassis trailer for customers' special requirements.
2. Welcome to visit our factory and we will pick you up at airport!
3. Strict Quality Control for the chassis trailer.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solveway for you.



FAQ



Q1. How do you transport the semi trailers
A: We will transport the trailers by bulk or cotainer,we have possess long-term cooperation with ship agency who can provide you lowest shipping fee.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. Can I have samples of this type of trailer to test the quality?
A: Yes, you can buy any samples to test the quality,our MOQ is 1 set.

Q4. Can you satisfy my spacial requirement?
A: Sure! We are direct manufacturer with 20 years experience and we have strong producing capacity and R&D capacity.

Q5. What's the delivery time and can you lower the price?
A: It depends on your order. The delivery time is 15 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lowered.

Q6. Can I customize the painting and the logo?
A: Yes, we offer customized logo for any type.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
