Product Details:
Payment & Shipping Terms:
|
| Tanker Material: | Carbon Steel, Or Stainless Steel, Aluminum Alloy | Product Name: | Watering Cart, Water Sprinkler Water Bowser Truck |
|---|---|---|---|
| Drive Type: | 6x6 Full Wheel Drive, All Wheel Drive, Off Road | Drive Model: | Left Hand Drive, Or Right Hand Drive |
| Loading Capacity: | 20000 Liters 18000 Liters 20 Tons, 20tons, 20T, 20MT | Tuck Function: | Water Sprinkler Cleaning, Water Spraying Washing |
| Equipment: | Front Praying, Rear Side Sprinkler, Side Spraying | Engine: | Diesel Oil |
| Others: | With Water Pump, Water Cannon | Transmission Type: | Manual |
| Tank Volume: | 15001 - 25000L | Name: | Water Bowser,Sprinkling Water Truck Cannon |
| Water Tank Truck Type: | Water Spraying Tank Truck | ||
| High Light: | 6x6 Off Road Water Sprinkler Truck,20000L Water Sprinkler Truck,Sinotruk Howo 6x6 Water Bowser Truck |
||
Sinotruk HOWO 6X6 Off Road All Wheel Drive 30T Front tipping Tipper Dumper Dump Truck
Product Description
A water tank truck, street sprinkler, water bowser, water tanker truck or water tanker, is a motor vehicle designed to carry water on road. Custom-built water tanks are used to deliver potable drinking water and non potable water for dust control or any other specific use that non drinking water can be used for. Our tanks transport
water that is dispensed through a pumping system either through a hose reel for delivery or through a series of spray heads and nozzles to spray the water in different directions.
Our water tankers are available in steel, stainless steel, or aluminum, and can be constructed to haul drinking water and non drinking water each with their own
specific and different types of pumping systems.
Water Sprinkler truck is suitable for all kinds of road washing, trees, green belt, lawn greening, roads, factories and mining enterprises construction construction,
high-altitude building washing, with sprinkling, pressure dust, high, low spraying, pesticide spraying, guardrail washing and other functions,
but also with water transport, water supply, emergency fire control and other functions.
Sprinkler basic configuration: forward, back, side spray, high sprinkler and green gun platform. The vehicle can meet the road cleaning,
green maintenance, fire emergency and transportation supply and other work needs.
Front punch function: it is mainly used for road cleaning. The height of front punch can be adjusted to flush up to 10 lanes.
The mounting position can be selected at the front of the cab, the rear end or the rear of the tank.
Side spray function: mainly used for maintenance of green belt, installation height can be customized according to the actual needs
of customers. Side sprinkler can choose duck mouth, shower head, fire interface, etc.
After sprinkling function: mainly used for road dust removal and road maintenance work, after sprinkling fan can be according
to the actual work needs 360 degree rotation debugging.
High sprinkler function: mainly used for greening maintenance, engineering maintenance and dust removal. The installation height
of high shower is optional, and the density of shower head is optional.
Greening gun function: mainly used for road cleaning, greening maintenance, fire emergency work. Water column can be adjusted fog,
water column, rain, etc., the installation location can be customized.
product Specification
| Main Technical Data | |
| General Specification | |
| Name | Sinotruk Howo 6X6 Off-road Water tanker truck/Water sprinkler truck |
| Gross weight | 25000kg |
| Curb weight | 10900kg |
| Rated load weight | 13970kg |
| Dimension | 9600X2500X3300 mm |
| Crew | 3 |
| Chassis Specification | |
| Chassis brand | Sinotruck |
| Wheel base | 4350+1350 mm |
| Axle number | 2 |
| Axle load | 1800/3500 |
| Tire | 10 |
| Tire specification | 11.00-20 |
| Engine power | 337hp |
| Engine capcacity | 6670ml |
| Emission standard | Euro 5 |
| Water sprinkling specification | |
| Tank dimension | 6500X2250X1450 mm |
| Tank material | 4mm steel plate |
| Tank capacitiy | 14600L |
| Sprinkling width | 15m |
| Water cannon range | 30m |
| Water pump lift | 90m |
| Suction depth | 7m |
| Standard configuration |
4mm thick steel plate tank water pump water cannon sprinkler water work platform Power take off(PTO) Front and rear spray nozzle (Multi-direction) artesian valve,filter, distribution valve, sprinkler nozzle, with self-suction and discharge function |
| Optional equipment | Drug sprinkling plate, drug pump, antirust tank, multi - directional inlet and outlet water joint, solenoid valve, pneumatic valve |

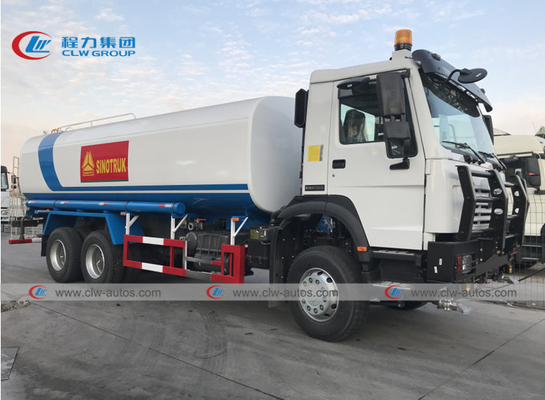

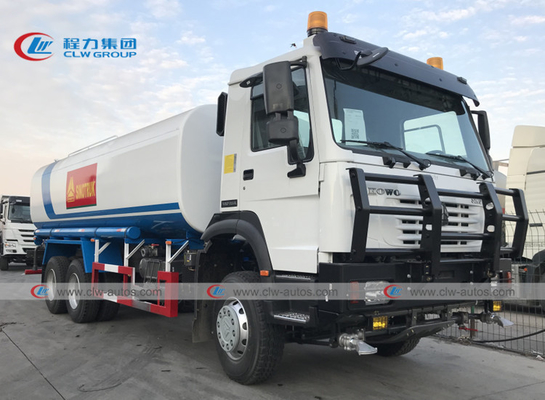

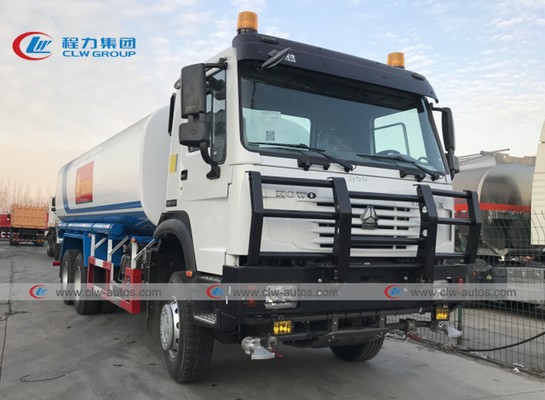

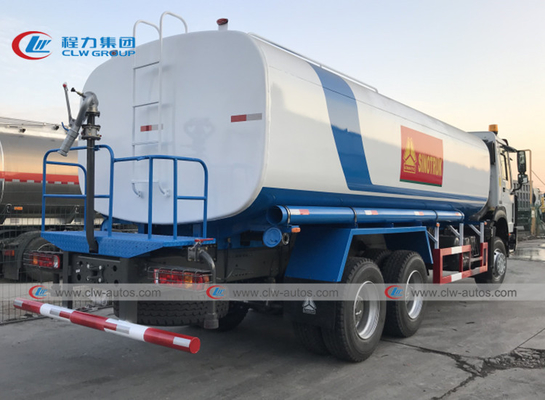

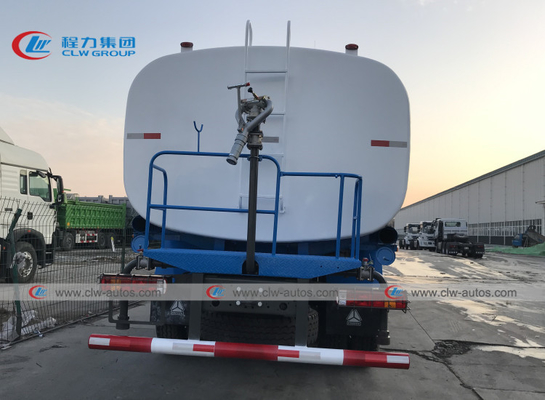

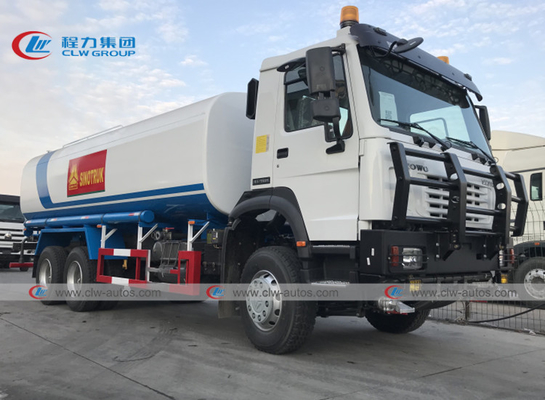

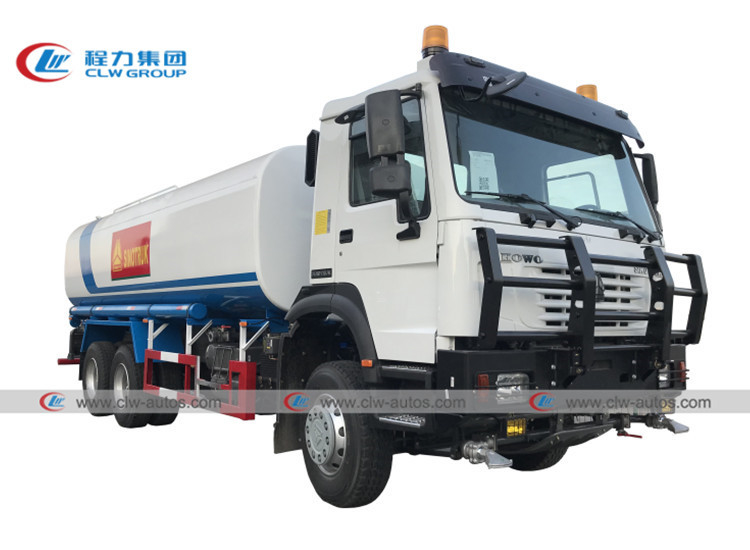

More Pcitures for Sinotruk Howo 6x6 All Wheel Drive Off Road 20000L 20T Water Sprinkler Truck Water
Cart Water Bowser
performance and level:
1. Pre-rinse: install two dc nozzles of 360°. The flushing width shall be above 25m. In addition to washing the road,
when the sprinkler head to about 45°, can be on both sides of the road to wash the tall trees.
2. After spraying; Equipped with two post-spraying devices, mainly for road cleaning and dust pressure, when the
fan spraying, sprinkler width can reach more than 10m.
3. Height: it is equipped with a high-altitude missile with a firing range of more than 30m. It can be adjusted into
a fog or column shape according to the needs.
4. Side spraying: two side spraying nozzles are equipped on both sides of the tank body, mainly for spraying, watering
and dusting the green belt, and also for spraying the pedestrian passage of the green isolation belt.
5. Self-priming: equipped with two suction pipes and one filter, it can self-priming the lake and pond water to save
the use cost.
6. the type of car tanks before coating phosphating and metal accessories, spraying polymer anticorrosive paint and metal paint,
strong adhesion, good corrosion resistance, uniform paint film, color bright persistent, beautiful degree, able to endure, dusty,
salt fog, use for a long time will not produce the problem such as craze, peel, fade, not only the beautiful degree of the product,
also effectively prevent the corrosion.
